Global Waste Disposal System Supplier

Wood Sawdust Machine

This sawdust production machine is very specially producing the sawdust from woodlog to sawdust just in one step without hammer mill and grinder process only just one chop-mill. Chop mill producing particle size is 2-4mm or client demanding size maximum 10mm. Lots of European wood pellet producer is changing and using the there wood pellet process instead of hammer mill process. It's simple and easy operating and drum knife repairing quiclky also this chop-mill knife life time are 1,000Hours production available by normal stone shaving grinder. Chop-mill(sawdust machine)beaver production capacity is from 25m3/h to 75m3/h range depend on your demading capacity.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ESM-55

  • ENERPAT

Product Overview

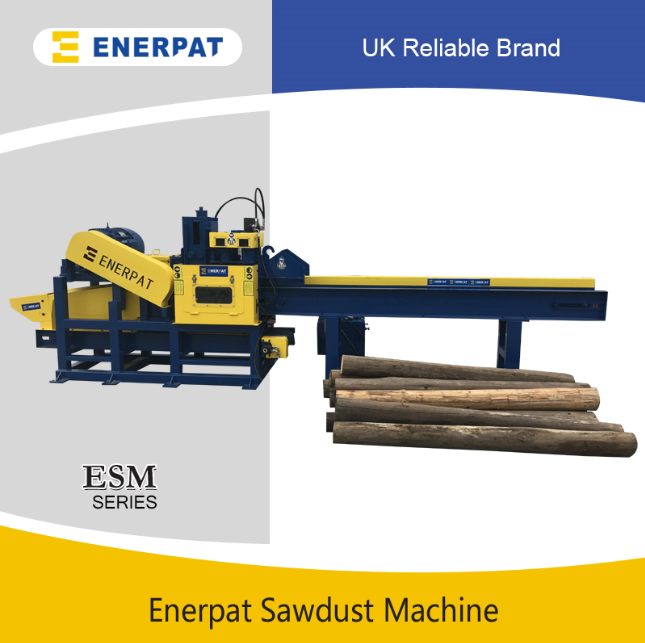

ENERPAT Auto Wood Sawdust Machine


This wood sawdust machine is designed to produce wood sawdust in desired and suitable size to be able to use them as many applications.wood sawdust can be used to do the mechanism of charcoal, mushroom cultivation, black fungus mushroom cultivation, mushroom processing Agaricus bisporus, MDF processing, particleboard processing, fiberboard processing, Zen Incense and mosquito coils manufacturing, paper pulp raw materials, making charcoal fuel and other functions.

The enerpat ESM-55 automatic wood sawdust machine is one 55kw drive machine,used for making wood from firewood,wood logs and scrap wood.our wood sawdust machine come with automatic re-set function,when feeding the big size wood into the machine,which can not process,the re-set function will protect the machine and feed back the wood.

This sawdust production machine is very specially producing the sawdust from woodlog to sawdust just in one step without hammer mill and grinder process only just one chop-mill. Chop mill producing particle size is 2-4mm or client demanding size maximum 10mm. Lots of European wood pellet producer is changing and using the there wood pellet process instead of hammer mill process. It's simple and easy operating and drum knife repairing quiclky also this chop-mill knife life time are 1,000Hours production available by normal stone shaving grinder. Chop-mill(sawdust machine)beaver production capacity is from 25m3/h to 75m3/h range depend on your demading capacity.


Official Photo

木屑机-1

木屑机-2

木屑机3

木屑机-4

Photo From Factory And Customer Site (BLUE)


wood sawdust machine

Applications

  • firewood

  • logs

  • scrap wood

  • wood branch

  • scrap Furniture

  • etc

Technical Data Sheet

Model  ESM-55
Power Supply  2x380V 50Hz 37A
Motor Power (kW) 55
Noise Level(dB) 65-68
Feeding In Size  210 x 210
Crushing Chamber LxW(mm) 420 x 220
Throughput(m3/h) 10
Pump(ml/r) 5
Oil Volume (l) 100
Oil Type  ISO NO 46
Machine Length(mm) 5300
Machine Width(mm) 900
Machine Height(mm) 1400
Machine Weight (t) 3.5


Video

Previous:
Next:
Product Inquiry
ENERPAT is the international company,we have factory in England Germany and China. We focus on sorter,shredder,baler for various kinds of recycling waste from metal to plastic. Enerpat Believe “Quality Changes the World”; Display the world’s highest quality; With our people-oriented belief.
