Hammer Mill

ENERPAT Hammer Mill designed for shredding scrap metals like: car engine, car wheels, motors, steel scrap, aluminum scrap such scrap metals, shredding and separating steel, aluminum, non-metal materials. Capacity from 5 tons/h to 30 tons/h. Adopting UK technology, 100% high quality with CE, ISO certification.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MSE-H


Product Video

Product Description

Hammer Mill

ENERPAT Hammer Mill ( MSE-H Series)

MSA-H series Hammer Mill from Enerpat is for the recycling of scrap metals. It is suitable for processing materials such as car engines, wheels, car shells, motors, steel scrap, aluminum scrap, waste small appliances, aluminum scrap, light scrap steel and other kinds of materials.

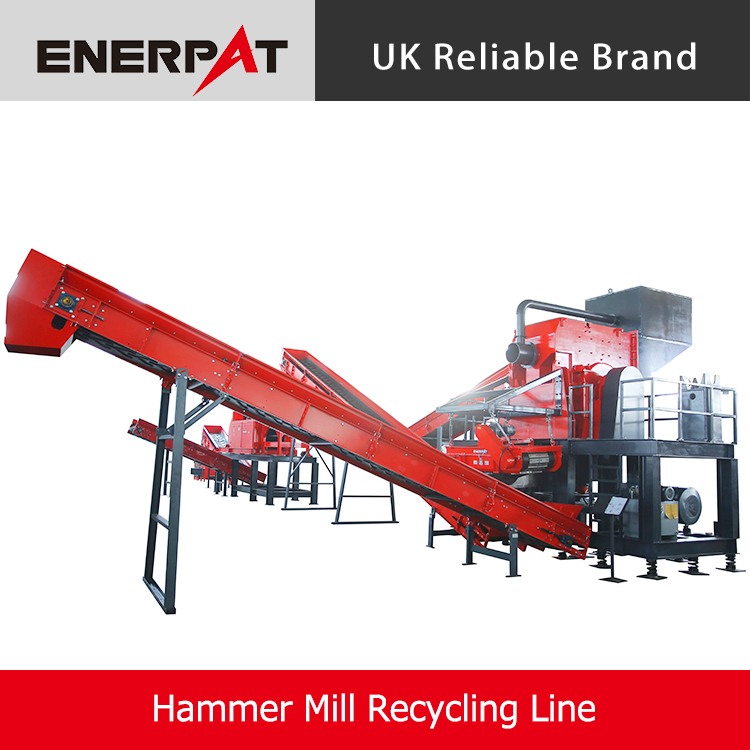

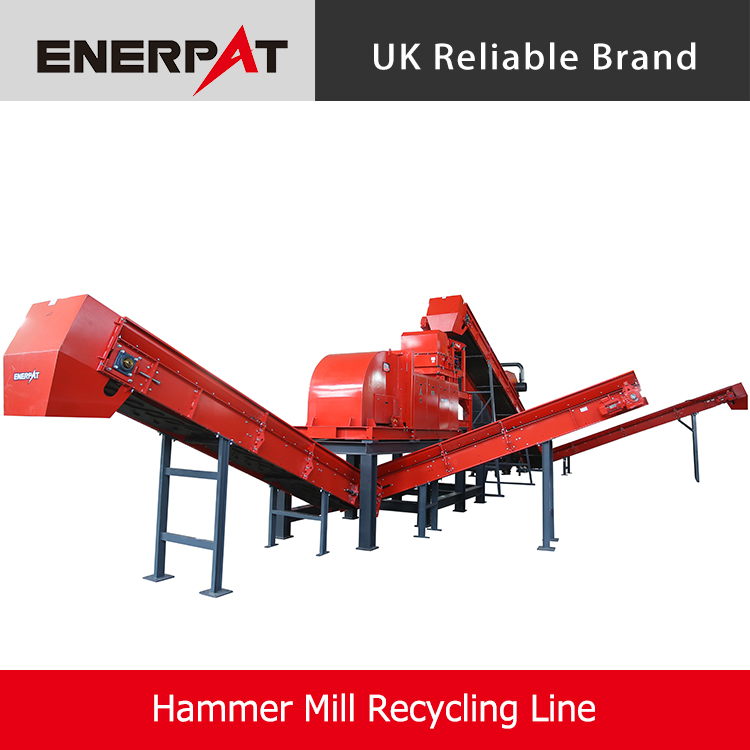

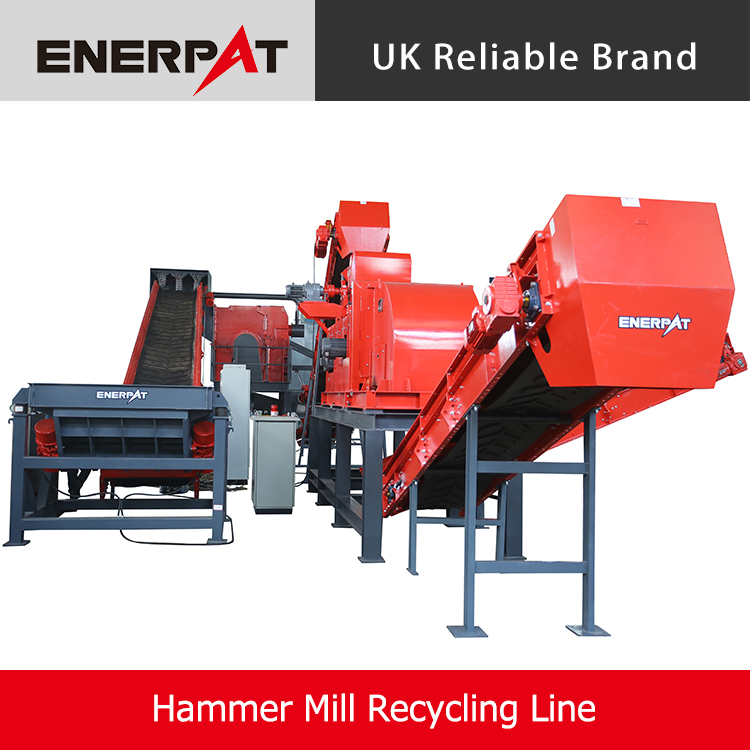

This machine can be integrated with conveyor and screening equipment to efficiently separate iron, steel, aluminum, and non-metallic materials. It has a capacity from 5 tons/hour to 30 tons/hour. It adopts British technology, 100% high quality and CE, ISO certified.

Composition and Structure


Product Applications


The metal is torn and extruded into ball shape under the powerful impact of the hammer mill, while the impurities attached to the metal are separated. The end product is of high density and purity, and can be used for re-melting into new products.

Product Details

High-Strength Cutter Shaft Structure

High-Strength Cutter Shaft Structure
  • With HARDOX 500 Wearing Plate on the shaft for protection.

  • Different hammer design for different materials, which can improve the shredding efficiency greatly.

  • High chromium steel hammers.

  • hammers can be rotated 360 degree, which will not get stuck.

Integral Durable Crushing Chamber

Integral Durable Crushing Chamber
  • After the crushing chamber is welded, the overall stress relief is annealed, and it is processed and bored by high-precision numerical control to ensure long-term high-load operation of the equipment.

  • Inside Wearing Plate is NM500 or HARDOX 500.

Discharge abnormal material automatically

Discharge abnormal material automatically
  • There has sensor inside of the crusher can recognize abnormal material, It can give instructions to the crusher if meet some hard materials can not crush, to discharge abnormal material automatically.

Convenient Crusher Screen Replacement

Convenient Crusher Screen Replacement
  • There has rail for the screen, just loose 8 pcs screws, use forklift to pull it, then you can replace the screen. Two minutes is enough.

Convenient Hammers and Pins Replacement

Convenient Hammers and Pins Replacement
  • We have hydraulic system which can assist us to change the hammers and Pins.

  • With special Springs installed below the Crusher, it can efficiently reduce the machine vibration when working.

Electric System

Electric System
  • The electric cabinet is equipped with a Siemens/Schneider PLC.

  • The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.

  • Siemens/Schneider electrical components are adopted.

  • With SCHNEIDER Soft Starter.

Technical Specification

Motor Power150 KW180 KW220 KW500 KW700 KW
Feeding Hopper Size1023x674 mm1223×674 mm1526×983 mm3064×1596 mm4047×2141 mm
Shaft Diameter185 mm185 mm185 mm260 mm350 mm
Rotor Diameter850 mm860 mm870 mm1030 mm1240 mm
Shredding Chamber Length580 mm825 mm1090 mm1596 mm2118 mm
Hammer Thickness65 mm65 mm65 mm94 mm96 mm
Hammer Quantity8 pcs12 pcs16 pcs2 2pcs30 pcs
Rotor Speed480 rpm480 rpm480 rpm480rpm480 rpm
Wearing Plate MaterialHigh chromeHigh chromeHigh chromeHigh chromeHigh chrome
Wearing Plate Quantity800kg

1200 kg

1.4 tons2.4 tons2.6 tons
Machine Size3214×3139×4532 mm3414×3139×4532 mm5500×4800×4919 mm6800x4800x4925 mm9199×8880×7300 mm
Machine Weight14  tons17 tons23 tons28 tons65 tons
