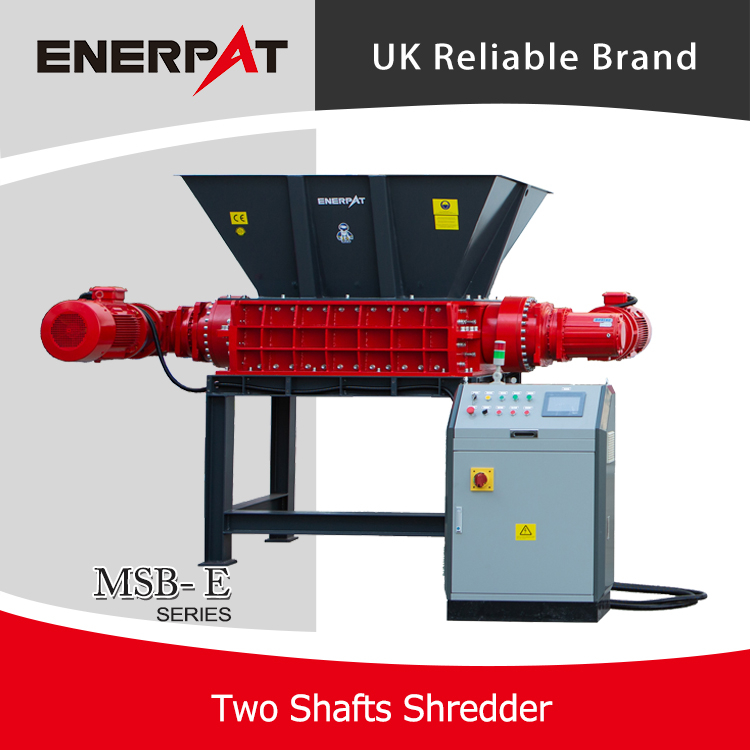

Two Shafts Shredder

MSB-E Series Two Shafts Shredders are small to large size reduction machines suitable for processing a wide range of materials to a smaller size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughout typically range between 300kg/hr – 20,000kg/hr+ depending on the model, material type and application.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MSB-E

  • ENERPAT

Product Video


MSB-E series Double Shaft Shredder Video

Product Description

Two Shafts Shredder


MSB-E series Double Shaft Shredder from Enerpat is a shredding machine for a wide range of applications. It utilizes the principle of mutual shearing and tearing between two relatively rotating knives, which can efficiently shred the solid waste generated from various industries. The whole machine has passed CE certification authorized by EU and has a very complete range of models so that it can meet the actual needs of different customers.


MSB-E Series Two Shafts Shredders are widely used in the volumetric reduction of various waste products,

 including but not restricted to the following. Light Scrap Metals, Bulky Waste, Wood Waste, Plastic Waste, Cardboard waste, Textiles Waste, Domestic Rubbish & Electronic Waste. The Output material discharged by the shredder could be an end product or the primary feed for the next process.


Composition and Structure

Composition and Structure


Enerpat Shredder is a very sturdy machine that is convincing thanks to its technology and expertise.The machine is designed for a long service life, energy efficiency and very low maintenance and can be optimally adjusted to your needs.This frees up time for what is really important in your company!

As a member of Enerpat shredder family. MSB-E series Shredder is a low-speed,  high-torque, two- shaft rotary shear industrial shredder designed to efficiently process a variety of difficult materials. The proven cutting system ensures the efficient and reliable shredding of your materials.


Operation Principles


Conveying to Feed-In

Conveying to Feed-In

Conveying to shredding chamber by forklift or conveyor


Material Shredding

Material Shredding

Utilizing the principle of mutual shearing and tearing between two rotating blades to shred the material.


End Product

End Product

The material is shredded into strips or pieces, realizing the rough shredding effect of the material.



The shredding machines can also be equipped with additional separating and conveyor technology, customized hoppers and substructures and control expansions. We offer comprehensive solutions from one source!


Product Details


Detachable box

Detachable box

  1. The shredding chamber body can be deconstructed from each end of the coupling. The main shaft can be detached as a whole by removing the mounting plate at each end of the bearing.

  2. Once the main shaft is dismantled,the cutter body and bearings can be kept and inspected,and if need be,then it can be replaced as well.

  3. Regarding the processing ofthe shredding chamber,care should be taken to position the main shaft and bearing at central position during installation to ensure that the structure remains intact and lasts longer.


Heavy-load planetary reducer

Heavy-load planetary reducer

  1. It has a box of rigid casting reducer consisting of gussets.

  2. The sturdy finishing gear is composed of high-quality steel alloy,and the surface is processed through carburizing and quenching methods.

  3. Then,the structure is finely processed by means of gear grinding.This through process ensures many operational benefits,such as stable transmission power, low noise and greater carrying capacity.


Detachable cutter

Detachable cutter

  1. Detachable blade design greatly reduces blade replacement time

  2. A complete crushing blade comprises of three parts.

  3. It is quite easy to replace a worn blade: simply loosen and tighten the bolt.


Electric system

Electric system

  1. The electric cabinet is equipped with a Siemens/Schneider PLC.

  2. The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.

  3. Siemens/Schneider electrical components are adopted.


Sealing system

4.5密封系统
  1. The bearing has a quadruple sealing protection design which makes it dust proof and waterproof, effectively prolonging the service life of the bearing.

  2. Therefore,it can work excellently in an outdoor, highly dusty environment.


Auxiliary system

Auxiliary system
  1. A pressing device is optional.It can help to crush materials rapidly.

  2. A rotating screen is optional,and it guarantees dimensional uniformity of crushed products.


Splined main shaft

Splined main shaft
  1. The moving blade base and the main shaft align in spline transmission.

  2. The design consist of a large surface junction without stress concentration.The spiral

  3. configuration of the moving blade base can enhance its crushing efficiency and reduce energy consumption.

  4. The moving blade base has been tested by using 100% ultrasonic and non-destructive inspection to maximize the cutter's crushing capacity. dimensional uniformity of crushed products.


Heavy-load self-aligning bearing

Heavy-load self-aligning bearing
  1. We install heavy-load self-aligning bearings on two main shafts.

  2. When a blade is impacted by a heavy load,the heavy-load self-aligning bearing produces an immense mechanical action that relieves the impact force.

  3. We choose the world's leading bearings.of brands such as FAG and SKF as a standard configuration for all ENERPAT shredders.


Applications

Applications


Technical Data Sheet

ModelMSB-E300MSB-E600MSB-E800MSB-E1000MSB-E1200
Motor Power (KW)7.5/1111/1515/30/603744/90/150
Blade Diameter (mm)∅170-300∅270-300∅270-450∅270-450∅320-520
Shaft Speed (RPM)13-18.59-3210-3210-327.5-32
Shredding Chamber Length (mm)30060080010001200
Blade MaterialGermanyGermanyGermanyGermanyGermany
Blade Thickness (mm)2020/3020/3030/4030/40
Machine Size (mm)1500×1300×18502500×1300×18502700×1300×18503300x1900x22003600×2000×2200
Machine Weight (kgs)10001500230052006400


ModelMSB-E1600MSB-E1800MSB-E2000MSB-E2200
Motor Power (KW)90180/220180/220220
Blade Diameter (mm)∅450-800∅450-800∅450-800∅450-800
Shaft Speed (RPM)5.5-14.55.5-14.55.5-14.55.5-14.5
Shredding Chamber Length (mm)1600180020002200
Blade MaterialGermanyGermanyGermanyGermany
Blade Thickness (mm)50/75/10050/75/10050/75/10050/75/100
Machine Size (mm)5500×2200×26007000×3100×40007500×3500×44008000×4000×5000
Machine Weight (kgs)30000340004000045000


Successful Cases

USA MSB-E1200

Area:USA

Model:MSB-E1200

USA MSB-E1600

Area:North America

Model:MSB-E1200


USA MSB-E1200

Area:USA

Model:MSB-E1200

China MSB-E1800

Area:China

Model:MSB-E1800
