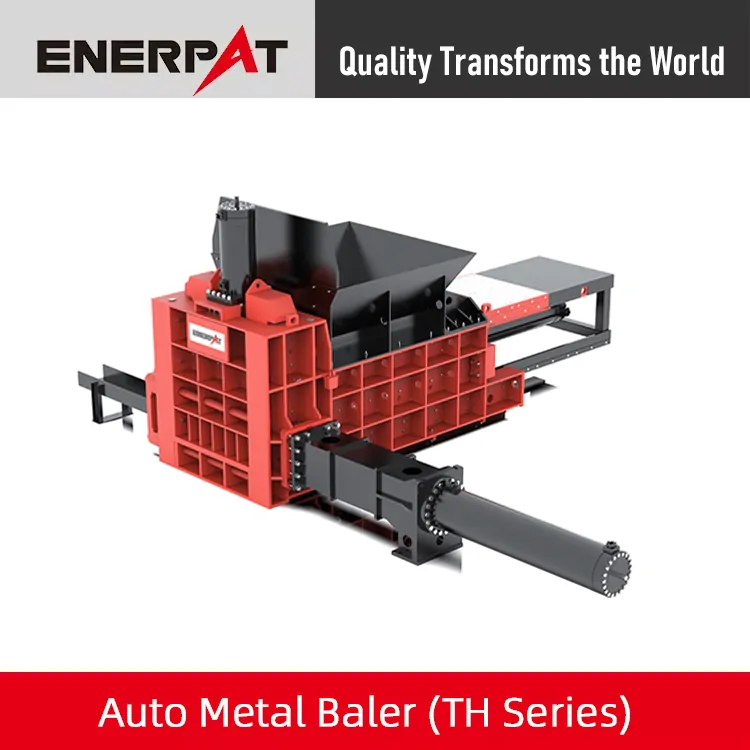

Triple Compression Scrap Metal Baler

Enerpat TH-SERIES Automatic Scrap Metal Baler baling presses are used to compact all types of metal scrap into high density bales .
TH-SERIES triple balers offer high performance processing of aluminum, copper, as well as ferrous and stainless materials.
conforming to the requirements of steel plants and foundries.Adopt British technology, 100% high quality, CE, ISO certified.

Quantity:
Availability:





Inquire Add to Basket

Model:
TH Series
Brand:
ENERPAT
Code:
TH Series

Product Description

Triple-acting Auto Metal Baler (TH Series)--Banner2

ENERPAT Scrap Metal Baler Advantages

1.Triple-acting Auto Metal Baler (TH Series)

The TH Series triple balers are in use both in scrap yards as well as in regular operation in recycling companies. The sturdy design permits compression of stamping waste, sheet metal, cans, light profiles, wires and thin-walled pipes. Oversized scrap pieces are automatically cut by the integrated blade. Due to the triple baling and short cycle time, it is used everywhere where scrap has to be efficiently pressed into compact bales.

2.Easy operation & low maintenance

Suitable for recycling companies processing ferrous and non-ferrous metals.

fully automatic operation

Balers can be installed indoors or outdoors

Interface via intuitive touch screen, providing easy access to production parameters and operational data

Diagnostics via router

Composition and Structure

Product Details

Durability & service
Increase performance，Reduce downtime!

Robust design

Pre-tensioned press box sx
V-shaped shear blade
Grooved floor and sidewall liners
Highly wear-resistant replaceable liners
Pre-formed high-pressure piping
Service support available globally

Efficiency
Reduce costs，Create value!

Excellent production rates are achieved by a combination of design and controls.
Fully guided compactors
Large press box volume
Baler-mounted hydraulic control manifold
for superior performance
Remote control
Variants with higher final compression
Advanced global design, local parts & support

Easy operation &low maintenance

Where you need it，When you need it!

Suitable for recycling companies processing ferrous and non-ferrous metals.

Technical Data Sheet

MODEL		AMB-TH-2080	AMB-TH-2210	AMB-TH-2212	AMB-TH-2812	AMB-TH-2815	AMB-TH-6020	AMB-TH-60201
BalesHxW(L)	mm	250 x 250 （var.)	300 x 300 （var.)	300 x 300 （var.)	400 x 400 （var.)	400 x 400 （var.)	600 x 600 （var.)	600 x 600 （var.)
Motor Power	kW	1 x 55	1 x 55 1 x 90 2 x 55	1 x 55 1 x 90 2 x 55	1 x 90 2 x 55	1 x 90 2 x 90 3 x 90	3 x 90	3 x 90
Cycle time (no-load)	S	25	34 - 23	38 - 26	40 - 36	46 - 28	60	69
Bales/h (90% availability)	1/h	137	101 - 149	90 - 132	86 - 95	74 - 122	57	50
Max. production capacity, Fe (bale weight)	t/h	10 （69 kg）	13 - 19 (124 kg)	12 - 17 （124 kg)	24 - 26 (264 kg)	21 - 34 (264 kg)	47 (791 kg)	59 (1,130 kg)
Max. production capacity, Cu + Ms (bale weight)	t/h	11 (78kg)	15 - 22 (141 kg)	13 - 20 (141 kg)	27 - 30 (301 kg)	23 - 39 (301 kg)	54 (903 kg)	67 (1,290 kg)
Max. production capacity, Al (bale weight)	t/h	4 (28kg)	5 - 7 (44 kg)	4 - 6 (44 kg)	8 - 9 (94 kg)	7 - 12 (94 kg)	16 (272 kg)	20 (389 kg)
Cylinder forces, 1st compactor	t	72	112	112	161	189	343	343
Cylinder forces, 2nd compactor	t	91	136	161	220	252	494	494
Cylinder forces, final compactor	t	160	200	200	350	350	800	1,000
Spec. pressure final compactor	N/ cm²	2,128	2,063	2,063	2,104	2,104	2,144	2,749
Press box, (W x L x H)	mm	795 x 1,925 x 600	1,020 x 2,235 x 800	1,245 x 2,235 x 800	1,245 x 2,840 x 1,100	1,500 x 2,840 x 1,100	2,000 x 6,000 x 1,600	2,010 x 6,000 x 1,600
Feed opening, (W x L)	mm	725 x 1,450	945 x 1,655	1,170 x 1,655	1,170 x 2,130	1,425 x 2,130	2,910 x 4,930	1,910 x 4,930
Machine dimensions (W x Lx H)	mm	4,550 x 5,800 x 3,000	5,290 x 6,605 x 3,735	5,990 x 6,605 x 3,775	6,360 x 8,035 x 4,600	7,060 x 8,035 x 4,615	10,155 x 15,650 x 6,110	10,495 x 15,650 x 6,110
Machine weight	t	approx. 25	approx. 41	approx. 44	approx. 60	approx. 67	approx. 186	approx. 201
