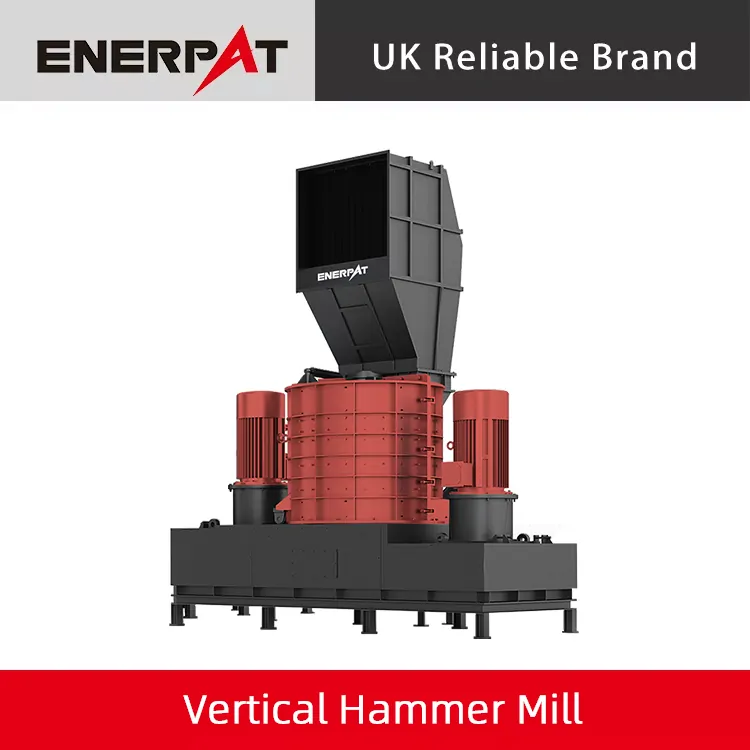

Vertical Shredder (Hammer Mill)

ENERPAT V Series Vertical Shredder (Hammer Mill) is the preferred equipment for scrap metal recycling. It is specifically designed to crush electronic waste and aluminum scraps. With its efficient crushing and fine grinding capabilities, it provides a solid foundation for subsequent material sorting and recycling.

Advantages of ENERPAT

U.S. Warehouse: Quick access to parts and support for faster service.
Source Factory: Direct manufacturing ensures quality and cost-effectiveness.
Certifications: CE and ISO certifications validate our commitment to quality and safety.
Warranty: 1-year warranty on the entire machine, with a 5-year warranty on the hydraulic cylinder, providing peace of mind for users.

Quantity:
Availability:





Inquire Add to Basket

Model:
V
Brand:
ENERPAT

Product Video

Vertical Shredder (Hammer Mill) Video

Product Description

Vertical Shredder (Hammer Mill)

ENERPAT V Series Vertical Shredder (Hammer Mill)

Built for today’s scrap yards, the ENERPAT V Series Vertical Shredder is a reliable workhorse in metal recycling. It turns waste metal into 50 to 80 mm chips that slide through the gap between the lower cutter ring and the shell, then drop into the discharge chamber where a scraper clears them away. The machine excels in e-waste recovery, aluminum processing, auto dismantling, and most other metal waste jobs. With its outstanding output and uptime, the V Series has set a new benchmark for the industry.

Key Features

High efficiency crushing
High manganese hammers resist wear and impact, keeping throughput high across varied feed materials.
Clean finish grinding
The advanced cutter system delivers a sharp, uniform break and leaves the metal surface clean, making downstream separation faster and easier.
Simple upkeep
A compact, well-planned layout lets technicians reach service points quickly, cutting maintenance time and running costs.
Built-in safety
Multiple guards, sensors, and lockouts meet the latest safety standards, protecting both crew and machine for worry-free operation.

Composition and Structure

Vertical Shredder (Hammer Mill)

Operation Principles

Material Feeding

Material Feeding

Scrap metal is conveyed into the crushing chamber of the vertical shredder through the feeding system.

Material Crushing

Material Crushing

The hammers at the top of the chamber crush the material, which is then ground between the rolling knife and the wear-resistant liner of the housing.

Discharge

Discharge

Metal particles crushed to 50-80 mm pass through the gap between the bottom rolling knife and the housing into the discharge chamber, where they are expelled by the scraping device.

Product Applications

Product Details

Box Design

Ultra-Wear-Resistant Housing: Features ultra-high strength welding technology, providing exceptional durability and impact resistance.
Split Design: The vertical housing opens for easier maintenance and servicing.
Compression-Resistant Structure: Designed to withstand high pressure, ensuring stable operation under heavy loads over time.

Hammer Features

High Toughness Wear-Resistant Hammers: Made from high toughness wear-resistant steel castings.
Heat Treatment Process: Fully tempered with surface hardening for enhanced durability.
Long Lifespan and High Safety: Resistant to wear and impact, ensuring a long service life and reliable safety.

Power System

Siemens Motor: Utilizes a German Siemens motor for reliable performance.
Large Diameter Pulley: High-standard pulleys work together to deliver sustained and powerful output.
Hydraulic Coupler: Equipped with a hydraulic coupler to optimize starting performance and reduce current surges.

Bearing Configuration

FAG/SKF Bearings: Uses German FAG or SKF bearings for high reliability.
Robust Load Protection: Designed to handle strong loads, effectively absorbing shock loads to protect the equipment.
Self-Aligning to Extend Lifespan: Features a self-aligning functionality that minimizes wear and prolongs service life.

Intelligent Control

One-Touch Start: Step into the era of smart control.
PLC System: Features Siemens/Schneider PLC with a visual touch screen.
Automatic Adjustment: Flexible feed adjustment for easy and effortless operation.

Technical Data Sheet
