Reliable, Durable & Efficient
— Global Waste Disposal System Supplier


Drum Crusher

The ENERPAT DC Series Drum Crusher is an environmentally friendly recycling unit designed to press empty oil drums into flat bales. It meets the handling needs of all common waste oil drums. Hydraulic pressure squeezes each drum until it lies flat, cutting its volume, freeing up storage space, and making transport and recycling easier.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • DC-30

  • ENERPAT

Product Video

Product Overview

Drum Crusher

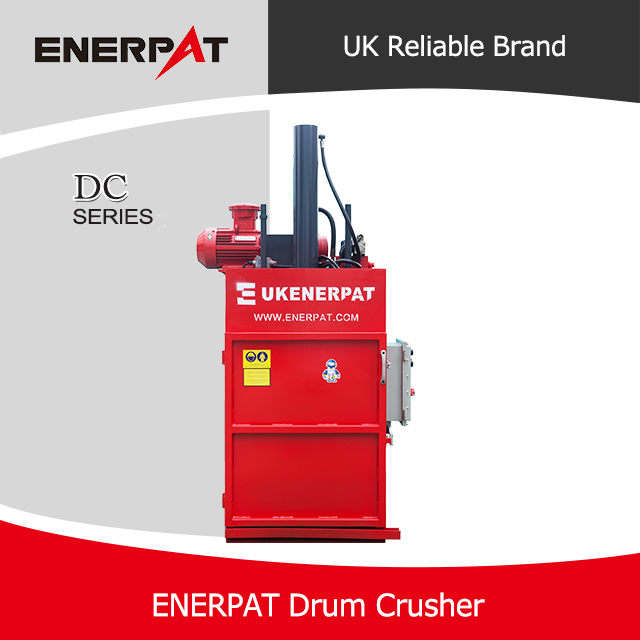

ENERPAT Drum Crusher

We have been building drum crushers for more than 20 years and have supplied over 5,000 units worldwide. One-touch start and built-in safety guards let the machine work safely in many industries. Our crushers flatten a 55-gallon steel drum to about 2.5 in in 25 seconds full cycle. Versions are offered for in-plant use or as portables with electric, diesel, or gas drives.


Composition and Structure

The crusher uses a heavy-duty frame with integrated electric and hydraulic packs. To protect people and equipment it carries a piercing spike, an antistatic kit, and safety interlocks that stop any chance of fire or explosion during duty. The unit is safe, fast, versatile, easy to run, and labor saving for waste oil drum handling.

Composition and Structure

Working Principle

Put the waste oil drum into the press chamber,close the door,one button operation,the drum been pressed into flat in 20 S.


Product Applications

Product Applications


Product Details

Machine Body

Machine Body
  • Integrated Machine Design,saving space and convenient to use

  • Compact structure and flexible installation


Puncture Nail

Puncture Nail
  • When the machine press plate pressing down, the Puncture Nail will break the steel drum and release inside air

  • Prevent explosion when airtight oil drum been crushing


Optional explosion-proof components

Optional explosion-proof components
  • Can be equipped with explosion-proof motor, solenoid valve, electric control box and limit switch


Safety Security

产品细节3
  • SIEMENS motor and SCHNEIDER electric system

  • We install safety switch on the door, the machine will be powered off once the door open


Position Device

Position Device

  • Accurate position without deviation, ensuring the final effect

  • The Position Device can fix the oil drum without deflection


Liquid Collection Groove

产品细节4

  • Used for collecting the liquids from the drums

  • Keep the environment and machine clean


Technical Data Sheet

ModelDC-15DC-20DC-30

Press Force (Tons)

152030

Motor Power (KW)

2.235.5

Press Chamber Size (mm)

500*500*440

600*500*440

780*780*940

Cycle Time (S)152026

Machine Size (mm)

710*650*1650

980*500*1810

1150*900*2450

Machine Weight (kgs)

450

700

1000

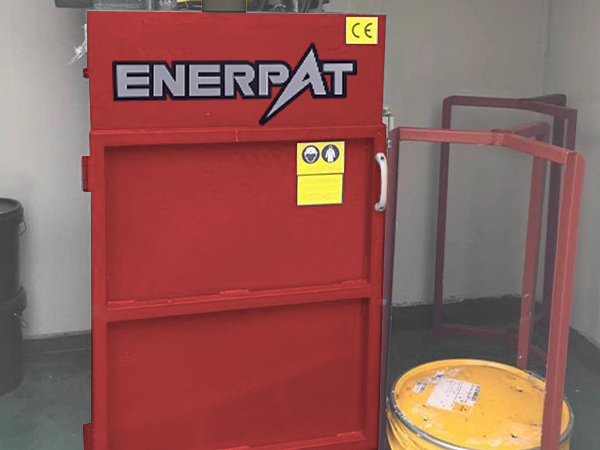

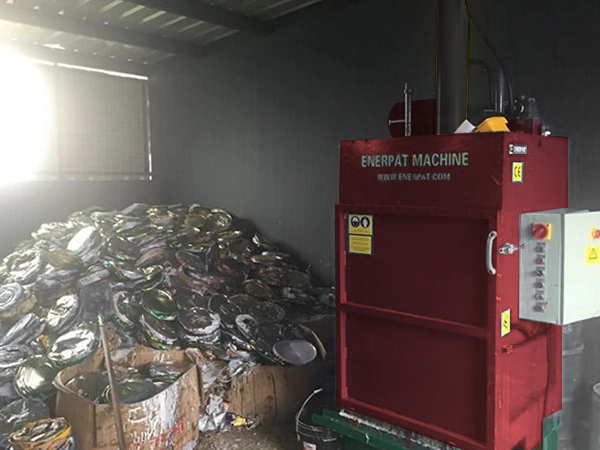

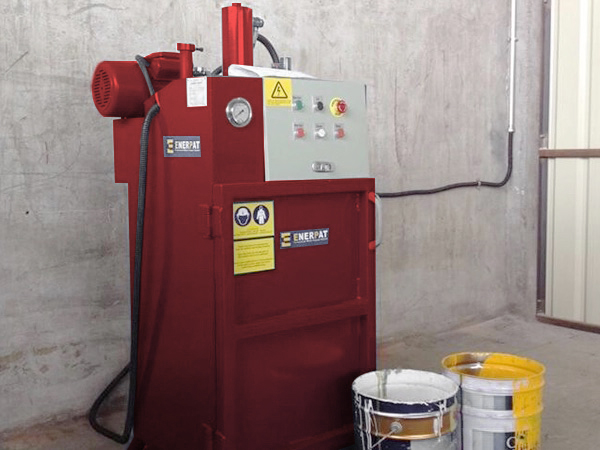

Successful Cases

Customer Cases Customer Cases
Customer Cases Successful Case
