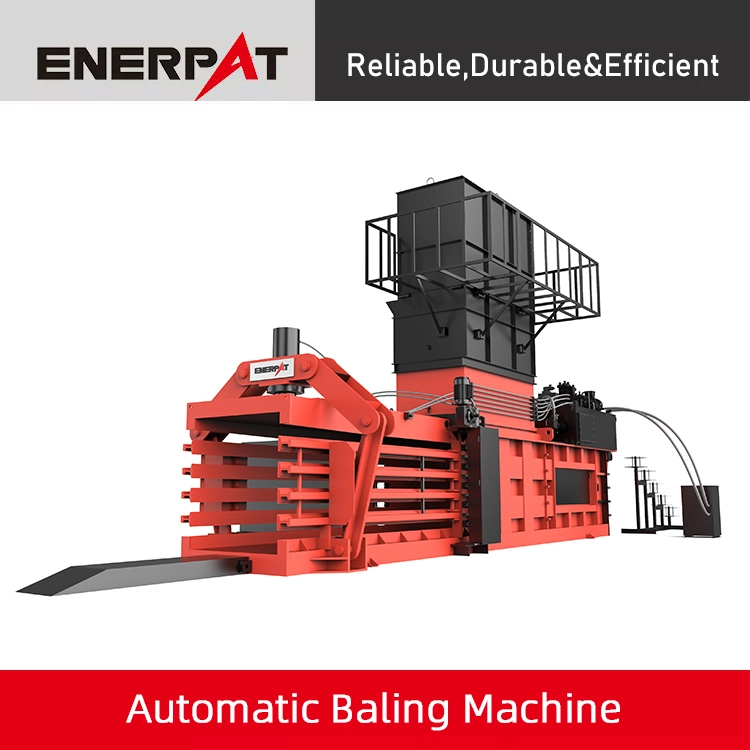

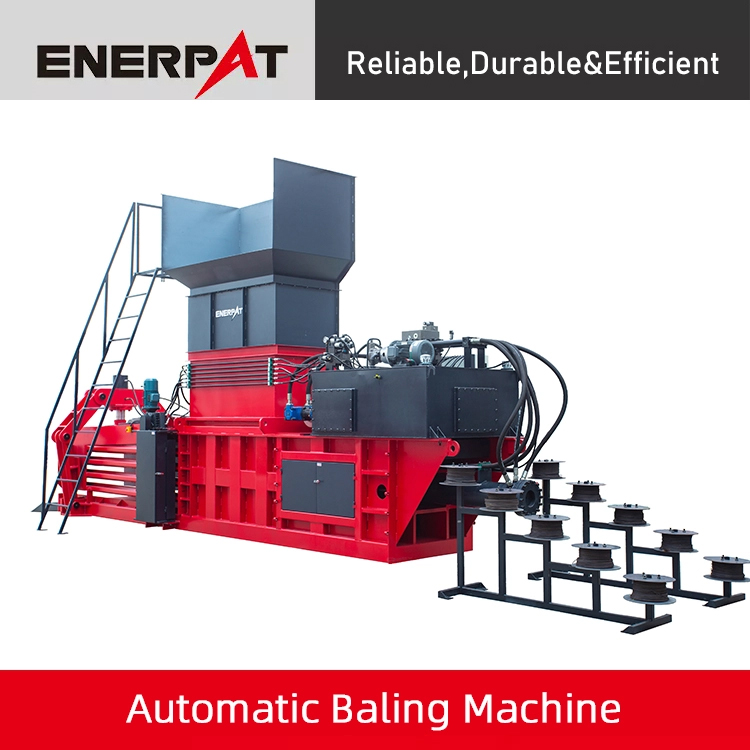

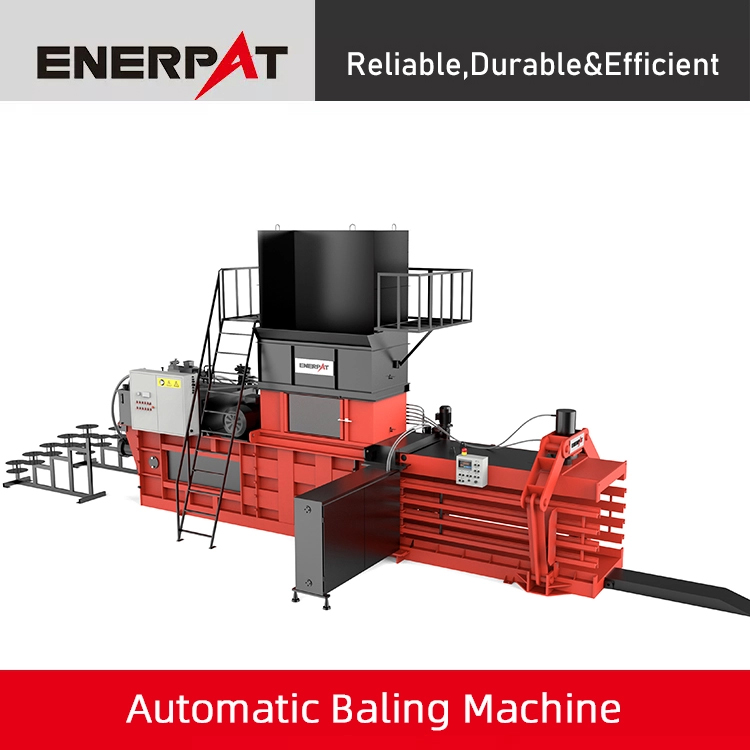

Auto-Tie Horizontal Baler

The Enerpat Auto Tie Horizontal Baler is the automated upgrade of our horizontal line and easily handles large loads of recyclables such as paper, cardboard, and plastic. It suits firms that deal with heavy daily waste, delivering up to twenty tons per hour. The press packs material into solid, high density bales that stack safely and free up floor space.

Bale length and weight can be set in advance, and once the chosen length is reached each bale is tied on its own. The baler carries the CE mark and was built around customer input, turning waste handling into a simple and cost-saving job.

Key Features

Applicable Materials: Cardboard, Plastic Bottles, Film, Industrial Waste - Non-hazardous, etc.
Bale Dimensions: 500×500 mm, 720×720 mm, 1100×1100 mm, 1100×1250 mm, etc.

Quantity:
Availability:





Inquire Add to Basket

Model:
HBA
Brand:
ENERPAT

Product Video

Product Overview

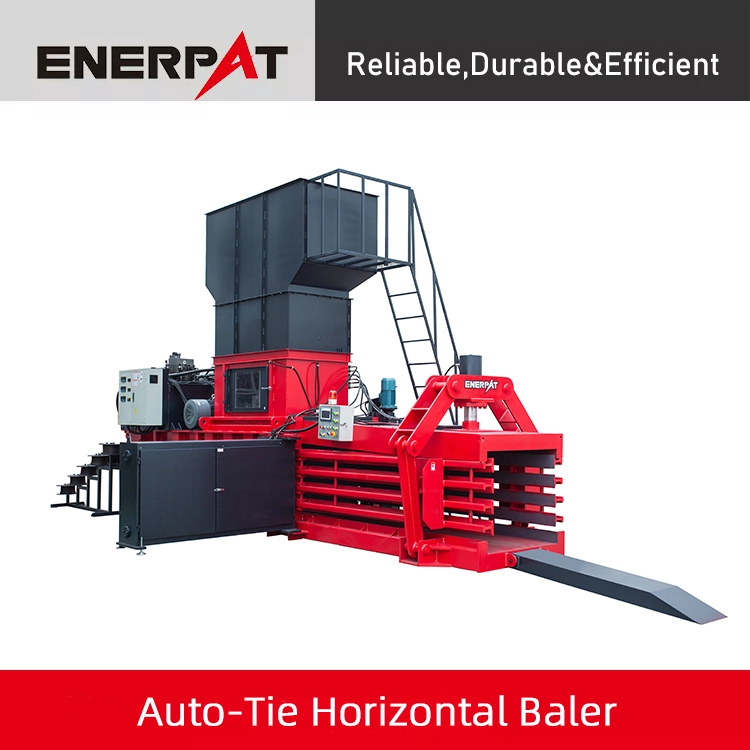

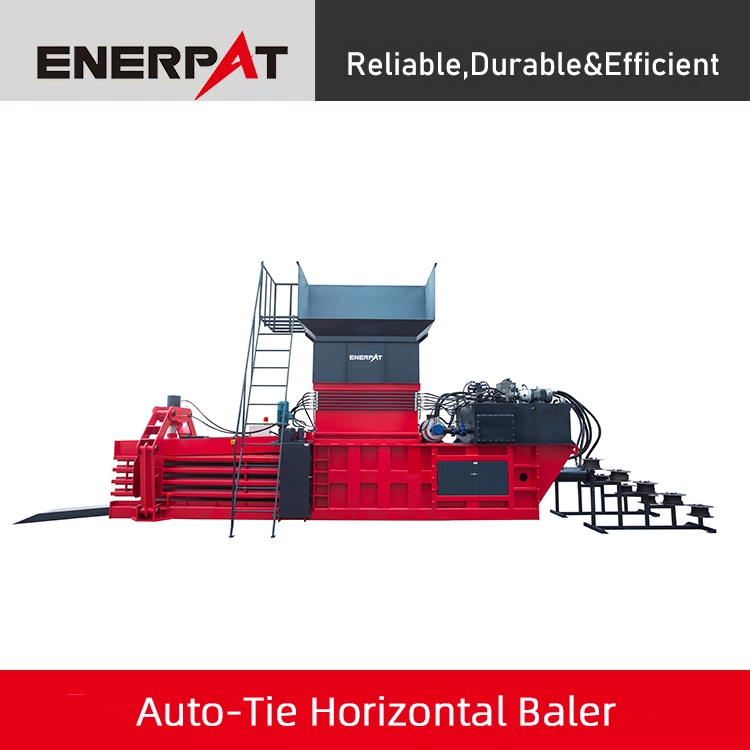

Auto-Tie Horizontal Baler

ENERPAT HBA auto-tie horizontal balers serve almost every industry. These fully automatic units handle common recyclables like cardboard, soft plastics such as shrink-wrap and film, PET bottles, hard plastics, plus aluminum and steel cans, and they also tackle tougher feeds like RDF.

The balers feature German tying tech and high-tensile quenched wire, packing every bale tight. With zero customer complaints, they have earned consistent market praise. Whenever throughput has to exceed 2 t per h, a fully automatic model is the answer. Each bale is tied off automatically.

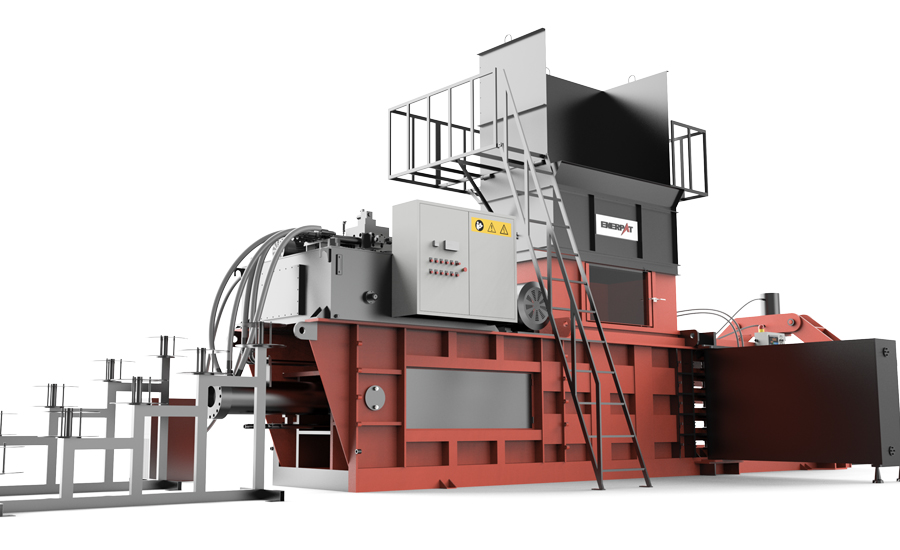

Composition and Structure

产品结构图

Product Applications

Main applications: industrial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films, woven bags, etc.

Working Principle

Load the material into the feed pit. The steel chain conveyor then carries it to the baler hopper. Guided by the hydraulic ram, the triple action press, the wire feeder, the wire twister and the cutter, the material is pressed into tight bales and automatically pushed out.

Product Details

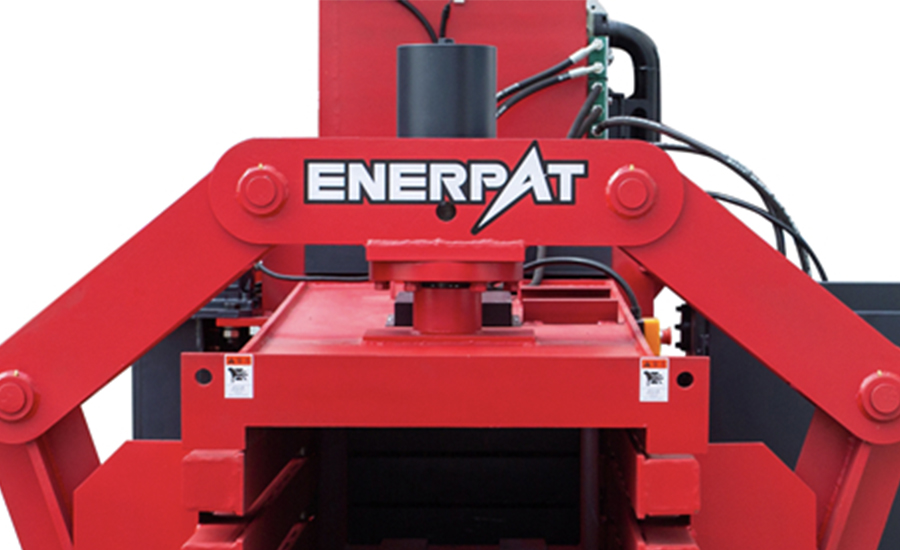

Three-way Compression

The three-way compression mechanism is equipped with three hydraulic cylinders, which are controlled in two directions and change in linkage with the pressure of the main compression cylinder.
The three-way compression design ensures that the block is well formed and the finished product has a high density

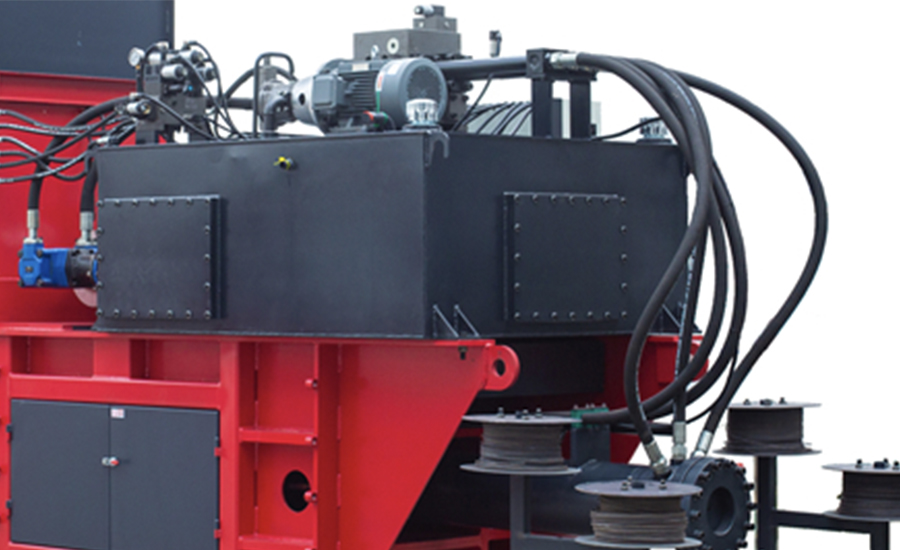

Hydraulic System

Europe Design hydraulic system,efficiency and stable
International Top Brands valve and pump
Air Conditioner Cooling System which accept machine 24/7 working

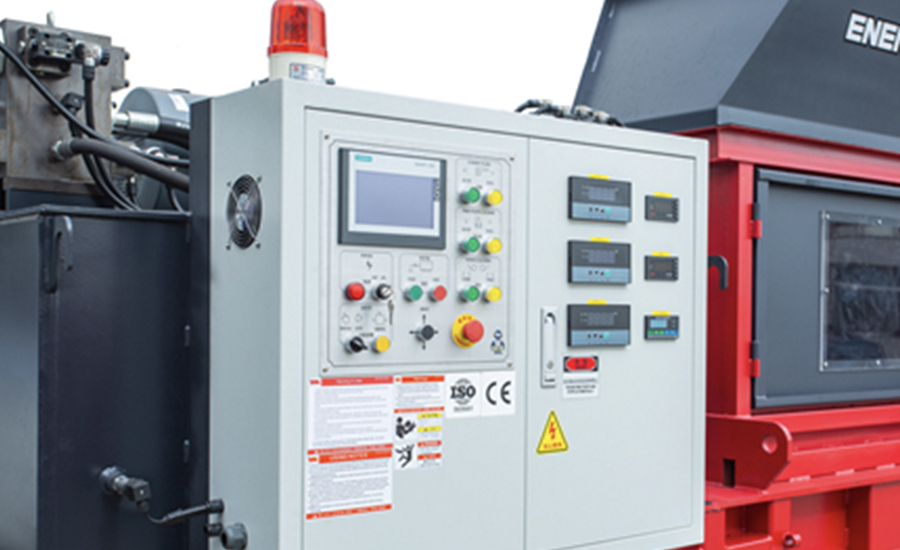

Electric System

The main electrical components are selected from the French Schneider brand
The PLC brand of the equipment is Siemens
European CE design standard, in line with EU safety requirements

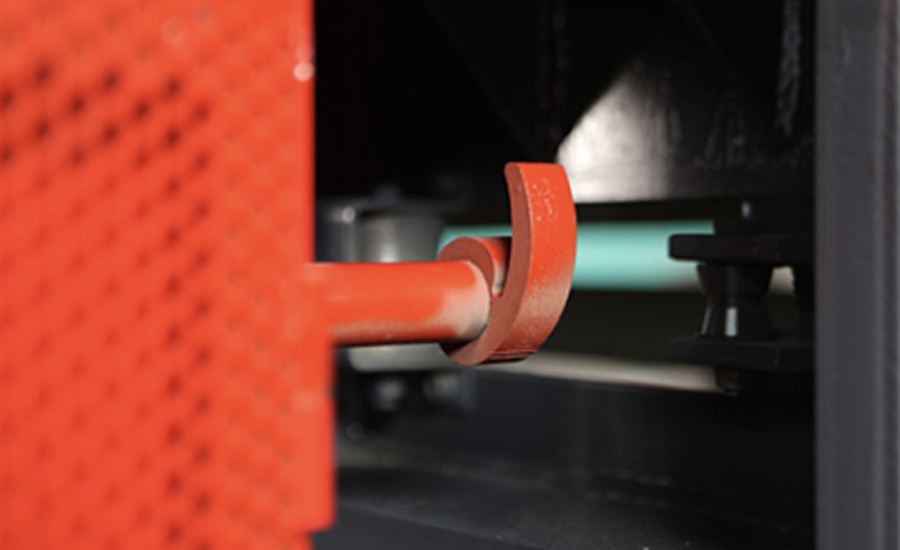

Automatic Baling System

German automatic strapping technology, stable and efficient
The core components are imported, reliable and durable

Technical Data Sheet

Model	Bale Size (WxHxL)(mm）	Bale Weight (Cardboard)（kg）	Motor Power （kw）	Press Force （t）	Machine Size (LxWxH) (mm)
HBA-30-5050	500×500×L	40-70	11	30	5300×2600×1750
HBA-40-7272	720×720×L	200-500	22	40	6770×3050×3580
HBA-60-11075	1100×750×L	400-700	22	60	6880×3850×3550
HBA-80-11075	1100×750×L	600-900	37	80	6880×3850×3550
HBA-100-110110	1100×1100×L	800-1100	45	100	8560×3950×4550
HBA-120-110125	1100×1250×L	900-1200	55	120	9250×4150×4850
HBA-150-110125	1100×1250×L	1100-1300	90	150	10050×4100×4910
HBA-200-110125	1100×1250×L	1250-1350	110	200	10050×4100×4910
