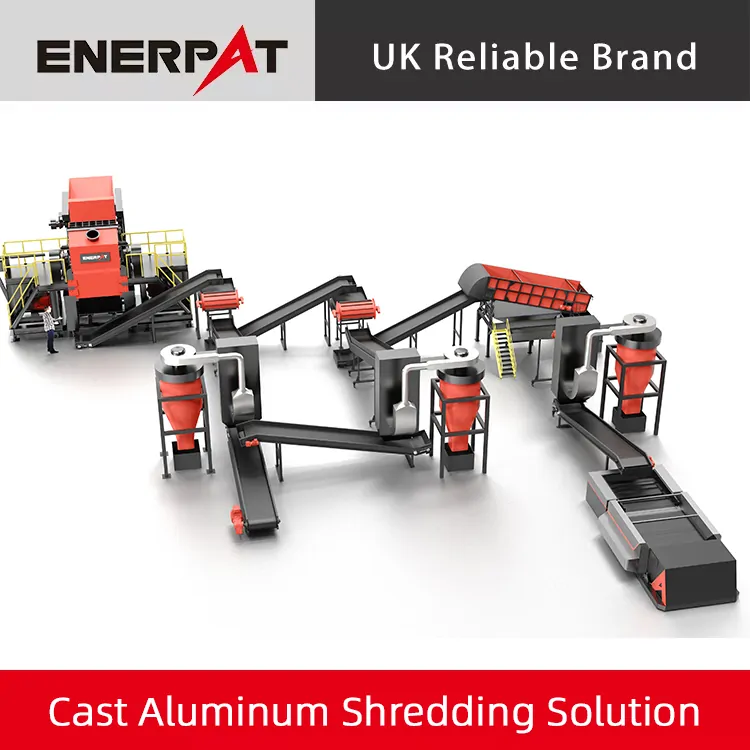

Cast Aluminum Shredding Plant

The ENERPAT cast aluminum shredding line uses a modular layout that blends shredding, mag separation, and an ECS in one package. It delivers fast processing and smart sorting of scrap castings. The line runs with a high level of automation and user friendly controls, boosting aluminum recovery, cutting pollution, and driving genuine circular use of resources.

Quantity:
Availability:





Inquire Add to Basket

Brand:
ENERPAT

Vedio

Product Description

Cast Aluminum Shredding Plant

Cast Aluminum Shredding Plant

Process Flow

Pretreated scrap cast aluminum goes straight into the hammer mill for crushing.
A magnetic separator removes iron, then an eddy current separator splits the stream into nonferrous metal and nonmetal.
The cleaned fractions are recycled back into production.

The ENERPAT cast aluminum line is fully automatic, runs with high efficiency, and maximizes resource recovery.

Product Applications

Cast Aluminum Shredding Plant

End Products

Product Details

Equipment Showcase

Technical Specifications

Model	MSE-H600	MSE-H800	MSE-H1000	MSE-H1600	MSE-H2000
Motor Power	150 KW	180 KW	220 KW	500 KW	700 KW
Feeding Hopper Size	1023x674 mm	1223×674 mm	1526×983 mm	3064×1596 mm	4047×2141 mm
Shaft Diameter	185mm	185mm	185mm	260mm	350mm
Rotor Diameter	850mm	860mm	870mm	1030mm	1240mm
Shredding Chamber Length	580mm	825mm	1090mm	1596 mm	2118mm
Hammer Thickness	65mm	65mm	65mm	94mm	96mm
Hammer Quantity	8pcs	12pcs	16pcs	22pcs	12pcs
Rotor Speed	480rpm	480rpm	480rpm	480rpm	480rpm
Wearing Plate Material	High chrome	High chrome	High chrome	High chrome	High chrome
Wearing Plate Quantity	800kg	1200kg	1.4 tons	2.4 tons	2.6 tons
Machine Size	3414×2900×4532 mm	3414×3139×4532 mm	5500×4800×4919 mm	6800x4800x4925 mm	9199×8880×7300 mm
Machine Weight	14 tons	17 tons	20 tons	28 tons	65 tons

Customer Cases

Area:Thailand

Material:Cast Aluminum

Capacity:15tons per hour

Area:Indonesia

Material:Car Body

Capacity:10 tons per hour
