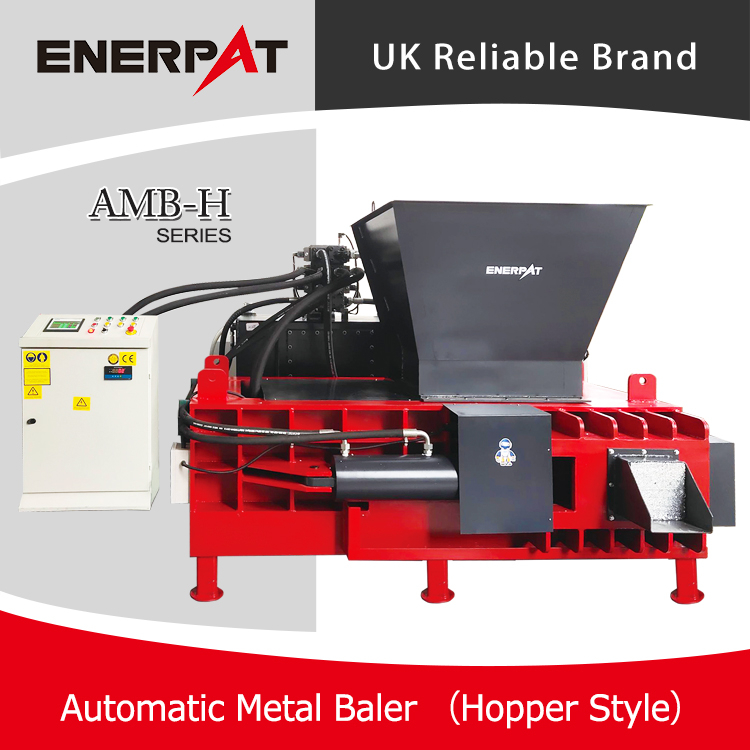

Hopper Style Automatic Metal Baler

ENERPAT Hopper Style Auto Metal Baler designed for pressing light scrap metals like aluminum cans, metal turnings, metal chips, non ferrous, etc into compact bales. Big open type hopper accept continous feeding, no need to stop. Capacity from 1 ton/h to 10 tons/h. Adopting UK technology, 100% high quality with CE, ISO certification.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • AMB-H

  • ENERPAT

Product Video


Product Description

Hopper Style Automatic Metal Baler

Hopper Style Automatic Metal Baler

The AMB-L series Metal Baler are widely used in many industries. With ENERPAT Metal Baler, it can help reducing the scrap metals volume, saving the factory space, saving the transportation cost, and more importantly, increasing the furnace efficiency and reducing Smelting cost.


Composition and Structure

Composition and Structure


Applications

Main application: environmental protection industries, recycling industries, steel plants, non-ferrous metal plants, smelting industries, electrical industries, aluminum profile manufacturing industries, aluminum foil manufacturing industries, etc.

Applications


Product Details

Baler Structure

Baler Structure
  1. Choose the brand company and international standard Steel Plate.

  2. Using plasma CNC machines to make steel plate for Welding process.

  3. All steel parts are CO2 welded.

  4. Using the method of flaw detection to detect the quality of welding.


Pressing Cylinder

3.3液压油缸
  1. Choose the brand company and international standard seamless steel pipe.

  2. All piston rods are chrome plated.

  3. Choose the British Hallite brand as the cylinder seal.


Power Pack

Electrical Control System
  1. Power unit pumps are based on European standard.

  2. All power units have 90 micron suction filters and 25 micron return filters as standard.

  3. Pressure filters to 3 microns are optional and give our power units high cleanliness levels.

  4. Hydraulic power unit suppliers offer a hydraulic circuit and parts list, Hydraulic products offer this as well as a full installation and maintenance manual.

  5. Each power unit is supplied with a test certificate and CE approval documentation.


Open Feeding Hopper

Open Feeding Hopper
  1. Big feeding hopper, accept customized design.

  2. Continous feeding, no need stop.


Air Conditioner Cooling System

工业制冷机
  1. Air Conditioner Cooling System installed on the hydraulic system.

  2. Air Conditioner Cooling System supports machine 24/7 working.

  3. Air Conditioner Cooling System with Test Certification and CE approved documents.


Electrical Control System

3.6施耐德电气系统
  1. Factory assembled,wired tested.

  2. Control wiring:minimum2.5.

  3. SQ,nm,600/1000V pvc insulated copper.

  4. conductor colour coded as per IEC standards.

  5. Support touch screen control,PLC Schneider or Siemens brand.


Motor

电机
  1. Siemens brand.

  2. Support 24 hours non-stop operation.

  3. Secondary energy consumption motor is more environmentally friendly.

  4. Explosion-proof motor can be installed.


Remote Control

Remote Control
  1. Balers supports remote operation.

  2. Remote operation ensures operator safety without dead ends.

  3. Supports remote operation of 50-100 meters.


Technical Data Sheet

Model

AMB

-H1075-100

AMB

-H1075-200

AMB

-H1510-160

AMB

-H2014-250

Press Force

(Tons)

100250160250

Motor Power

 (KW)

3022+223722+22

Press Chamber

(mm)

1000x7501000x7501500x10002000x1400

Bale Size

 (mm)

300x300250x250300x300400x400

Capacity

 (Bales/h)

60606060

Operation Type

AutomaticAutomaticAutomaticAutomatic

Successful Cases

Successful Cases

Material:Aluminum Cans

Successful Cases

Material:Metal Shavings


Successful Cases

Material:Aluminum Scraps

客户现场

Material:Tire Wire with Head
