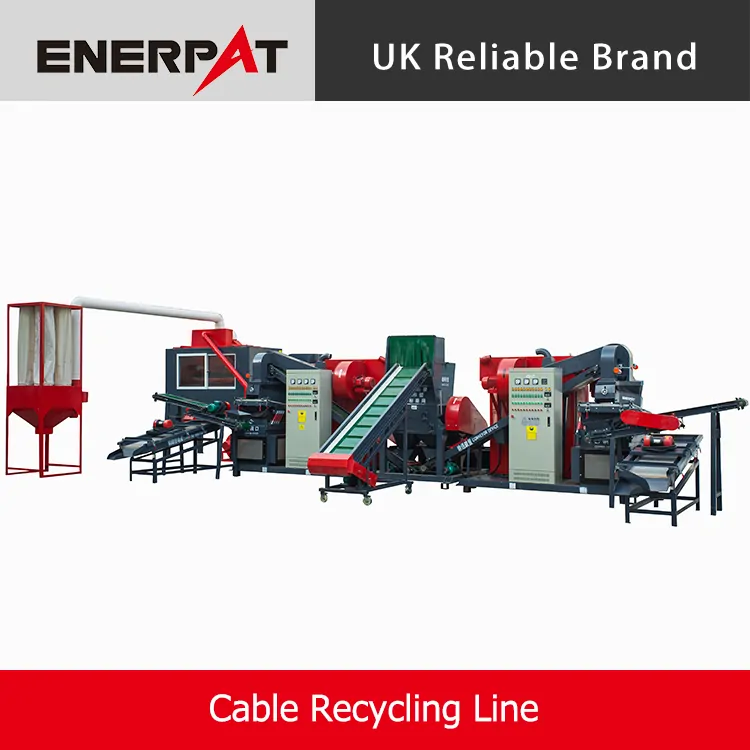

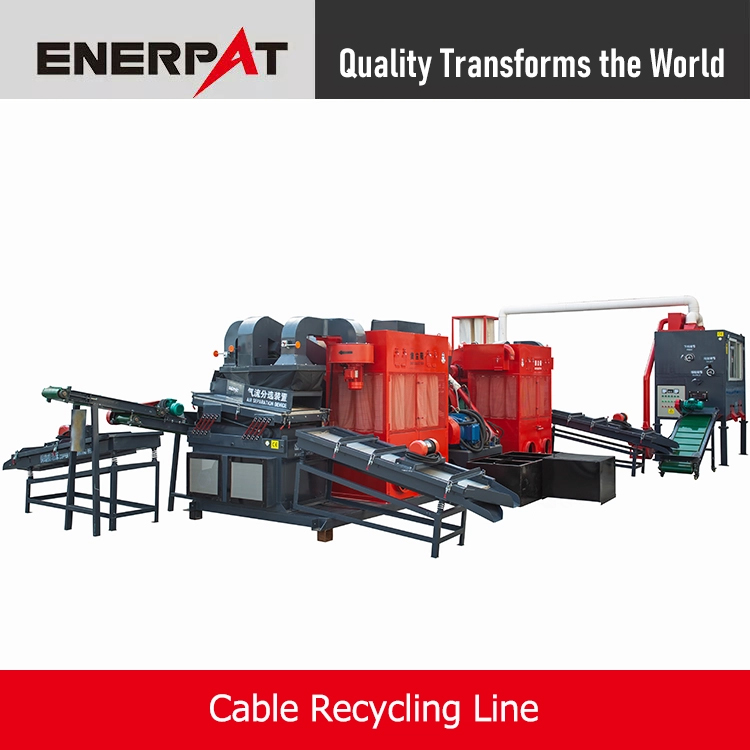

Cable Recycling Line

ENERPAT Waste Cable Recycling Line designed for crushing cables which diameter below 20 mm,separating copper and plastic,capacity from 100 kgs/h up to 2000 kgs/h. The separating rates up to 99%. Adopting UK technology,100% high quality with competitive price.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ENERPAT

Product Description

Cable Recycling Line

ENERPAT Waste Cable Recycling Line designed for crushing cables which diameter below 20 mm,separating copper and plastic,capacity from 100 kgs/h up to 2000 kgs/h. The separating rates up to 99%. Adopting UK technology,100% high quality with competitive price.

电线回收线解决方案

Product Details


Single Shaft Shredder

产品细节1
  • Shredding cables into smaller size,can improve the Granulator throughput capacity efficiently.

  • International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc

  • German material blades,rotor blade material DC 53,fixed blade material D 2.


Feeding Conveyor

产品细节2
  • Conveying the shredded cables from single shaft shredder to granulator.

  • Thick rubber belts,with steps on it

  • Inverter motor drive the conveyor shaft directly,speed adjustable.

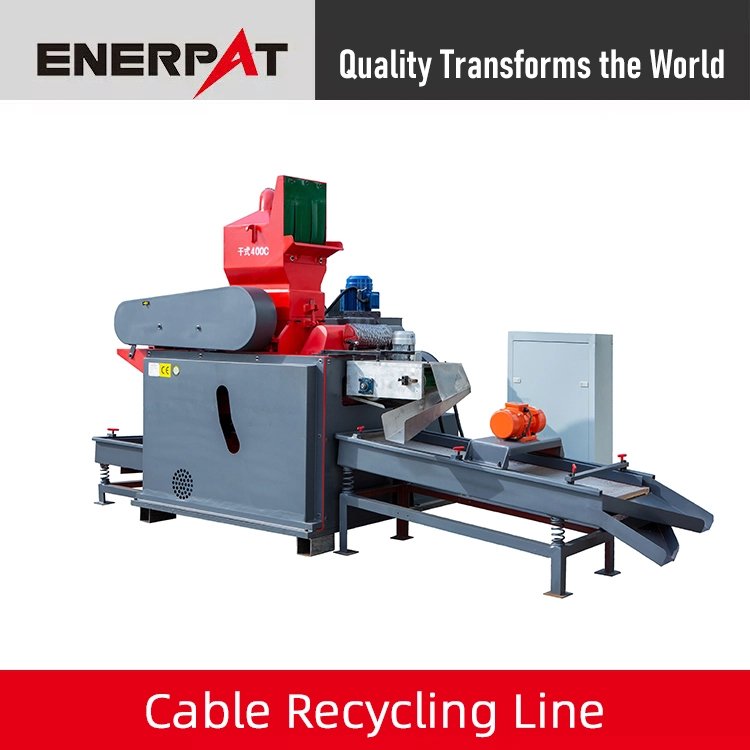

Granulator

产品细节3
  • Crushing cables into small size below 3 mm

  • International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc.

  • German material blades,rotor blade and fixed blade material D 2.

  • The machine structure is integrally processed and bored by a high-precision CNC machining center to ensure that the equipment can run smoothly under high load for a long time and prolong the service life of the transmission parts.

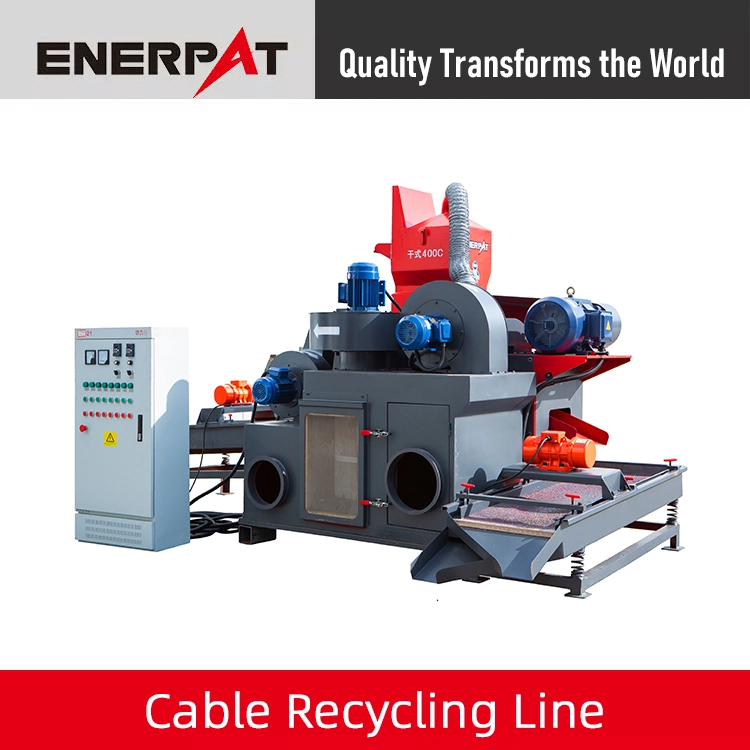

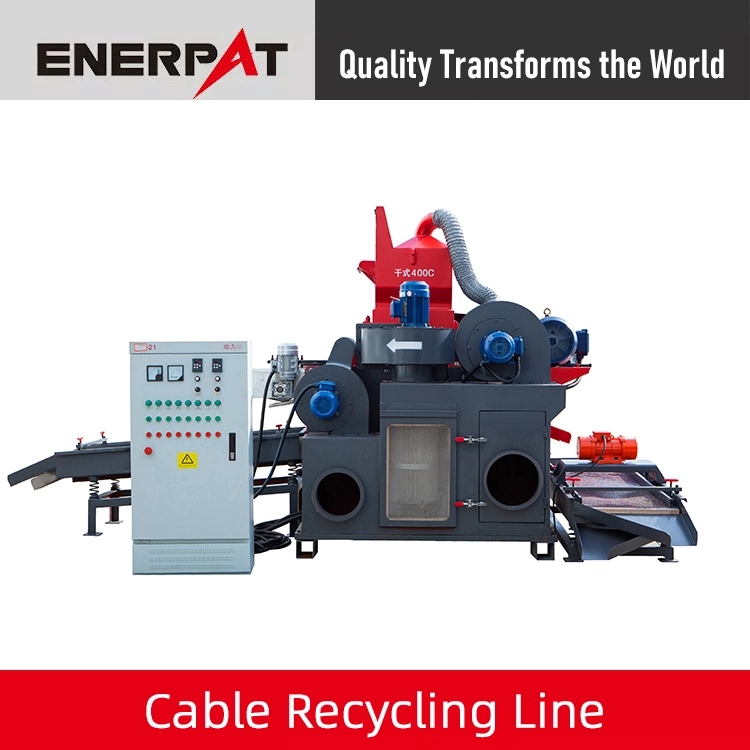

Air Separator

产品细节4
  • Separating the copper and plastic by this air separator


Dust Collection System

产品细节6
  • Automatic pulse dust removal,can collection dust efficiently from the whole production line.

Applications产品应用

Technical Data Sheet

Model

WG-400S

WG-600S

WG-800S

Motor Power27 KW41 KW90 KW

Cables Range

< 20 mm diameter cablesDiameter 0.2-20 mmDiameter 0.2-30 mm

Capacity

1-2 tons per day3-4 tons per day7-12 tons per day

Machine Size

4400×2700×2450 mm5000x3000x2500 mm11500x9500x2300 mm

Machine Weight

2500 kgs4000 kgs7000 kgs

Video
