Waste Radiator Recycling Line

ENERPAT Waste Radiator Recycling Line (System) designed for crushing radiators,removing steel,separating copper and aluminum,capacity from 300 kgs/h up to 3500 kgs/h. The separating rates up to 99%. Adopting UK technology,100% high quality with competitive price.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ENERPAT

Product Video

Product Description

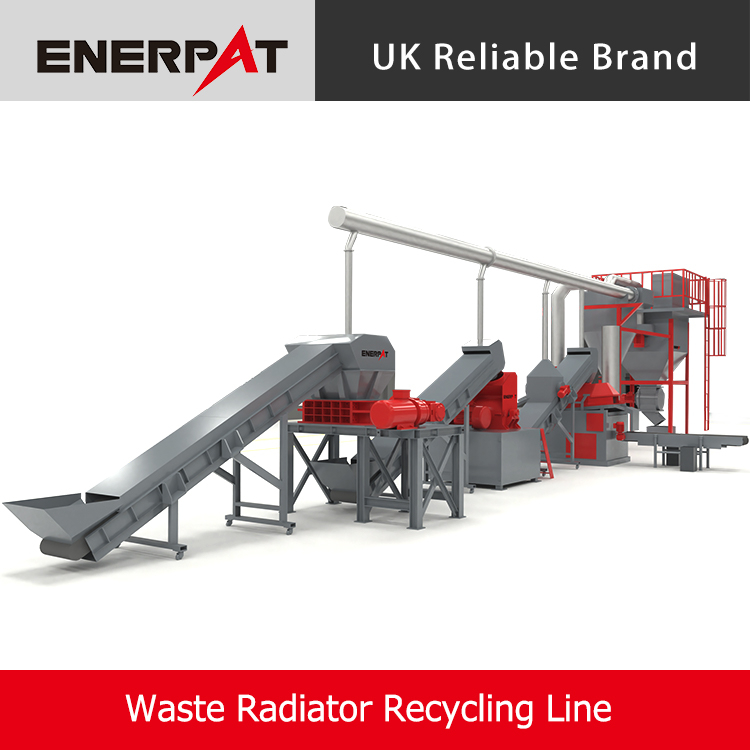

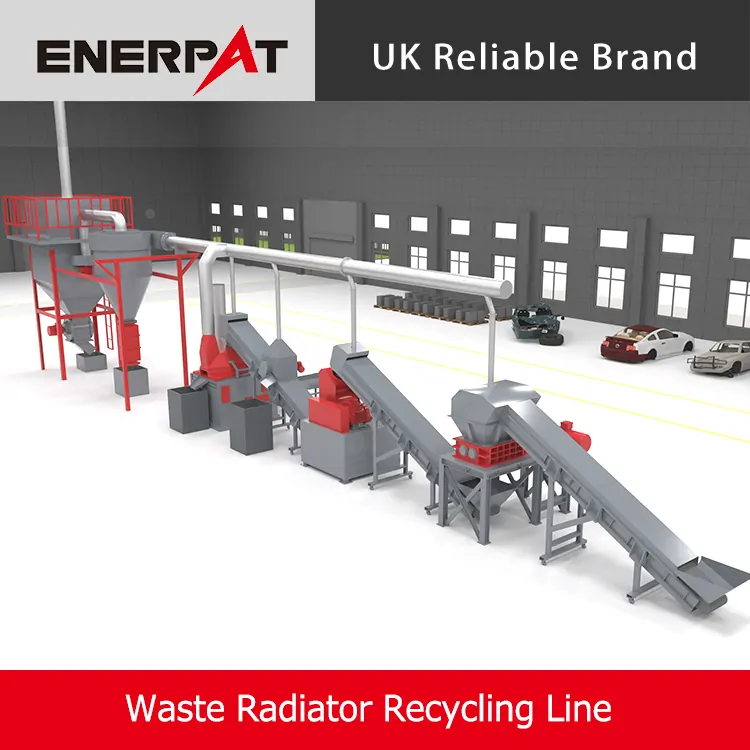

Waste Radiator Recycling Line (System)

Enerpat's Waste Radiator Recycling Line adopts a modular design, and the production line covers: Chain Conveyor, Two Shaft Shredder, Hammer Mill, Magnetic Separator, Airflow Air Separator, Pulse Dust Removal System, etc.The equipment is equipped with covered dust removal equipment, and the entire recycling process is clean and pollution-free.


2、处理流程图

Disposal Concept

The waste radiator first enters the shredding system and is shredded into uniform and smaller materials. The iron material is separated through the magnetic separator, and then the copper and aluminum are separated through the air flow separator to achieve resource regeneration. The iron separation rate is >99%, and the copper separation rate is >99%. Aluminum sorting rate is >98%.


Product Applications

Product Applications

End Products

产品应用


Product Details


Steel Chain Feeding Conveyor

Steel Chain Feeding Conveyor

  • Steel Chain made conveyor belt,stable and strong enough for radiator

  • Motor drive the conveyor shaft directly,more effective

  • Connected to the Electric Box PLC,Speed adjustable according to the Hammer Mill working condition


Two Shafts Shredder

Two Shafts Shredder

  • Used for shredding radiators into smaller pieces

  • International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc

  • German material blades like Hardox or Dillinger


Hammer Mill

Hammer Mill

  • High-Strength Cutter Shaft Structure,With HARDOX 500 Wearing Plate on the shaft for protection

  • After the crushing chamber is welded, the overall stress relief is annealed, and it is processed and bored by high-precision numerical control to ensure long-term high-load operation of the equipmen

  • There has sensor inside of the crusher can recognize abnormal material ,It can give instructions to the crusher if meet some hard materials can not crush, to discharge abnormal material automatically

  • There has rail for the screen,just loose 8 pcs screws,use forklift to pull it, then you can replace the screen. Two minutes is enough

  • We have hydraulic system which can assist us to change the hammers and Pins

  • With special Springs installed below the Crusher,it can efficiently reduce the machine vibration when working


Vibration Table

Vibration Table

  • Disperse the end products from Hammer Mill by vibration

  • Send the materials to the following Drum Magnetic Separator Evenly


Drum Magnetic Separator

3、设备图_0001_图层 4

  • Separate the steel from the materials

  • Copper and Aluminum go for the following Air Separator


Air Separator

产品细节6


  • Through the air flow separator, under the action of wind, the copper and aluminum in the material are separated through the deflection caused by the amplitude movement of the screen surface at a certain angle


Dust Collection System

产品细节6

  • Automatic pulse dust removal,can collection dust efficiently from the whole production line


Technical Data Sheet

ModelERS-2000ERS-3500
Motor Power122 KW220 KW
MaterialRadiatorsRadiators
Capacity1.5-2.0 tons per hour2.5-3.5 tons per hour
Whole Line Size19x7x6 meter22x9x6 meter

Successful Cases

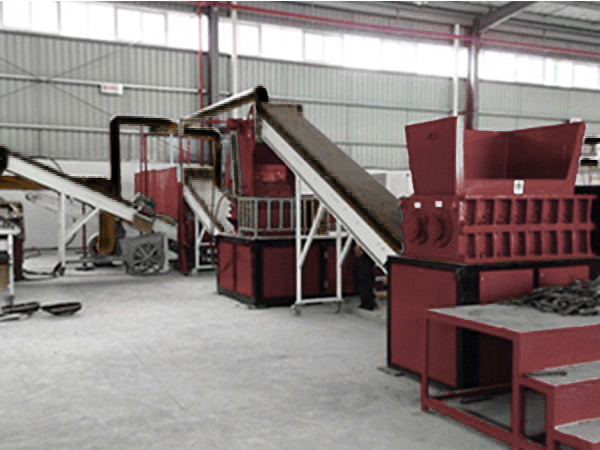

客户现场图_0001_现场3

Malaysia

Air Conditioning Radiator

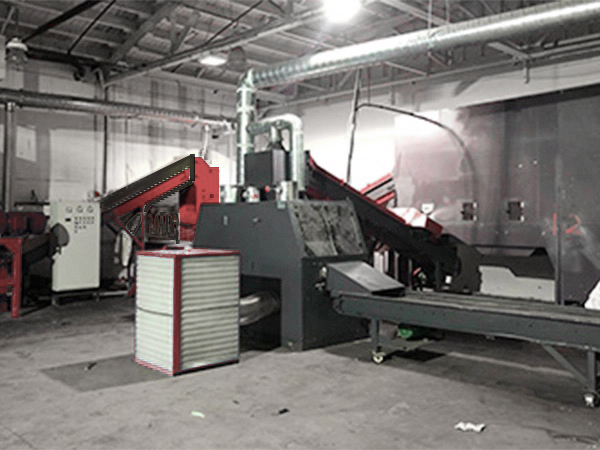

客户现场图_0000_现场2

America

Copper Aluminum Radiator

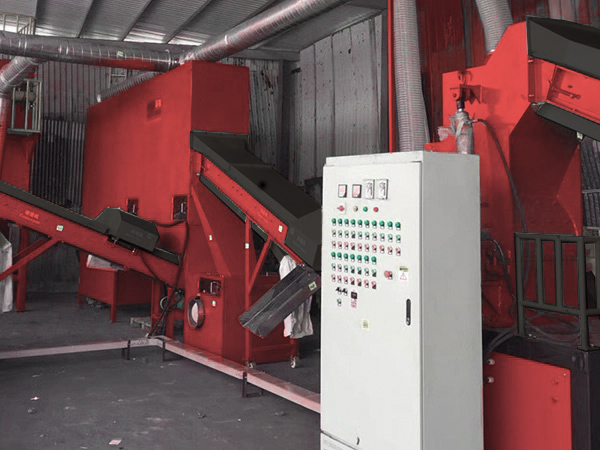

客户现场图_0002_香港mmexport1523011024214

India

Copper Aluminum Water Tank
