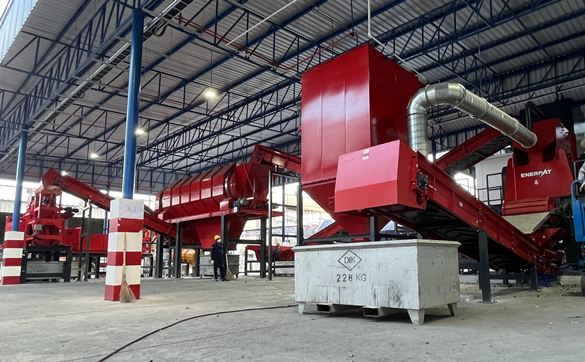

Turnkey Aluminum Recycling Line

Hammer Mill Shredder

Function:

Crushes aluminum profiles into chips and removes surface dirt through impact and rolling action.

Z-Type Separator

Function:

Uses an air stream to split light plastics from heavier metals such as aluminum and copper.

Vibrating Table

Function:

Uniformly distributes materials, enhancing downstream sorting accuracy with stable vibration.

Magnetic Drum Separator

Function:

Removes ferrous impurities via strong magnetic fields, boosting aluminum purity.

Drum Screen

Function:

Screens aluminum thermal break scrap into precise size ranges, ready for later recycling.

Eddy Current Separator

Function:

Sorts by particle size to boost eddy current separation.

X-Ray Separator

AI powered density sorting delivers aluminum at 98% purity and recovers over 95% copper.

Dust Collection System

Captures dust and fumes during processing, meeting environmental standards.

① Modular Scalability = Lower TCO

• Customize line capacity (5-30 TPH) using pre-engineered modules.

• Compact layout adapts to 1,000–5,000m² facilities.

② Premium Components = 95% Uptime

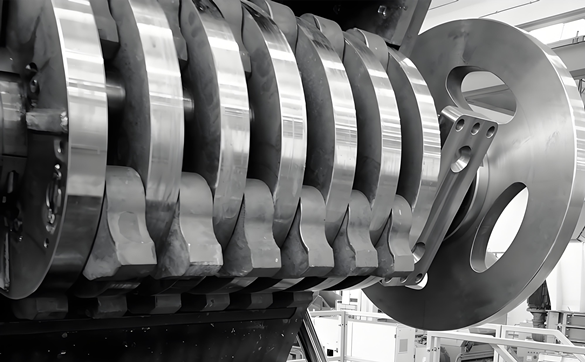

• Shredder hammers: AISI D-2 alloy for 3x longer wear life.

• Eddy current system: Eccentric magnetic rotors boost separation force.

③ Deep Sorting = Maximum Revenue

Reclaim 98% aluminum (sells at 97% virgin price).

Extract copper (95%), plastics (70%), glass (90%).

④ Smart Control = Zero Surprises

• Schneider PLC with real-time OEE monitoring.

• Auto-alerts for jams/overloads; remote diagnostics.

⑤ Eco-Compliance = Future-Proof

• 30% less energy vs. conventional lines.

• Dust emissions <10mg/Nm³ (EU Industrial Emissions Directive).
