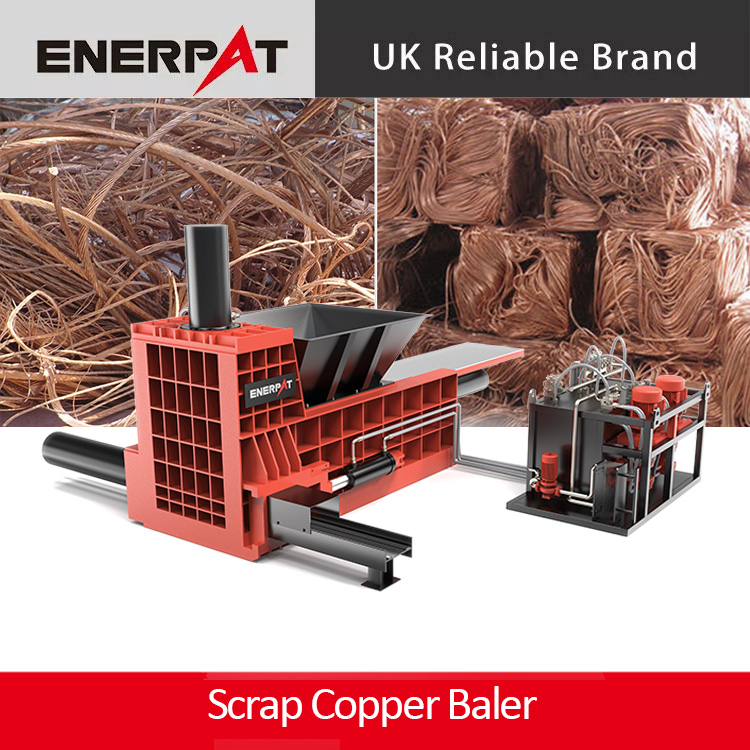

ENERPAT Triple Compression Automatic Copper Baler Machine

ENERPAT Triple Compression Automatic Copper Baler Machine

Recycling companies and metal processors often struggle with copper scrap: it takes up too much space, handling is inefficient, and the material loses value if not properly compacted. The ENERPAT Triple Compression Automatic Copper Baler Machine provides the ultimate solution. With its heavy-duty three-directional compression and high-pressure hydraulic system, it turns loose and bulky copper scrap into dense, high-value bales. Tested output capacity reaches up to 67 tons of copper per hour, backed by CE and ISO certifications, ensuring performance, reliability, and international compliance.

Quantity:
Availability:





Inquire Add to Basket

Model:
TH Series
Brand:
ENERPAT
Code:
TH Series

Product Description

Where Copper Scrap Comes From

Copper waste is generated across multiple industries:

Construction & Demolition (pipes, tubes, wires, busbars)
Automotive & Electronics (motors, radiators, transformers, coils)
Manufacturing & Foundries (sheets, rods, turnings, swarf, offcuts)

If left untreated, these materials occupy valuable storage space and reduce overall recycling efficiency. By baling them into compact, uniform blocks, recyclers can significantly reduce logistics costs, maximize storage efficiency, and increase resale value.

The ENERPAT Triple Compression Advantage

The Automatic Copper Baler Machine applies three-directional high-force compression to ensure every bale is uniform, dense, and optimized for smelting or resale.

Powerful Compression Performance

Max copper output capacity: up to 67 tons/hour
Compression force: over 1000 tons in largest models
Uniform density with short cycle time

Wide Range of Scrap Compatibility

Handles copper alloy scrap, mixed copper scrap, copper pipes, tubes, rods, bars, plates, sheets, strips, thick wires, busbars, insulated wires, as well as brass and bronze.

Certified Quality & Reliability

CE & ISO certified
Siemens / Schneider PLC control system with touchscreen operation
Hallite hydraulic seals for durability and zero leakage

User-Friendly & Low Maintenance

Modular design for easy servicing
Fully automatic with remote control operation
Intelligent programming for real-time monitoring (current, temperature, run time)

Composition and Structure

Material Testing

Model Range for Every Scale

From compact models with 11 t/h copper output to heavy-duty machines delivering 67 t/h, the ENERPAT TH Series covers every production scale, ensuring the right solution for steel plants, foundries, recycling yards, and large industrial processors.

Call to Action

Upgrade your recycling efficiency with the ENERPAT Triple Compression Automatic Copper Baler Machine — the proven choice for high-volume, high-density copper baling. Contact our experts today to get a tailored solution for your scrap handling needs.

Product Details

Triaxial Compression for Superior Molding

Uniform force distribution ensures higher compression efficiency and superior forming quality, enabling a high compression ratio.

Engineered for Durability & Stability

Professional design, advanced manufacturing, and high-quality components ensure long-term reliable operation. High-performance equipment built to last.

High-Efficiency Hydraulic System

Cartridge-type integrated valve block delivers high flow and fast operation. Tapered H-type ports prevent leakage. Hallite (UK) cylinder seals provide safe and durable performance.

Robust Structure, Easy Maintenance

Mortise-and-tenon welded steel body ensures exceptional strength and long service life. Modular design simplifies maintenance and reduces costs.

Intelligent PLC Control System

Siemens/Schneider PLC supports real-time monitoring. One-touch operation via touchscreen/buttons with auto-alarm function. Smart programming allows easy adjustment of compression and feeding time. Real-time tracking of operation time, current, temperature, and more.

Technical Data Sheet

MODEL		AMB-TH-2080	AMB-TH-2210	AMB-TH-2212	AMB-TH-2812	AMB-TH-2815	AMB-TH-6020	AMB-TH-60201
BalesHxW(L)	mm	250 x 250 （var.)	300 x 300 （var.)	300 x 300 （var.)	400 x 400 （var.)	400 x 400 （var.)	600 x 600 （var.)	600 x 600 （var.)
Motor Power	kW	1 x 55	1 x 55 1 x 90 2 x 55	1 x 55 1 x 90 2 x 55	1 x 90 2 x 55	1 x 90 2 x 90 3 x 90	3 x 90	3 x 90
Cycle time (no-load)	S	25	34 - 23	38 - 26	40 - 36	46 - 28	60	69
Bales/h (90% availability)	1/h	137	101 - 149	90 - 132	86 - 95	74 - 122	57	50
Max. production capacity, Fe (bale weight)	t/h	10 （69 kg）	13 - 19 (124 kg)	12 - 17 （124 kg)	24 - 26 (264 kg)	21 - 34 (264 kg)	47 (791 kg)	59 (1,130 kg)
Max. production capacity, Cu + Ms (bale weight)	t/h	11 (78kg)	15 - 22 (141 kg)	13 - 20 (141 kg)	27 - 30 (301 kg)	23 - 39 (301 kg)	54 (903 kg)	67 (1,290 kg)
Max. production capacity, Al (bale weight)	t/h	4 (28kg)	5 - 7 (44 kg)	4 - 6 (44 kg)	8 - 9 (94 kg)	7 - 12 (94 kg)	16 (272 kg)	20 (389 kg)
Cylinder forces, 1st compactor	t	72	112	112	161	189	343	343
Cylinder forces, 2nd compactor	t	91	136	161	220	252	494	494
Cylinder forces, final compactor	t	160	200	200	350	350	800	1,000
Spec. pressure final compactor	N/ cm²	2,128	2,063	2,063	2,104	2,104	2,144	2,749
Press box, (W x L x H)	mm	795 x 1,925 x 600	1,020 x 2,235 x 800	1,245 x 2,235 x 800	1,245 x 2,840 x 1,100	1,500 x 2,840 x 1,100	2,000 x 6,000 x 1,600	2,010 x 6,000 x 1,600
Feed opening, (W x L)	mm	725 x 1,450	945 x 1,655	1,170 x 1,655	1,170 x 2,130	1,425 x 2,130	2,910 x 4,930	1,910 x 4,930
Machine dimensions (W x Lx H)	mm	4,550 x 5,800 x 3,000	5,290 x 6,605 x 3,735	5,990 x 6,605 x 3,775	6,360 x 8,035 x 4,600	7,060 x 8,035 x 4,615	10,155 x 15,650 x 6,110	10,495 x 15,650 x 6,110
Machine weight	t	approx. 25	approx. 41	approx. 44	approx. 60	approx. 67	approx. 186	approx. 201
