Plastic Granulator

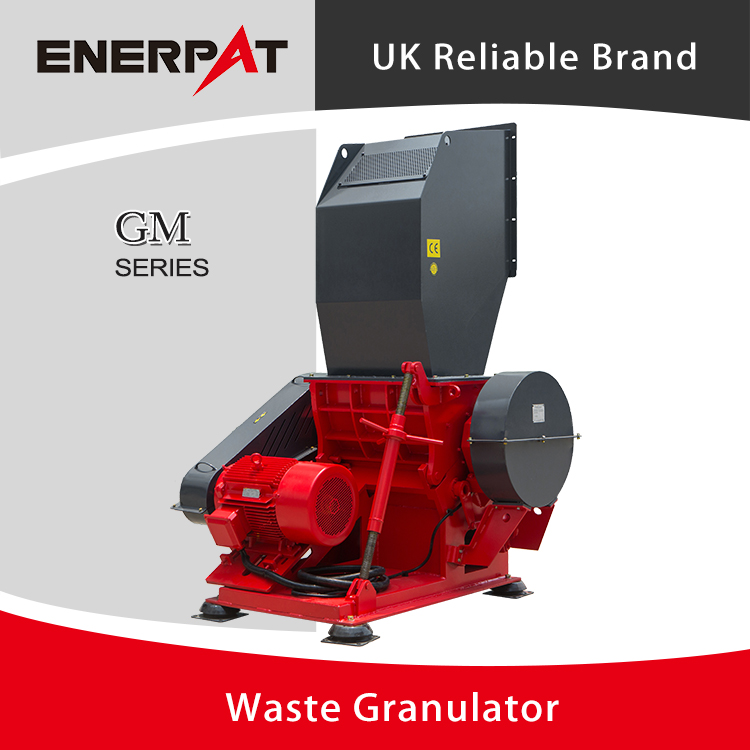

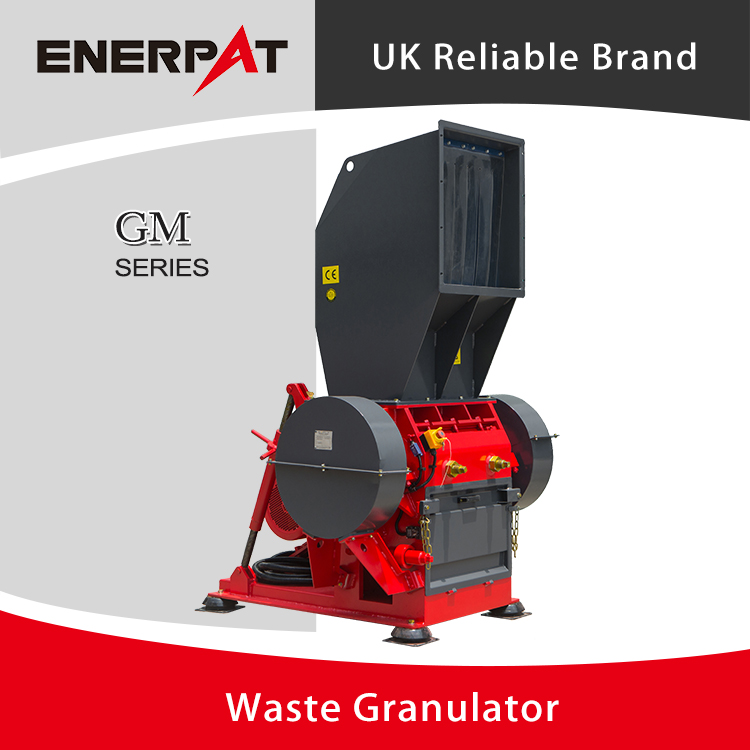

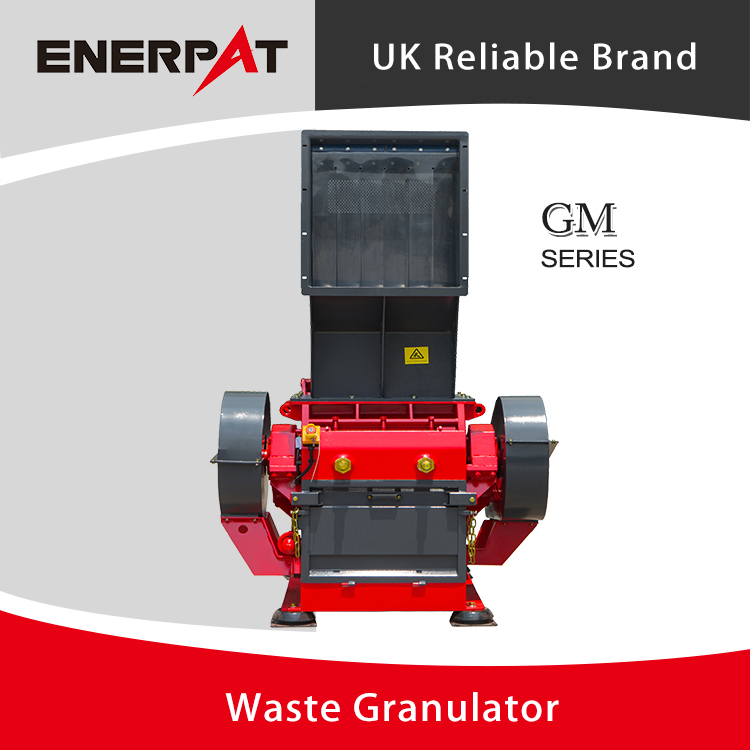

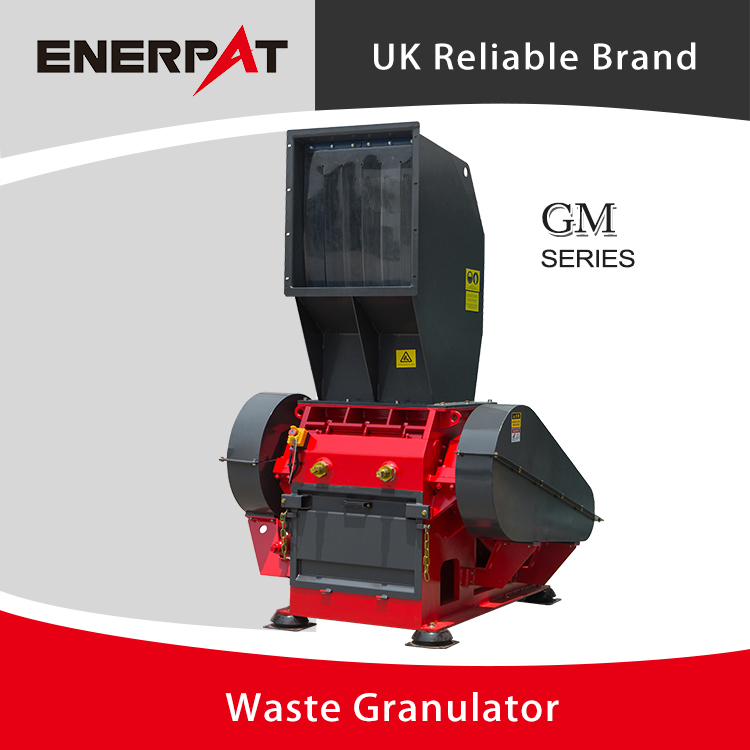

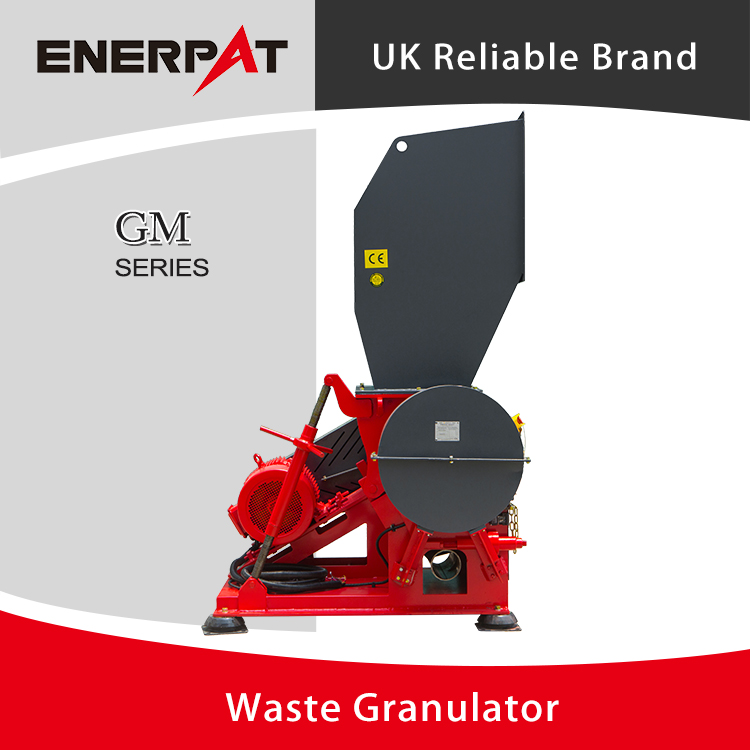

GM series Granulator from Enerpat is a high efficiency, high torque, low energy consumption, low noise machine for recycling and processing materials. It is used to shred low hardness, fragile and toughness of plastic products and rubber products and other non-metallic materials, such as PP, PE, PET, PVC and other waste materials. The size of the end product can be adjusted by different screen size.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GM

  • ENERPAT

Product Video



Product Description

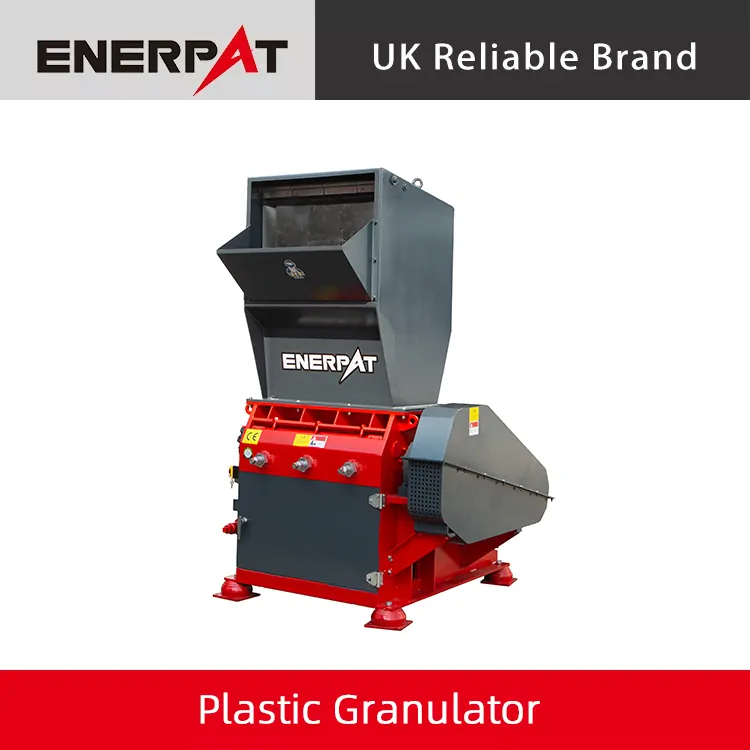

Plastic Granulator

Plastic Granulator

GM series Granulator designed for shredding waste plastic,cables,rubbers,electric waste etc,normally it been put after the Single Shaft Shredder or Two Shafts Shredder as the secondary shredder. It is mainly composed of rotor knives,counter knives,shredding chamber,machinery supports,feeding conveyor,motor,gearbox and electric system. Hard metals can not enter the shredding chamber when it is working.The end products size can be adjusted by the different screen mesh sizes.


Composition and Structure

产品结构图

The Enerpat Granulator is usually applied after the single shaft shredder or the double shaft shredder as a secondary machine. Both sides of the box are equipped with standard wear-resistant plates, and wear-resistant parts are also added to other key parts of the box.  Wear-resistant layers can be welded around the blades and fixed blades. This is to ensure this series is better suited to granulating fiberglass, sandy film and other materials which tend to cause wear and tear on the machine.


应用范围


Product Details

MACHINERY STRUCTURE

MACHINERY STRUCTURE
  1. The machine structure is integrally processed and bored by a high-precision CNC machining center to ensure that the equipment can run smoothly under high load for a long time and prolong the service life of the transmission parts.

  2. The design of the structure opening is automatic type,  the screw drive is safe and reliable to ensure that the structure will not fall when opening, and the equipment mechanism is firm.


BLADE COMBINATION

4.2刀轴
  1. Rotor Knives material Alloy AISID-2, Hardness can meet HRC59士1.

  2. Rotor Knives can be repaired,which increases the service life of the knives.

  3. The counter knives can be adjusted to maintain the proper distance with the rotor knives.

  4. We have V type rotor, VB type rotor, C type rotor, CS type rotor and S type rotor design.


BEARING BASE

BEARING BASE


  1. High quality spherical bearings are isolated from the shredding chamber to prevent materials go into the oil seal.

  2. The whole machined bearing housing ensures the service life of the bearing.

  3. Adopting the high-strength heavy-duty self-aligning bearings can withstand heavy-duty impact.


SCREEN STRUCTURE

Screen Structure

  1. Flexible Screens for a Wide Range of Needs, Support Customization.

  2. Round Hole Shaped Screen - Hexagonal Shaped Screen - Fish Bone Shaped Screen.

  3. Strictly control the discharge size, uniform granulating size.


ELECTRIC SYSTEM

ELECTRIC SYSTEM

  1. Linkage control, controlled by PLC, and can adjust the feeding amount automatically.

  2. European standard emergency stop, with high sensitivity.

  3. Lock function when machine under maintenance can ensure safety.


Technical Data Sheet

ModelGM-600SGM-800SGM-800LGM-1000S
Motor Power (KW)22303755
Shaft Diameter (mm)∅320∅320∅420∅420
Shaft Speed (RPM)580580580580
Shredding Chamber Length (mm)6008008001000
Counter Knives (pcs)2224
Rotor Knives (pcs)6666
Screen Mesh Size (mm)∅12∅12∅12∅12
Machine Size (mm)1438×1177×21971440×1377×21971637×1450×22721858x1648x2071
ModelGM-1200SGM-1600SGM-2500S
Motor Power (KW)75132132+132
Shaft Diameter (mm)∅520∅660∅800
Shaft Speed (RPM)520520460
Shredding Chamber Length (mm)120016002500
Counter Knives (pcs)4+24+24+2
Rotor Knives (pcs)102845
Screen Mesh Size (mm)∅12∅20∅20
Machine Size (mm)2155×2200×31412470×2600×33732881×3940×4400

Successful Cases

Successful Cases

Processing Materials:plastic film

Capacity:1000kg/h

Successful Cases

Processing Materials:Vacuum Forming Tray

Capacity:800kg/h
