Waste Shredding Machine MSB-37

MSB-37 two shafts waste shredding machine designed for shredding medical waste,hospital waste,harzardous waste into strips,for size reduction. the shredding chamber size is 780mm for lenth,580mm for width,blades size can be

choosed as 25,30,40mm. low speed,high torque design make sure containous shredding force transfered from the gear box. we main sell this model to chemical company for shredding the harzardour and chemical waste.

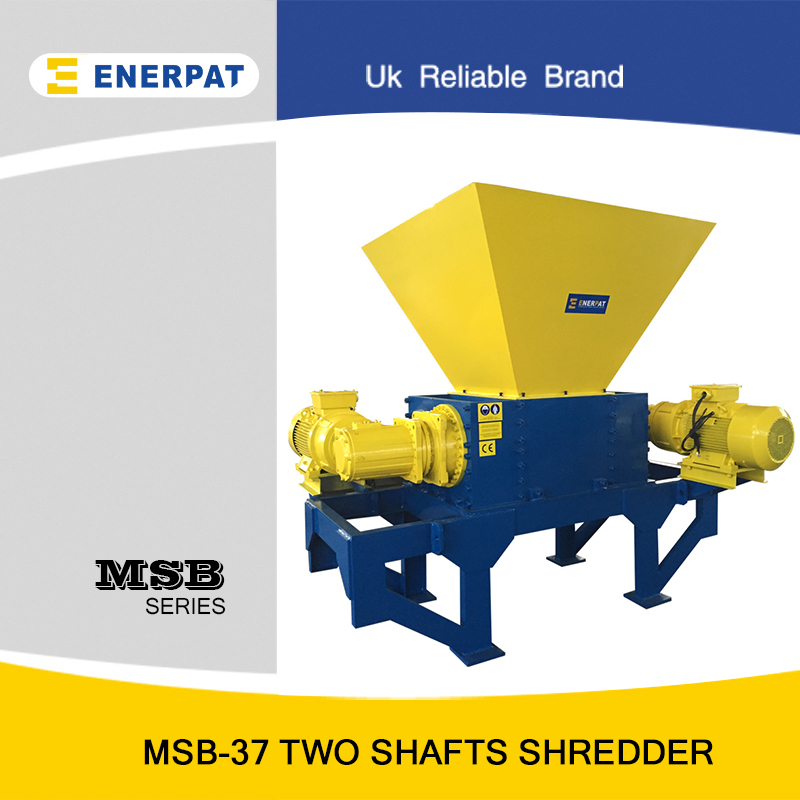

MSB-37  Official Photo ( Harzardous Waste Shredder)

MSB-37 Application

●  25 liter oil drums
●  Air conditioning radiator
● Oil filter
● Waste bikes
● Waste scrap car parts like doors
● Castings
● Aluminum Engines Shell
● Steel Roof
● E-Waste
● Scrap Tyre (600mm)
● Waste Fiber and cloth
● Harzardous Waste

Phots From Customer Site

Configuration Parameters
Blades	Material :Alloy Steel
	Original:Germany
	Hardness:HRC55-58
Motor	Rated Power :22-37kw
	Rated Speed :960rmp
Main Technical Specifications
Shredding Chamber	780×580mm
Blade Wdith	30mm
Voltage Options	Many-Consult Factory
Shredding Protection	Stop And Auto Reverse
Dimensions And Shipping
Overall Size( L×W×H)	3000mm×1490mm×2000mm
Hopper Opening(L×W)	1290×1050mm
Shipping Weight:	6.0tons
Container Loading:	1×20”Gp
Dimensions And Shipping
Shredding Thickness 1-6mm Iron Plate	Wood
Plastics	Medical Waste
Paper/ Cardboard	Document Destruction
Pharmaceuticals	Product Destruction
Organic Waste	Glass
Light Electronic Scrap	Light Gauge Metals
Fibers/Mattress	Textiles
Optional Configuration
Conveyor Feeding In/Out	Hydraulic Drive
Hydraulic Feeding Hopper	Oil Heating/ Cooling System
Service Capacities
Gear Box Tank	150 liter
Gear Oil	U.S Mobil         600XP
