The Challenge: Are soaring logistics costs, inefficient storage, and inconsistent scrap bale quality eroding your metal recycling or foundry profits? Traditional balers often struggle with diverse, bulky scrap, leading to slow cycles, low-density bales, and frustrating downtime.

The Enerpat Advantage: Engineered in the UK and built for relentless performance, the Enerpat TH-Series AMB-TH60201 Scrap Metal Compressing Machine is your industrial powerhouse. We deliver triple-action compression force – generating immense pressure from three directions (up to 1846 tonnes!) – to transform even the most challenging ferrous and non-ferrous scrap into ultra-dense, uniform bales. Experience faster cycles (down to 69 seconds), significantly higher throughput (50+ bales/hour), and maximized payload efficiency for tangible ROI.

Built for Trust: CE & ISO 9001 certified, featuring premium Siemens/Schneider automation, the AMB-TTH60201 guarantees reliability, safety, and 100% quality assurance. Focus on production, not processing bottlenecks.

Quantity:
Availability:





Inquire Add to Basket

Model:
TH Series
Brand:
ENERPAT
Code:
TH Series

Product Description

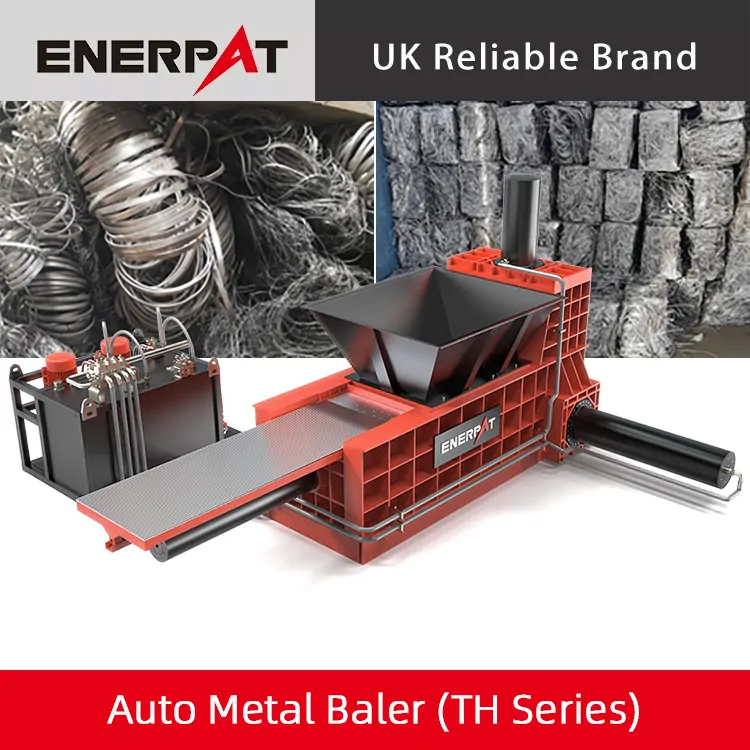

ENERPAT AMB-TH60201 Scrap Metal Compressing Machine Supplier

Why Settle for Less? Elevate Your Scrap Processing.

Standard balers often mean compromises: slow speeds, inadequate density for valuable non-ferrous, or inability to handle diverse scrap shapes. This leads to higher handling costs, lost revenue per load, and operational inefficiency.

The AMB-TH60201Scrap Metal Compressing Machine: Data-Backed Dominance

Enerpat's triple-compression technology crushes limitations. See the difference:

1. Unmatched Compression Power:

1st Cylinder: 343 Tonnes
2nd Cylinder: 494 Tonnes
3rd Cylinder: 1009 Tonnes (Core Compression)

2. Blistering Speed & Output:

Cycle Time (Empty): 69 Seconds
Bales Per Hour: 50+

3. Maximized Yield & Profitability:

Max Output (Iron): 59 t/h
Max Output (Copper): 67 t/h
Max Output (Aluminum): 20 t/h

4. Robust Chamber Design:

Compression Chamber: 2010 (W) x 6000 (L) x 1600 (H) mm

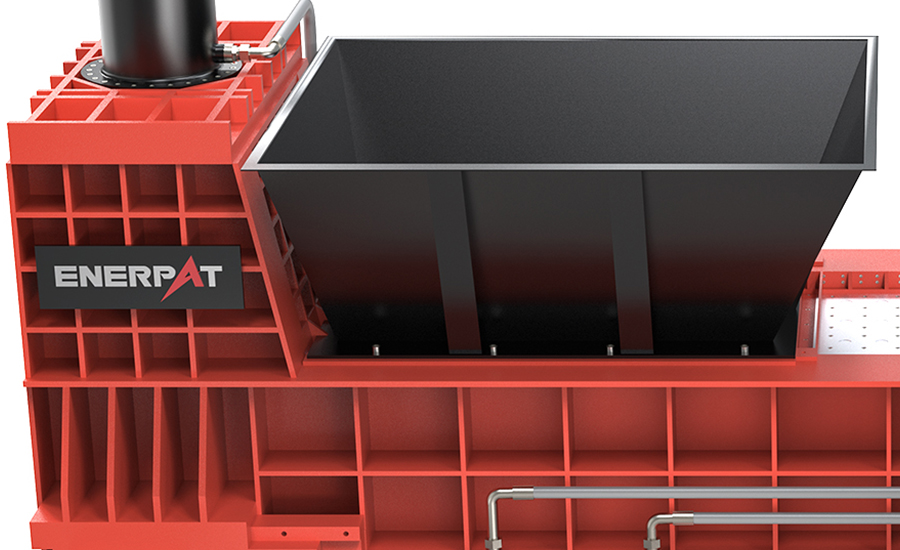

Hopper Opening: 1910 (W) x 4930 (L) mm

5. High-Efficiency Drive:

Motor Power: 3 x 90 kW

6. Universal Material Handling:

Bale Size: 600 x 600 mm (Consistent & Stackable)
Processes: Punching scrap, scrap rebar, sheet metal scrap, aluminum extrusions/profiles, steel wire, copper wire/tubing, stainless steel turnings, and more.

Composition and Structure

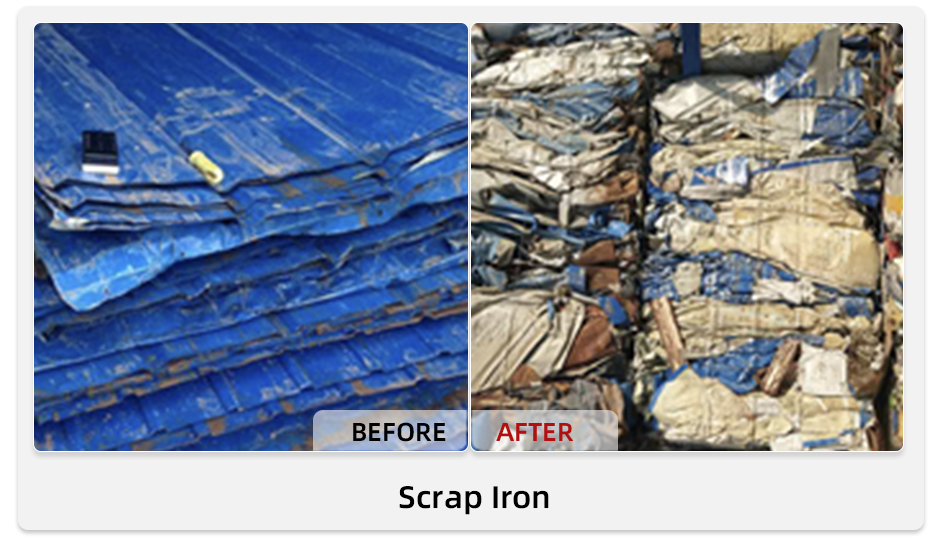

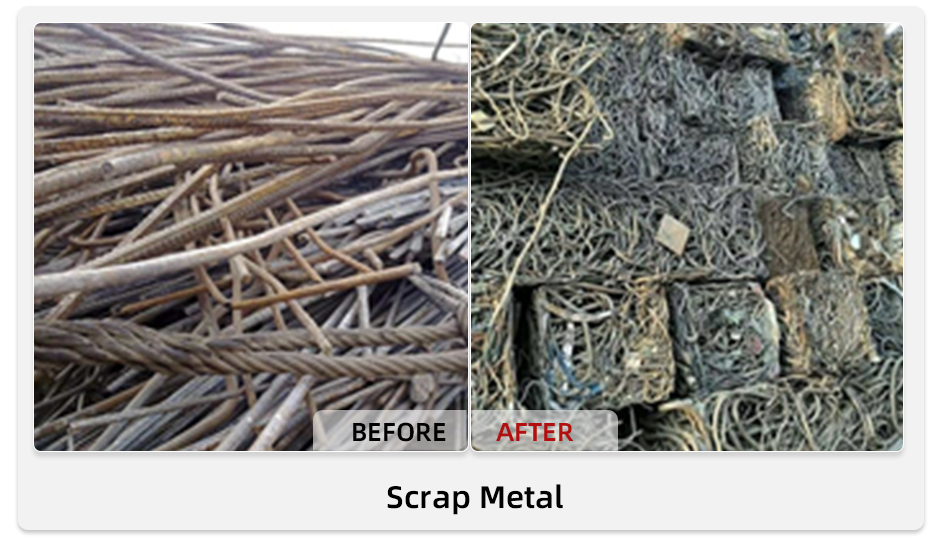

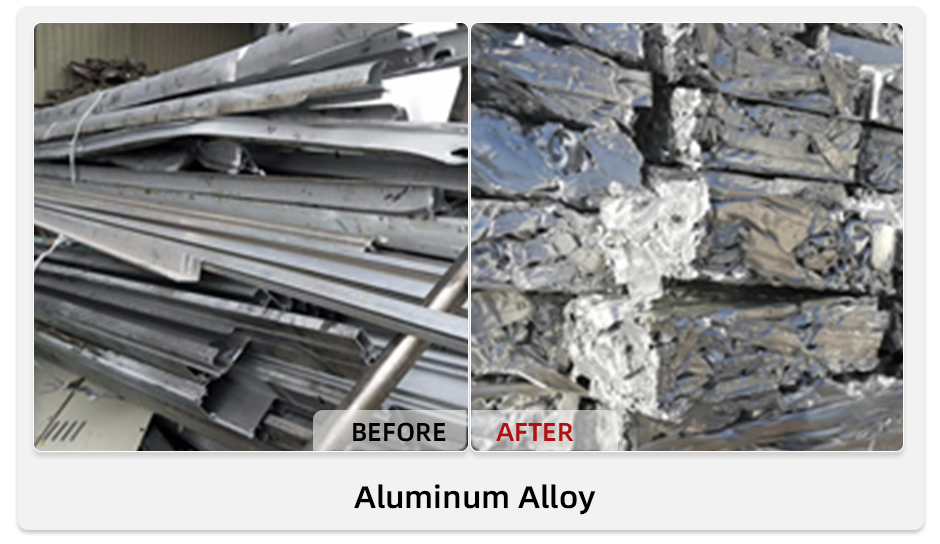

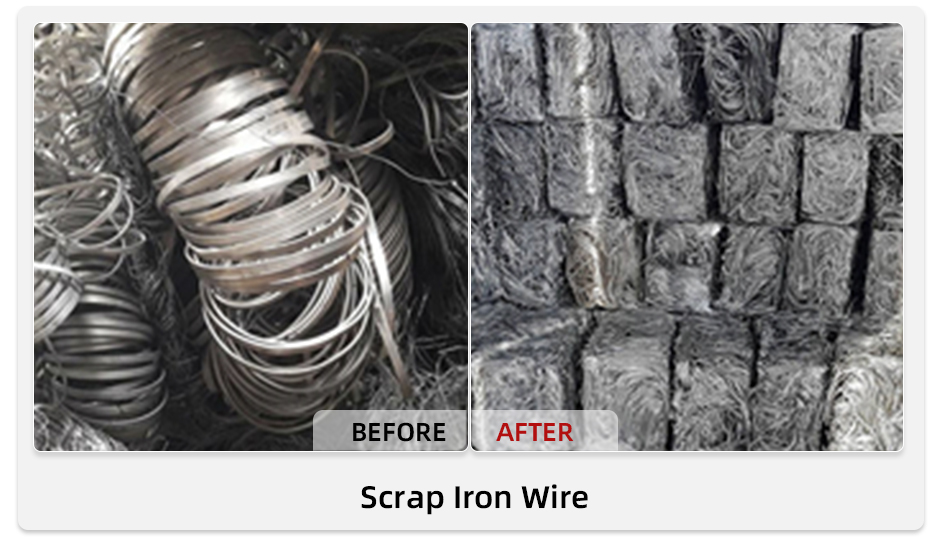

Material Testing

Engineered for Heavy Industry:

This Scrap Metal Compressing Machine is purpose-built for demanding environments like:

Steel Mills & Mini-Mills
Foundries & Casting Houses
Large-Scale Metal Recycling Facilities
Non-Ferrous Metal Processors
Automotive Scrap Yards

Your Guarantee: CE Certified | ISO 9001 Certified | UK Engineered Technology | 100% Quality Commitment.

Ready to revolutionize your scrap handling efficiency and boost your bottom line?

The Enerpat TH-Series AMB-TH60201 Scrap Metal Compressing Machine – where brute force meets intelligent design for maximum scrap value.

Product Details

Tri-Directional Compression Technology

Engineered for Uniform Density & Maximum Yield

• Balanced 3-Axis Compression: Ensures consistent material consolidation

• Industry-Leading Compression Ratio: Maximizes bale density & weight

• Precision-Formed Bales: Creates uniform, stackable blocks (600x600mm)

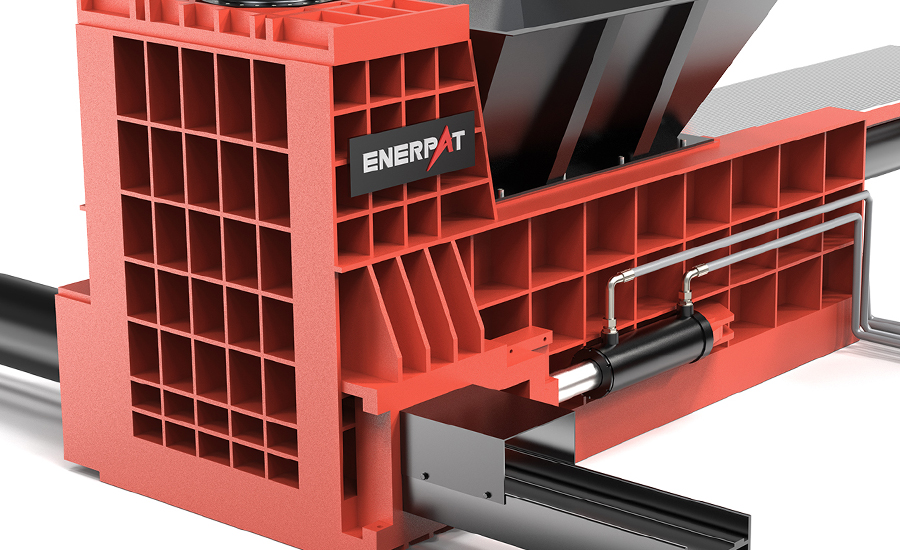

Heavy-Duty Construction

Built for 24/7 Industrial Operations

• Reinforced Box-Welded Frame: Dovetailed reinforcement joints for extreme rigidity

• Premium Component Selection: Military-grade bearings & hardened steel guides

• 10,000+ Hour Design Life: Engineered for minimum lifecycle cost

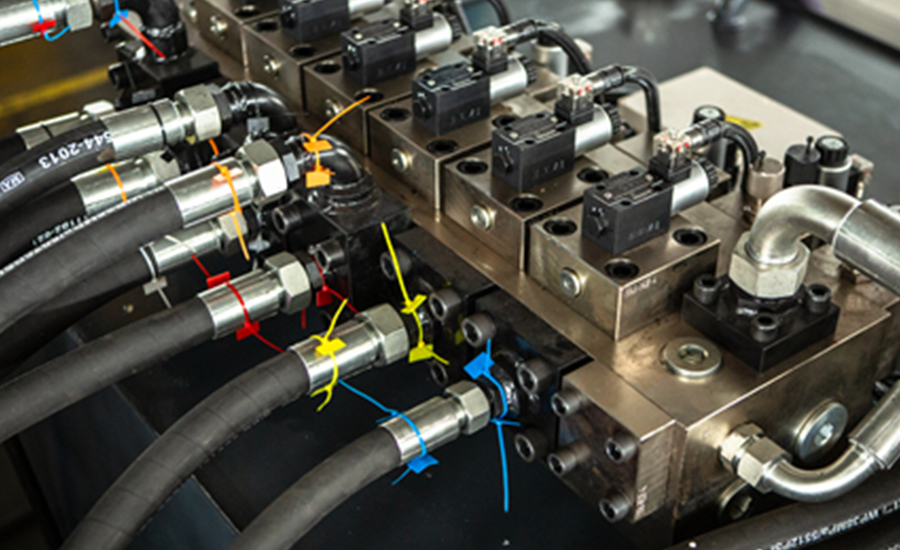

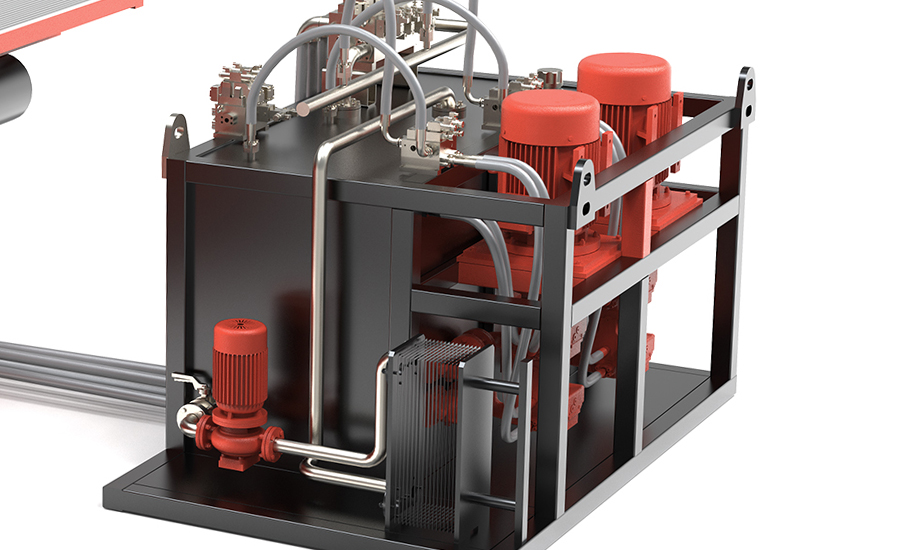

High-Efficiency Hydraulic System

Powering Industry-Best Cycle Times

• High-Flow Cartridge Valves: 25% faster ram speed vs. standard valves

• Leak-Proof H-Tapered Fittings: Zero-maintenance hydraulic connections

• Hallite UK™ Cylinder Seals: 3x industry-standard wear resistance

Maintenance-Optimized Design

Engineered for Minimal Downtime

• Modular Component Access: 40% faster service turnaround

• Wear-Resistant Liners: Replaceable abrasion zones extend frame life

• 30% Lower Operating Costs: Reduced energy & maintenance spend

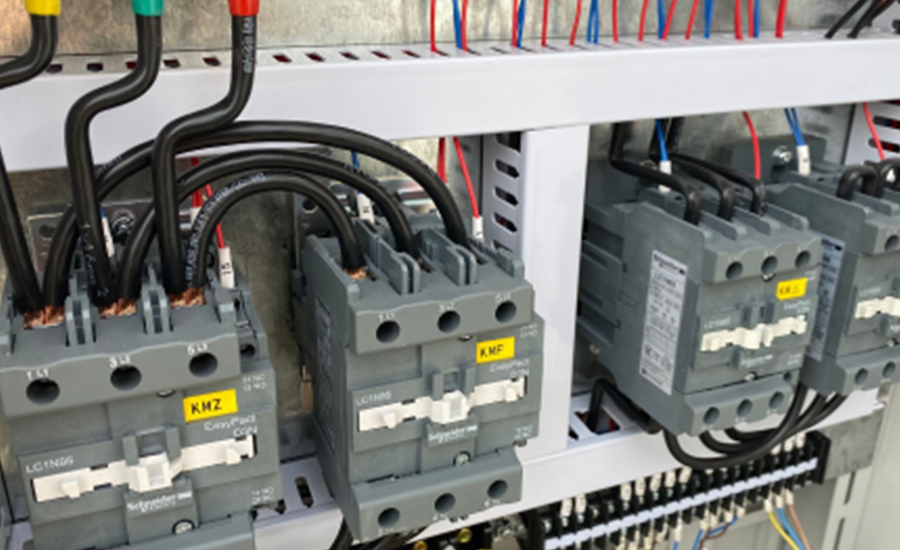

Intelligent Control System

Precision Automation with Siemens/Schneider™ PLC

• Real-Time Performance Monitoring: Track pressure/temperature/energy usage

• One-Touch Operation: Pre-programmed cycles for all material types

• Predictive Diagnostics: Automated alerts for preventive maintenance

• Remote Management: Web-enabled production reporting

Technical Data Sheet

MODEL		AMB-TH-2080	AMB-TH-2210	AMB-TH-2212	AMB-TH-2812	AMB-TH-2815	AMB-TH-6020	AMB-TH-60201
BalesHxW(L)	mm	250 x 250 （var.)	300 x 300 （var.)	300 x 300 （var.)	400 x 400 （var.)	400 x 400 （var.)	600 x 600 （var.)	600 x 600 （var.)
Motor Power	kW	1 x 55	1 x 55 1 x 90 2 x 55	1 x 55 1 x 90 2 x 55	1 x 90 2 x 55	1 x 90 2 x 90 3 x 90	3 x 90	3 x 90
Cycle time (no-load)	S	25	34 - 23	38 - 26	40 - 36	46 - 28	60	69
Bales/h (90% availability)	1/h	137	101 - 149	90 - 132	86 - 95	74 - 122	57	50
Max. production capacity, Fe (bale weight)	t/h	10 （69 kg）	13 - 19 (124 kg)	12 - 17 （124 kg)	24 - 26 (264 kg)	21 - 34 (264 kg)	47 (791 kg)	59 (1,130 kg)
Max. production capacity, Cu + Ms (bale weight)	t/h	11 (78kg)	15 - 22 (141 kg)	13 - 20 (141 kg)	27 - 30 (301 kg)	23 - 39 (301 kg)	54 (903 kg)	67 (1,290 kg)
Max. production capacity, Al (bale weight)	t/h	4 (28kg)	5 - 7 (44 kg)	4 - 6 (44 kg)	8 - 9 (94 kg)	7 - 12 (94 kg)	16 (272 kg)	20 (389 kg)
Cylinder forces, 1st compactor	t	72	112	112	161	189	343	343
Cylinder forces, 2nd compactor	t	91	136	161	220	252	494	494
Cylinder forces, final compactor	t	160	200	200	350	350	800	1,000
Spec. pressure final compactor	N/ cm²	2,128	2,063	2,063	2,104	2,104	2,144	2,749
Press box, (W x L x H)	mm	795 x 1,925 x 600	1,020 x 2,235 x 800	1,245 x 2,235 x 800	1,245 x 2,840 x 1,100	1,500 x 2,840 x 1,100	2,000 x 6,000 x 1,600	2,010 x 6,000 x 1,600
Feed opening, (W x L)	mm	725 x 1,450	945 x 1,655	1,170 x 1,655	1,170 x 2,130	1,425 x 2,130	2,910 x 4,930	1,910 x 4,930
Machine dimensions (W x Lx H)	mm	4,550 x 5,800 x 3,000	5,290 x 6,605 x 3,735	5,990 x 6,605 x 3,775	6,360 x 8,035 x 4,600	7,060 x 8,035 x 4,615	10,155 x 15,650 x 6,110	10,495 x 15,650 x 6,110
Machine weight	t	approx. 25	approx. 41	approx. 44	approx. 60	approx. 67	approx. 186	approx. 201
