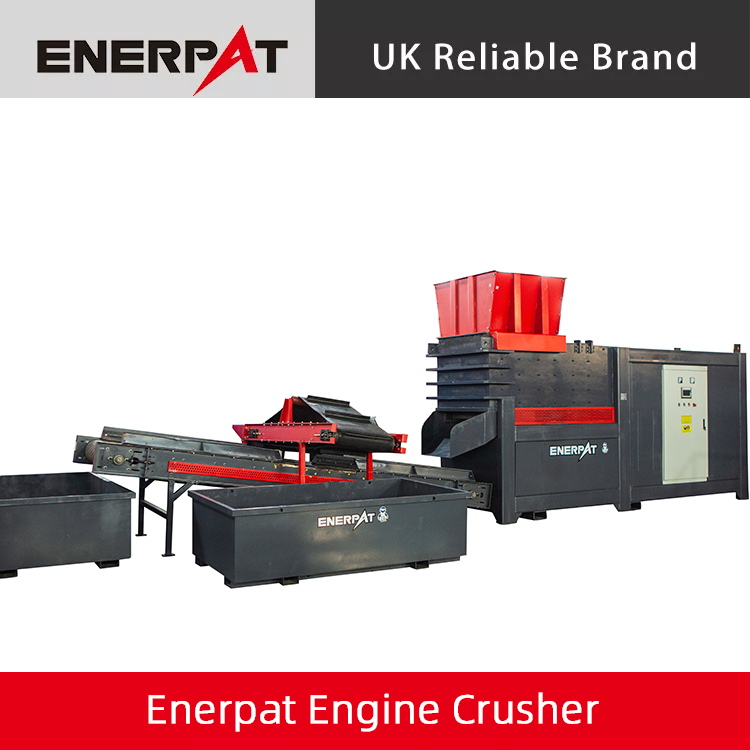

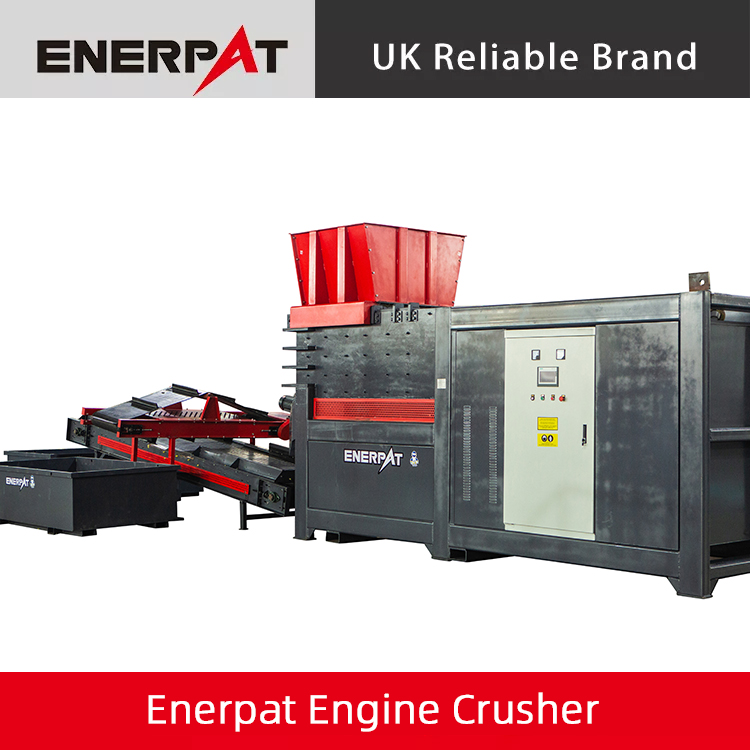

ENERPAT Engine Crusher Manufacturer

Every recycling yard, dismantling facility, or scrap dealer faces the same challenge: how to efficiently process end-of-life engines and gearboxes. These units are tough, heavy, and filled with mixed materials such as aluminum housings, steel crankshafts, and copper components. Without the right equipment, recycling becomes labor-intensive, unsafe, and low in value recovery.

That’s where the ENERPAT Engine Crusher comes in. Built with Hardox 400 wear-resistant steel, powered by Siemens motors, and backed by CE & ISO certifications, our machine delivers unmatched crushing force to turn bulky scrap engines into clean, separable fractions. It’s a proven solution trusted by recycling operations worldwide.


Availability:



Inquire

Brand:
ENERPAT

Video

Product Description

Industries Generating Scrap Engines

Automotive: Car engines, truck engines, diesel and petrol motors.
Motorcycle & Small Vehicles: Bike and scooter engines.
Marine: Boat engines, outboard and inboard motors, ship engines.
Industrial & Construction: Generator sets, excavator engines, heavy machinery motors.
Aerospace (selected customers): Aircraft turbine engines for recycling.

Wherever there is transportation or industrial machinery, there are scrap engines waiting for a reliable crushing solution.

How the ENERPAT Engine Crusher Works

1. Feeding: Scrap engine or gearbox is placed into the hopper.

2. Hydraulic Compression: A powerful hydraulic ram pushes the material into the fixed crusher chamber (Hardox 400).

3. Crushing Force: With up to 210 tons of crushing pressure, the engine block is cracked, deformed, and fragmented.

4. Liberation of Materials: The aluminum casing breaks apart, exposing steel crankshafts, valve rods, and shafts for easy separation.

5. Downstream Separation:

Magnetic separators remove ferrous steel.
Non-ferrous metals (aluminum, copper) remain for further sorting.
Optional eddy current separators or hammer mills can be added for advanced recovery.

How the ENERPAT Engine Crusher Works

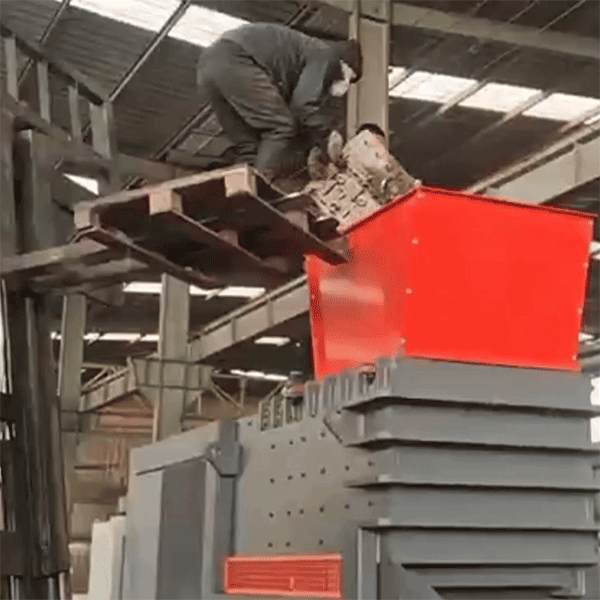

Feeding

Scrap engines are loaded into the hopper by forklift or conveyor.

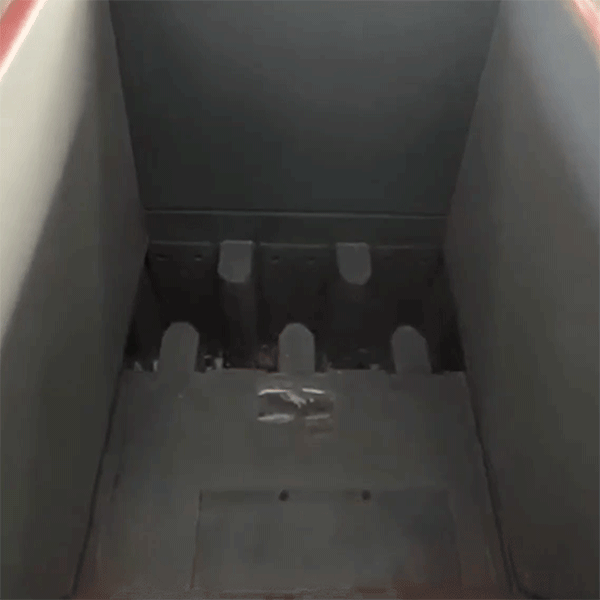

Crushing

The hydraulic pusher forces material into the Hardox chamber for powerful compression.

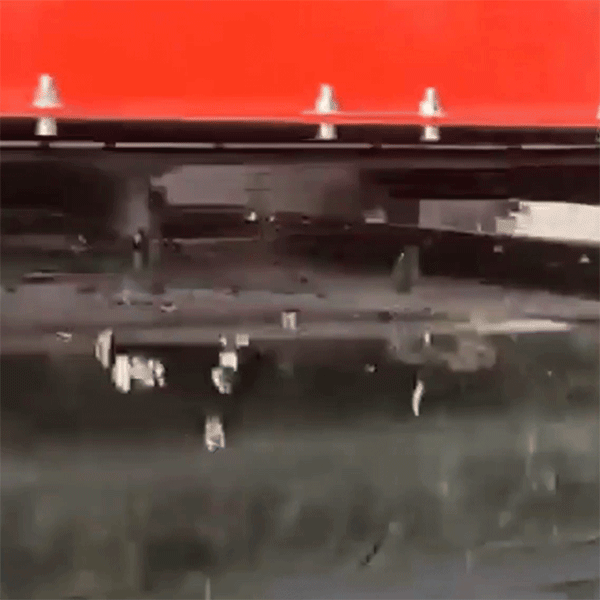

Discharge

Crushed output moves to the belt and passes the magnetic separator for sorting.

Key Technical Specifications

Crusher Chamber: 1280 × 1000 × 1000 mm (Hardox 400)
Crushing Force: 210 tons
Main Motor: 55 kW (75 HP), Siemens brand
Oil Tank Capacity: 1100 L, wind cooling system
Machine Size: 7537 × 1563 × 3009 mm
Output Conveyor: Rubber belt (8 mm thick), 2.2 kW drive
Overbelt Magnetic Separator: 1.1 kW motor, 2035 × 500 mm

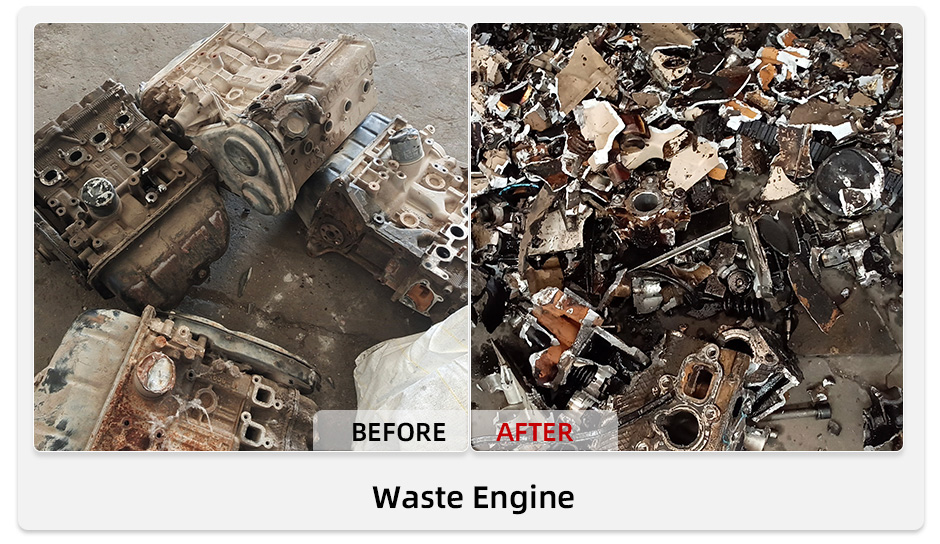

Material Testing

Why Choose ENERPAT Engine Crusher?

Higher Recovery Rates: Clean separation of aluminum, steel, and copper.
Durable Design: Hardox 400 wear plates withstand high-impact crushing.
Trusted Components: Siemens motors and Schneider controls guarantee reliability.
Certified & Proven: CE & ISO certified, used by recycling plants worldwide.
Flexible Solutions: Can be combined with magnetic drums, eddy current separators, and hammer mills for complete recycling lines.

Talk to Us

If you are looking for a reliable Engine Crusher to process car engines, truck engines, or industrial motors, ENERPAT is here to help. Our team has over 80 years of recycling equipment experience and we provide tailored solutions based on your scrap volume and downstream requirements.

Contact us today for a customized quotation and see how the ENERPAT Engine Crusher can boost your recycling profits.

Details

Five Key Advantages of the ENERPAT Engine Crusher

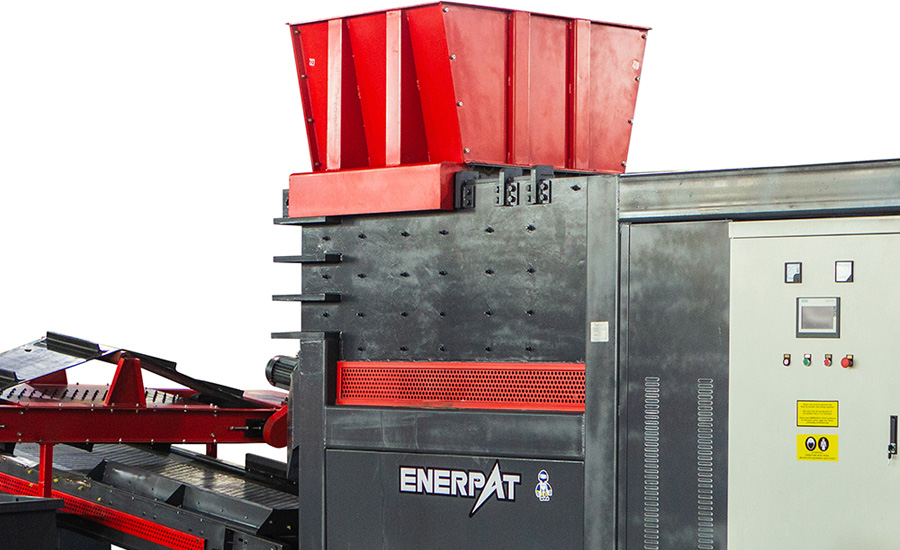

Built to Last – Heavy-Duty & Easy Maintenance

The crusher is manufactured with a welded box frame and Hardox 400 wear-resistant plates, ensuring exceptional durability under heavy-duty operations. Its modular assembly design makes routine maintenance and parts replacement quick and cost-effective, keeping downtime to a minimum.

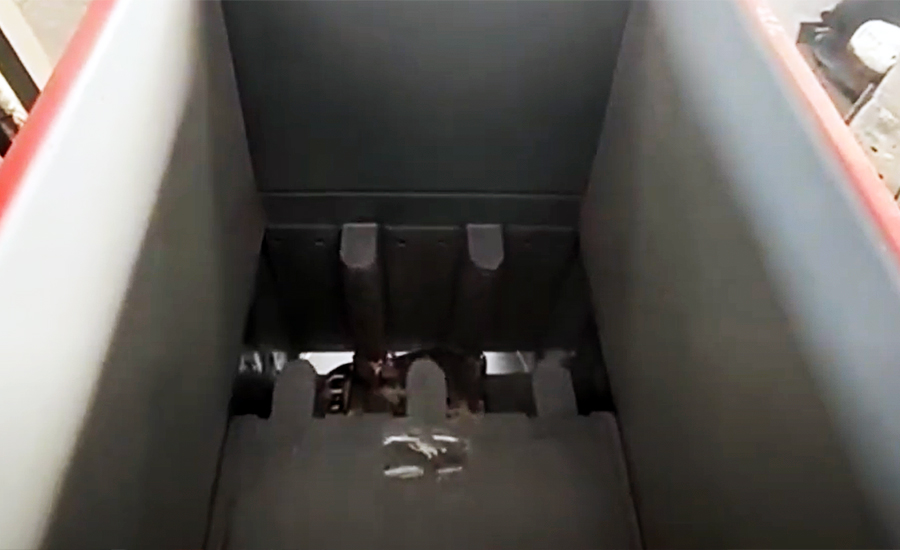

Powerful Hydraulic Crushing Force

Equipped with a high-performance hydraulic pusher, the machine delivers up to 210 tons of crushing force. Scrap engines and gearboxes are pushed into the Hardox chamber, where they are cracked, deformed, and broken down into smaller fractions – ensuring complete liberation of metals for further separation.

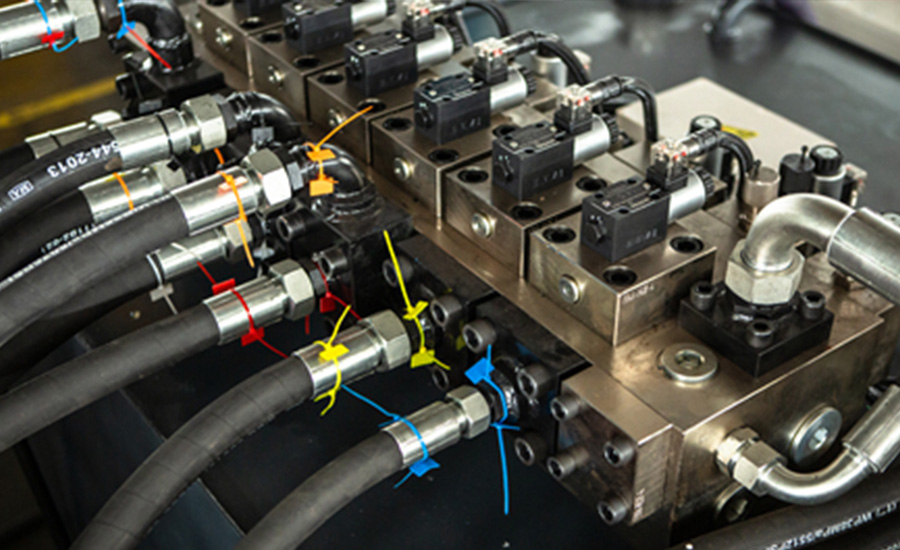

Safety & Hydraulic Protection System

The machine comes with a comprehensive safety package: overload protection device, thermal protector, pressure relay, and relief valve to safeguard the hydraulic system. Guide grooves inside the crushing chamber improve material flow, while the H-joint sealing design prevents oil leakage for long-term reliable performance.

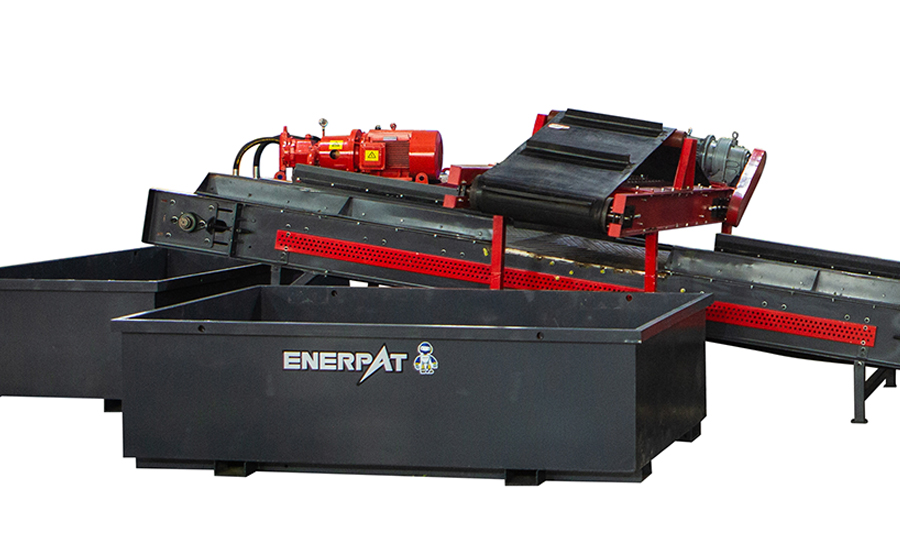

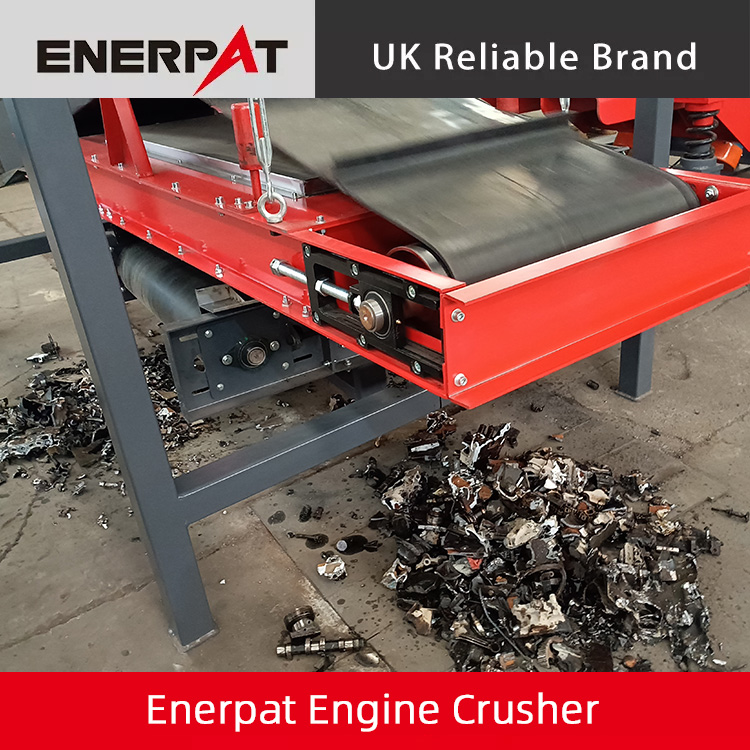

Integrated Magnetic Separation

For higher recovery efficiency, the crusher is equipped with a belt conveyor and overbelt magnetic separator. After uniform feeding, ferrous steel is automatically removed from non-ferrous metals such as aluminum and copper. This ensures cleaner output fractions and maximizes recycling value.

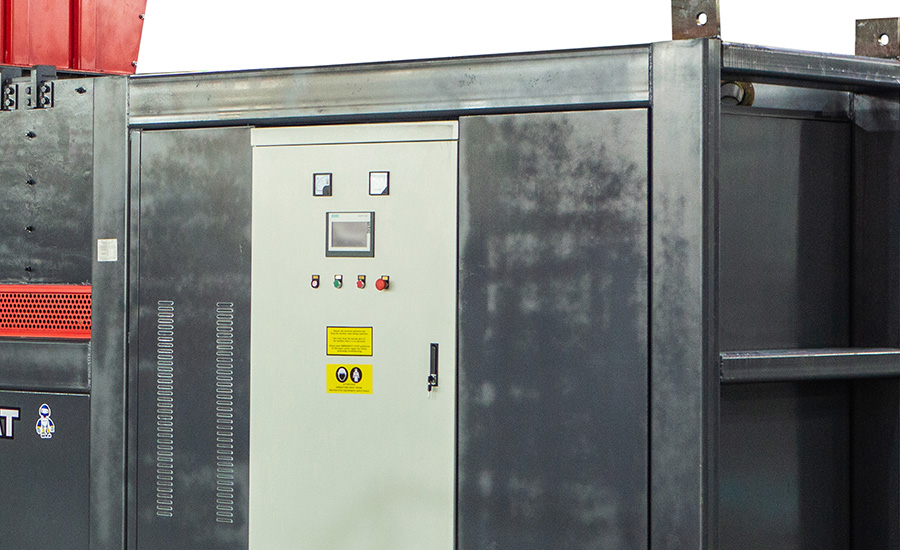

Smart & User-Friendly Control System

Step into the smart recycling era with Siemens/Schneider PLC control and a visual touch screen interface. Operators can start the machine with one-touch automation, monitor real-time performance, and even let the system automatically adjust feeding capacity. This makes operation simple, flexible, and highly efficient.

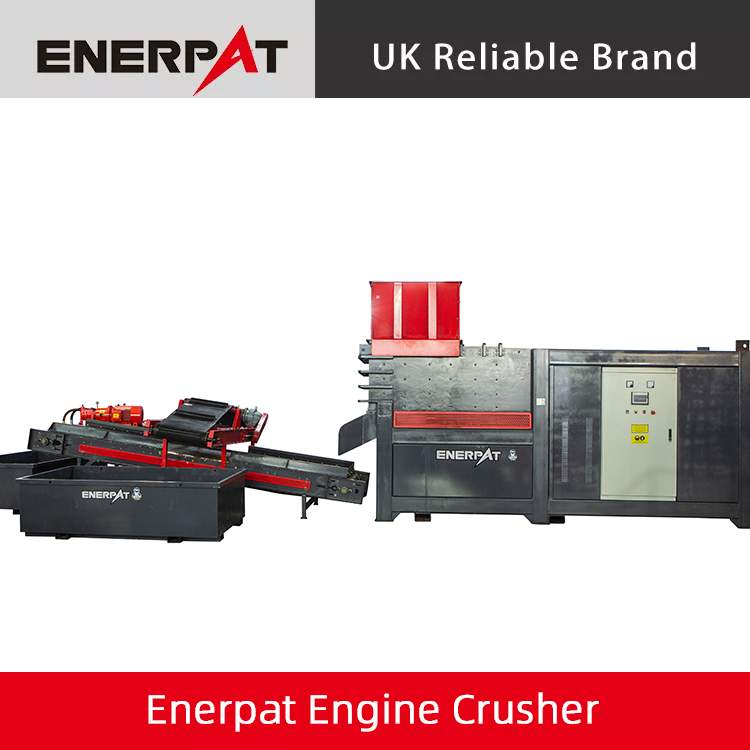

Specifications

Main Unit MSE-EC2100	Machine Dimensions	5515×1460×3195 mm (18'1"×4'9"×10'5")
	Machine Weight	9000 kg (9.92 US tons)
	Compression Chamber Size	1072×992×760 mm (42"×39"×30")
	Loading Height	3195 mm (10'5")
	Discharge Height	998 mm (3'3")
	Hydraulic Station Motor Power	1.5 kW (2 HP)
	Crushing Force	210 t (231.5 US tons)
	Main Motor Power	55 kw (75 HP)
	Motor Brand	Siemens
	Wear‑resistant Plate Brand	Hardox 500
Vibrating Feeder EVT‑1200‑2.6M	Feeding Width	1200 mm (47.2")
	Feeding Length	2600 mm (102.4")
	Vibration Motor Power	1.5 +1.5 kW (2.0 + 2.0 HP)
Suspended Magnetic Separator ES‑0MS1400	Overall Dimension	2540×1750×1060 mm (100" × 68.9" × 41.7") (L×W×H)
	Machine Weight	1730 kg (3814 lbs)
	Applicable Belt Width	1400 mm (55.1")
	Magnetic Field Strength	700 GS
	Motor Power	5.5 kW (7.4 hp)
	Suspension Height	300 mm (11.8")
	Belt Thickness	10 mm (0.4")
Horizontal Sorting Conveyor EC‑BCR650‑6M	Conveyor Belt Width	650 mm (25.6")
	Conveyor Length	6000 mm (236.2")
	Conveyor Belt Speed	0.9m/s (2.95 ft/s)
	Hydraulic Station Motor Power	3 kW (4.02 hp)
	Side Baffle Height	200 mm (7.9")
	Belt Type	Chevron Pattern
	Belt Thickness	8mm (0.3")
