Global Metal Recycling Challenges
The world generates 50M+ tons of scrap metal annually, yet 30% ends in landfills due to inefficient processing. EU's ELV directive mandates 95% auto recycling rates by 2030, while traditional shredders struggle with:

High energy consumption (avg. 200kWh/ton)
Poor impurity separation (<70% purity)
Limited throughput (5-10t/h for standard models)

ENERPAT's Dual Solution
Our MSE-H (horizontal) and MSE-V (vertical) hammer mills address these gaps with:

Material Adaptability: Process everything from 2mm aluminum foil to 10mm steel car bodies
Energy Efficiency: 25% lower power consumption vs industry average
Purity Control: Achieve 98% metal purity through dual-stage separation

Why Global Recyclers Trust ENERPAT
80+ years engineering scrap solutions for Fortune 500 metal processors. ISO-certified heavy-duty construction exceeds DIN standards.

Quantity:
Availability:





Inquire Add to Basket

Brand:
ENERPAT

Video

Product Description

How to Choose the Right ENERPAT Hammer Mill Shredder?

Industry Pain Points

Car shells/fridges occupy 3× more storage space unshredded
Aluminum scrap contamination reduces melt value by 22% (ISRI 2023)
Waste components require 99% material separation for compliance

Model Selection Guide

Feature	MSE-H Series (Horizontal)	MSE-V Series (Vertical)
Best For	Auto shells, oil drums, thick steel	E-waste, small appliances, thin aluminum
Throughput	2-160t/h	1-15t/h
Power	110-4410kW	132kW
Key Advantage	High-torque V-belt drive (480-594rpm)	Roller knife system (670rpm)

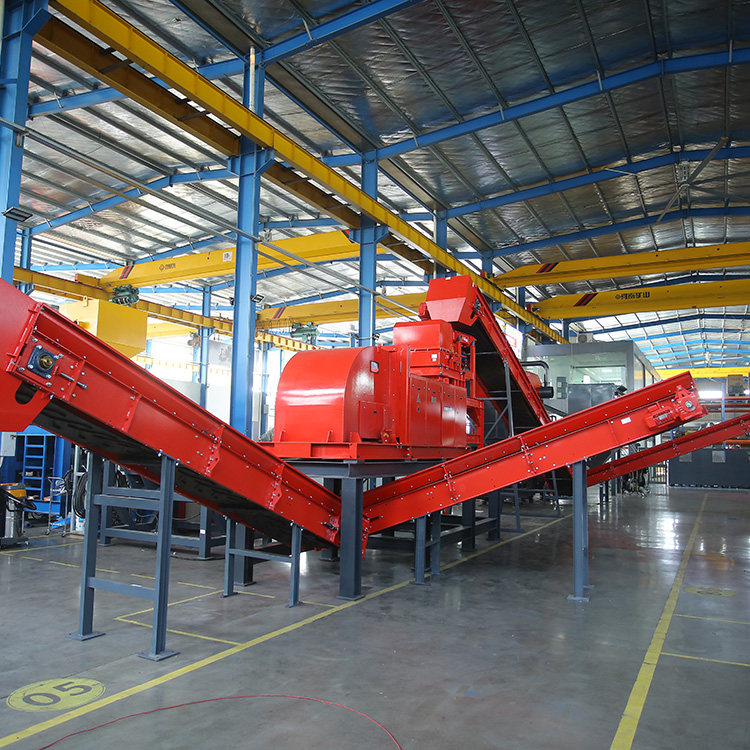

Horizontal MSE-H Series

Tungsten-Carbide Hammers: Last 3x longer than standard Mn steel
V-Belt Overload Protection: Automatically slips under 150% load
Screen Classifier: Produces 20-50mm uniform granules for smeltin

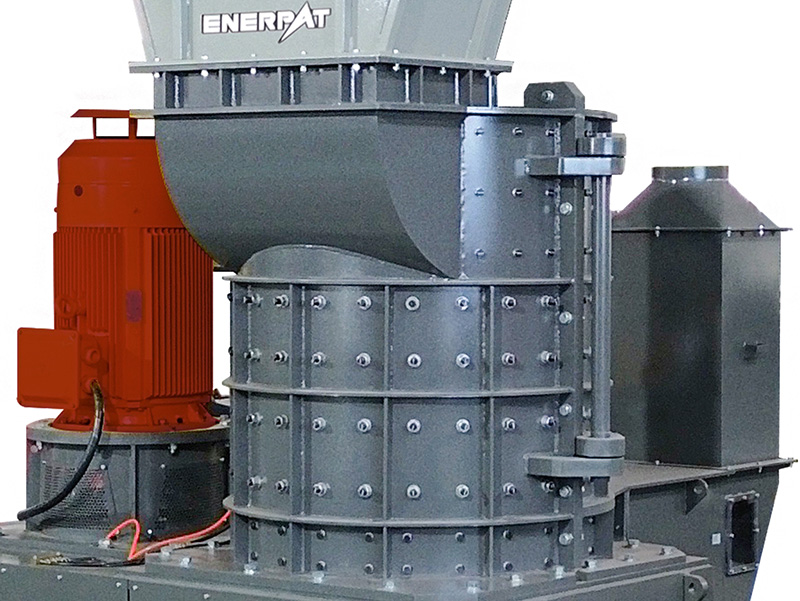

Vertical MSE-V Series

Roller Knife Matrix: 36pcs high-speed blades for sheet metal shredding
Airflow Separation: Removes paint/plastic through negative pressure
Quick-Change Screen: Tool-free maintenance in <30mins

Product Applications

Applications

Why Choose ENERPAT Hammer Mill Shredder?

Global Compliance: CE/ISO 13849 certified, meets EPA 503 standards
Proven ROI: Average payback period <18 months (based on 200t/month capacity)
Service Network: 24/7 support from 15 regional centers (EU/NA/MEA/APAC)

Application Cases

European Auto Recycler: Processed 12,000 end-of-life vehicles annually with MSE-H1800
Middle East Aluminum Plant: Achieved 99.2% purity with MSE-V1500 for UBC recycling
US Electronics Processor: Reduced labor costs by 40% through automated impurity separation

Act Now

Get your free plant design consultation and:

Compare capital cost vs OPEX savings
Access 3D plant layout simulations

ENERPAT - Serving 165 Countries Since 1936 | Global Waste Disposal System Supplier

Core Features

ENERPAT Hammer Mill Shredder Core Features Comparison

Horizontal Model (MSE-H)	Feature Comparison	Vertical Model (MSE-V)

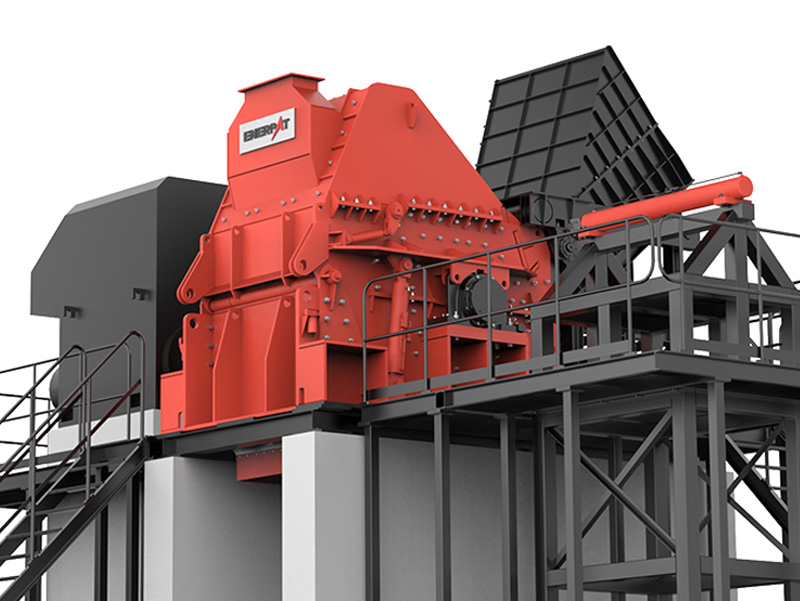

	1. Chamber Construction Shared: Heavy-duty pressure-resistant design for continuous operation Horizontal: Thick steel clamshell for easy top-access maintenance Vertical: Welded box with split side panels for front-access servicing

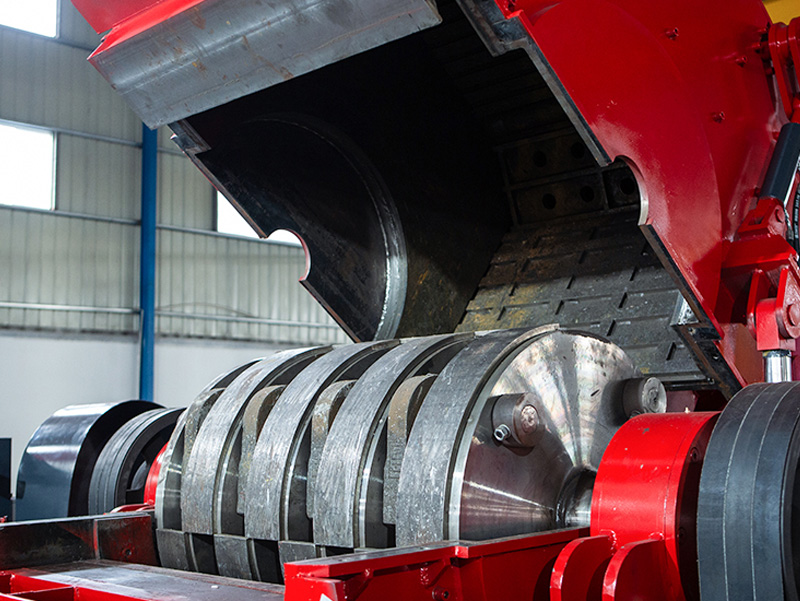

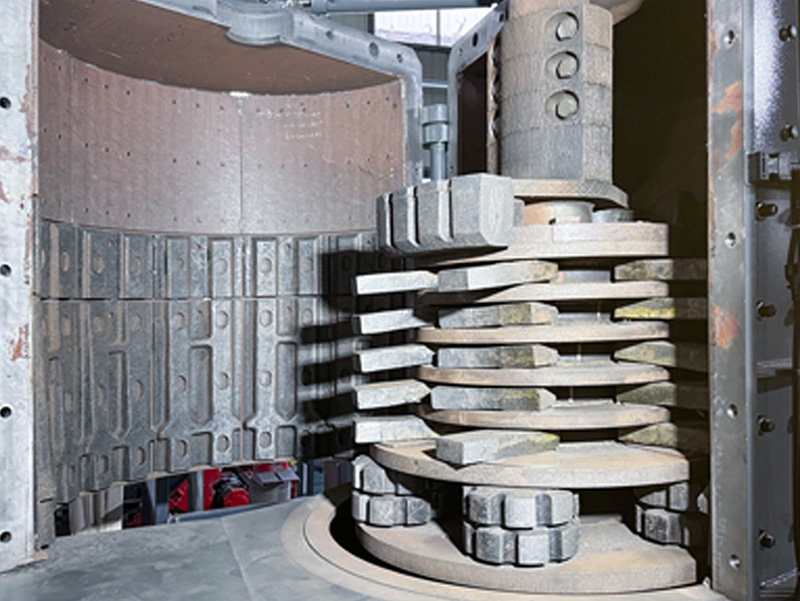

	2. Hammer System Shared: 360° rotation capability for even wear Horizontal: Pull-out spindle design (≤5 mins hammer replacement) Vertical: Cast steel hammers with surface hardening (≥2x lifespan)

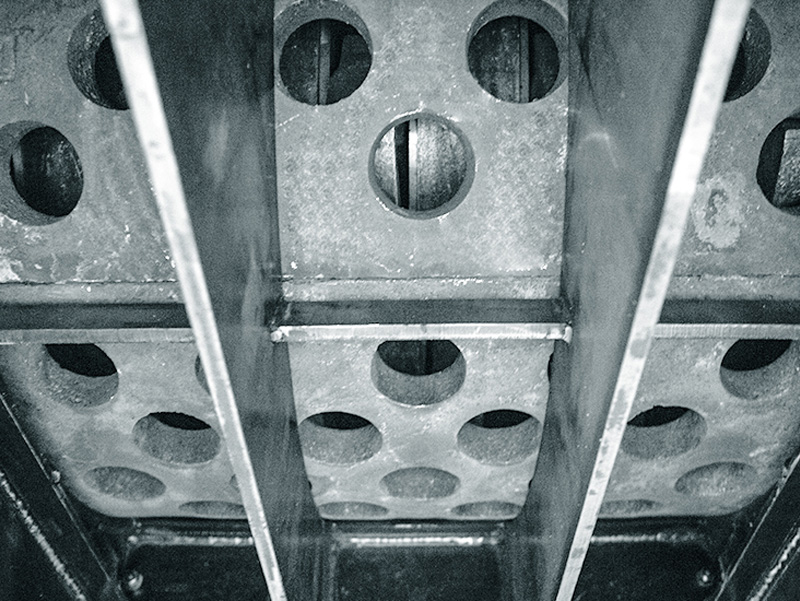

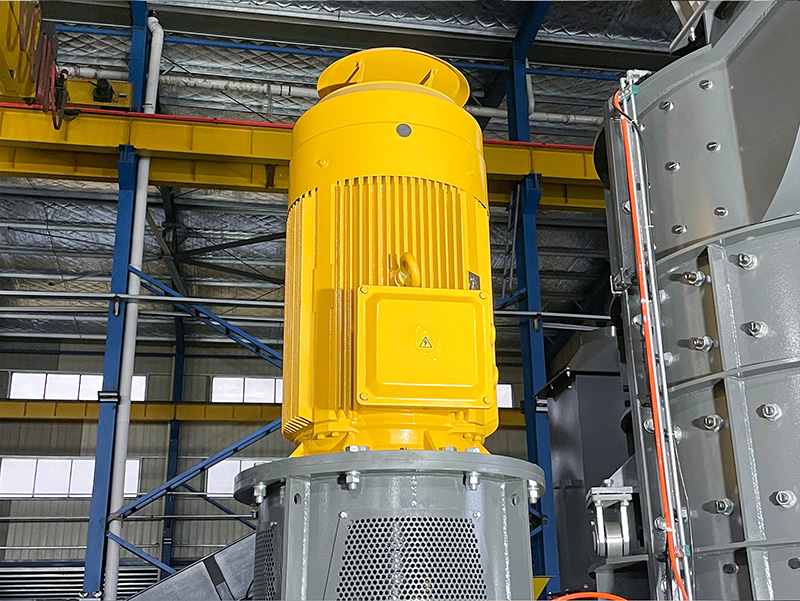

	3. Output Control Horizontal: Customizable thick steel screens (20-80mm) Vertical: Siemens motor + hydraulic coupling (soft start, 30% lower inrush current)

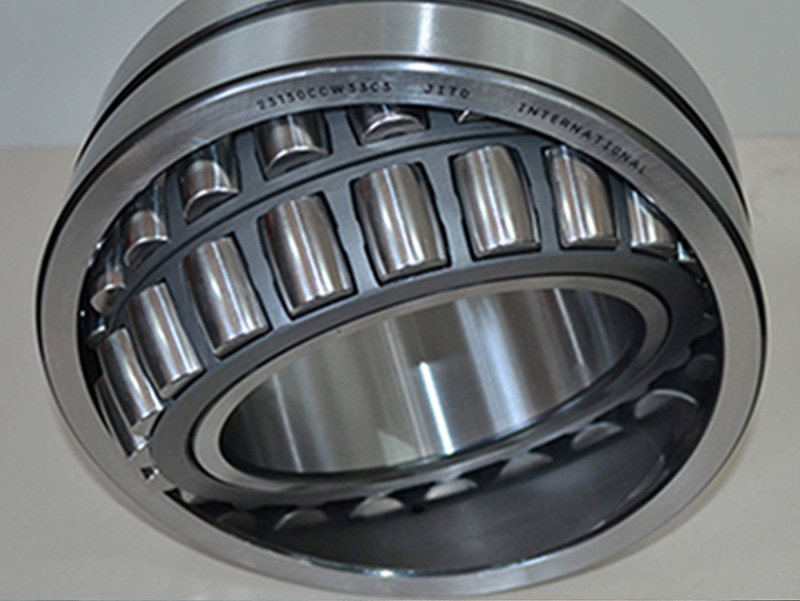

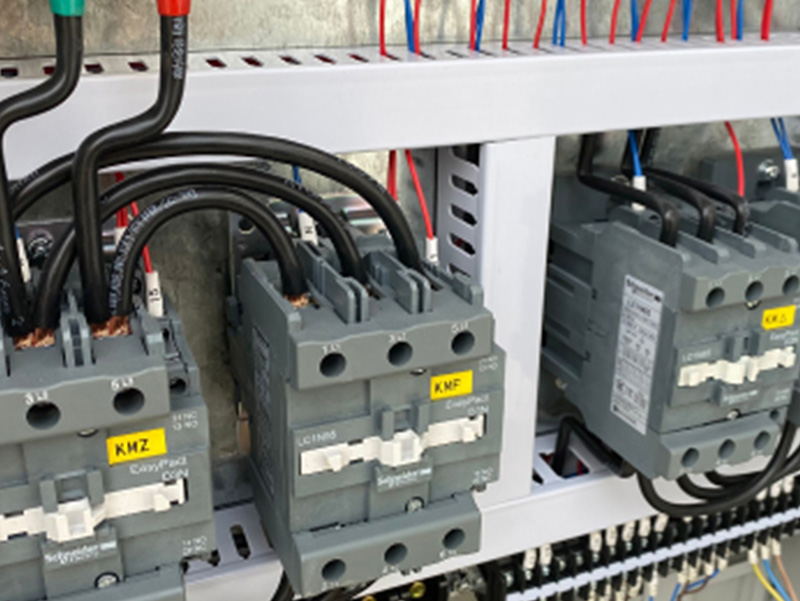

	4. Powertrain Shared: Siemens/Schneider electrical components Horizontal: V-belt drive with overload protection Vertical: FAG/SKF self-aligning bearings (reduce vibration by 40%)
	5. Smart Control Shared: Touchscreen PLC with automatic feed control Horizontal: Cabinet-style panel for traditional layouts Vertical: Compact integrated HMI for space-saving operations

Customer Cases

Technical Data Sheet

Horizontal Model (MSE-H)

Model	MSE-H800	MSE-H1000	MSE-H1300	MSE-H1800	MSE-H2000	MSE-H2600
Main Power	110/132KW	220KW	355KW	560KW	750-1120KW	1500-4410KW
Rotor Speed	480rpm	480rpm	594rpm	594rpm	594rpm	594rpm
Shaft Length	762mm	1016mm	1270mm	1778mm	2032mm	2641mm
Fedding Width	760mm	1000mm	1200mm	1700mm	2000mm	2600mm
Motor Connecting	V-Ruber Belt	V-Ruber Belt	Universal Joint	Universal Joint	Universal Joint	Universal Joint
Number of Hammer	10pcs	10pcs	10pcs	10pcs	10pcs	10pcs
Output(Steel)	2-3t/h	8-10t/h	8-12t/h	10-15t/h	15-30t/h	30-160t/h

Vertical Model (MSE-V)

Model	Main Motor Power (kW)	Speed (rpm)	Number of Rolling Knives (pcs)	Equipment Dimensions (mm)	Equipment Weight (t)
V1500	132	670	36	3294×780×5014	14
