Reliable Bulky Waste Two Shaft Shredder

Wood pallet shredders MSB-G1200 two shafts shredder and MSA-F1500 single shaft shredder are high performance shredders for shredding pallets, wood waste and residual timber.

Quantity:
  • ENERPAT

Bulky Waste Shredder


Energy-efficient waste shredder for alternative fuel production using waste wood, pulper ropes etc.

The MSB-E class is a high-performance shredder for alternative fuel production that may be used as a pre-shredder or a single-phase shredding solution. Extremely low-maintenance and maintenance-friendly, it offers a very long service life. Spare parts are usually available within 48 hours and the remote maintenance option further ensures the smooth operation of your plant.

The MSB-E class is a very energy-efficient and low-speed, single-shaft shredder that was specifically designed for shredding coarse and medium-sized municipal solid waste (MSW), commercial and industrial waste (C&I) as well as for recycling scrap wood and bulky waste. It is often used as a pre-shredder in a comprehensive system or simply as a single-stage shredding concept to produce refuse derived fuel (RDF) for the calciner.

The powerful solid waste shredder is perfectly suited to process materials that are difficult to shred, such as pulper ropes, spring mattresses or rolled goods. The robust design enables even untreated material containing unshreddable items to be processed in one pass. These items can be removed quickly and easily using the impurity removal system, which keeps downtime to a minimum

Size reduction with low operating costs

Minimal operating costs paired with maximum performance make this waste shredder a strong partner that stands out for its forward-thinking technology, such as the ENERPAT Eco Drive concept that lowers energy consumption by 75% compared to standard electro-hydraulic drive options.

State-of-the-art synchronous motors achieve maximum efficiency, making the ENERPAT Eco Drive one of the most energy-efficient drive systems on the market. In addition, maintenance costs may be reduced to a minimum as the unit is free from pulleys, hydraulic pumps and shaft stubs. Where higher throughputs – and therefore also higher rotor speeds – are required, there is the option of integrating a safety coupling that will separate the rotor from the drive if a foreign object is detected.

Flexible waste shredder for different material

To fulfill your individual requirements, the MSB-E class is available with a ripper, cutter or X-cutter system. The combination with our patented XR screen bars or different-size screen systems makes a fraction size from 400 to 30 mm possible. The final throughput will depend on the type of material and the screen diameter and ranges from 10 t/h to 70 t/h. All rotors are wear-protected thanks to welded Hardox plates, making them particularly resistant against abrasive materials. Our experienced project engineers are at your disposal to assist with the planning and implementation of your

Photos (MSA-F1500 Single Shaft Shredder)

3

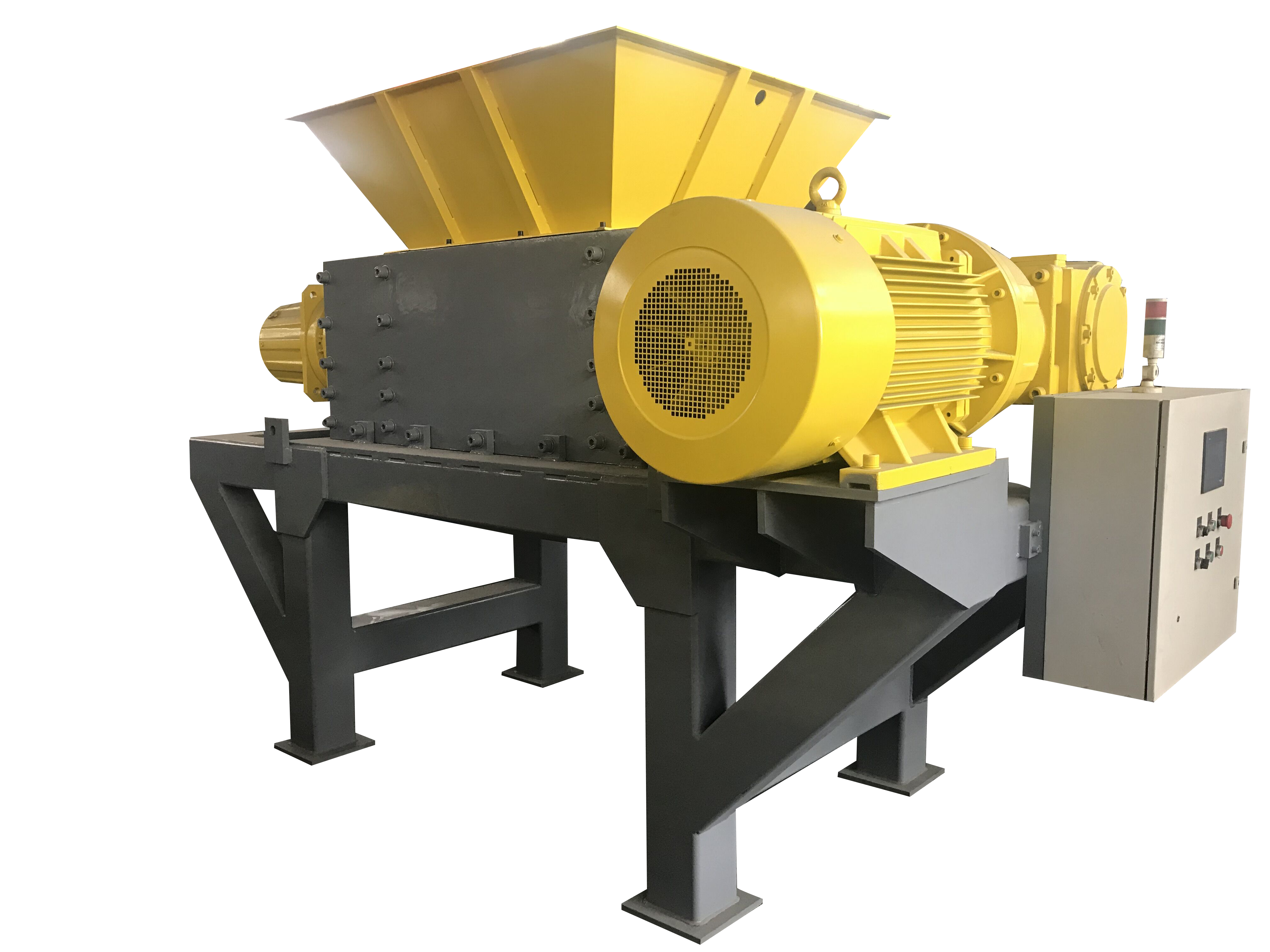

Photos (MSB-G1200 Two Shaft Shredder)

MSB-G1200

WASTE WOOD

wood pallet

Enerpat Wood Pallet Shredder-3

Enerpat Wood Pallet Shredder-2

Enerpat Wood Pallet Shredder-1


ModelG1200


F1500


Dimension (L x W x H) (mm)3580 × 1965 × 2202800 × 2750 × 2130
Hopper Opening (L x H) (mm)1200 × 7252100 × 1430
Discharge Height (mm)875565
Rotation Diameter (mm)Φ430Φ400
Operation Length (mm)12001400
Rotation Speed (RPM)1580
Ram (mm)N815
Screen Size(mm)NΦ40
Number of Rotor Knives3078+4
Number of Counter KnivesN3+3
Main Drive (kW)4475
Hydraulic Power Pack (kW)N5.5
Weight (kg)Approx5120Approx7300
