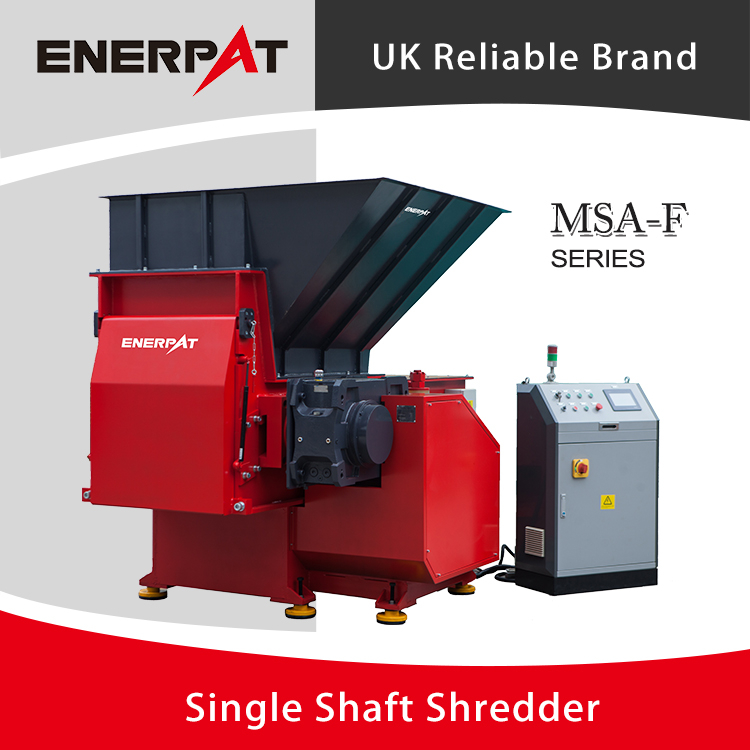

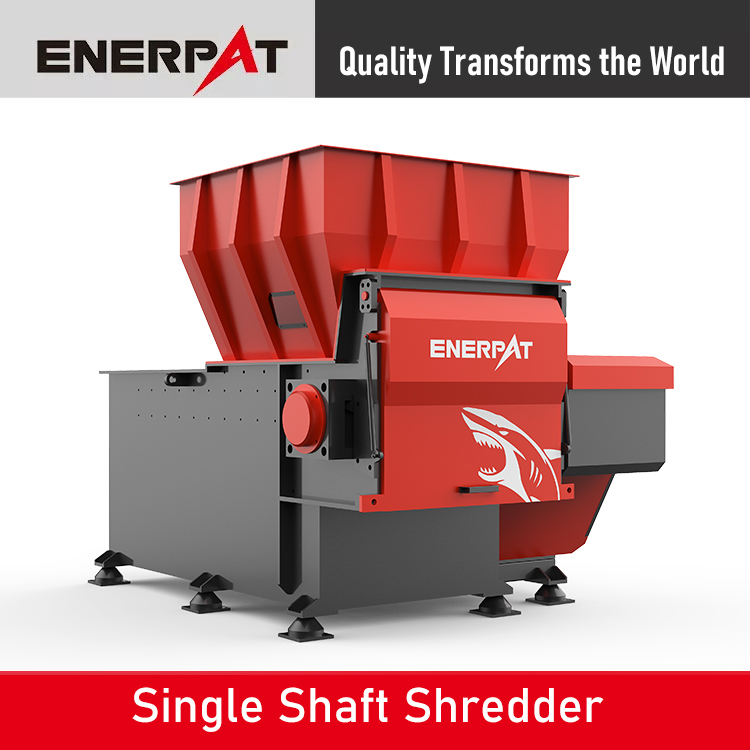

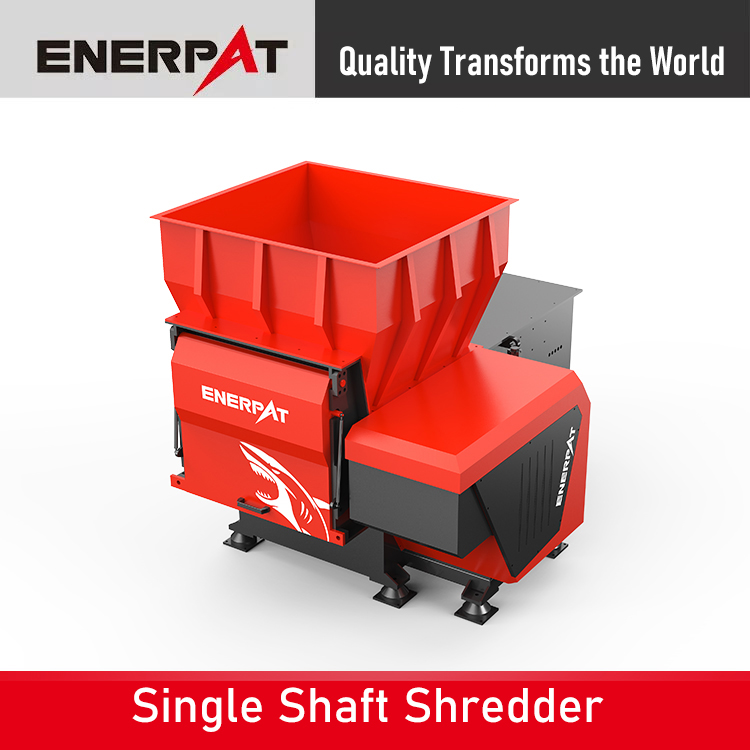

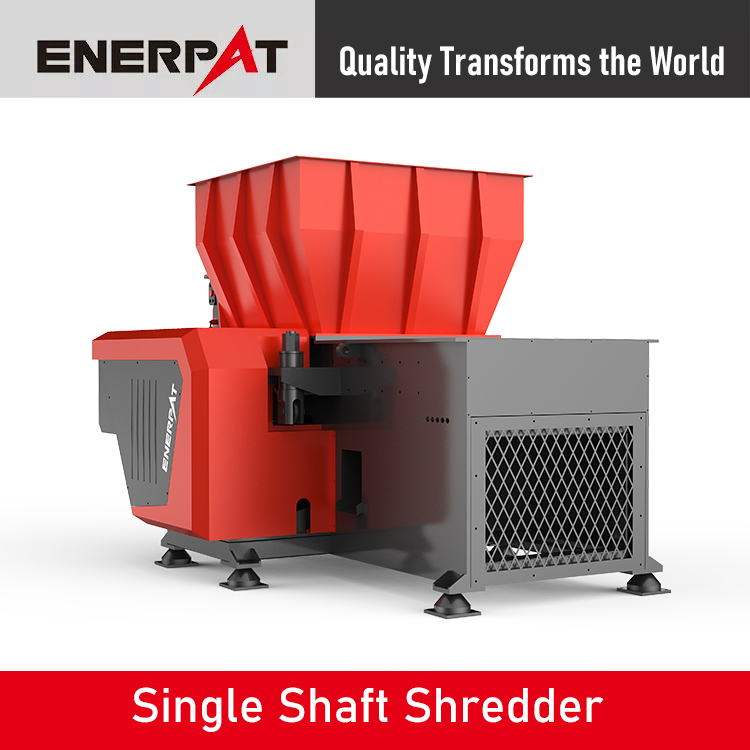

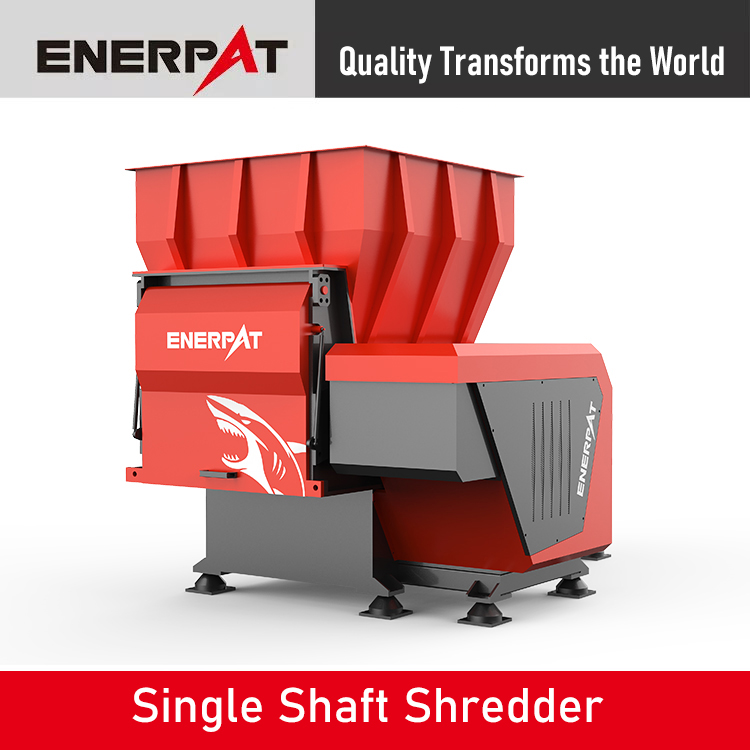

Single Shaft Shredder

MSA-F Series Single Shaft Shredder from Enerpat is a shredding machine for a wide range of applications. It is equipped with PLC automatic control system, large capacity hopper and horizontal pushing system. These enable it to meet a variety of shredding needs and realize high output. The whole machine has passed CE certification authorized by EU and is suitable for shredding tough or medium-hard materials that are packed into bundles.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MSA-F

  • ENERPAT

Product Video

Single Shaft Shredder Video

Product Description

Single Shaft Shredder


MSA-F Series Single Shaft Shredders are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughputs typically range between 300kg/hr –10,000kg/hr+ depending on the model, material type and application.


MSA-F Series Single Shaft Shredders are widely used in the volumetric reduction of various waste products, including but not restricted to the following. Plastc Bottles, Plastic Pipes, Woven Bags, Electrical Cable, Wood, Paper, Domestic Rubbish & Electronic Waste. A suitable screen can be chosen depending upon the materials being processed and the next processing requirement. The Output material discharged by the shredder could be an end product or the primary feed for the next process. The MSA-F Series Shredder can be equipped with many different rotor configurations. In addition, a cooling system, bead welds & an additional wear layer can be added.



Composition and Structure

Composition and Structure


Operation Principles

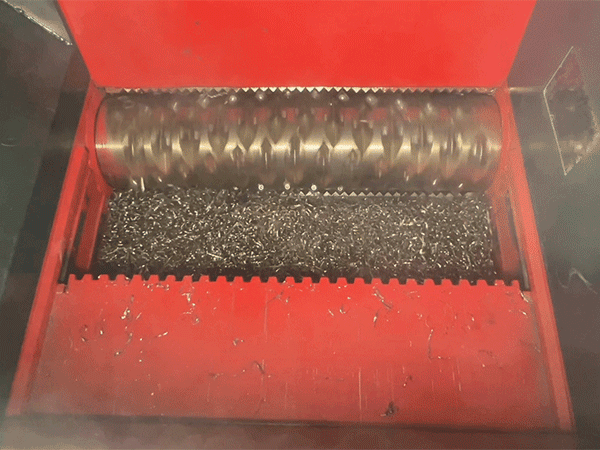

Material Pusher Structure Pushes the Material

Material Pusher Structure Pushes the Material

The Material Pusher Structure is driven by the hydraulic cylinder to push the material to the blade shaft.

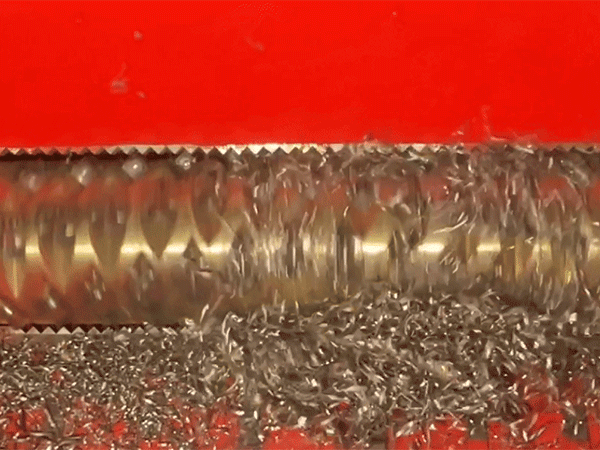

Material Shredding

Material Shredding

The material is shredded through the mutual shearing between the movable blades and the fixed blades.

Screen Discharge

Screen Discharge

The shredded material is discharged through the screen system, and the particle size of the discharged material is determined by the aperture of the screen.



Product Details

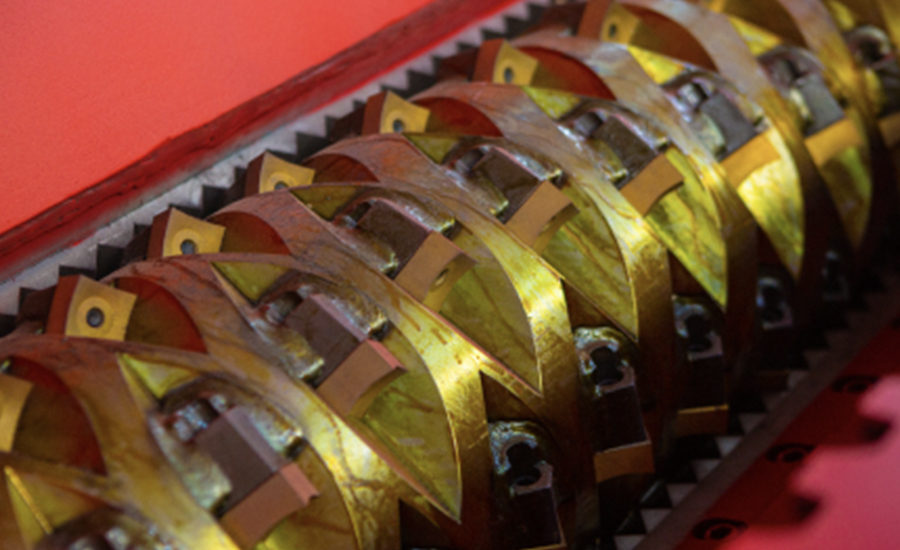

Cutter Shaft Structure

Cutter Shaft Structure
  • V type rotor knives layout design,special heat treatment knife material DC 53,4 sides can be used

  • The gaps between the rotor knives and counter knives can be adjusted.

  • The cutter shaft with surfacing treatment can be used for shredding hard materials like light scrap metals

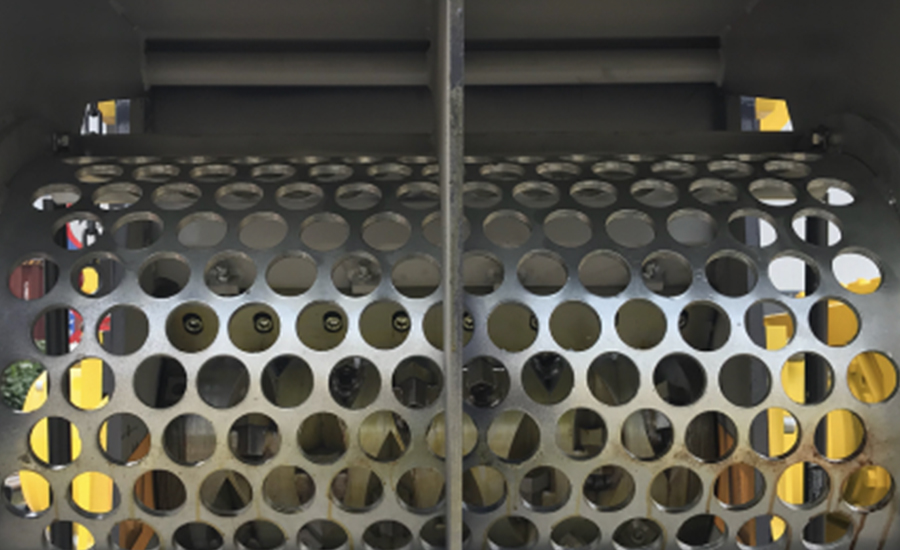

Screen Structure

Screen Structure
  • The screen can be changed conveniently,the end products size depends on the screen mesh size

  • Machine has screen supports,which been controlled by the hydraulic cylinder,with safety switch

  • Customized screen mesh design depends on different materials

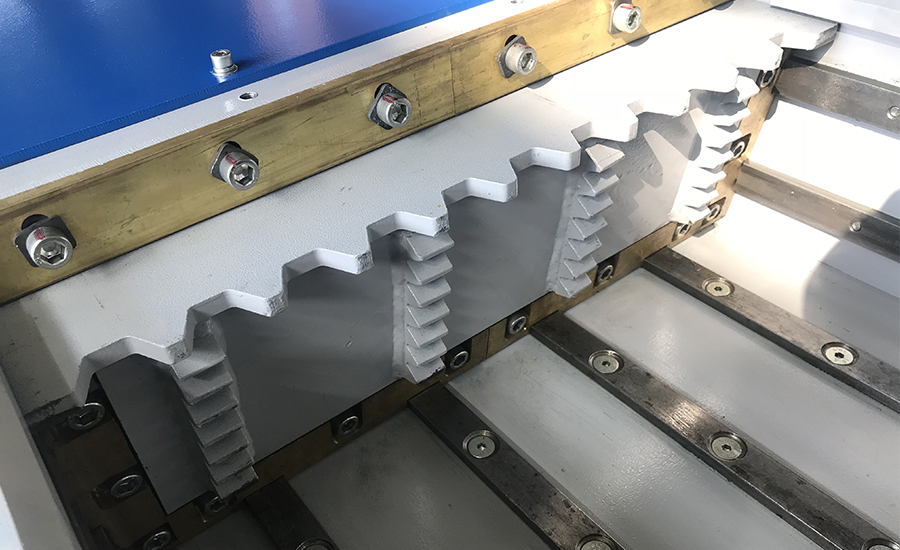

Material Pusher Structure

带密封系统的推料机构
  • The chamber adopting advanced seal design,with adjustable copper guide blocks and integrated front guide plate

  • Dust leakage groove -- The dust will be removed from this groove,good protection for the hydraulic system

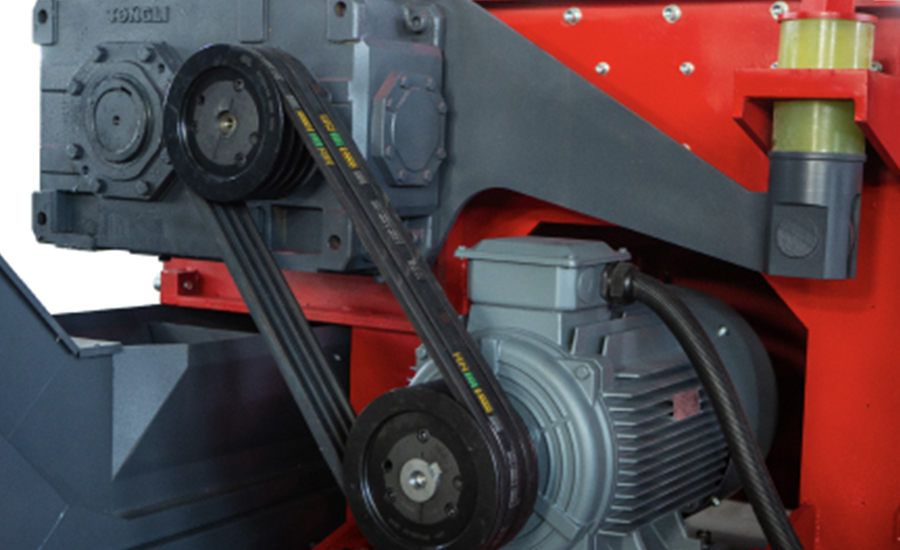

Power Drive System

Cutter Shaft Structure
  • High efficiency electric motor with star delta start,F1200 and F1500 with Hydraulic Coupler

  • Heavy Duty Gearbox - Adopting high safety factor models,connect with the cutter shaft directly

  • Gearbox damping device - prevent damage for the power drive system


Electric System

Electric System
  • The electric cabinet is equipped with a Siemens/Schneider PLC.

  • The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.

  • Siemens/Schneider electrical components are adopted.


Applications

Applications


Technical Data Sheet


ModelMSA-F600MSA-F800MSA-F1000MSA-F1200

Feeding Hopper(mm)

800×6001300×8001300×1000
1300×1200

Cutter Shaft Length(mm)

60080010001200

Discharge Height(mm)

490565565565

Pusher Stroke(mm)

500815815815

Rotor Knives Quantity(pcs)

23354555

Counter Knives Quantity(pcs)

4446
Motor Power (kw)18.5374555

Hopper Volume(L)

760150017602030
Machine Size (mm)1290×1820×17302800×1765×20802800×1980×20902800×2490×2135

Machine Weight(kgs)

1650400043005300



ModelMSA-F1500MSA-F2000MSA-F3000

Feeding Hopper(mm)

1300×1500
1675×20001900×2000

Cutter Shaft Length(mm)

1500
2000
3000

Discharge Height(mm)

565
720
720

Pusher Stroke(mm)

815
1100
1100

Rotor Knives Quantity(pcs)

70
95
109

Counter Knives Quantity(pcs)

6
8
6+6
Motor Power (kw)75
132*2
200*2

Hopper Volume(L)

2430
5500
6500
Machine Size (mm) 2800×2735×2135
3670×4374×2530 55802980×4080

Machine Weight(kgs)

5900
14500
  28000



Successful Cases

AUSTRALIA MSA-F1500

Area:AUSTRALIA

Model:MSA-F1500

客户现场图5(1)

Area:USA

Model:MSA-F1200


HONGKONG MSA-F1200

Area:HONGKONG

Model:MSA-F1200

MSA-F-1500

Area:AUSTRALIA

Model:MSA-F1500
