ENERPAT BM-6320 Metal Swarf Compactor for Aluminium Powder

ENERPAT BM-6320 Metal Swarf Compactor for Aluminium Powder

Metalworking plants face a triple threat: skyrocketing waste disposal fees, oil-contaminated workshops, and strict environmental audits. ENERPAT’s BM-6320 Metal Swarf Compactor tackles all three by compacting aluminium powder, steel shavings, copper turnings, and titanium swarf into 200mm-diameter bales at 12 tons/hour—while extracting 95% of trapped cutting fluids.

Unlike traditional briquetters, the BM-6320 aluminum pucks machine’s 630-ton hydraulic force ensures bale density of 2.2–2.5 tons/m³, reducing swarf volume by up to 90% and cutting logistics costs by 60%. The dual-auger feeding system eliminates jams, and PLC automation allows 24/7 operation with just 1 operator.

Ideal for:

CNC machine shops handling aluminium powder and steel shavings
Aerospace manufacturers recycling titanium and stainless steel swarf
Automotive foundries processing copper and brass turnings
Metal fabrication plants aiming for zero-waste certification

Quantity:
Availability:





Inquire Add to Basket

Model:
BM-C
Brand:
ENERPAT

Product Video

Product Description

ENERPAT BM-6320 Metal Swarf Compactor

The BM-6320 Metal Swarf Compactor combines 630 tons of hydraulic force with 95% oil separation to turn messy swarf into dry, stackable bales that meet environmental compliance standards.

1. Unmatched Compacting Performance

630-ton hydraulic force (industry-leading 200mm briquette diameter)
Dual-auger feeding system ensures 98% material utilization
135kW motor sustains 24/7 operation under 45℃ workshop conditions

2. Precision Oil Extraction

95% cutting fluid recovery rate (tested per ISO 14001 standards)
Self-sealing briquettes reduce workshop slip hazards by 73%
Integrated oil collection tank (800L capacity)

3. Multi-Material Adaptability

Processes 15+ metal types including:

Aluminium powder (0.5-3mm granularity)
Titanium alloy chips (max 50mm length)
Stainless steel turnings (bulk density 0.2→2.1 t/m³)

4. Smart Production Integration

Fully automated operation (2.5x faster than manual systems)
Siemens PLC control with production data tracking
Optional IoT module for real-time OEE monitoring

Composition and Structure

Product Applications

Operating Principle

Material Feeding

Scrap conveyor transfers swarf to inlet

Dual Auger Conveying

Dual auger system guides material into compression chamber

Hydraulic Compression

Electro-hydraulic system compacts swarf into briquettes and ejects

【Why ENERPAT】

80+ years heavy-duty machinery expertise
CE certified safety systems
Customizable configurations from 315T to 5000T models of the metal swarf compactor

Product Details

Efficient Feeding System

Vertical screw conveyor ensures steady feeding, horizontal screw conveyor prevents jamming, dual horizontal and vertical linkage delivers powerful and reliable feeding.

Robust Hydraulic System

Cartridge valve group with high flow rate and H-type tapered interfaces for leak prevention, setting a new standard for efficient briquetting.

High-Quality Hydraulic Cylinders

Integrated one-piece casting with Baosteel round steel hollow design, equipped with premium hydraulic components for strong compression force, durability, and high efficiency.

Industrial Cooling Assurance

24-hour online operation, selectable temperature modes, supporting multi-shift automated continuous work.

Intelligent Control System

Siemens/Schneider PLC for real-time monitoring and automatic alarms, one-touch control, intelligent programming, and parameter monitoring.

ENERPAT offers four models of briquette machines to meet the diverse capacity needs of our customers:

Small Metal Chip Briquetter

Small Metal Chip Briquetter

Designed for lower capacity scenarios, it has a compression force of 50 tons and provides flexible processing capabilities to meet small-scale production demands.

Single Output Metal Briquetter

Single Output Metal Briquetter

This model compresses a single briquette at a time, with a compression force of 100 to 200 tons, providing stable processing capabilities ideal for medium-scale production.

Double Output Metal Chip Compactor

Double Output Metal Chip Compactor

Featuring a dual-station design, this machine compresses two briquettes simultaneously, also with a compression force of 100 to 200 tons, effectively doubling production efficiency for large-scale operations.

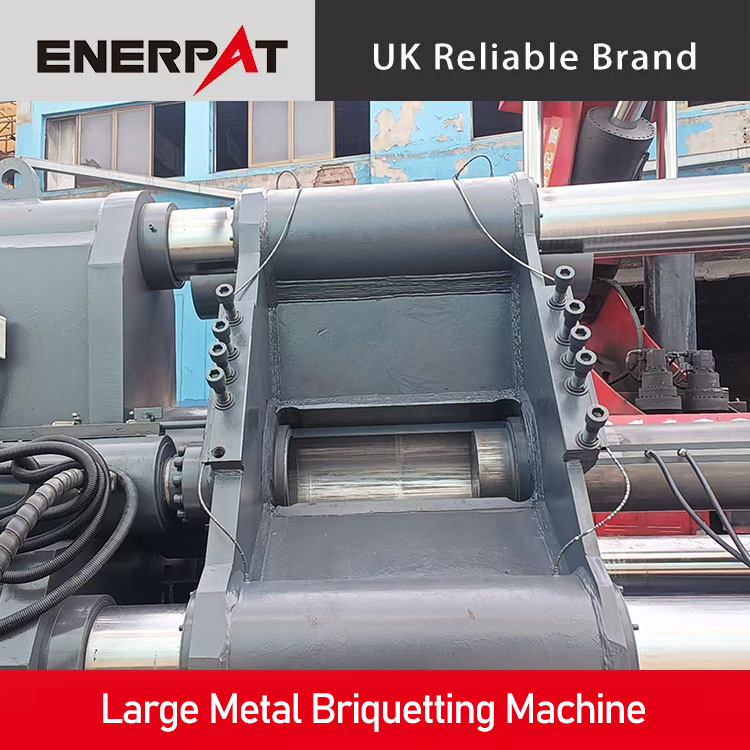

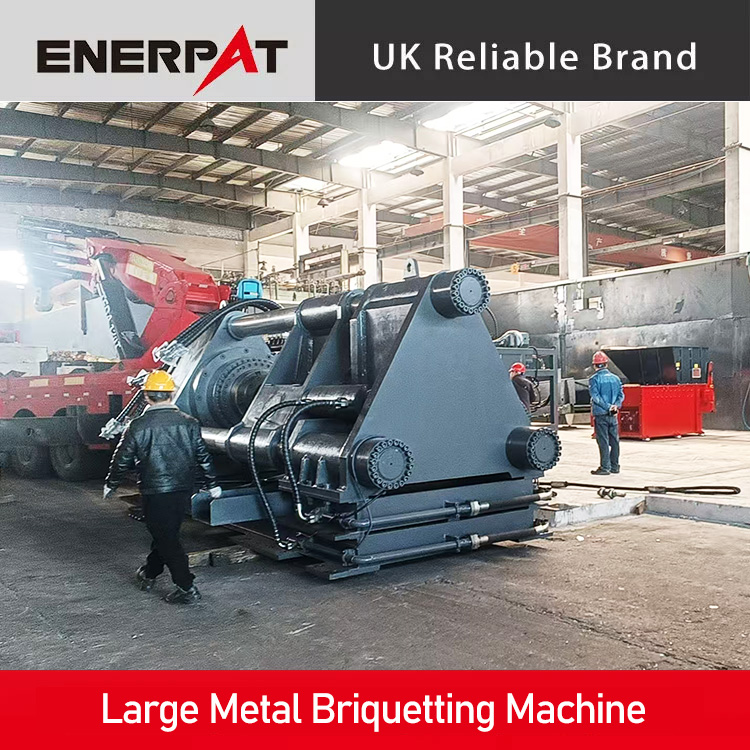

Large Metal Briquetting Machine

Large Metal Briquetting Machine

Specifically engineered for high-capacity production, it offers a compression force of 300 to 2000 tons, producing 1 to 40 tons per hour to meet urgent production demands.

Customers can select the most suitable metal chip briquetting machine based on their capacity requirements to maximize their benefits. ENERPAT is committed to providing comprehensive pre-sales, in-sales, and after-sales services to ensure an optimal experience throughout the usage process.

Technical Data Sheet

Model	BM-3114	BM-4015	BM-6320	BM-8024	BM-10028	BM-12531
Compression Force (t)	315	400	630	800	1000	1250
Bale Diameter (mm)	140	150	200	240	280	310
Main Motor Power (kW)	22	30	135	45×3	75×2	75×3
System Pressure (MPa)	25	25	25	25	25	25
Operating Mode	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic

Model	BM-16035	BM-20040	BM-25045	BM-30050	BM-40058	BM-50065
Compression Force (t)	1600	2000	2500	3000	4000	5000
Bale Diameter (mm)	350	400	450	500	580	650
Main Motor Power (kW)	90×3	90×4	90×5	90×8	90×10	90×13
System Pressure (MPa)	25	25	25	25	25	25
Operating Mode	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic
