ENERPAT Metal Briquetter for Titanium and Tritanium Swarf

ENERPAT Metal Briquetter for Titanium and Tritanium Swarf

ENERPAT Metal Briquetter: Transform Costly Metal Waste into Compact Profit Centers

The Titanium Challenge
High-value titanium/tritanium swarf loses 18-25% value due to:
❌ Coolant contamination (＜70% removal rate with standard compactors)
❌ Low-density scraps (＞35% storage space waste)
❌ Hazardous workplace spills (EPA violation risks)

ENERPAT Metal Briquetter Solution
95% Coolant Recovery – Dry briquettes (≤5% residual oil) pass strict EPA/DIN standards.
200T Ultra-High Pressure – Achieve 4.8g/cm³ density (ideal for titanium smelting).
$300+/ton Value Boost – Convert swarf to premium-priced briquettes (proven in 50+ aerospace cases).

Why Choose ENERPAT?
✅ 5-Year Warranty on Hydraulic Cylinders
✅ 100-200T Compression Force for Heavy-Duty Use
✅ Fully Automated Operation – No Manual Labor Needed
✅ Global Success Stories in Automotive, Aerospace, and More

Quantity:
Availability:





Inquire Add to Basket

Model:
BM
Brand:
ENERPAT

Product Video

Product Description

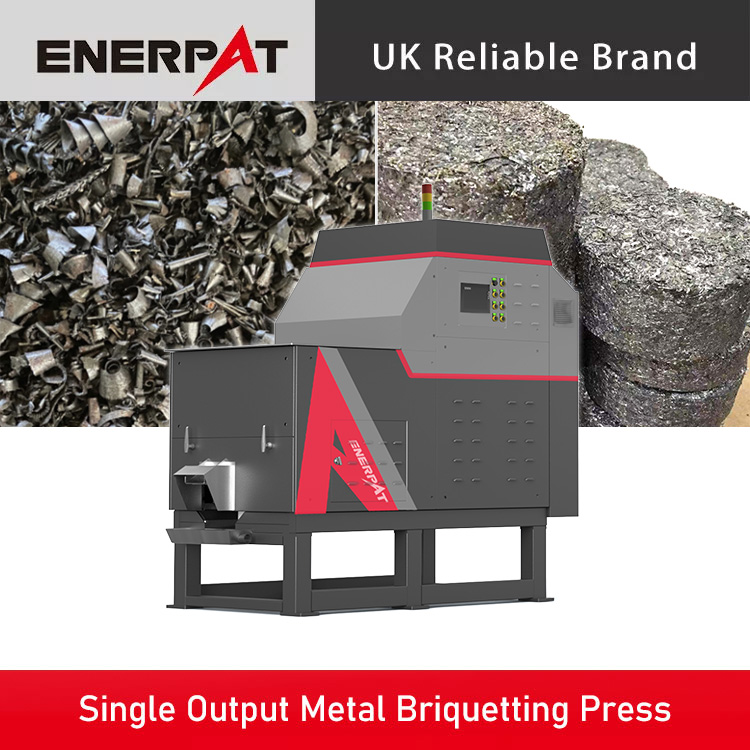

ENERPAT BM Series Metal Briquetter: The Ultimate Solution for Titanium, Tritanium, and other Metal Chips

The ENERPAT BM Series Metal Briquetter for Titanium and Tritanium Swarf is a game-changer for metalworking and recycling industries. It efficiently compresses metal chips, including titanium, tritanium, aluminum, copper, and stainless steel, into dense briquettes while separating cutting fluids. This reduces waste volume, boosts recycling revenue, and ensures environmental compliance.

Key Features & Benefits

1. High-Efficiency Briquetting

Compression Force: 100-200 tons for dense, uniform briquettes.
Briquette Diameter: 90-130mm, tailored to your recycling needs.
Oil Separation Rate: 95%, minimizing fluid waste and environmental impact.

2. Robust & Reliable Design

Hydraulic System: Brand-name cylinders with a 5-year warranty for long-term durability.
Dual-Screw Feeder: Horizontal and vertical augers ensure smooth, jam-free material flow.
PLC Control: Fully automated operation with real-time monitoring.

3. Cost-Saving & Eco-Friendly

Increased Revenue: Sell briquettes at $300+/ton vs. loose scrap.
Oil Recovery: Reuse cutting fluids, slashing disposal costs.
Space Efficiency: Reduce storage needs by 70% with compact briquettes.

4. Versatile Applications

Titanium & Tritanium Swarf: Ideal for aerospace and high-tech manufacturing.
Mixed Metals: Handles aluminum, copper, steel, and more.
Custom Configurations: Tailored solutions for small workshops to large factories.

Composition and Structure

Product Applications

Applications

Operating Principle

Feeding

Metal scraps are conveyed to the briquetting machine inlet via a chip conveyor.

Dual Screw Feeding

The dual horizontal and vertical screw design ensures smooth feeding of scraps into the compression chamber.

Hydraulic Compression

The combination of hydraulic and electrical control systems compresses the scraps into briquettes and ejects them.

ENERPAT Metal Chip Recycling Solutions: Success Stories

European Automotive Leader (Aluminum Chip)

Solution: Customized aluminum/titanium briquetting line (conveyor + shredder + briquetter + oil tank).
Results: 80% reduction in waste volume, 95% oil recovery.

American Valve Manufacturer (Iron Swarf)

Solution: Iron chip recycling system (conveyor + shredder + storage + briquetter + oil tank).
Results: $300+/ton revenue boost, 100% compliance with local regs.

Asian Aluminum Giant (Aluminum Swarf)

Solution: Aluminum briquetting line (conveyor + storage + briquetter + oil tank).
Results: 70% less storage space, 90% lower disposal costs.

Product Details

High-Efficiency Feeding System

Utilizes a dual horizontal and vertical screw linkage design, where the vertical screw achieves forced and stable feeding, and the horizontal screw effectively prevents material hang-ups and jamming; the powerful feeding device ensures smooth material conveyance.

High-Quality Compression Mold Chamber

Equipped with a high-hardness, high-density, and wear-resistant compression mold chamber, producing uniformly compacted cakes with flexible control over size, ensuring stable product quality.

Reliable Cooling Guarantee

Equipped with an industrial refrigeration unit that runs continuously 24 hours a day, supporting free switching between “fixed temperature” and “ambient temperature synchronization” modes to meet continuous operation requirements and enable multi-shift automated operation.

Durable Hydraulic Configuration

Brand hydraulic cylinders come with a 5-year warranty and a unique design that enhances the user experience. Uses Baosteel round steel hollow safety design to prevent oil leakage; employs top-tier hydraulic components from Rexroth, Parker, and others, extending service life and improving work efficiency.

Intelligent Control System

Uses Siemens/Schneider PLC control system featuring real-time monitoring and automatic alarms for easy maintenance. Operated easily via touchscreen or buttons with one-key operation; supports intelligent programming for setting compression and feeding times; allows tracking of running time, current, temperature, and other parameters at any time.

Technical Data Sheet

Model	BM-1090	BM-1612	BM-2013
Press Force (tons)	100	160	200
Bale Diameter (mm)	90	120	130
Motor (kw)	11	18.5	22
System Pressure (mpa)	25	25	25
Equipment Dimensions (mm)	2210×1050 ×1890	3220×1320 ×2400	3300×1420 ×2530
Equipment Weight (kg)	3000	4000	5000
Operation Mode	Fully Automatic	Fully Automatic	Fully Automatic
