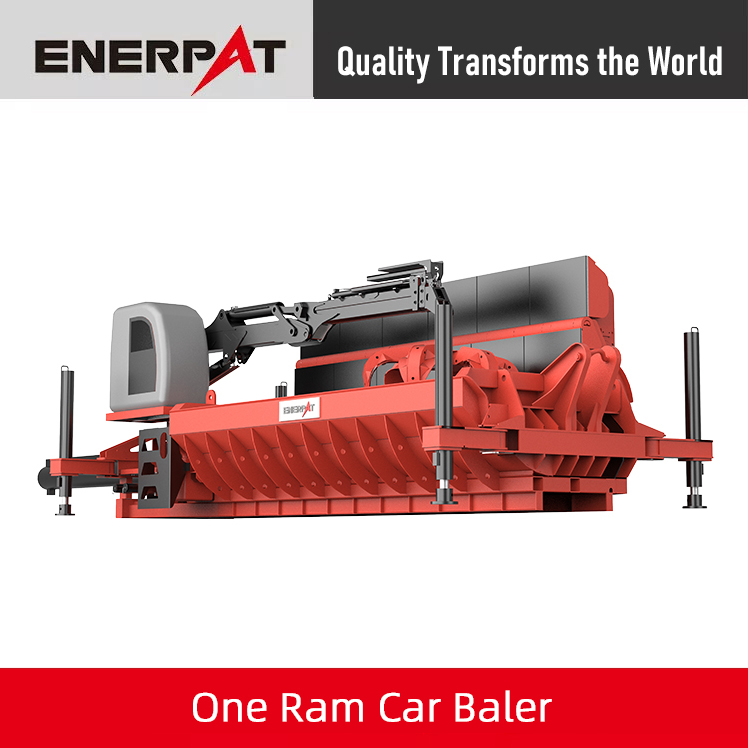

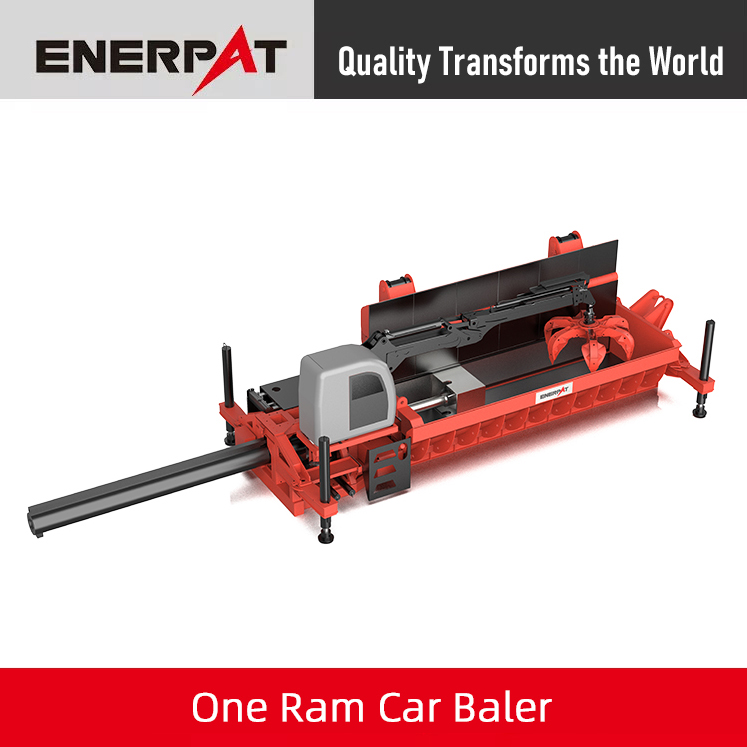

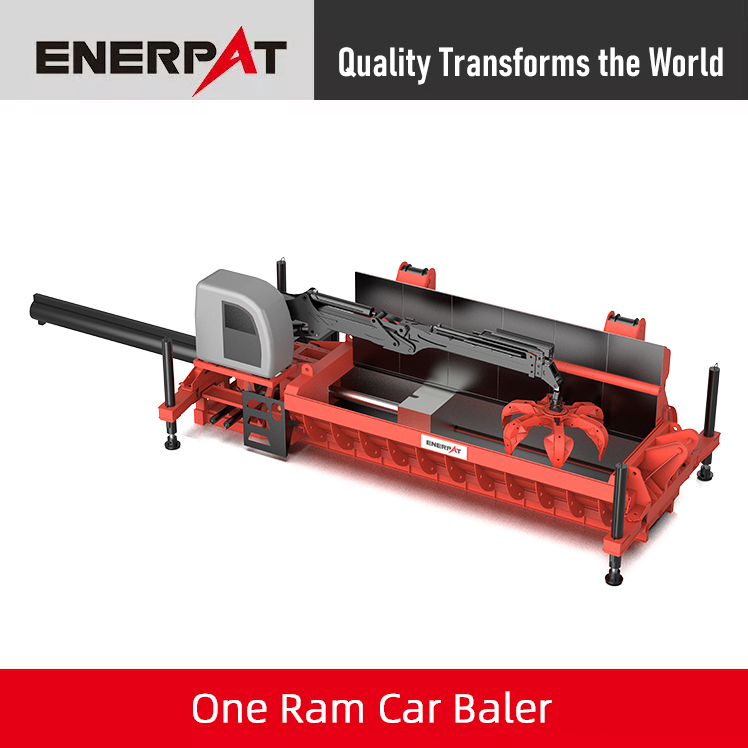

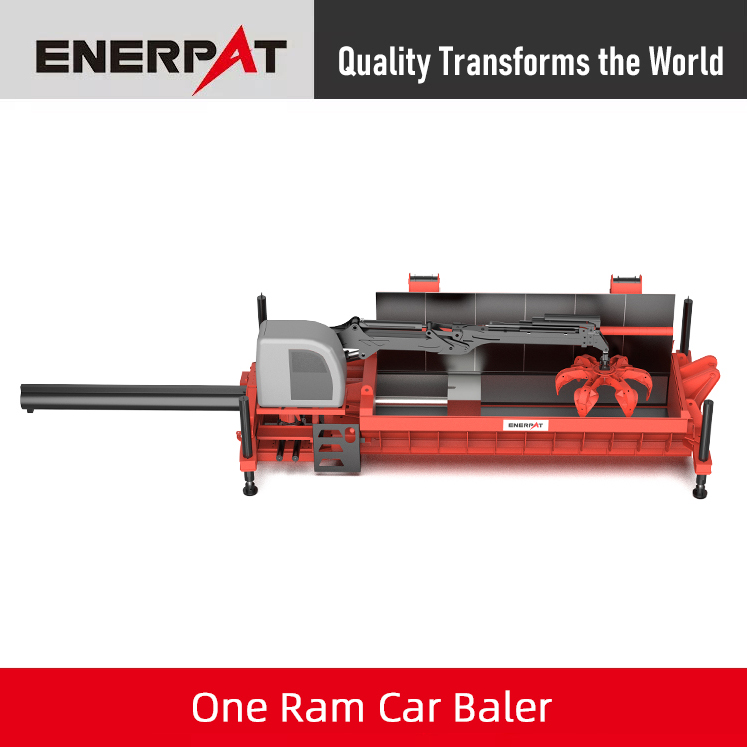

ENERPAT AMB-SC Series Mobile Car Crusher Baler

See payback in just 6 months and cut logistics costs by more than $200,000 every year.

Get peace of mind with a 5-year motor warranty and a worldwide 48 hr support pledge. Built for metal recycling, auto dismantling, steel melting, precision casting, and global scrap trading.

Composition and Structure

Mobile Car Crusher Baler: Main Advantages

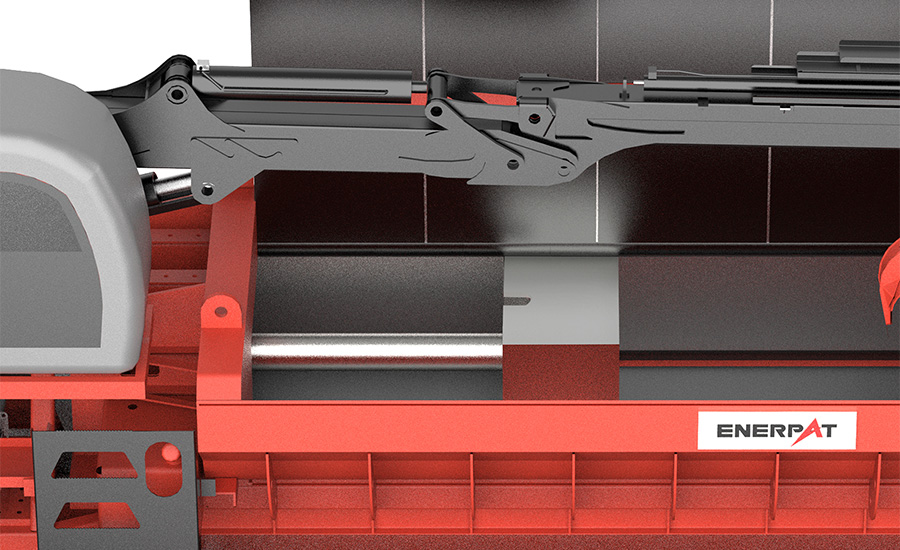

Outstanding compaction and data-driven output

• Throughput: single-cylinder cold extrusion moves 15.6 t/h of steel or 7.8 t/h of aluminum at 226 MPa, matching Q690D plate strength.


• Bale size: 850 × 650 × 500 mm (±5 %), density ≥ 1.5 t/m³, trimming freight volume by 65 %.

• Feeds: ELV shells, sheet or wire under 3 mm, mixed scrap with engines and axles pressed in one pass.

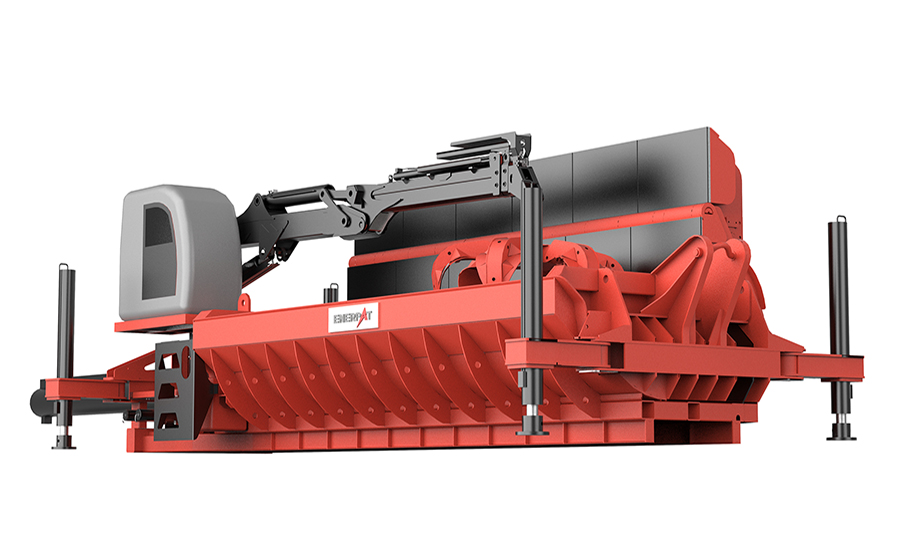

Field-ready build, triple the service life

• Frame: Hardox450 wear plate, 8 mm liner and 16 mm ribs on a 20 mm Q690D spine, proven for 100,000 impact cycles.

• Smart hydraulics: Rexroth pump-valve set with a 96 kW Cummins pack, rated 35 MPa, Hallite seals keep leakage below 0.1 %.

• Global logistics: 2540 mm wide, 3970 mm high, fits a 40 FR container, delivery and install anywhere in 72 h.

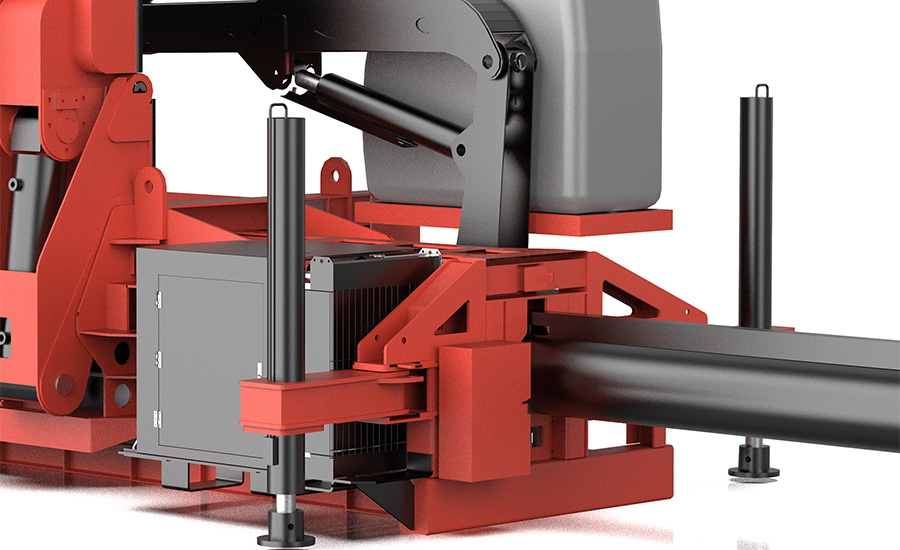

Smart Operation with Zero Safety Risk
Automated cycle: press Start once, the grab bucket loads, the clamshell pre-compresses in two stages, the main ram compacts, then the bale exits sideways or goes to the palletizer if chosen.

Safety features:

1. Four E-stops on each side, on the remote, and in the cab, plus live pressure and temperature readouts with auto ram pullback on overload.

2. Siemens PLC with a Schneider HMI delivers sub-second self-diagnostics and real-time current and temperature charts.

3. Operator station: 220° slewing crane arm rated at 1200 kg, a quiet A/C cab, and an ergonomic console that lifts productivity by 40 %.

Global Compliance and Versatility
Emission ready: meets Euro 5, T4F, and China IV, cleared for shipment to over 50 countries.
Material range: compresses whole SUVs into 800-900 kg bales and lets staff hand-form extra-long pieces in an easy five-step routine.
Low upkeep: forced-oil lube and a modular layout cut daily checks to under 30 min per shift.

Product Applications

Before

After
