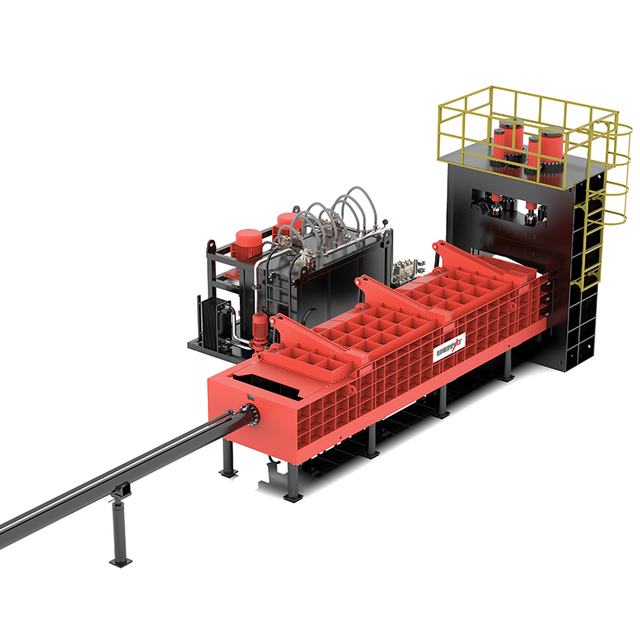

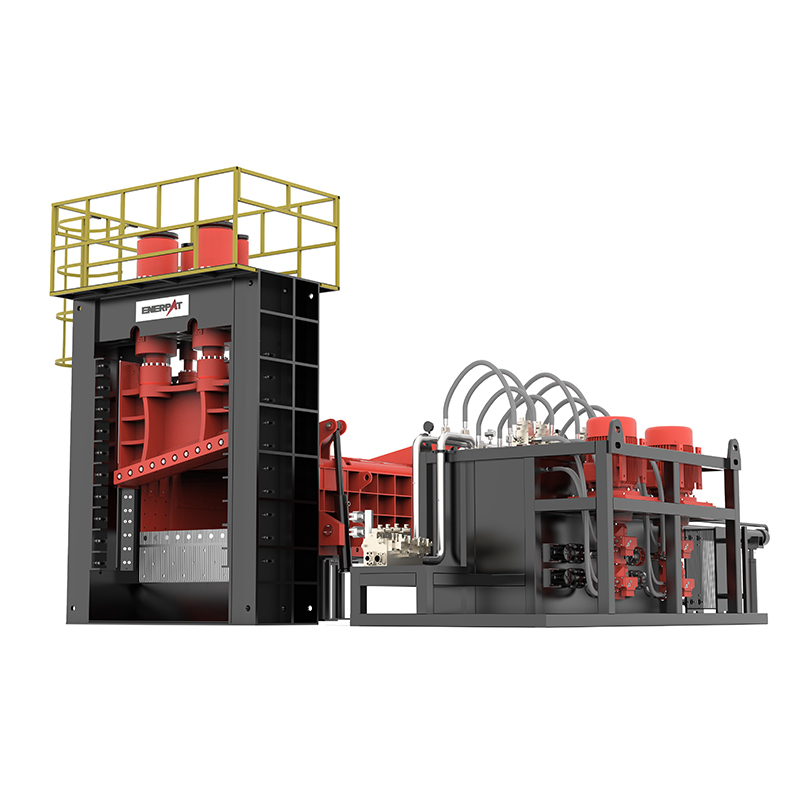

ENERPAT Gantry Shear for HMS (Heavy Melting Scrap)
Also known as: Scrap Metal Shear, hydraulic scrap shear, Scrap Steel Shear Machine, Heavy, Duty Scrap Shear, Scrap Yard Shear Machine

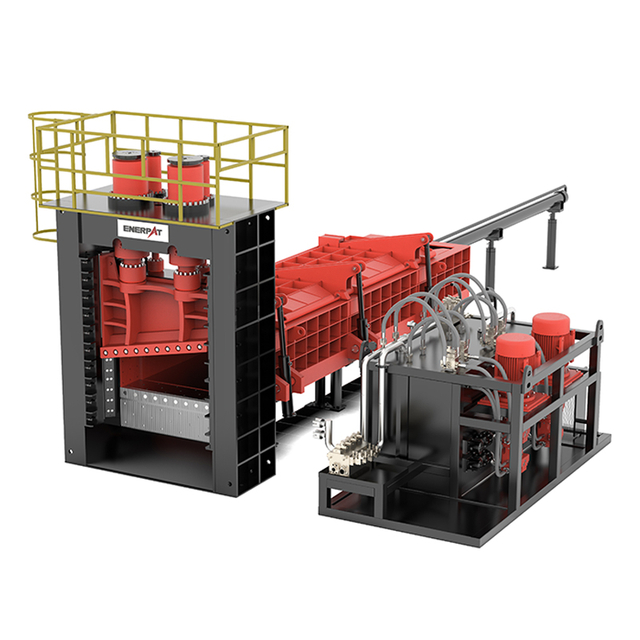

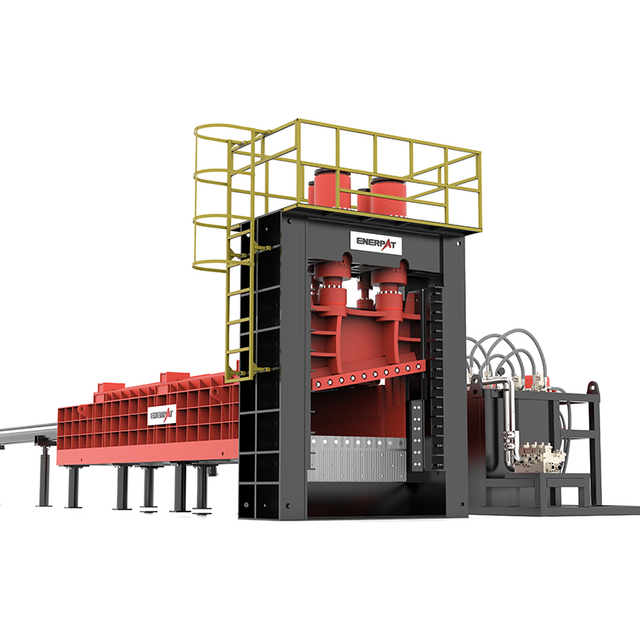

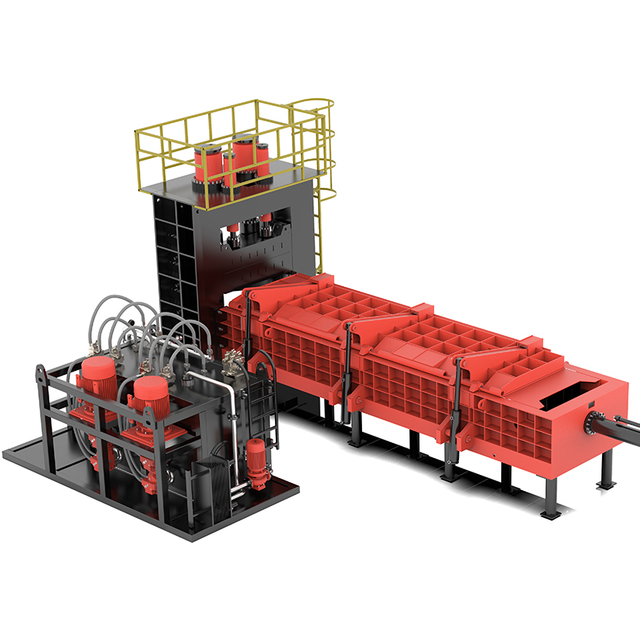

ENERPAT Gantry Shear is a heavy-duty hydraulic cutting system widely used in scrap yards and steel processing plants to reduce large metal structures into manageable sizes.
The EMS-GS Series Gantry Shear is engineered for high-volume, heavy-duty scrap processing, capable of handling up to 30 tons per hour and cutting steel materials up to 200 mm thickness. Equipped with an advanced multi-pump hydraulic system, it delivers stable high-pressure output for continuous industrial operation.
Compared with shredders, a hydraulic scrap shear offers:

Lower energy consumption
More precise size control
Higher efficiency when processing bulky and oversized scrap

With its reinforced structure, powerful cutting force, and scalable model range, this Heavy Duty Scrap Metal Shear is not just a machine, but a reliable solution for modern, large-scale scrap metal recycling operations.

Gantry Shear

Scrap Metal Shear

Hydraulic Scrap Shear

Scrap Steel Shear Machine

Heavy Duty Scrap Shear

Get A Quote

Challenges & Solutions

Material Testing

Product Details

Design Concept

Why Choose Us

Key Challenges & ENERPAT Solutions

Handling heavy scrap is not just about cutting metal — it’s about efficiency, cost control, and long-term reliability. Many scrap yards and steel processors face challenges such as low throughput, high energy consumption, and equipment downtime. The ENERPAT Heavy Duty Gantry Shear is designed to solve these issues, helping operators process more material, reduce costs, and improve overall operational performance.

Handling Oversized and High-Density Scrap
Challenge:
Large steel structures, heavy beams, and thick plates are difficult to process with standard equipment, often requiring pre-cutting or multiple handling steps.
ENERPAT Solution:
The EMS-GS Series Gantry Shear delivers high cutting force, capable of processing steel up to 200 mm thickness, allowing direct cutting of oversized scrap without pre-processing.
Low Processing Efficiency in High-Volume Operations
Challenge:
Scrap yards and steel mills often struggle to keep up with incoming material volumes, leading to bottlenecks and reduced profitability.
ENERPAT Solution:
With a throughput of up to 30 TPH, this Heavy Duty Scrap Shear ensures continuous, high-efficiency processing, maximizing output and reducing backlog.
High Energy Consumption and Operating Costs
Challenge:
Traditional shredding systems consume significant energy, increasing operational costs over time.
ENERPAT Solution:
Compared to shredders, the hydraulic scrap shear provides lower energy consumption while maintaining high productivity, helping reduce long-term operating expenses.
Inconsistent Output Size Affecting Downstream Processing
Challenge:
Irregular scrap sizes can reduce efficiency in transportation, furnace charging, and further processing.
ENERPAT Solution:
The ENERPAT Scrap Metal Shear provides controlled and uniform cutting, ensuring optimized material size for downstream operations.
Equipment Wear and Downtime in Heavy-Duty Applications
Challenge:
Processing dense scrap leads to rapid wear, frequent maintenance, and costly downtime.
ENERPAT Solution:
Built with a reinforced structure (up to 195 tons machine weight) and high-strength components, the EMS-GS Series is designed for long-term durability under continuous heavy-load conditions.
Lack of Scalable Equipment for Growing Operations
Challenge:
Many recyclers outgrow their equipment quickly, requiring costly replacements or upgrades.
ENERPAT Solution:
A full range of models from 8 TPH to 30 TPH allows flexible scaling, enabling businesses to expand capacity without changing processing logic.
Difficulty Integrating into Complete Recycling Lines
Challenge:
Standalone machines often fail to integrate efficiently with shredders, balers, or sorting systems.
ENERPAT Solution:
Designed for system compatibility, the ENERPAT Gantry Shear can be seamlessly integrated into complete scrap recycling lines, improving overall plant efficiency and material recovery.

Material Testing

Product Details

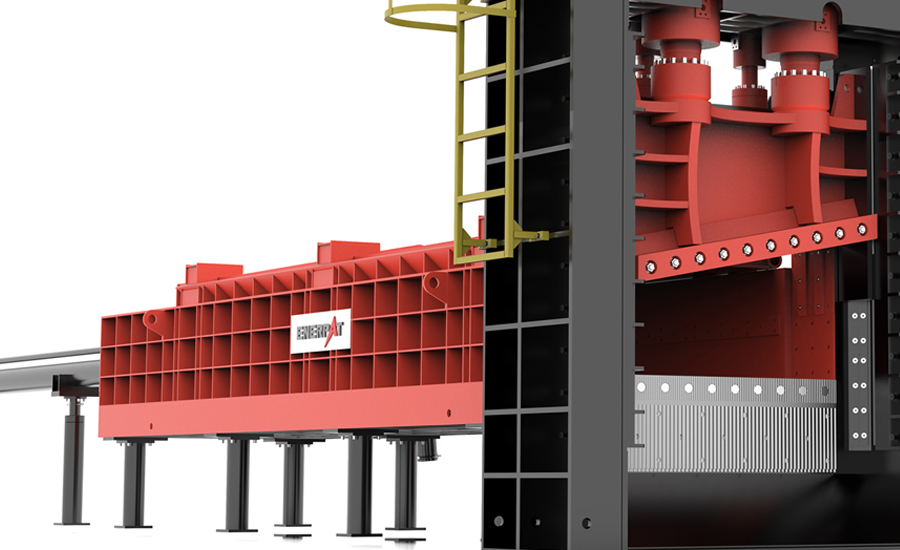

High-Efficiency Pre-Compression Chamber

The reinforced compression chamber is designed to compact oversized and irregular scrap before shearing, improving material density and significantly increasing cutting efficiency per cycle.

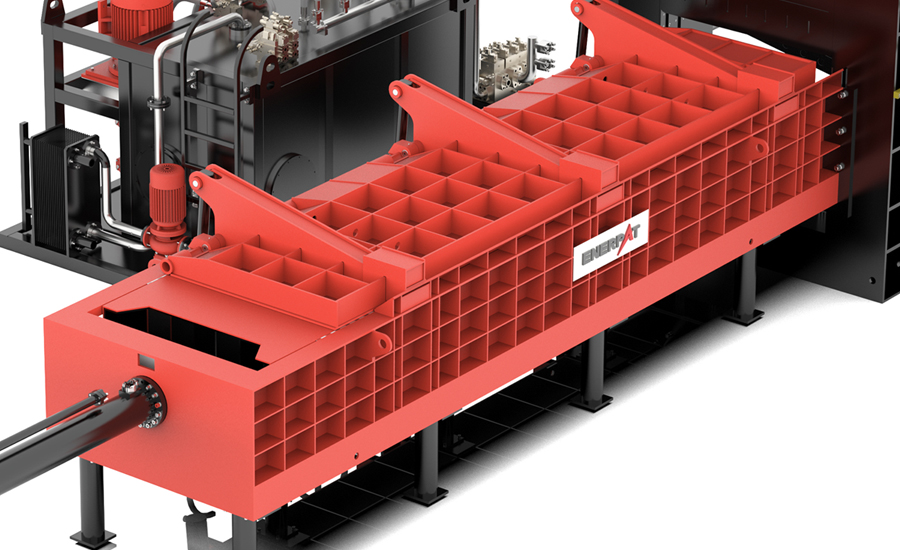

Heavy-Duty Safety Protection Door System

The integrated door cover system enhances operator safety while maintaining stable internal pressure during compression and cutting, ensuring smoother and more controlled operation under heavy loads.
High-Force Industrial Hydraulic Cylinders

Powered by heavy-duty hydraulic cylinders, the system delivers consistent and powerful cutting force, enabling stable performance even when processing high-strength and thick steel materials.

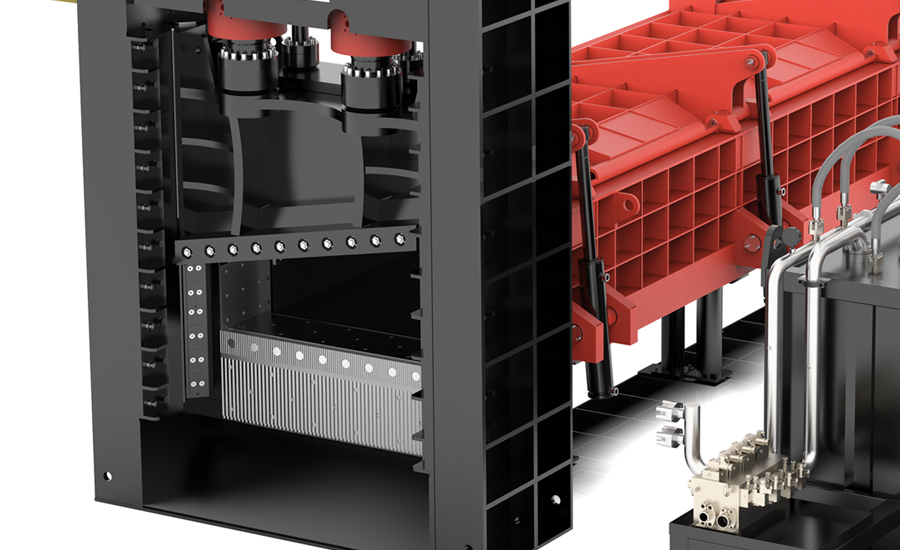

Reinforced Wear-Resistant Shearing Box

The upgraded shearing box is built with high-strength structural reinforcement to withstand extreme impact forces, ensuring precise cutting performance and reduced long-term wear.
Smart & Reliable Schneider Electrical Control System

The electrical system features Schneider components, providing high-level automation stability, operational safety, and globally supported maintenance convenience for industrial users.
Precision-Controlled Rexroth Hydraulic System

Equipped with Rexroth hydraulic valves, the system ensures accurate pressure regulation and stable flow control, delivering reliable performance in continuous high-intensity operations.

Technical Specifications

EMS-GS630-18

Parameter	Metric	Imperial/US Customary
Blade Length	1800 mm	70.87 in
Feed Box Size	1950×8000×750 mm	76.77×314.96×29.53 in
Power	75 kW × 2	100.58 HP × 2
Oil Pump	(A4V200+A4V200) × 2	(A4V200+A4V200) × 2
Weight without Door & Cover	53 t	116845.1 lb (58.42 short tons)
Weight with Hopper, Door & Cover	59 t	130072.8 lb (65.04 short tons)
Capacity	8-12 T/H	8.82-13.23 short tons per hour
Max. Round Bar for Shearing	Φ80 mm	Φ3.15 in
Max. Steel Plate for Shearing	70×1000 mm	2.76×39.37 in
Max. Square Bar for Shearing	90×90 mm	3.54×3.54 in

EMS-GS800-20

Parameter	Metric	Imperial/US Customary
Blade Length	2000 mm	78.74 in
Feed Box Size	1950×8000×850 mm	76.77×314.96×33.46 in
Power	90 kW × 2	120.70 HP × 2
Oil Pump	(A4V250+A4V250) × 2	(A4V250+A4V250) × 2
Weight without Door & Cover	80 t	176369.8 lb (88.18 short tons)
Weight with Hopper, Door & Cover	86 t	189597.5 lb (94.80 short tons)
Capacity	12-15 T/H	13.23-16.53 short tons per hour
Max. Round Bar for Shearing	Φ120 mm	Φ4.72 in
Max. Steel Plate for Shearing	90×1000 mm	3.54×39.37 in
Max. Square Bar for Shearing	100×100 mm	3.94×3.94 in

EMS-GS1000-20

Parameter	Metric	Imperial/US Customary
Blade Length	2000 mm	78.74 in
Feed Box Size	1950×8000×900 mm	76.77×314.96×35.43 in
Power	90 kW × 3	120.70 HP × 3
Oil Pump	(A4V250+A4V250) × 3	(A4V250+A4V250) × 3
Weight without Door & Cover	92 t	202825.3 lb (101.41 short tons)
Weight with Hopper, Door & Cover	98 t	216052.9 lb (108.03 short tons)
Capacity	15-18 T/H	16.53-19.84 short tons per hour
Max. Round Bar for Shearing	Φ130 mm	Φ5.12 in
Max. Steel Plate for Shearing	100×1000 mm	3.94×39.37 in
Max. Square Bar for Shearing	120×120 mm	4.72×4.72 in

EMS-GS1250-25

Parameter	Metric	Imperial/US Customary
Blade Length	2500 mm	98.43 in
Feed Box Size	2450×8000×1000 mm	96.46×314.96×39.37 in
Power	90 kW × 4	120.70 HP × 4
Oil Pump	(A4V250+A4V250) × 4	(A4V250+A4V250) × 4
Weight without Door & Cover	135 t	297624.2 lb (148.81 short tons)
Weight with Hopper, Door & Cover	145 t	319670.3 lb (159.84 short tons)
Capacity	18-23 T/H	19.84-25.35 short tons per hour
Max. Round Bar for Shearing	Φ150 mm	Φ5.91 in
Max. Steel Plate for Shearing	120×1000 mm	4.72×39.37 in
Max. Square Bar for Shearing	140×140 mm	5.51×5.51 in

EMS-GS1600-25

Parameter	Metric	Imperial/US Customary
Blade Length	2500 mm	98.43 in
Feed Box Size	2450×8000×1000 mm	96.46×314.96×39.37 in
Power	90 kW × 5	120.70 HP × 5
Oil Pump	(A4V250+A4V250) × 5	(A4V250+A4V250) × 5
Weight without Door & Cover	175 t	385809.0 lb (192.90 short tons)
Weight with Hopper, Door & Cover	185 t	407855.1 lb (203.93 short tons)
Capacity	20-25 T/H	22.05-27.56 short tons per hour
Max. Round Bar for Shearing	Φ180 mm	Φ7.09 in
Max. Steel Plate for Shearing	150×1000 mm	5.91×39.37 in
Max. Square Bar for Shearing	180×180 mm	7.09×7.09 in

EMS-GS2000-25

Parameter	Metric	Imperial/US Customary
Blade Length	2500 mm	98.43 in
Feed Box Size	2450×8000×1000 mm	96.46×314.96×39.37 in
Power	90 kW × 5	120.70 HP × 5
Oil Pump	(A4V250+A4V250) × 5	(A4V250+A4V250) × 5
Weight without Door & Cover	185 t	407855.1 lb (203.93 short tons)
Weight with Hopper, Door & Cover	195 t	429901.1 lb (214.95 short tons)
Capacity	26-30 T/H	28.66-33.07 short tons per hour
Max. Round Bar for Shearing	Φ200 mm	Φ7.87 in
Max. Steel Plate for Shearing	200×1000 mm	7.87×39.37 in
Max. Square Bar for Shearing	200×200 mm	7.87×7.87 in

Design Concept & Product Story

In today’s global scrap recycling industry, operators are facing increasing pressure — larger and heavier scrap materials, rising energy costs, and the need for higher processing efficiency with fewer interruptions.

Through close cooperation with scrap yards, steel mills, and recycling facilities worldwide, ENERPAT gained a deep understanding of the real challenges on the ground: oversized steel structures that are difficult to pre-process, unstable equipment performance under continuous load, and inefficiencies caused by outdated cutting systems.

To address these challenges, ENERPAT engineered the EMS-GS Series Gantry Shear — a solution designed not just to cut metal, but to improve the overall efficiency of scrap processing operations.

From structural reinforcement to hydraulic optimization, every detail of the machine was developed with one goal in mind: enabling stable, high-capacity, and continuous heavy scrap processing.

Today, the ENERPAT Scrap Metal Shear is engineered for demanding industrial environments, designed to help recyclers transform complex scrap streams into efficient, manageable, and valuable output.

Get A Quote

Why Choose Us

Heavy-Duty Engineering for Extreme Scrap

ENERPAT Gantry Shear is built for high-density and oversized scrap, delivering stable cutting performance with up to 30 TPH capacity and 200 mm steel processing capability.
Industrial-Grade Hydraulic System Design

Equipped with multi-pump hydraulic technology and Rexroth control valves, ensuring consistent power output and reliable performance under continuous heavy-load operation.
Engineered for Long-Term Reliability

Reinforced structure and high-strength components ensure durability, reducing downtime and maintaining efficiency in demanding scrap processing environments.
Global Manufacturer of Recycling Solutions

ENERPAT provides advanced scrap processing equipment and integrated recycling systems, supporting customers worldwide with professional engineering and application experience.
