ENERPAT 355kW Single Shaft Aluminum Shredder Machine
Also known as: aluminum recycling shredder, scrap aluminum shredder, industrial aluminum shredder, hydraulic aluminum shredder, single shaft aluminum shredder

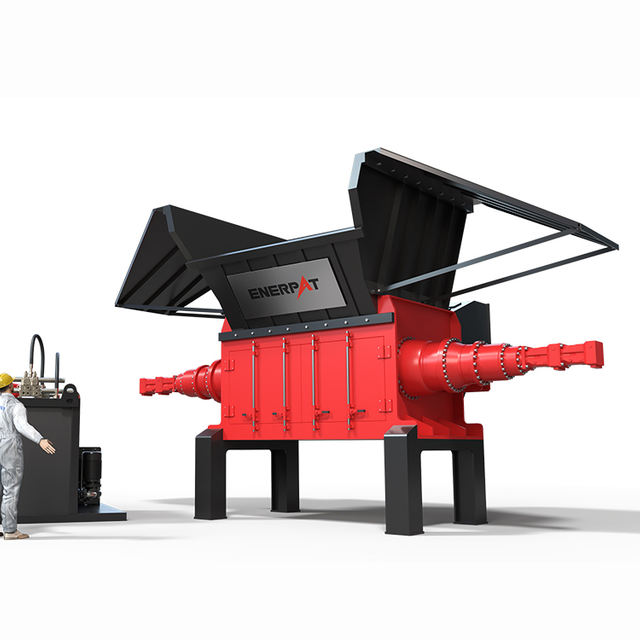

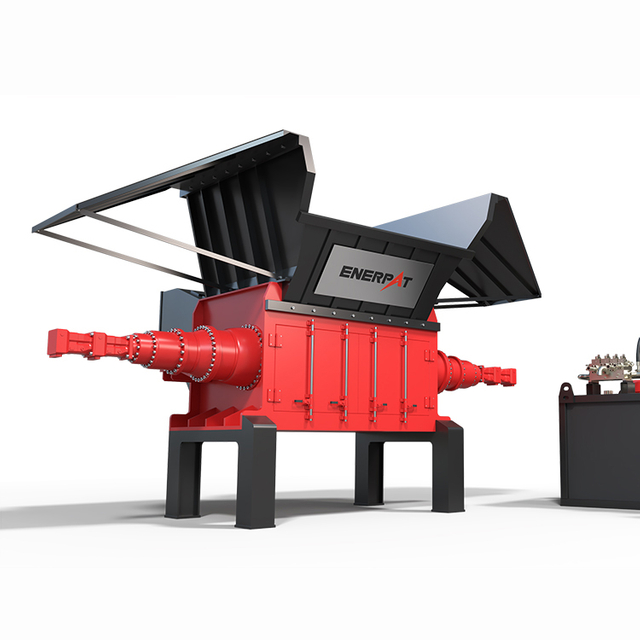

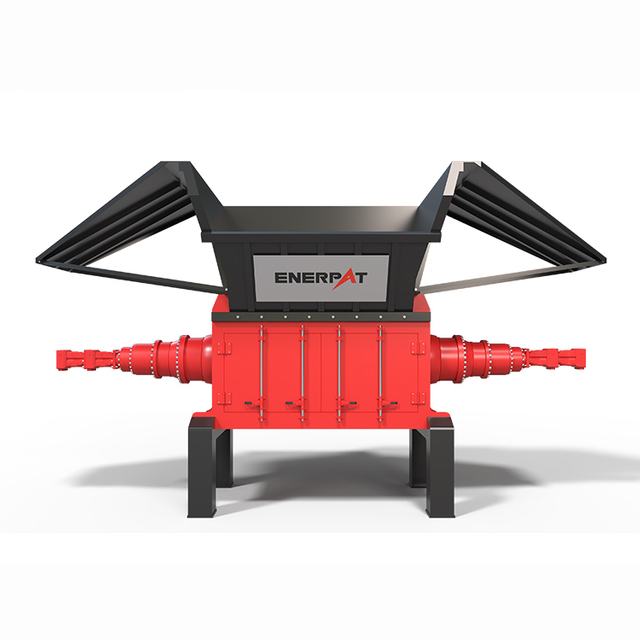

The ENERPAT MSA-H3000 aluminum shredder machine is a heavy-duty hydraulic single shaft shredder designed specifically for high-volume scrap aluminum recycling.
Engineered with a powerful 355kW drive system, a 3000mm rotor, and precision cutting blades, this industrial aluminum shredder delivers consistent particle size, high throughput, and reliable long-term operation.
It is widely used in aluminum recycling plants to process aluminum cans (UBC), aluminum profiles, aluminum sheets, and mixed aluminum scrap.

Key Specifications

Power: 355 kW (≈ 476 HP)
Rotor Length: 3000 mm (≈ 118 in / 9.8 ft)
Rotor Diameter: 900 mm (≈ 35 in / 2.95 ft)
Blade Size: 150 × 150 mm (≈ 5.9 × 5.9 in)
Feeding System: Hydraulic Ram
Machine Size (L × W × H): 5570 × 2920 × 4500 mm (≈ 18.3 × 9.6 × 14.8 ft)
Machine Weight: 45 tons (≈ 99,200 lbs)

Aluminum Shredder Machine

hydraulic aluminum shredder

single shaft aluminum shredder

aluminum recycling shredder

Get A Quote

Video

Challenges & Solutions

Product Details

Technical Specifications

Design Concept

Why Choose Us

Watch the Aluminum Shredder in Action

Key Challenges & ENERPAT Solutions

Scrap recyclers, aluminum smelters, and metal processing plants handling high volumes of loose, light-gauge aluminum scrap. They often struggle with low material density, inconsistent output size, and high equipment wear—problems that directly impact profitability and processing efficiency. Below are the key challenges they face and how the ENERPAT MSA-H3000 solves them.

Challenge: Low Density and High Volume of Scrap Aluminum
Loose materials such as aluminum cans and thin aluminum scrap take up large storage space and increase transportation costs.
Solution: The ENERPAT MSA-H3000 aluminum shredder machine efficiently reduces volume and increases material density, making scrap aluminum easier to handle and transport.
Challenge: Difficulty in Shredding Light and Ductile Aluminum
Aluminum is soft and ductile, which makes it difficult for traditional crushers to achieve efficient size reduction.
Solution: The hydraulic single shaft aluminum shredder uses a powerful 355kW drive and a large 900mm rotor to deliver high torque and consistent cutting performance.
Challenge: Inconsistent Output Size Affecting Downstream Processing
Irregular particle size reduces the efficiency of sorting systems and lowers recycling value.
Solution: The built-in screen system ensures uniform output size (15–50 mm), making it ideal for integration into an aluminum recycling plant.
Challenge: Mixed Aluminum Scrap with Contaminants
Scrap aluminum often contains coatings, plastics, or other impurities, complicating the recycling process.
Solution: The scrap aluminum shredder produces consistent and optimized material for further separation using magnetic and eddy current systems.
Challenge: High Wear and Maintenance Costs
Processing large volumes of aluminum scrap can cause rapid blade wear and frequent downtime.
Solution: The MSA-H3000 features durable 150×150mm replaceable blades, reducing maintenance frequency and lowering operating costs.
Challenge: Unstable Feeding of Lightweight Materials
Light aluminum scrap can bounce or feed unevenly, reducing shredding efficiency.
Solution: The hydraulic ram feeding system ensures continuous and stable feeding, improving overall performance of the industrial aluminum shredder.
Challenge: Limited Capacity of Small Shredders
Many small shredders cannot meet the demands of industrial-scale aluminum recycling.
Solution: With a capacity of up to 12 T/H, the MSA-H3000 is a high-capacity aluminum shredder machine designed for large-scale operations.

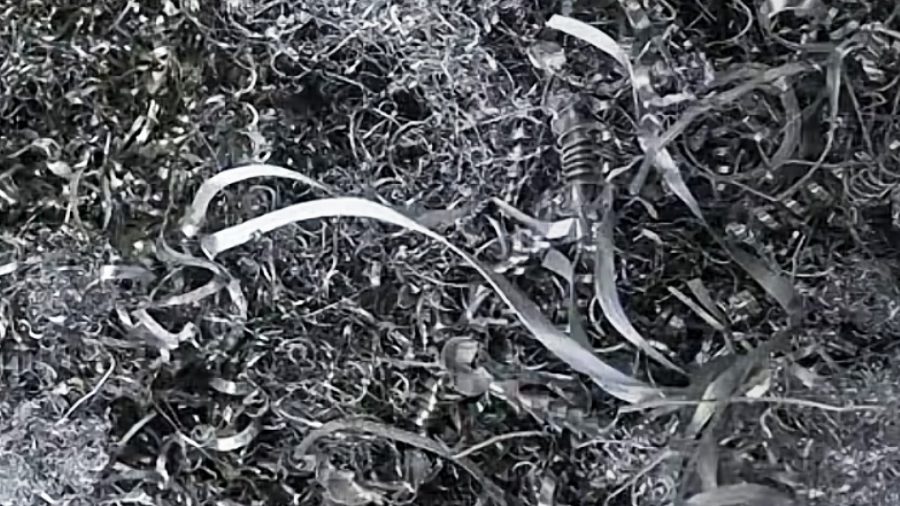

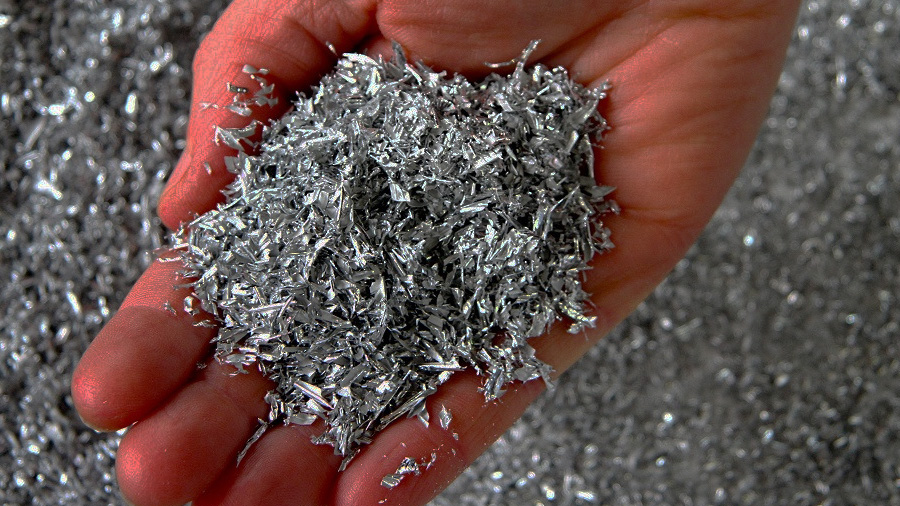

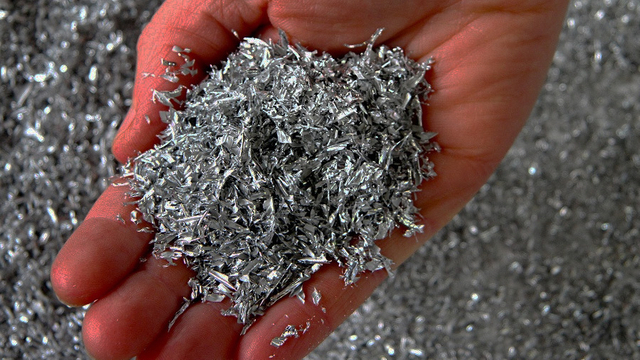

Material Testing

Product Details

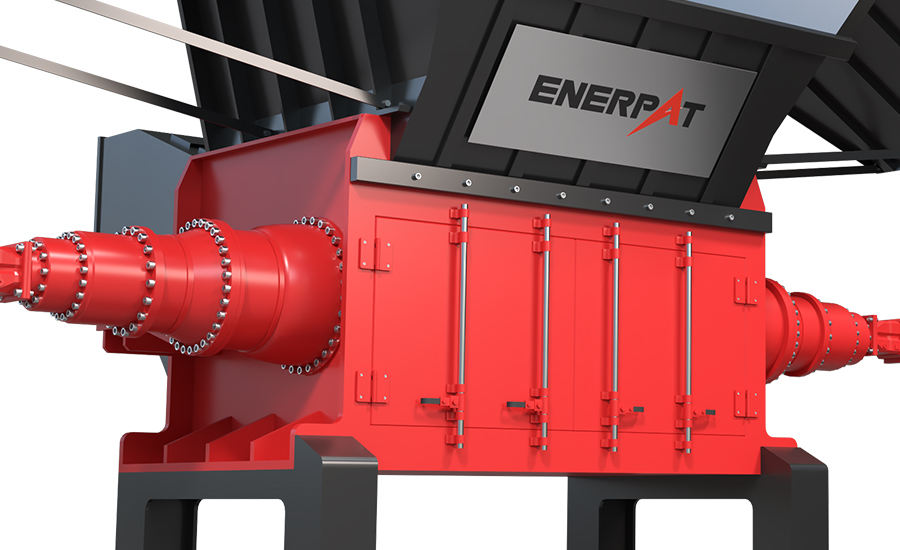

Heavy-Duty Structure & Easy Maintenance

The machine adopts a reinforced modular structure, allowing for quick installation, convenient maintenance, and reduced downtime.
Its rigid welded frame combined with high-strength wear-resistant liners ensures long-term durability, even in continuous scrap aluminum shredding operations.

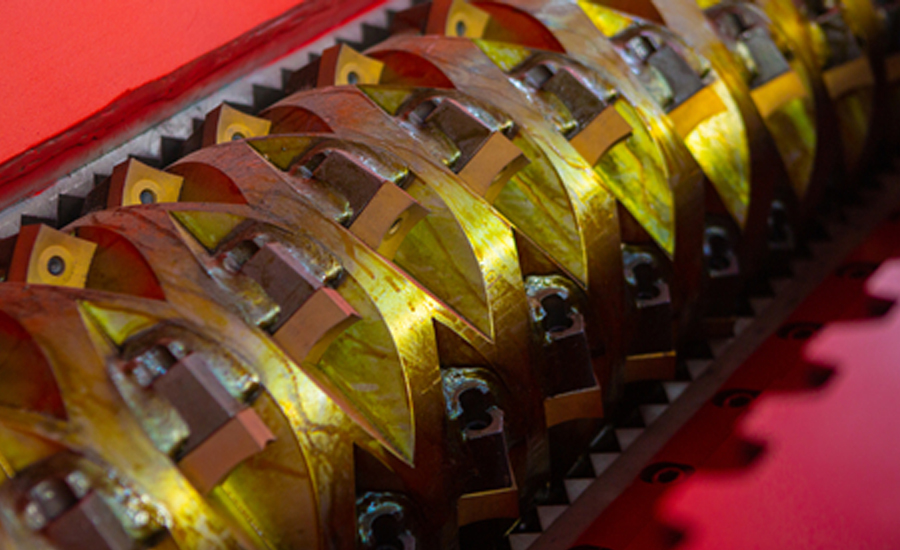

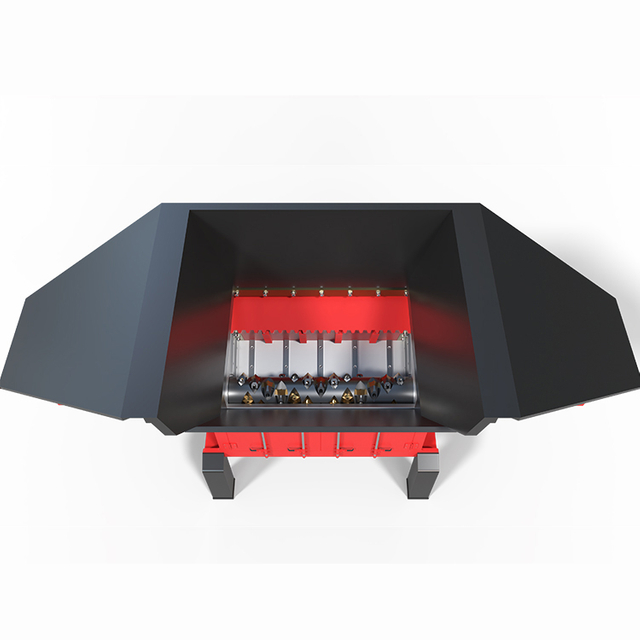

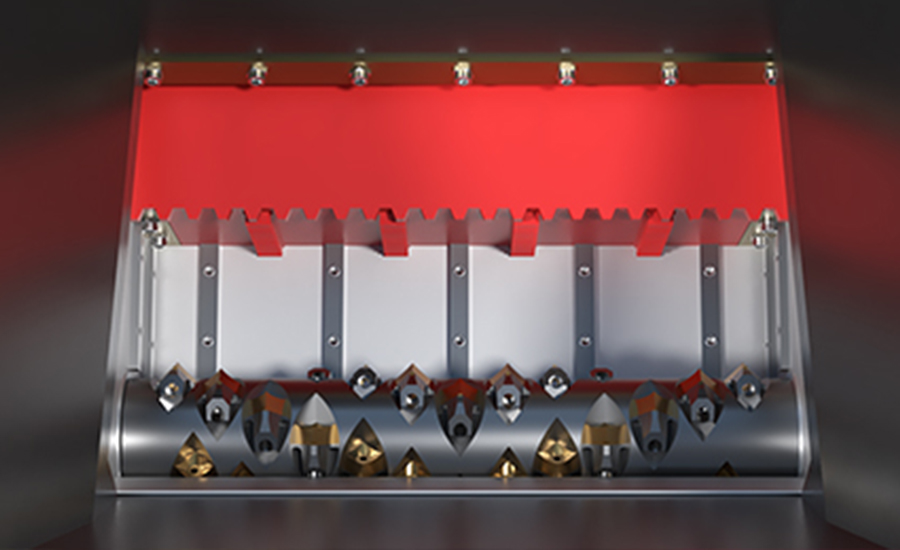

High-Efficiency Rotor & Blade System

The rotor is manufactured from premium 42CrMo alloy steel, providing excellent strength and wear resistance for demanding industrial use.
A specially designed V-shaped blade arrangement increases cutting frequency and improves shredding efficiency, making it ideal for processing aluminum scrap and profiles.
Stable Hydraulic Feeding System

A precision-guided push ram ensures smooth and consistent feeding of lightweight aluminum materials, preventing bridging or material blockage.
The hydraulic feeding mechanism delivers controlled pressure, optimizing performance for aluminum shredder machine applications.

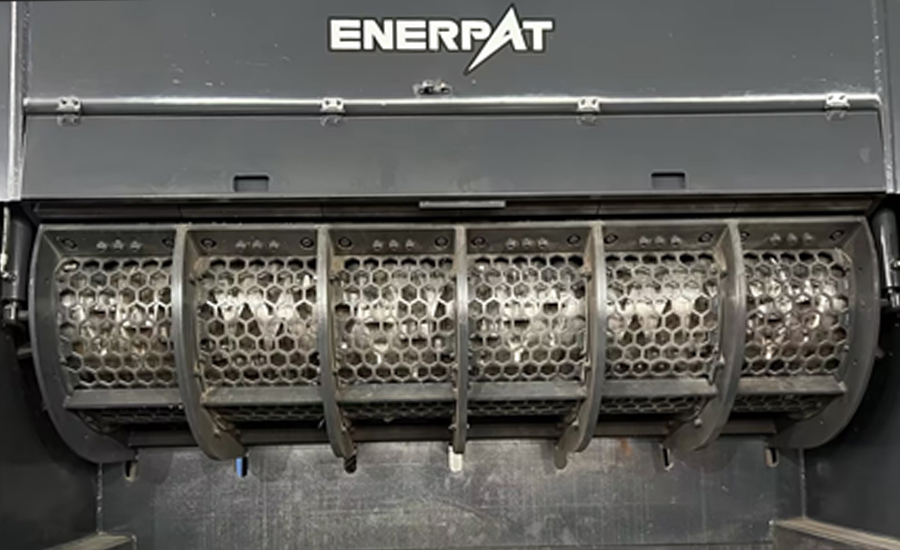

Flexible Screen System for Customized Output Control

The shredder supports customizable screen options with various hole diameters to meet different output requirements. This ensures strict control over output size and uniform particle granulation. A hydraulic cylinder assists in opening the screen, significantly improving operational efficiency.

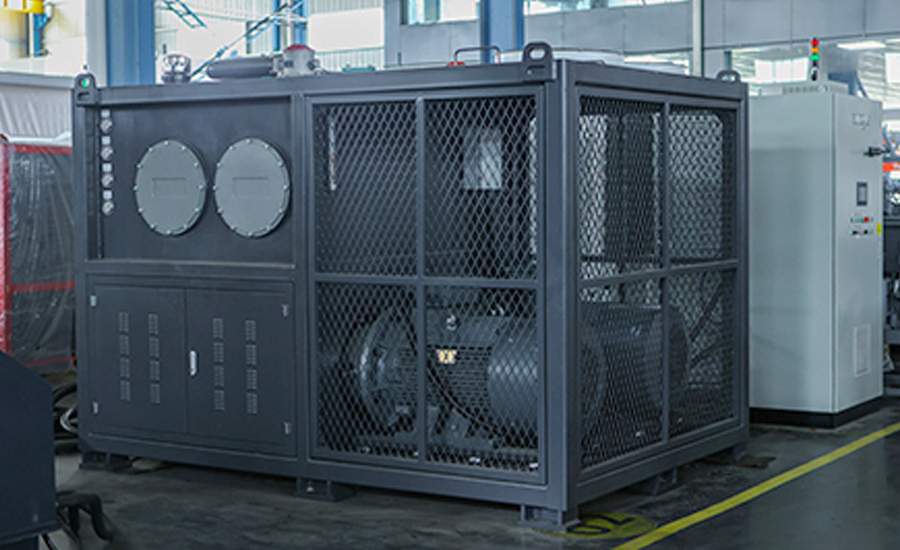

High-Torque Hydraulic Drive System

The low-speed, high-torque hydraulic drive provides powerful cutting force, enabling efficient shredding of various aluminum waste types.
An integrated overload protection system automatically releases pressure to protect the machine and extend service life.
Advanced PLC Control System

Equipped with a reliable PLC control system (Siemens or Schneider), the machine offers simple and intelligent operation.
Features include automatic rotor reversal in case of overload and auto-stop function when no material is detected, ensuring safe and efficient operation of the industrial aluminum shredder.

Technical Specifications

MSA-H3000

Model	MSA-H3000
Motor Power	355 kW (≈ 476 HP)
Effective Rotor Length	3000 mm (≈ 118.1 in / 9.84 ft)
Rotor Diameter	900 mm (≈ 35.4 in / 2.95 ft)
Blade Dimensions	150 × 150 mm (≈ 5.9 × 5.9 in)
Overall Dimensions (L × W × H)	5570 × 2920 × 4500 mm (≈ 18.27 × 9.58 × 14.76 ft)
Machine Weight	45 tons (≈ 99,200 lbs)
Drive System	Hydraulic Drive

Design Concept & Product Story

The ENERPAT MSA-H3000 aluminum shredder machine was born out of a deep understanding of the challenges faced by industrial aluminum recyclers. In conversations with large-scale scrap aluminum operators, one recurring theme emerged: the need for a reliable, high-capacity machine that could handle diverse aluminum scrap while maximizing throughput and return on investment.

Our engineering team focused on designing a shredder that grows with your business. With a robust 355kW hydraulic drive, a 3000mm rotor, and precision 150×150mm blades, the MSA-H3000 was crafted to process high volumes of aluminum efficiently—whether it’s aluminum cans, extrusions, sheets, or mixed scrap.
From the outset, our goal was to create a machine that not only meets operational demands but also delivers measurable ROI. By reducing labor costs, increasing material density, and improving downstream sorting efficiency, the MSA-H3000 helps recycling facilities scale operations sustainably.
Before release, the machine underwent extensive field testing with leading aluminum recycling plants across Europe, North America, and the Middle East. Feedback from these trials shaped refinements in feeding systems, blade design, and hydraulic controls, ensuring the machine performs consistently even under demanding conditions.
Today, the MSA-H3000 is trusted by clients who value industrial reliability, consistent output quality, and investment efficiency. Its success in the field validates the design philosophy: a machine built for real-world aluminum recycling challenges, engineered with the end-user in mind, and proven to deliver high-capacity, cost-effective shredding solutions.

Get A Quote

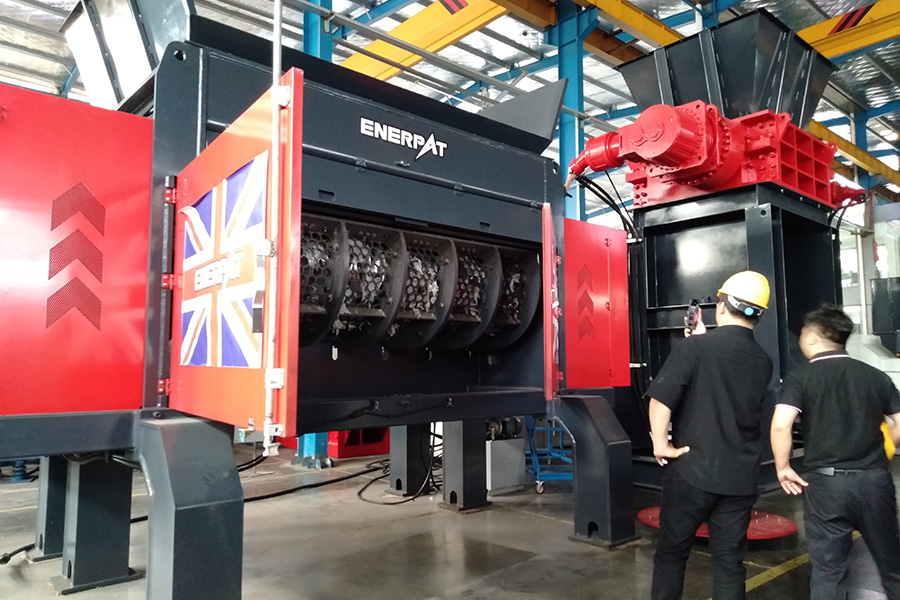

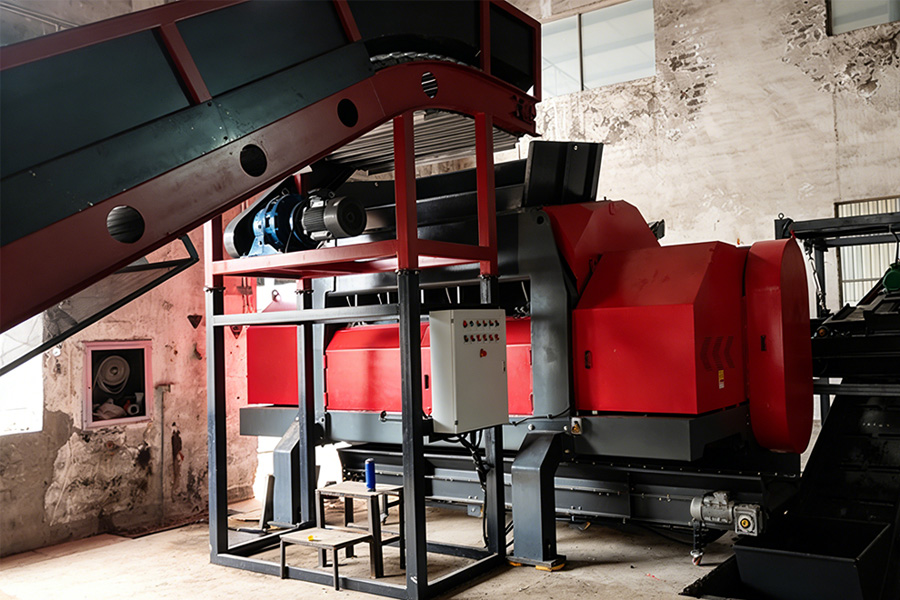

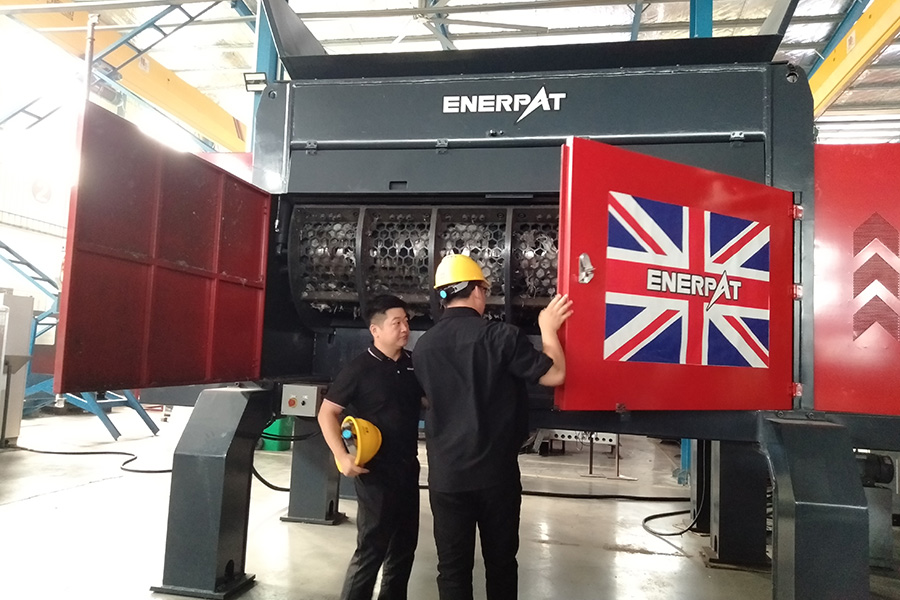

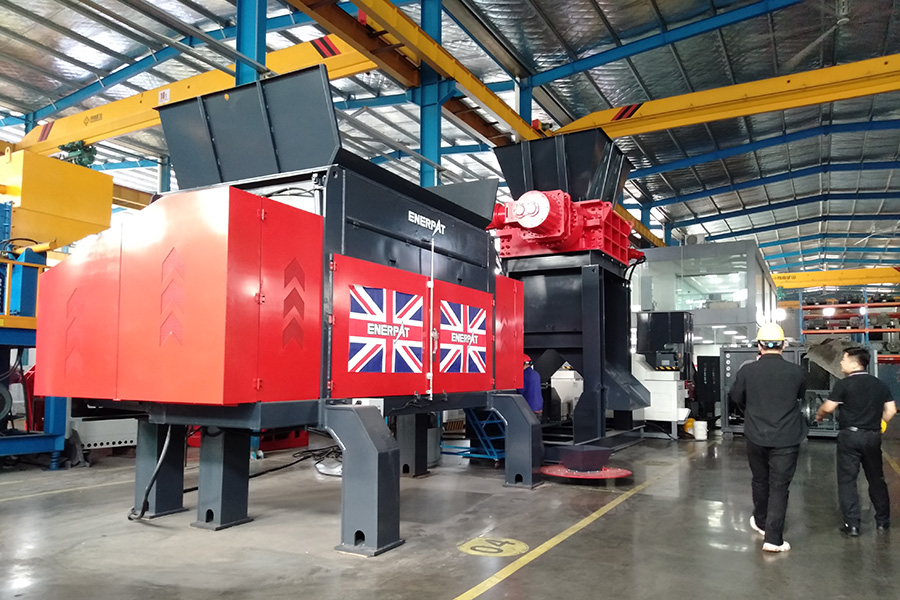

Customer Sites

Why Choose Us

Trusted by Fortune 500 Companies

A preferred supplier for global aluminum recyclers, proven in the world's most demanding
High-Capacity Aluminum Shredding

MSA-H3000 delivers stable, high-volume scrap aluminum processing for industrial recycling needs.
Smart & Efficient Design

Hydraulic single shaft system with precision rotor and blades ensures uniform output and low maintenance.
Integrated Recycling Solutions Available

If a single machine cannot meet your scale, we also provide complete integrated aluminum recycling lines.
