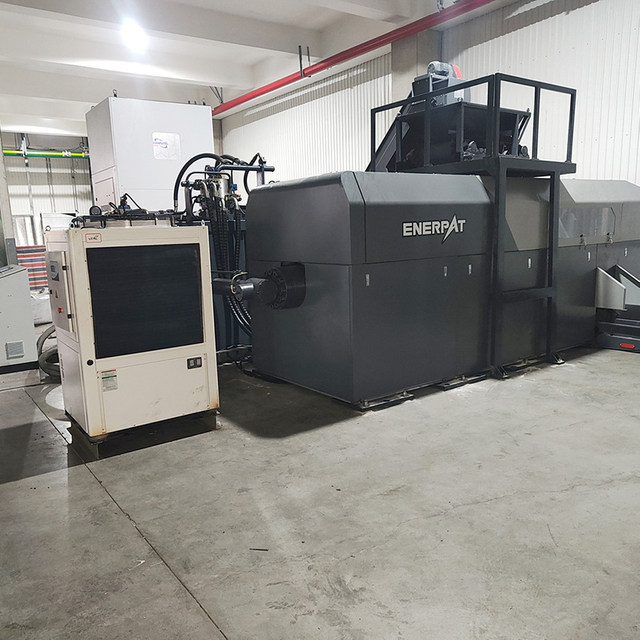

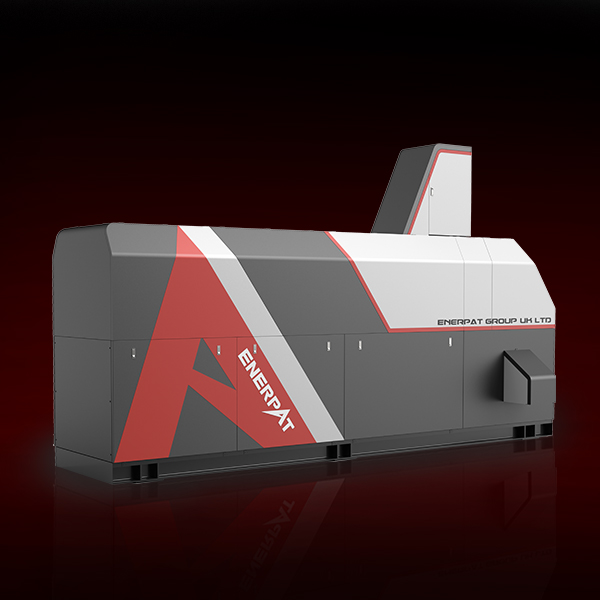

ENERPAT BM-6320 Briquette Press Machine
also known as an aluminum briquetting machine, copper briquette machine, metal swarf compactor, steel briquetting press, and briquetting press for CNC chips, is designed for high-volume metal chip processing applications.

If your operation produces a steady flow of aluminum, copper, stainless steel, or iron chips, handling them efficiently becomes a daily challenge. This briquette press machine is built for exactly that situation—turning loose, oil-soaked chips into compact, stackable briquettes that are easier to manage, cleaner to handle, and far more valuable when it comes time to sell or remelt.

BM-6320 Briquette Press Machine Specifications

Compression Force: 630 t (≈ 693 US tons)
Briquette Diameter: 200 mm (≈ 7.9 in)
Main Motor Power: 135 kW (≈ 181 hp)
System Pressure: 25 MPa (≈ 3,625 psi)
Operation Mode: Fully Automatic

Briquette Press Machine

Aluminium Briquettes Machine

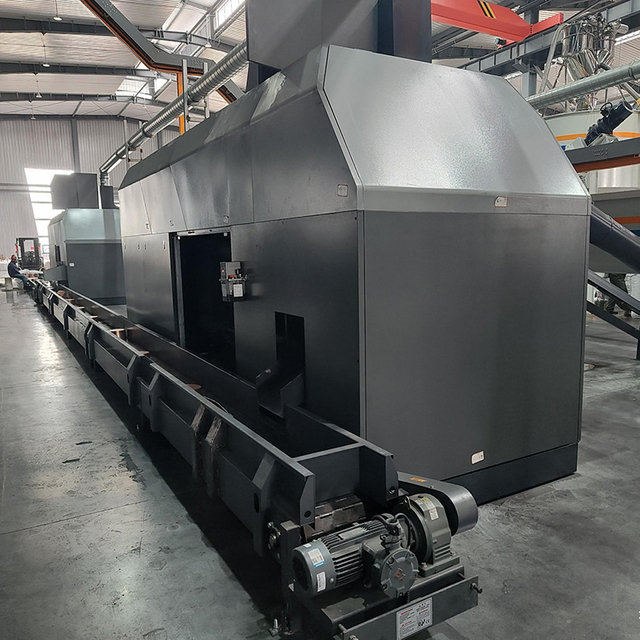

Briquetting Press for CNC Chips

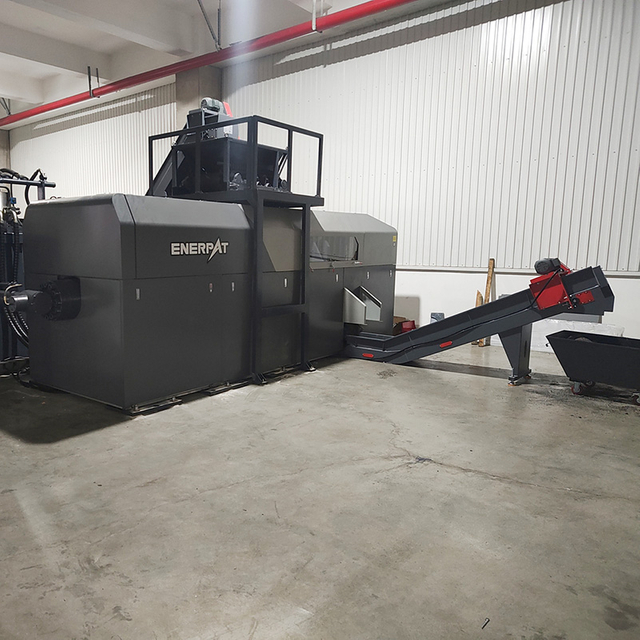

Metal Swarf Compactor

Get A Quote

Video

Challenges & Solutions

Product Details

Technical Specifications

Design Concept

See How This Briquette Press Machine Works in Your Type of Operation

Key Challenges & ENERPAT Solutions

If you are dealing with large volumes of metal chips every day, you already know the hidden costs—lost space, rising handling expenses, and wasted cutting fluids. These small issues quickly turn into major operational inefficiencies.
ENERPAT provides a practical solution with a briquette press machine that helps you compress, recover, and simplify your chip handling process from the very beginning.

Your workshop is running out of space due to loose chips
Loose aluminum, copper, or steel chips quickly pile up around your CNC machines, taking up valuable production space and slowing down your workflow.
ENERPAT Solution
With a briquette press machine, you can compress loose chips into compact briquettes, reducing their volume by up to 90% and freeing up your workshop for real production activities.
You are losing money through expensive waste handling and transport
Unprocessed metal chips are bulky and costly to store, move, and dispose of.
ENERPAT Solution
A metal swarf compactor helps you turn waste into dense, stackable briquettes, significantly reducing transportation frequency and overall handling costs.
You are not fully recovering the value of cutting fluids
Cutting oil stuck in chips is often discarded along with scrap, leading to continuous fluid loss.
ENERPAT Solution
Our briquette press machine separates and recovers cutting fluids during compression, allowing you to reuse oil and reduce operating expenses.
Your scrap has low resale value in loose form
Loose chips often contain air gaps and contamination, which lowers their melting efficiency and market value.
ENERPAT Solution
By using an aluminium briquettes machine, you can produce dense briquettes with higher metal content per unit, improving furnace efficiency and scrap selling price.
Your production area is difficult to keep clean and safe
Scattered chips and oil residues can create safety risks and make daily cleaning time-consuming.
ENERPAT Solution
A steel briquette machine helps you consolidate waste at the source, keeping your working environment cleaner, safer, and easier to manage.
Your chip handling process is still too manual
Manual collection, transfer, and storage of chips slows down your overall production efficiency.
ENERPAT Solution
The ENERPAT briquetting press for CNC chips integrates into your workflow and allows continuous, automated briquetting with minimal operator involvement.
You want a more sustainable and compliant operation
Many factories face increasing pressure to reduce waste and improve recycling efficiency.
ENERPAT Solution
By compacting and recycling chips more efficiently, you reduce waste volume and improve material recovery, supporting greener and more compliant production practices.

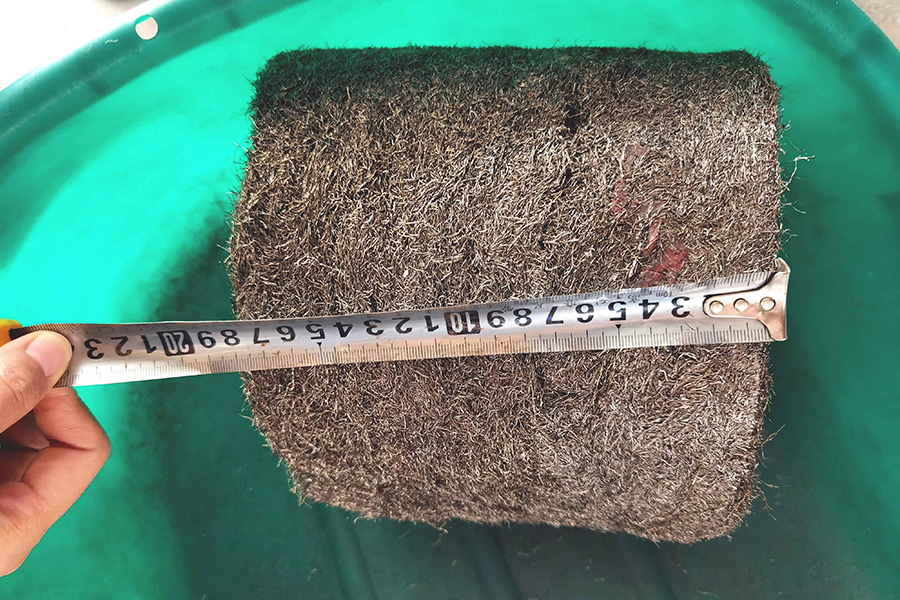

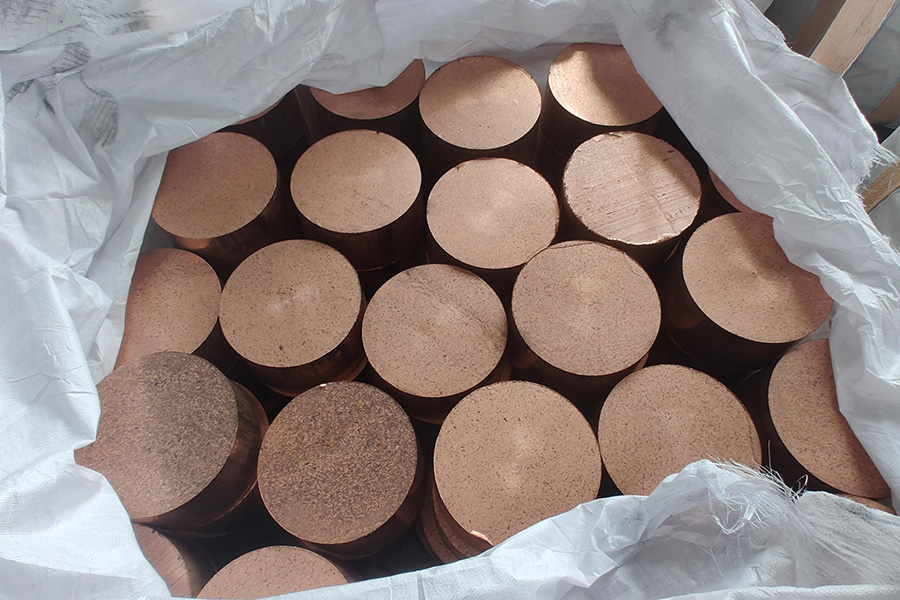

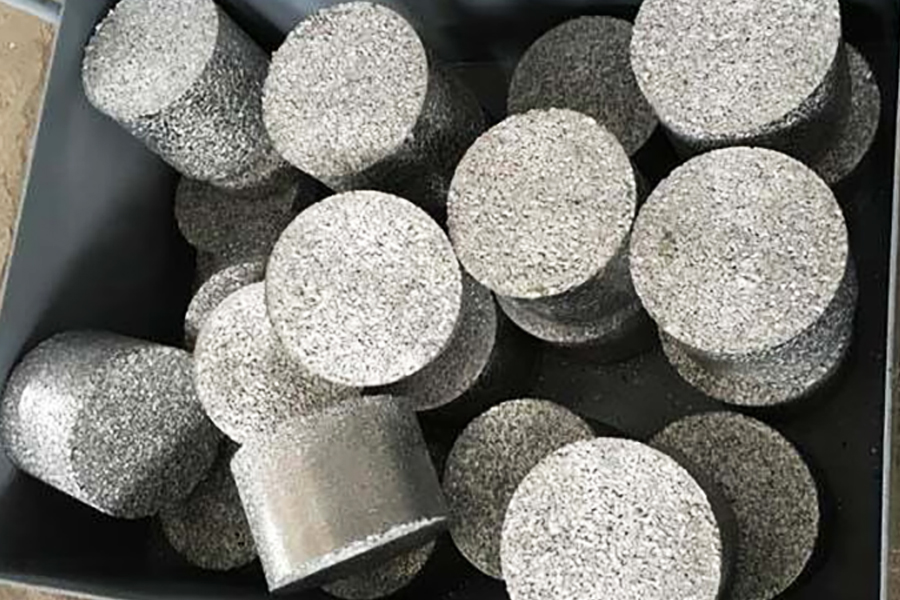

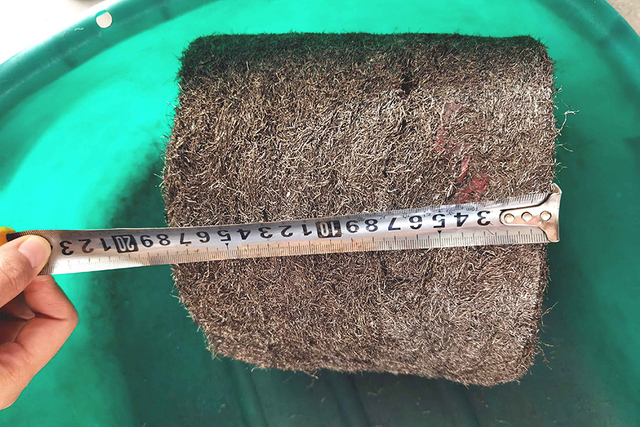

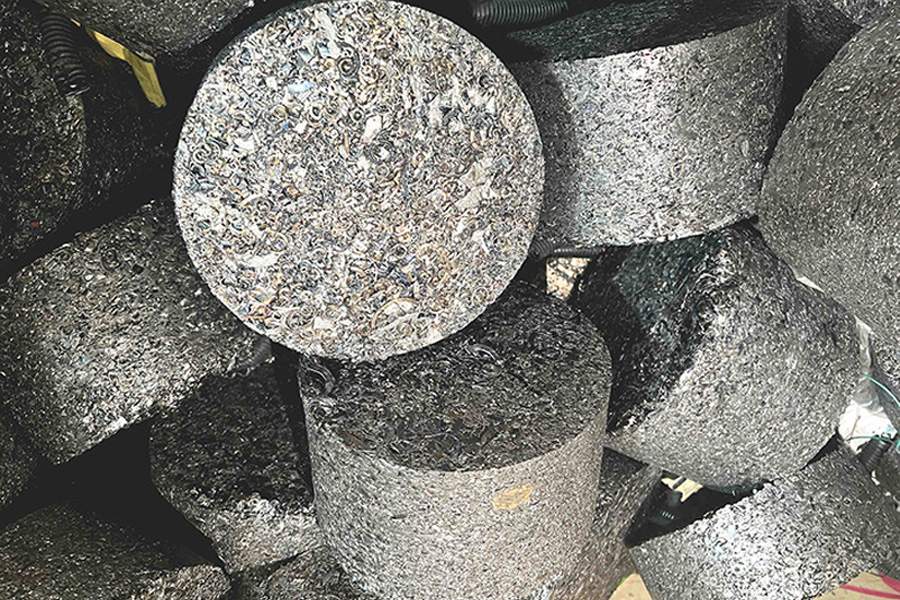

Material Testing

Built to compact. Designed to recover. Engineered to save.

With 630 tons of force, the BM-6320 turns loose chips into dense briquettes – cutting volume up to 90% and recovering valuable cutting fluids. Let’s optimize your chip handling.

Request a Quote

Product Details

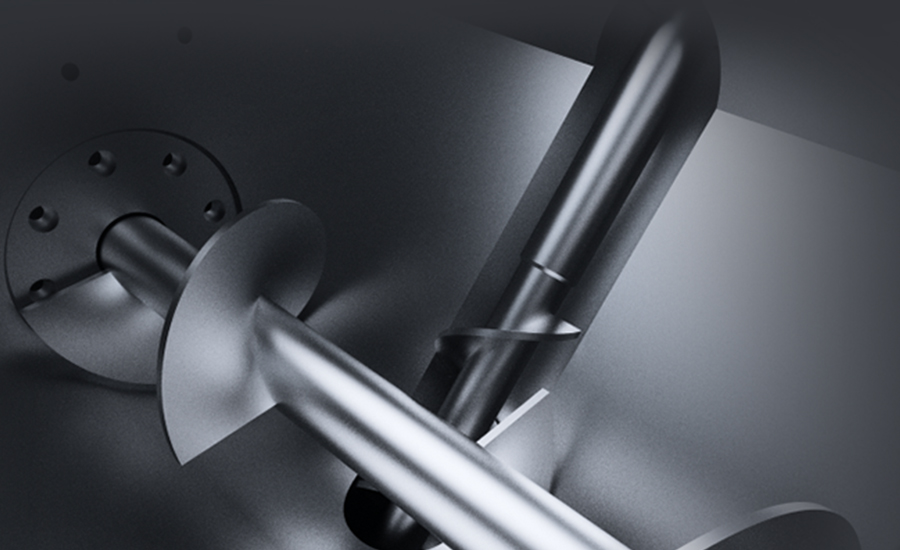

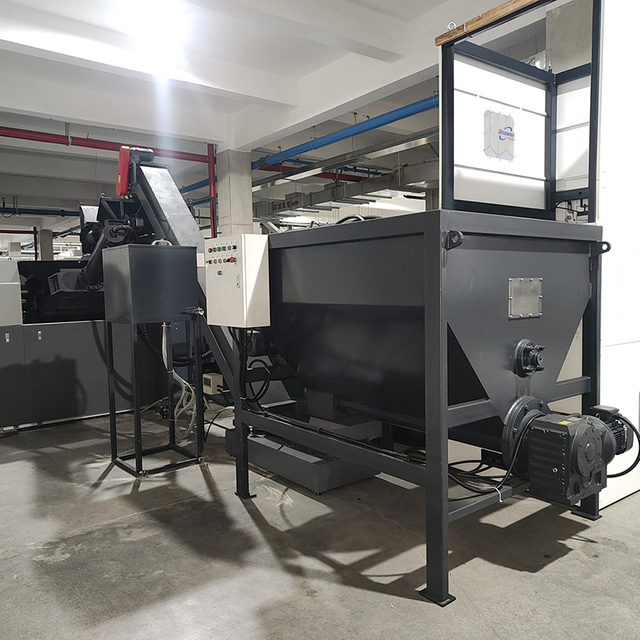

Dual Auger Feeding System for Stable Material Flow

The briquette press machine is equipped with a horizontal and vertical screw feeding system working together to ensure consistent material delivery. The vertical auger pushes material forward steadily, while the horizontal auger prevents bridging and blockages, allowing metal chips to enter the compression chamber smoothly without interruption.

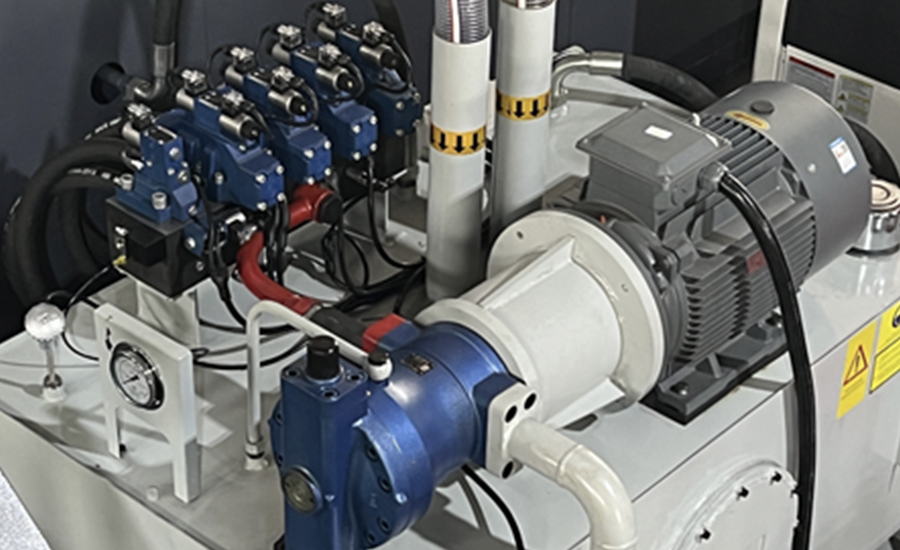

High-Flow Hydraulic Valve System for Faster Response

A cartridge-type hydraulic valve block with large flow capacity is used to improve system response speed and stability. The tapered H-style hydraulic connections help reduce the risk of oil leakage, ensuring smoother pressure control during continuous briquetting operations.

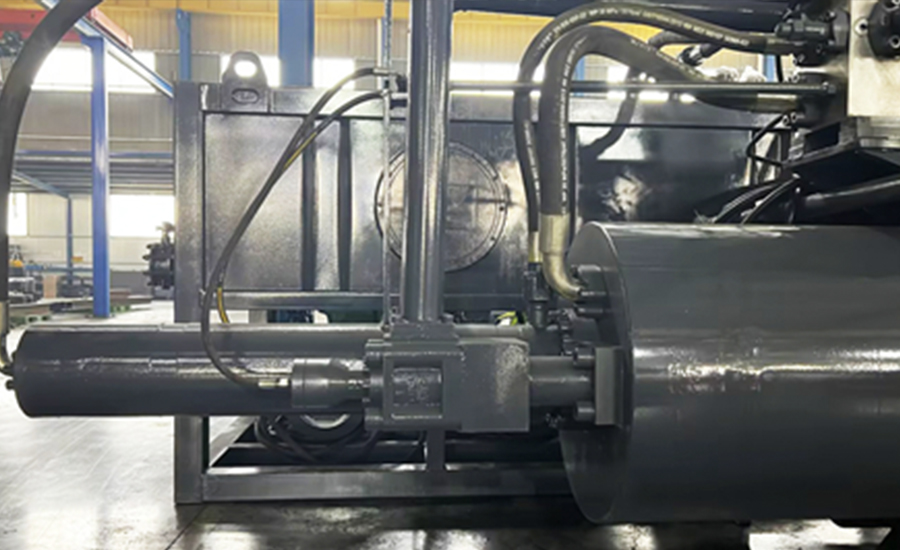

Integrated Heavy-Duty Hydraulic Cylinder for Stronger Compression

The machine adopts a one-piece cast hydraulic cylinder structure, designed to withstand long-term high-pressure operation. The cylinder body is engineered from high-strength steel with precision hollow shaft processing to ensure structural integrity and prevent leakage. Key hydraulic components are sourced from globally recognized brands such as Rexroth and Parker, ensuring durability and stable performance.

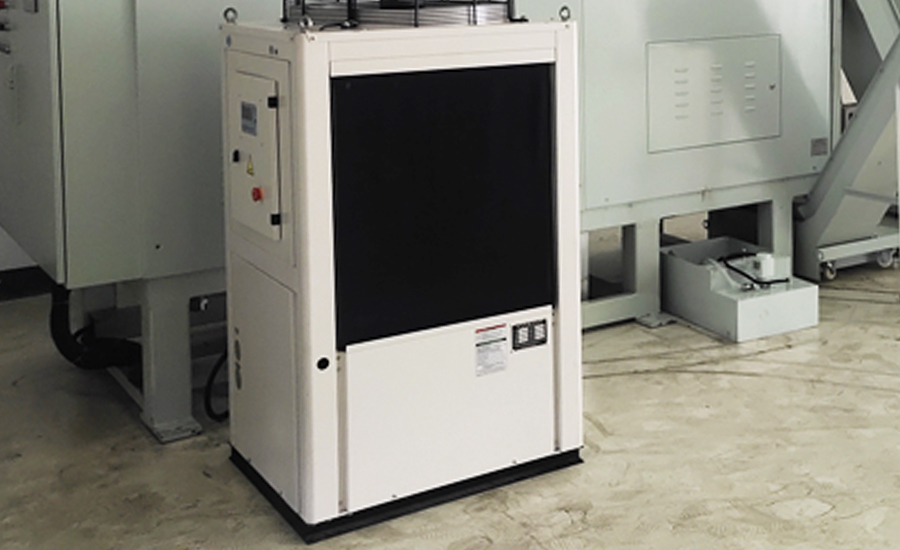

Industrial Cooling System for 24/7 Operation

An independent industrial cooling unit maintains stable oil temperature during continuous running. You can switch between temperature control modes based on working conditions, ensuring the briquette press machine remains reliable during multi-shift or around-the-clock production.

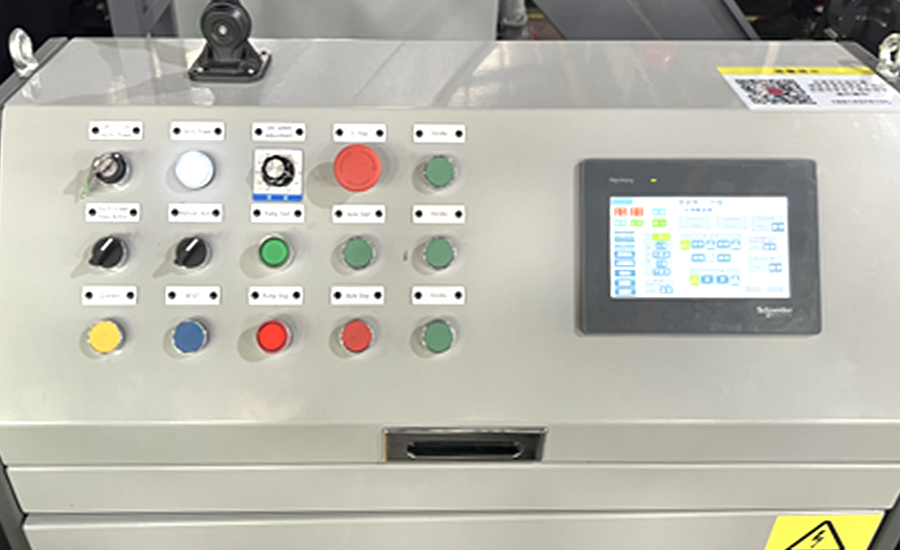

Siemens / Schneider PLC Control for Smart Operation

The system is controlled by an industrial-grade PLC platform with a touchscreen interface for easy operation. You can set compression cycles, feeding timing, and working parameters directly through the control panel. Real-time monitoring of temperature, pressure, running time, and current status helps you maintain safe and efficient operation, with automatic alarms for maintenance or abnormal conditions.

Technical Specifications

BM-6320

Model	BM-6320
Compression Force	630 t (≈ 693 US tons)
Briquette Diameter	200 mm (≈ 7.9 in)
Main Motor Power	135 kW (≈ 181 hp)
System Pressure	25 MPa (≈ 3,625 psi)
Operation Mode	Fully Automatic

Design Concept & Product Story

When we first started working with metal processing plants and CNC workshops, we saw the same situation repeated in many facilities: piles of loose chips around machines, oil leaking into containers, and operators spending too much time dealing with waste instead of production. For many users, metal chips were treated as a by-product, not something worth optimizing.

But when production volume increased, these “small problems” became real operational costs—limited space, rising disposal expenses, and valuable cutting fluids being lost every day.
That was the starting point for the development of the ENERPAT briquette press machine.
Instead of treating chip handling as a simple waste collection task, we focused on what happens inside real workshops: continuous chip output, mixed materials, oil contamination, and the need for stable, long-hour operation. Each generation of the machine was improved step by step—better feeding stability, stronger compression structure, more efficient oil separation, and more reliable automation control.
The BM-6320 was designed from this real-world feedback. It is not just a standalone machine, but a result of observing how you actually work on the shop floor—where downtime is costly, space is limited, and consistency matters more than anything else.
Today, when you use this briquette press machine, the goal is simple: to make chip handling no longer a problem you think about every day, but a stable part of your production flow.

Get A Quote

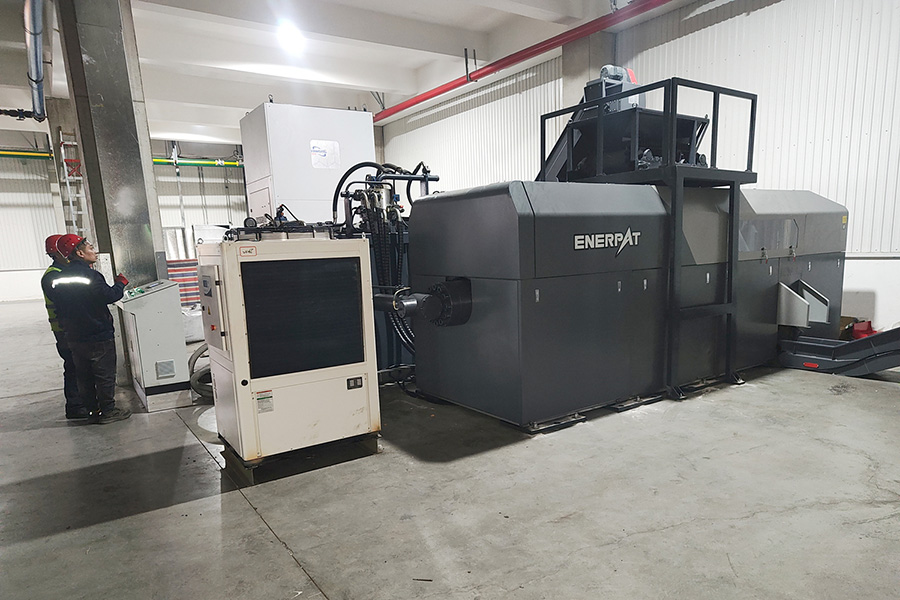

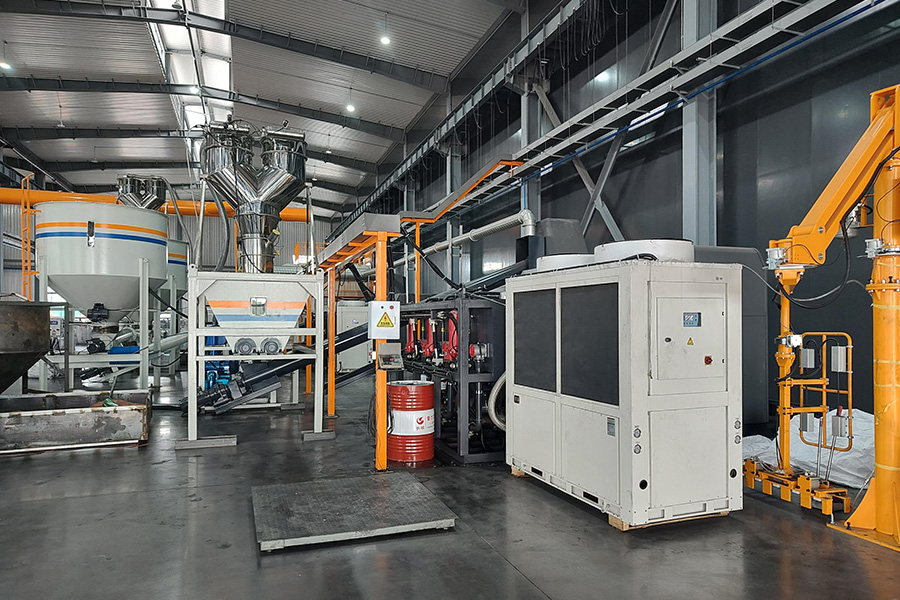

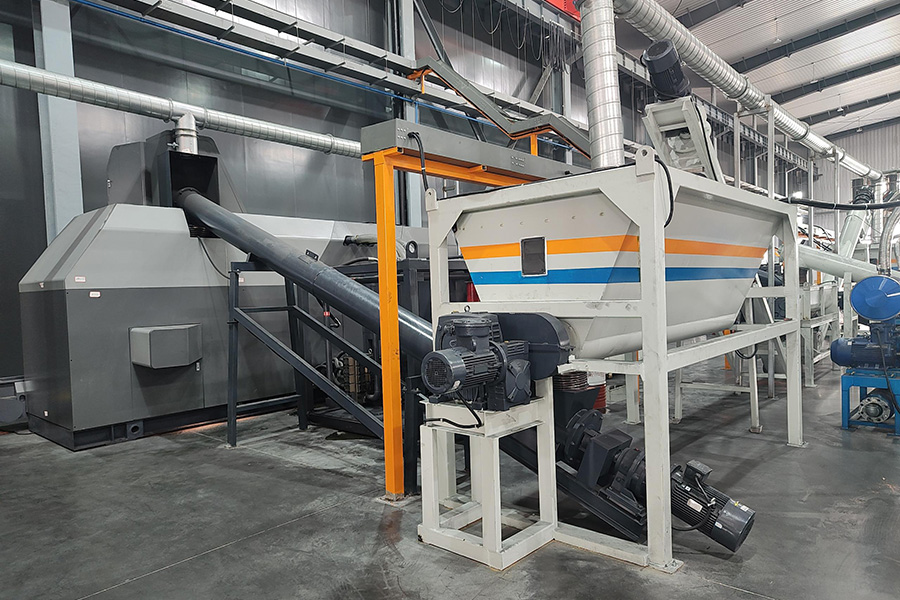

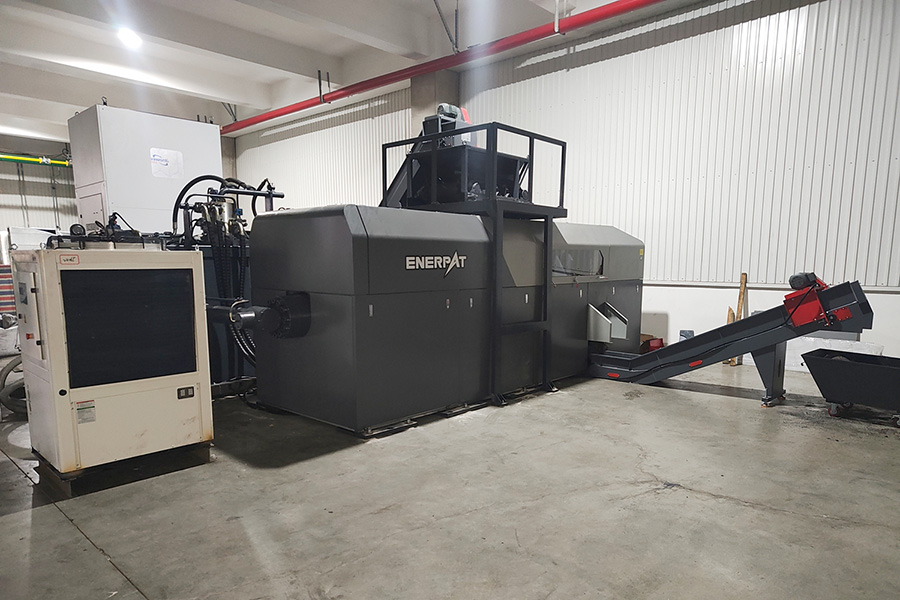

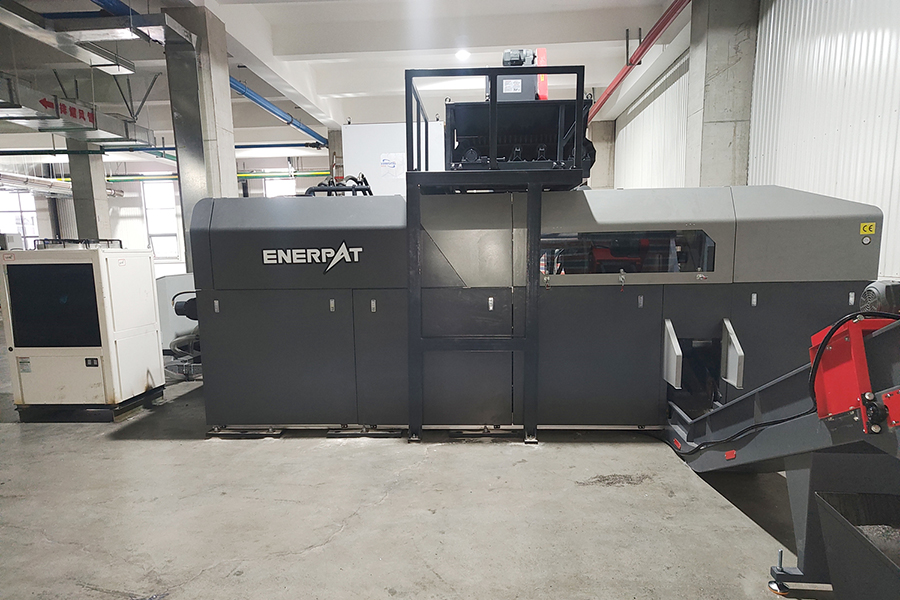

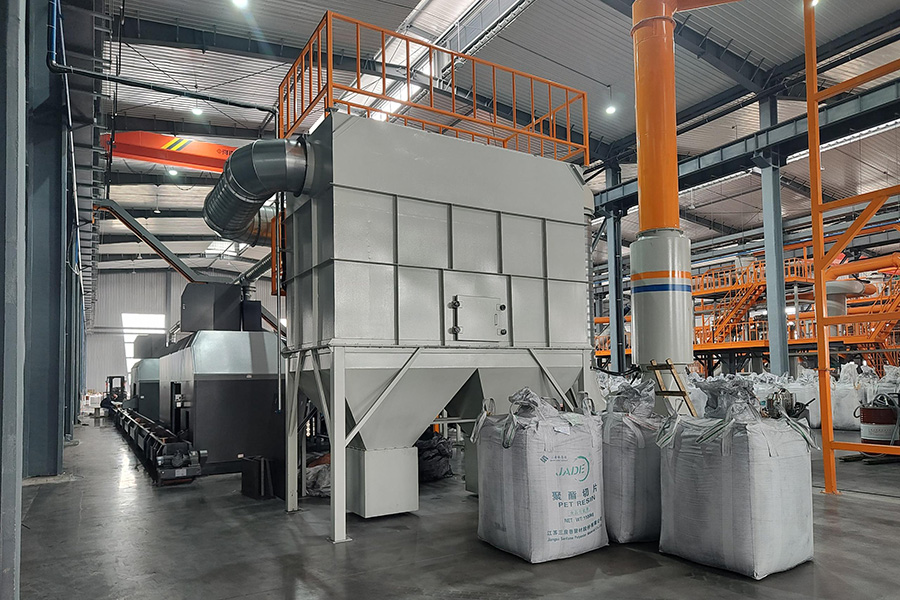

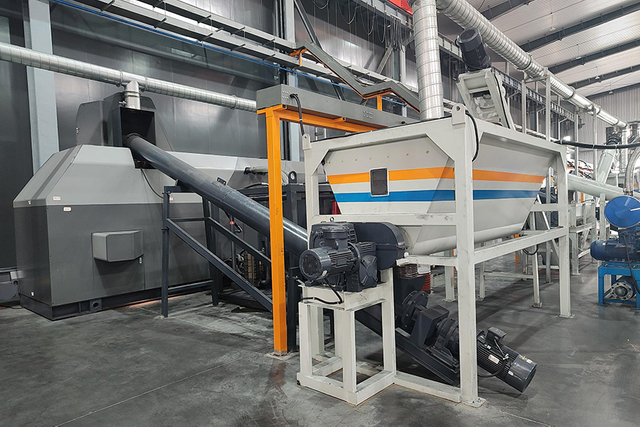

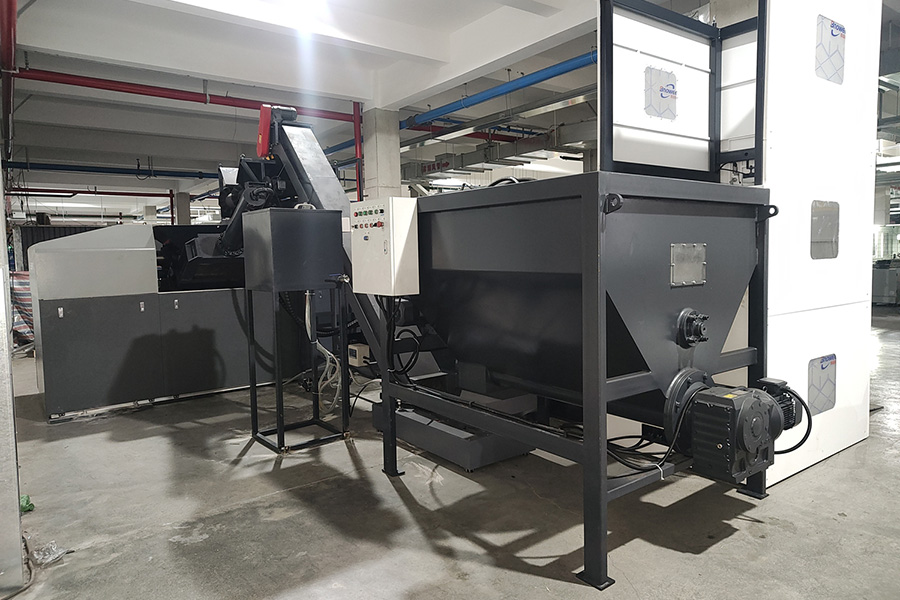

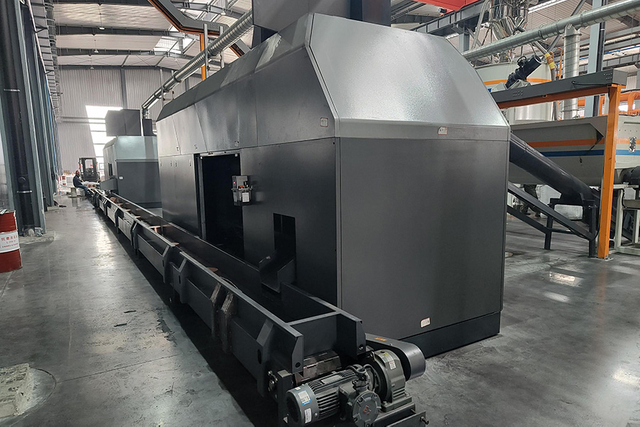

Customer Sites

Ready to turn messy chips into valuable briquettes?

Join workshops that cut handling costs, improve scrap value, and run cleaner operations. Get your BM-6320 quote or request an on-site engineering consultation.

Request a Quote

Why Choose Us

Local Installation & On-Site Support

We provide overseas installation guidance and on-site commissioning support to ensure your briquette press machine runs smoothly from day one.
Certified & Patented Technology

The equipment is CE certified and ISO compliant, with patented briquetting structure designed for stable long-term industrial operation.
Fast Response After-Sales Service

You get direct technical support from our engineering team, with quick response for troubleshooting, maintenance, and spare parts supply.
Built for Industrial Reliability

Designed for continuous heavy-duty use, the machine delivers stable compression performance even under high-volume metal chip processing conditions.

FAQ

Can a briquette press machine handle oily metal chips directly?

Yes. The machine is designed for wet and oily chips generated from CNC machining. During compression, cutting fluids are separated and collected instead of being lost with the scrap.
What types of metal chips can be processed?

It can handle aluminum, copper, stainless steel, cast iron, and steel chips, whether they come from turning, milling, drilling, or grinding processes.
Do I need to dry the chips before feeding them into the machine?

No pre-drying is required. The briquette press machine is built to process wet chips directly, which helps reduce handling steps in your workshop.
How much space can I save after briquetting?

In most cases, loose chips are compressed by up to 90%, which significantly reduces storage space and makes internal logistics much easier.
Will briquetting improve the value of my scrap?

Yes. Dense briquettes have higher metal content per unit volume, better melting efficiency, and are generally more attractive to smelters compared to loose chips.
Is the machine suitable for continuous production lines?

Yes. It is designed for industrial environments where chips are generated continuously, especially in CNC machining and metal processing plants.
How difficult is it to operate the machine?

Operation is simple. With PLC control, you can set feeding and compression cycles, and the system runs automatically with minimal operator involvement.
What happens to the cutting oil during compression?

Most of the cutting fluid is squeezed out during the briquetting process and collected through a recovery system for reuse or proper disposal.
How often does the machine require maintenance?

Routine maintenance is minimal and mainly involves hydraulic system checks, oil level monitoring, and basic component inspection depending on operating hours.
Can the machine be integrated into existing production lines?

Yes. The briquette press machine can be installed as a standalone unit or integrated into a larger metal chip handling or recycling system.
