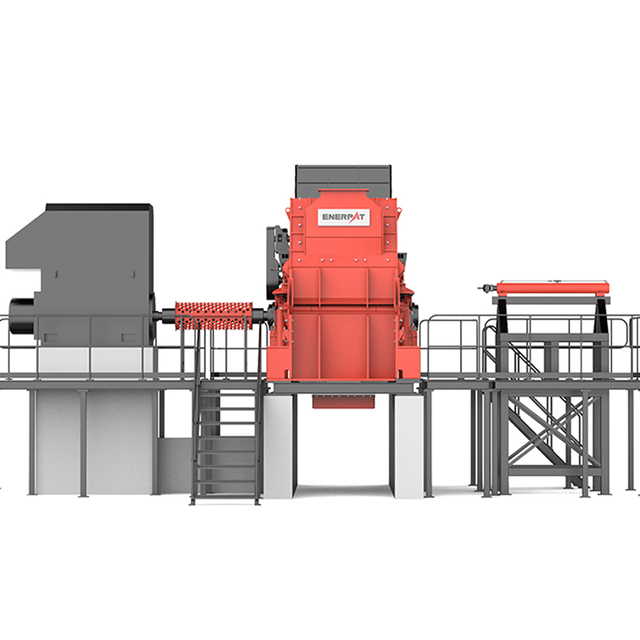

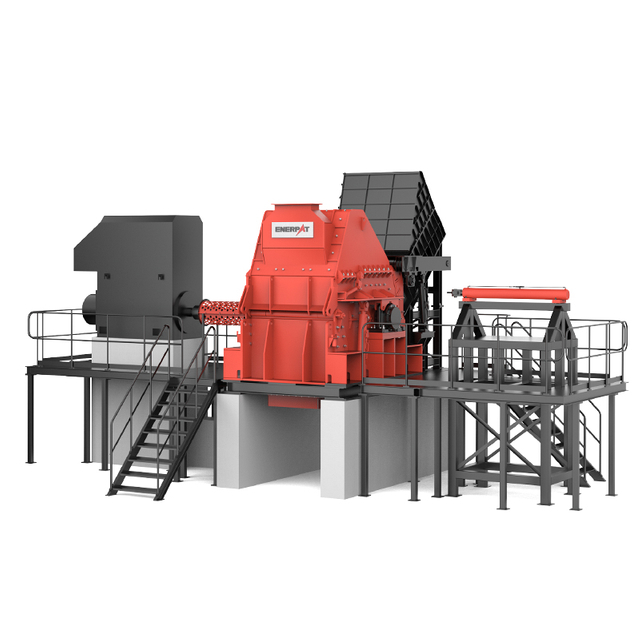

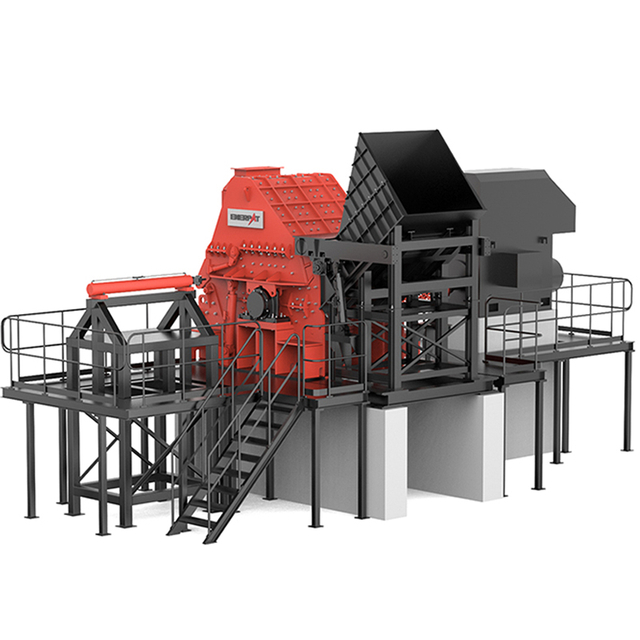

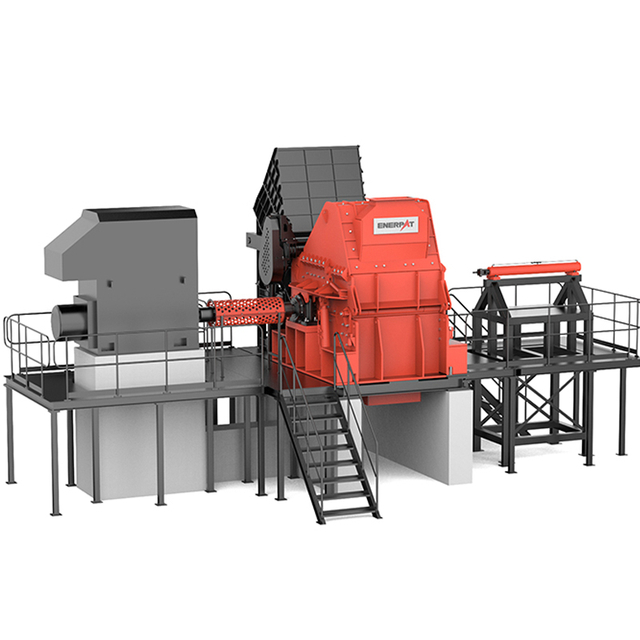

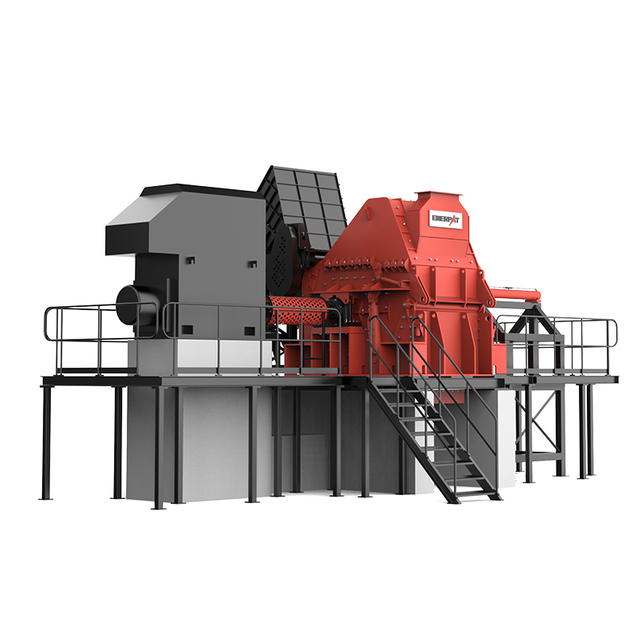

ENERPAT 560 kW Hammer Mill Aluminium Recycling Shredder
Also known as: Aluminium Crusher Machine, Aluminium Metal Shredder, Hammer Crusher for Aluminum, Hammer Mill Industrial Aluminum Shredder

The MSE-H1800 Aluminium Recycling Shredder is a high-performance solution designed for processing aluminium scrap with exceptional efficiency. Powered by a 560 kW motor, this machine uses a high-torque drive to continuously rotate the rotor with durable hammers, which strike the incoming aluminium. The intense impact forces tear and compress the aluminium into spherical shapes while separating impurities. This robust design makes the MSE-H1800 ideal for high-volume aluminium recycling, and it can be integrated with sorting equipment to form a complete aluminium recycling line.

Key Specifications

Motor Power: 560 kW (750 HP)
Rotor Speed: 594 rpm
Rotor Diameter: 1778 mm (70 inches)
Feed Opening Width: 1700 mm (67 inches)
Hammer Quantity: 10 pcs
Capacity (Aluminium): 15-20 tons per hour (13.6-18.1 metric tons per hour)
Motor Connection: Universal joint
Materials Processed: Aluminium profiles, die-cast aluminium, aluminium scrap

Aluminium Recycling Shredder

Aluminium Crusher Machine

Aluminium Metal Shredder

Hammer Mill Industrial Aluminum Crusher

Hammer Crusher for Aluminum

Get A Quote

Video

Challenges & Solutions

Product Details

Technical Specifications

Design Concept

Why Choose Us

See the Hammer Mill Aluminium Recycling Line in Action

Key Challenges & ENERPAT Solutions

Recycling aluminium scrap efficiently requires overcoming common pain points: high maintenance, low throughput, difficulty handling oversized material, impurities, poor separation, space constraints, and inconsistent output. ENERPAT's MSE-H1800 Aluminium Recycling Shredder provides a comprehensive solution — robust design, high efficiency, impurity separation, compact footprint, and stable performance across varying scrap quality.

Challenge: High Maintenance Costs and Downtime
Pain Point: Recycling facilities face significant maintenance costs due to frequent breakdowns and wear and tear on machinery. These interruptions lead to downtime and decreased productivity.
ENERPAT Solution: The MSE-H1800 Aluminium Recycling Shredder features a robust design with durable hammers and minimal moving parts, reducing maintenance needs. The machine’s high-quality construction and engineered rotor provide long-lasting performance with minimal wear, ensuring continuous operation and lower maintenance costs.
Challenge: Low Processing Efficiency and High Energy Consumption
Pain Point: Traditional machines may struggle with efficiency, processing only small amounts of aluminium per hour while consuming excessive amounts of energy. This leads to higher operating costs and slower throughput.
ENERPAT Solution: The MSE-H1800 operates with a 560 kW motor (750 HP), which delivers high throughput of 15-20 tons per hour. Its efficient motor ensures that it can handle large volumes of aluminium scrap without excessive energy consumption, providing a more cost-effective and efficient solution.
Challenge: Difficulty in Handling Mixed and Large Aluminium Scrap
Pain Point: Recycling plants often deal with mixed or oversized aluminium scrap (e.g., aluminium profiles, die-cast parts, and heavy-duty components). These materials are difficult to process efficiently using older machines.
ENERPAT Solution: The MSE-H1800 Aluminium Recycling Shredder is specifically designed to handle large and bulky materials, including aluminium profiles, die-cast aluminium, and heavy aluminium scrap. Its wide feed opening (1700 mm) and high torque allow it to process various types of scrap with ease, ensuring consistent and reliable shredding.
Challenge: Impurities in Aluminium Scrap Affecting Quality
Pain Point: Many aluminium scrap materials contain impurities (such as plastic, rubber, and other metals) that must be removed during the shredding process to maintain the quality of the recycled aluminium.
ENERPAT Solution: The MSE-H1800 features a powerful hammer system that not only shreds aluminium but also helps separate impurities through the impact and crushing process. This results in cleaner aluminium material, which is easier to refine and reuse in the manufacturing process.
Challenge: Ineffective Separation of Materials in the Shredding Process
Pain Point: Many recycling operations struggle to effectively separate materials during the shredding process, resulting in contamination and reduced value of the recycled material.
ENERPAT Solution: The MSE-H1800 can be integrated with sorting equipment for further separation of materials. This allows for a fully automated recycling line where different materials, such as metals, plastics, and aluminium, can be separated, increasing the overall efficiency and value of the final product.
Challenge: Limited Space and High Installation Costs
Pain Point: Recycling facilities often face space constraints and high costs associated with installing large and complex recycling machinery. Adding more machines to increase throughput can be a logistical challenge.
ENERPAT Solution: The MSE-H1800 is designed to be a compact, all-in-one solution, offering high throughput without requiring excessive space. Its streamlined design allows for easier integration into existing lines and minimal installation complexity, helping reduce both space requirements and installation costs.
Challenge: Fluctuating Scrap Quality Leading to Inconsistent Output
Pain Point: Variability in the quality of incoming scrap aluminium (e.g., different alloys, contamination levels, or material hardness) can result in inconsistent output and affect the profitability of recycling operations.
ENERPAT Solution: The MSE-H1800 Aluminium Recycling Shredder is built with a powerful motor and durable components that can efficiently process a wide range of aluminium scrap types, including mixed alloys and materials with varying degrees of hardness. The result is more consistent and reliable output, ensuring that the recycling process remains efficient and profitable regardless of the scrap quality.

Material Testing

Product Details

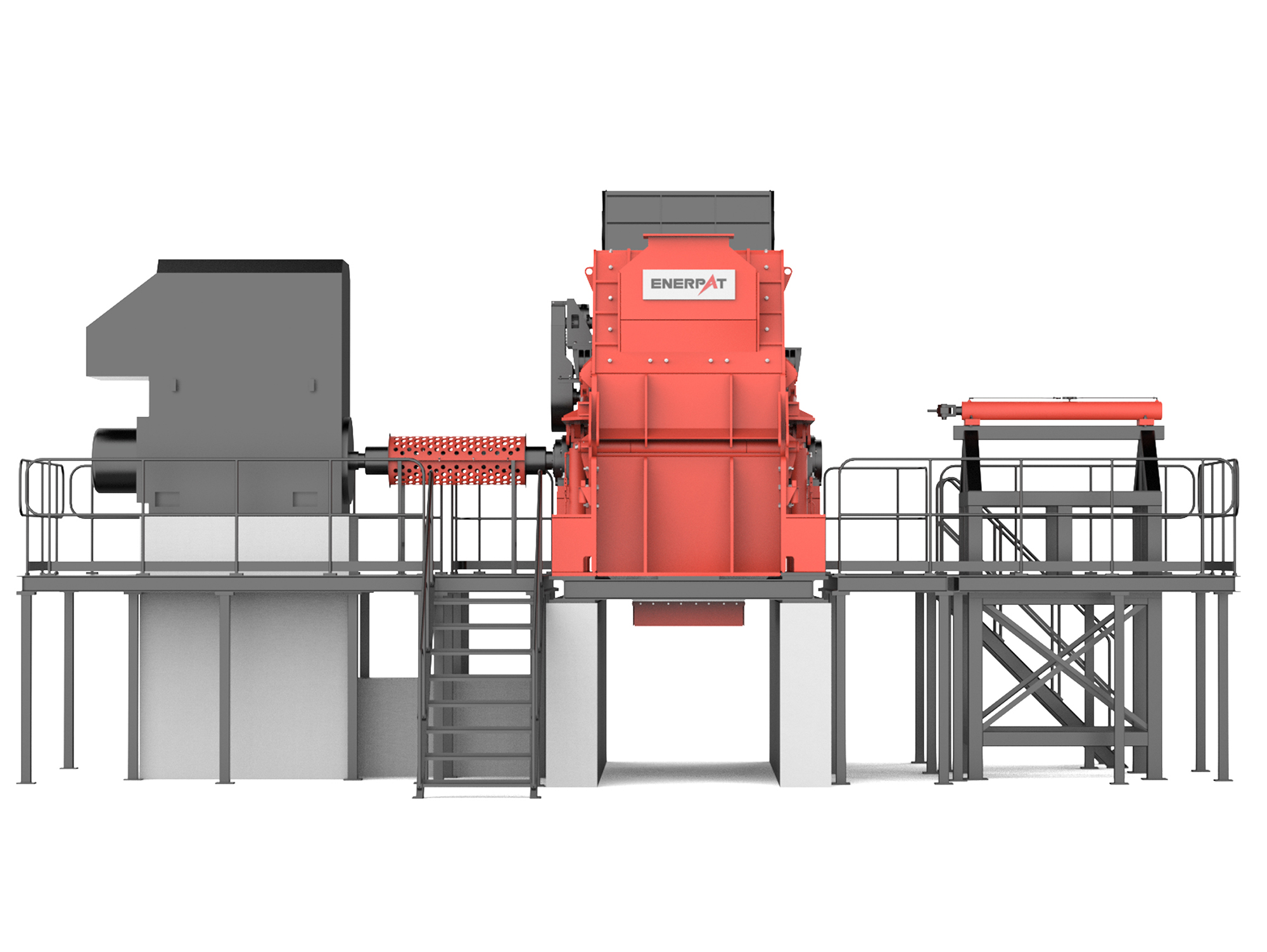

Cabinet Structure

The MSE-H1800 Aluminium Recycling Shredder features a robust and durable cabinet made of ultra-resistant materials. Its extra-thick steel plates ensure the cabinet is wear-resistant and impact-resistant, allowing it to withstand the rigors of high-volume aluminium recycling. The design includes top and bottom openings, making maintenance and servicing more convenient, reducing downtime and enhancing the operational efficiency of the entire system.

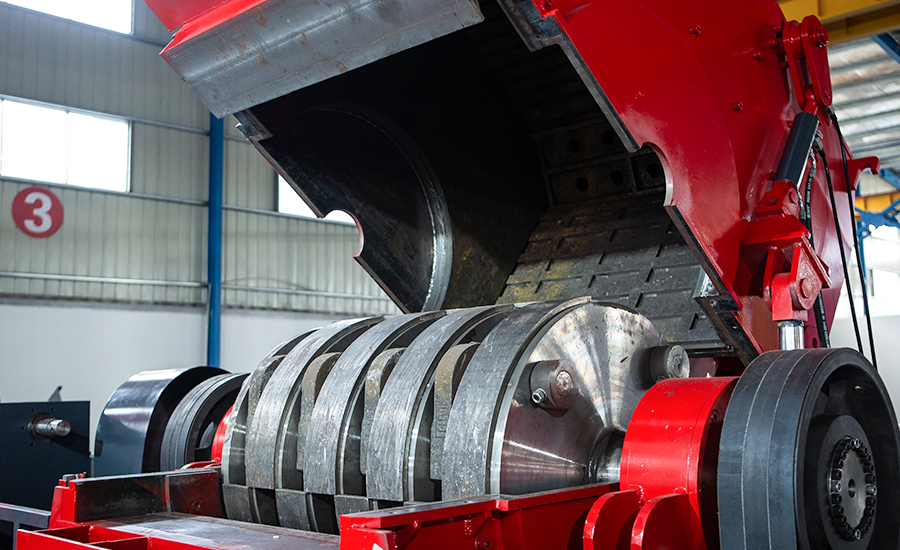

Spindle Structure

The spindle structure of the MSE-H1800 is designed with precision, using high-strength alloy steel to provide exceptional load-bearing capacity and durability. The hammer shaft features a pulling pin device, enabling quick and easy 360-degree rotation and hammer replacement, improving operational efficiency. This advanced design ensures that the machine operates smoothly and continuously with minimal disruption, maximizing productivity in your aluminium recycling process.

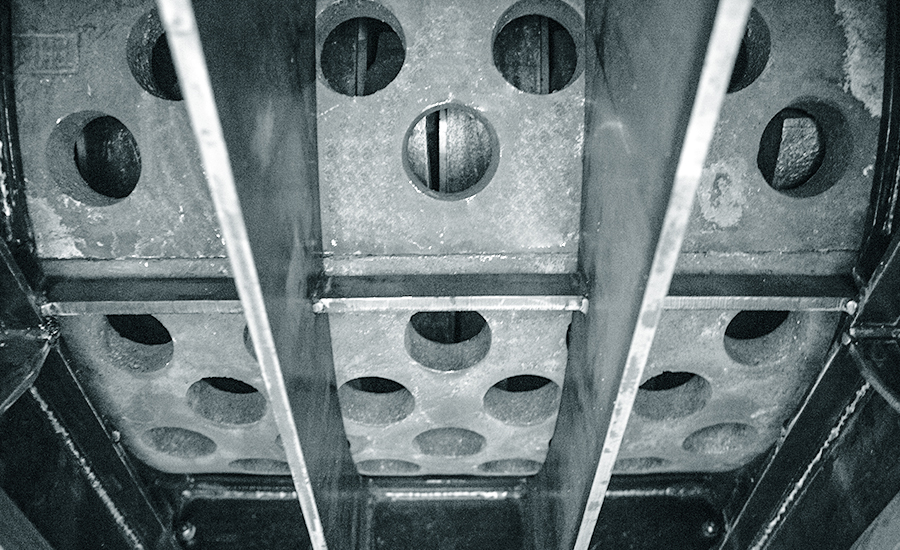

Flexible Customizable Screens

The MSE-H1800 comes with removable extra-thick screens, allowing for easy replacement when needed. This design ensures that the screens can be quickly swapped out for maintenance or to adapt to different processing needs. The system also features strict control of discharge size, ensuring uniformity in the crushed particle size, which is crucial for aluminium recycling and ensuring the high-quality output of recycled aluminium.

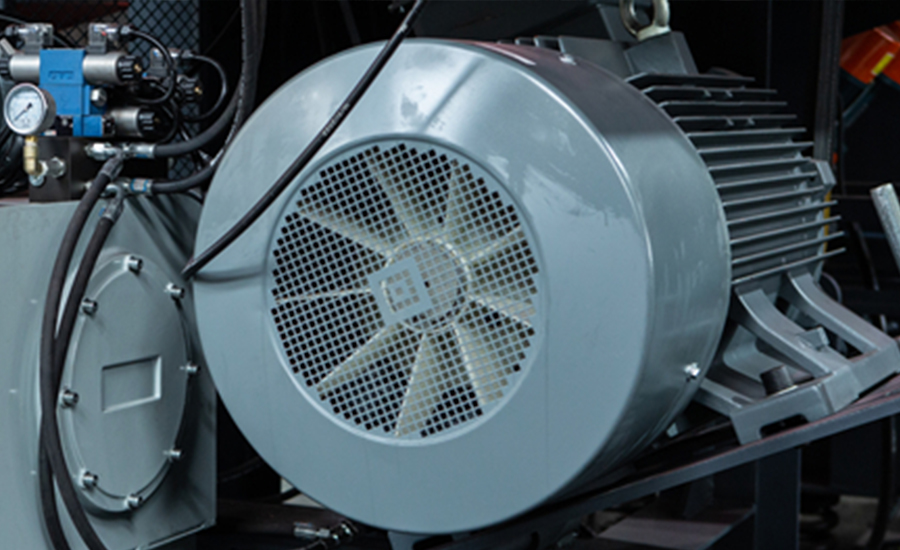

Power System

Equipped with a German Siemens motor, the MSE-H1800 Aluminium Recycling Shredder delivers continuous, strong power output for maximum efficiency. The motor is paired with high-standard pulleys that enhance safety and reliability during operation. This powerful and dependable power system ensures that the machine performs at its best, protecting both the plant's transformer and the overall system. The MSE-H1800 is designed for high throughput, processing up to 20 tons of aluminium per hour with minimal energy waste.
Intelligent Control System

The MSE-H1800 is equipped with a Siemens/Schneider PLC electrical system that features a visual operation interface, offering ease of control and monitoring. The system includes overload protection, which automatically reverses the knife shaft in case of equipment overload. Additionally, the machine stops automatically if there is a shortage of material, preventing damage and ensuring operational safety. This intelligent control system helps to minimize downtime and protect the machine, ensuring it operates at optimal performance.

Technical Specifications

MSE-H1800 Hammer Mill Aluminium Recycling Shredder

Model	MSE-H1800
Main Motor Power	560 kW / 750 HP
Rotor Speed	594 rpm
Rotor Diameter	1778 mm / 70 inches
Inlet Width	1700 mm / 67 inches
Number of Hammers	10 pcs
Output Capacity (Aluminium)	15-20 tons/hour / 16.5-22 tons/hour
Motor Connection	Universal Joint

Design Concept & Product Story

At Enerpat, we recognize the challenges faced by aluminium recyclers, such as high maintenance costs, inefficient processing, and inconsistent material quality. The MSE-H1800 Aluminium Recycling Shredder was specifically designed to address these issues, offering high throughput (up to 20 tons/hour) and low-maintenance operation. Powered by a 560 kW motor, it efficiently processes various aluminium scrap types, from aluminium profiles to die-cast parts, with a focus on delivering consistent, high-quality output.

In addition to its powerful performance, the MSE-H1800 can be easily integrated with sorting and separation equipment to form a complete aluminium recycling line. This modular design allows recyclers to expand their operations in stages, integrating new technologies as needed without disrupting existing workflows. Whether you're just starting out or scaling up, the MSE-H1800 provides a flexible solution that can adapt to your evolving business needs.

Moreover, we understand that every business has unique financial goals. The MSE-H1800 is designed to be cost-effective, allowing companies to invest according to their budget and risk tolerance. This means you can align the aluminium recycling system with your business’s growth phase, ensuring that your investment remains manageable while providing a solid return over time. As we continue to innovate, we welcome your feedback, ensuring our products evolve to meet the dynamic needs of the aluminium recycling industry.

Get A Quote

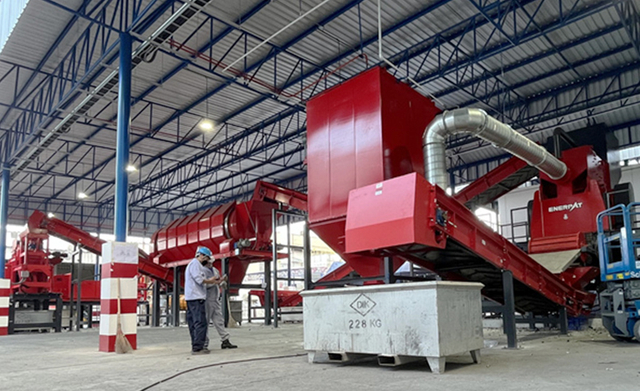

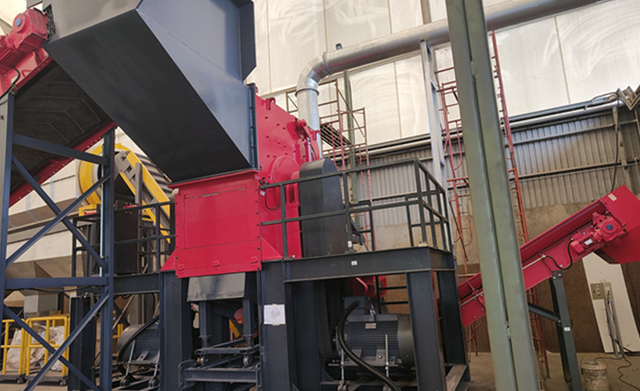

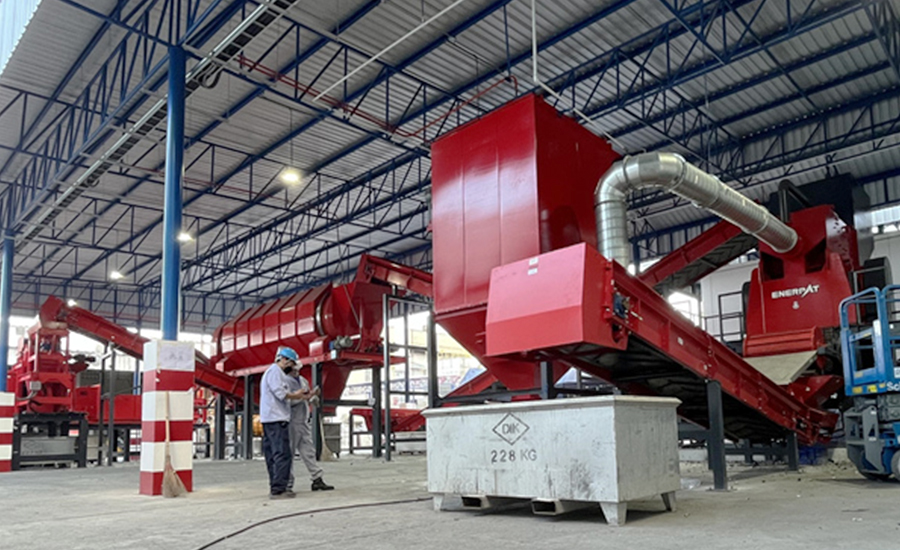

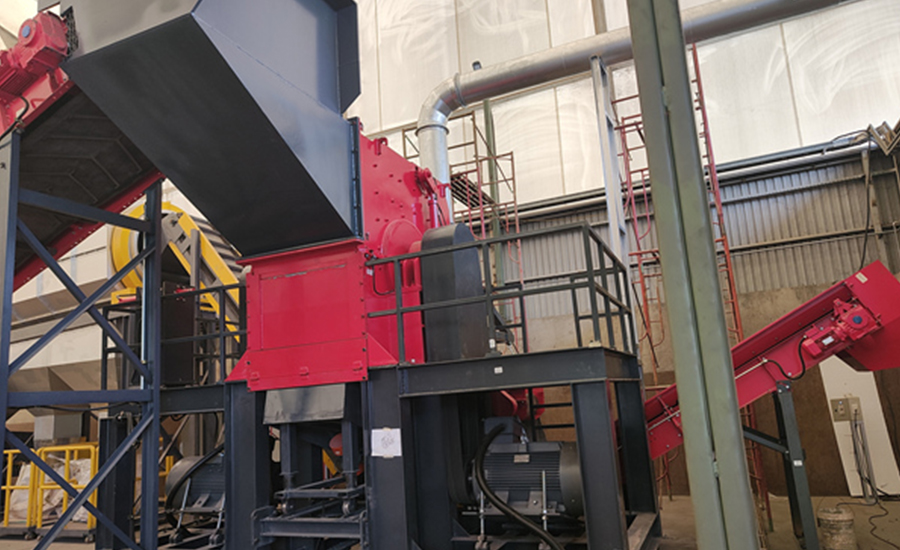

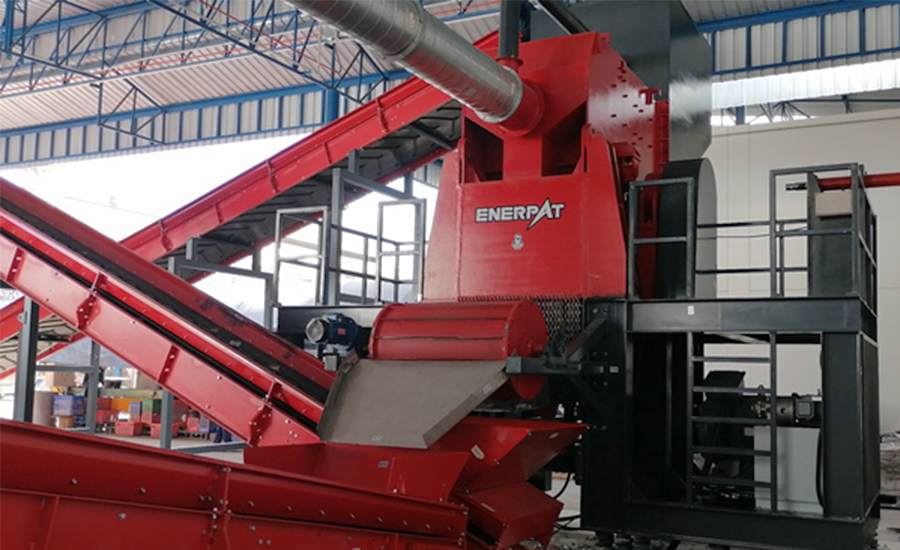

Customer Sites

Why Choose Us

Trusted by Global Industry Leaders

Enerpat is a preferred partner for Fortune 500 companies, trusted for its high-performance aluminium recycling machines that meet the most demanding operational standards.
Proven Expertise in Aluminium Recycling

With over 80 years of experience, Enerpat is a trusted leader in the aluminium recycling industry, providing innovative and reliable solutions to businesses worldwide.
Customized Solutions for Every Stage

From initial setup to full-scale production, Enerpat offers flexible, scalable solutions tailored to your business’s evolving needs, ensuring optimal performance at every phase.
Commitment to Sustainability and Efficiency

Our products, like the MSE-H1800, are designed to not only boost operational efficiency but also reduce environmental impact, supporting your sustainability goals while lowering costs.
