Metal Chips Briquetting Press

The ENERPAT BM-C metal briquetting press is built to compact loose steel, aluminum, INCO, copper and stainless chips into dense blocks. The briquettes slash chip volume and boost furnace efficiency. Output spans 50 to 2000 kg per hour. Powered by advanced UK technology, the machine delivers 100 percent quality and carries CE and ISO approvals.


Availability:



Inquire

Model:
BM-C
Brand:
ENERPAT

Product Video

Product Description

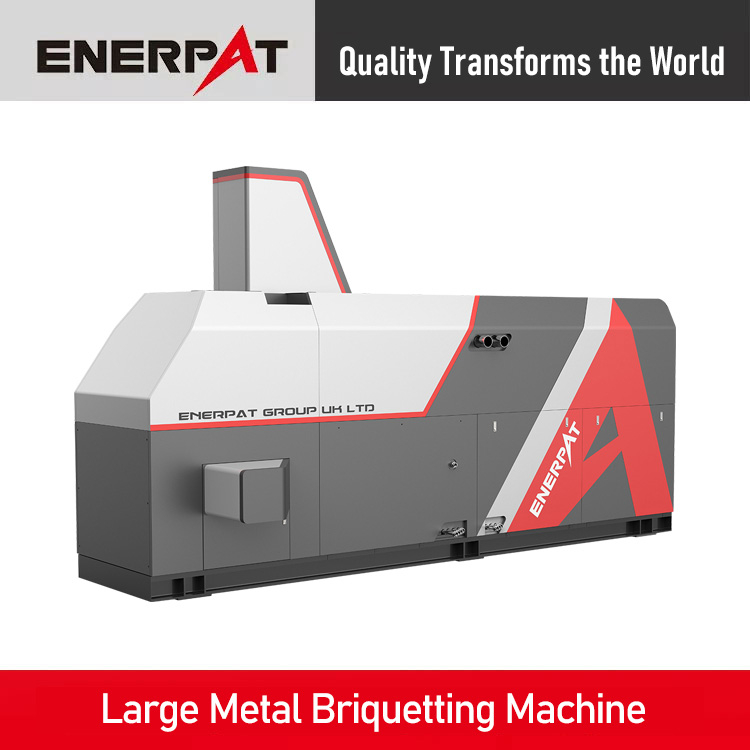

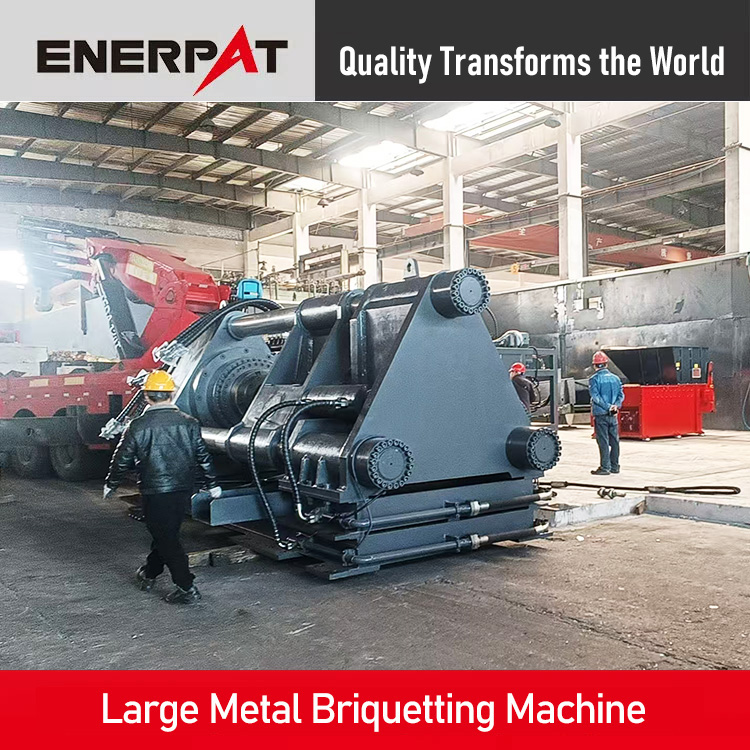

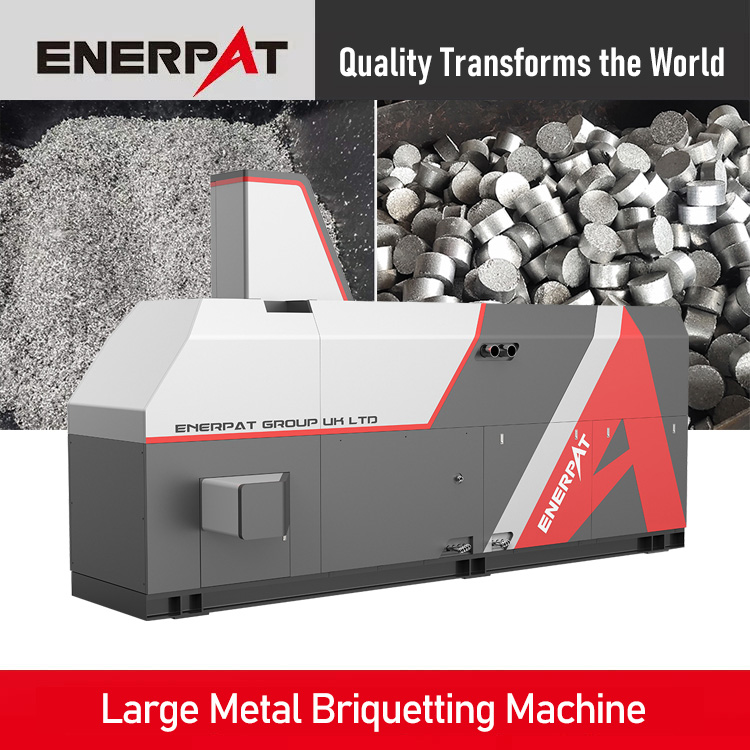

Metal Chips Briquetting Press (BM-C)

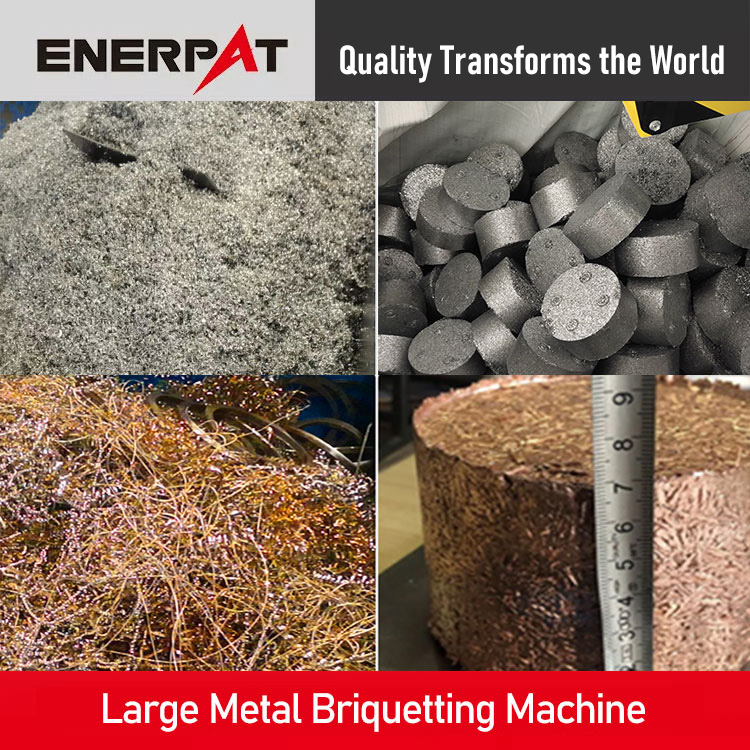

The ENERPAT metal briquetter presses and recovers machining chips of steel, nickel, aluminum, copper and other metals. Its fully automatic cycle turns loose chips into dense briquettes in one step. During compaction the cutting oil is squeezed out and collected, keeping the briquettes clean while letting the oil be captured for reuse.

Composition and Structure

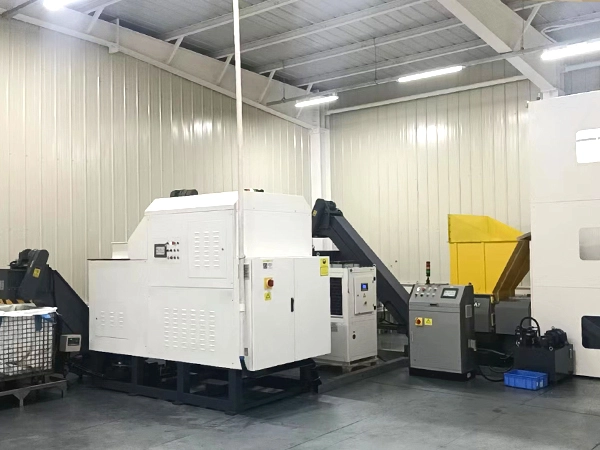

Product Applications

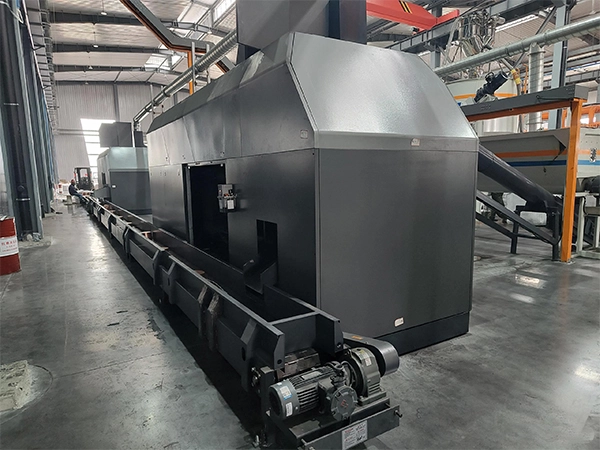

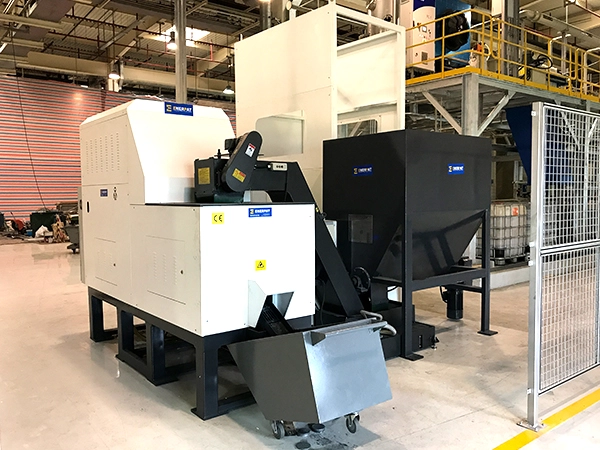

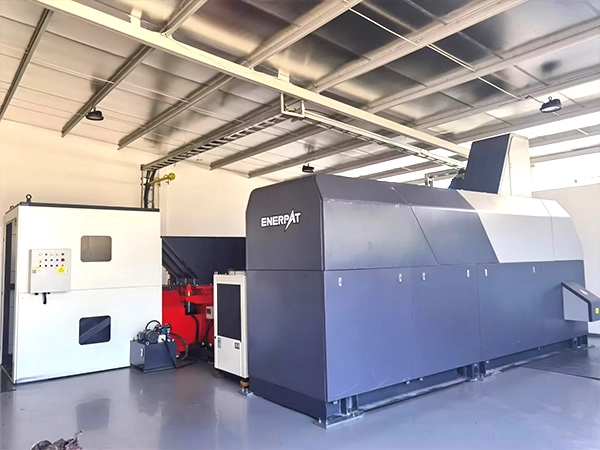

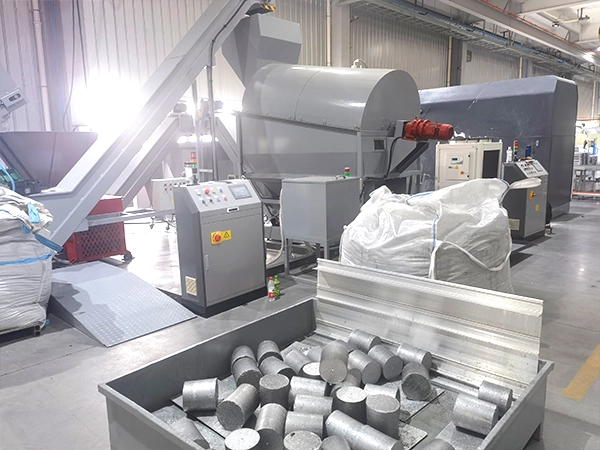

Applications

Product Details

5 Key Core Advantages

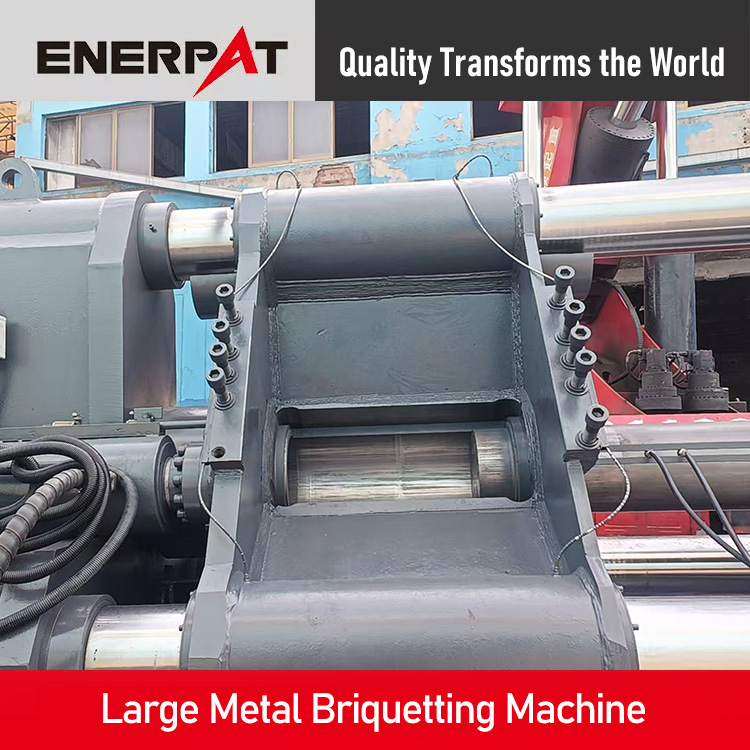

Pressing Cylinder

Choose the brand company and international standard seamless steel pipe
All piston rods are chrome plated
Choose the British Hallite brand as the cylinder seal
PHydraulic System

Power unit pumps are based on European standard
All power units have 90 micron suction filters and 25 micron return filters as standard.
Pressure filters to 3 microns are optional and give our power units high cleanliness levels.
Hydraulic power unit suppliers offer a hydraulic circuit and parts list,
Hydraulic products offer this as well as a full installation and maintenance manual.
Each power unit is supplied with a test certificate and CE approval documentation.
Air Conditioner Cooling System

Air Conditioner Cooling System installed on the hydraulic system
Air Conditioner Cooling System supports machine 24/7 working
Air Conditioner Cooling System with Test Certification and CE approved documents
Electrical Control System

Siemens/Schneider PLC Automatic Control System & Stable Operation, Simple Operation
Touch screen/button operation, saving time and effort
Real-time intelligent monitoring, safe and efficient

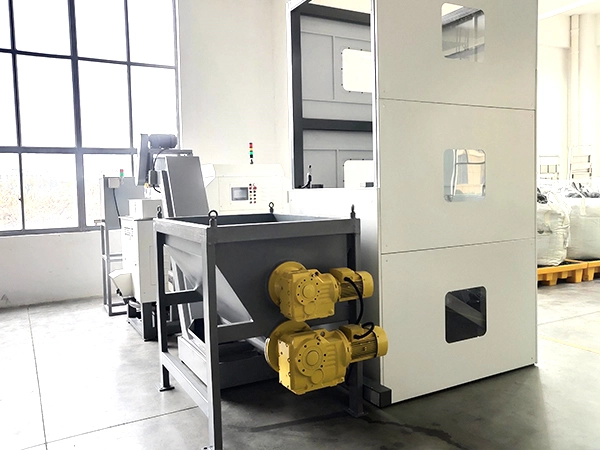

Feeding Device

Auger-Type Feeding-In Device & The Collaboration of Horizontal and Vertical Twists
Vertical twist for smooth feeding-in
Horizontal twist for preventing overhead unstuck waste materials

Technical Data Sheet

Model	BM-3114	BM-4015	BM-6320	BM-8024	BM-10028	BM-12531
Compression Force (t)	315	400	630	800	1000	1250
Bale Diameter (mm)	140	150	200	240	280	310
Main Motor Power (kW)	22	30	135	45×3	75×2	75×3
System Pressure (MPa)	25	25	25	25	25	25
Operating Mode	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic

Model	BM-16035	BM-20040	BM-25045	BM-30050	BM-40058	BM-50065
Compression Force (t)	1600	2000	2500	3000	4000	5000
Bale Diameter (mm)	350	400	450	500	580	650
Main Motor Power (kW)	90×3	90×4	90×5	90×8	90×10	90×13
System Pressure (MPa)	25	25	25	25	25	25
Operating Mode	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic	Fully Automatic
