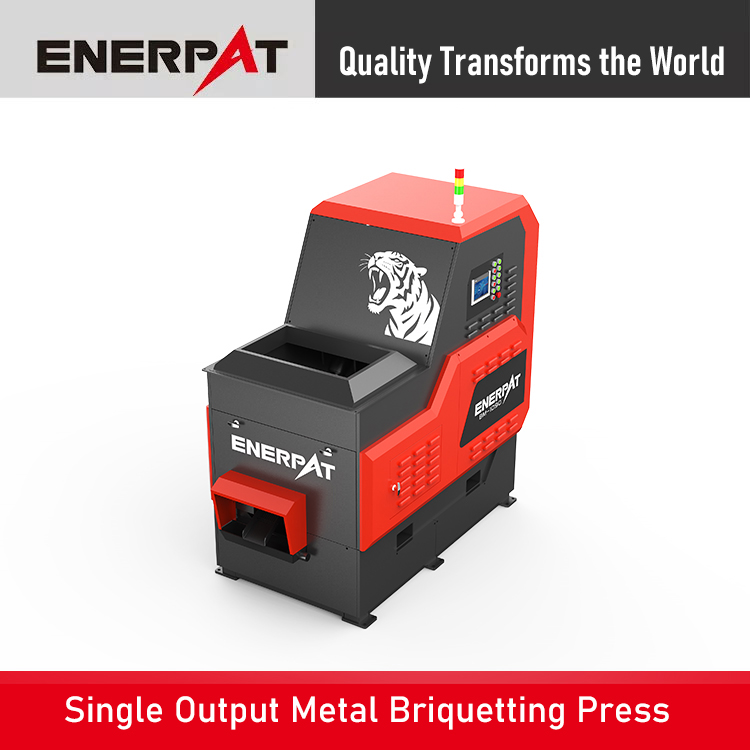

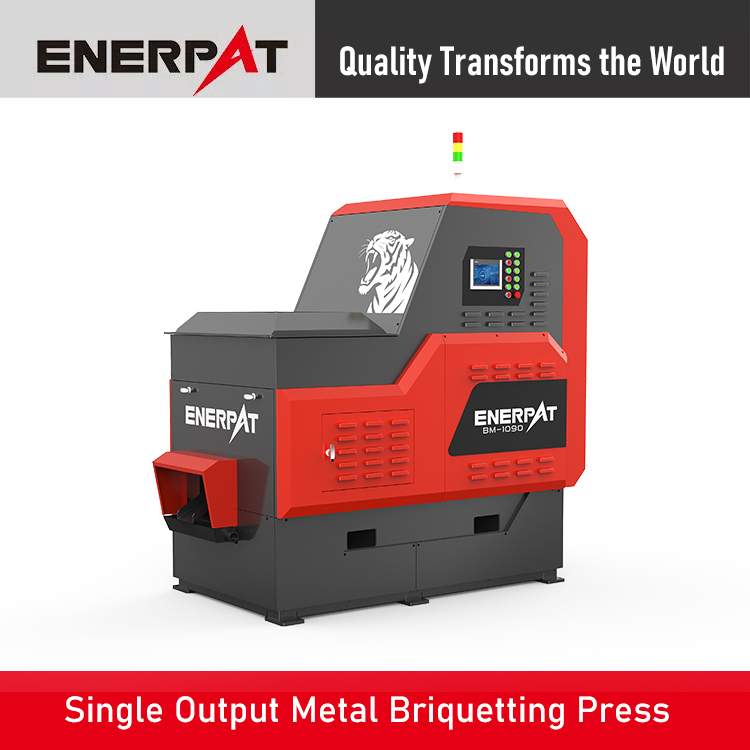

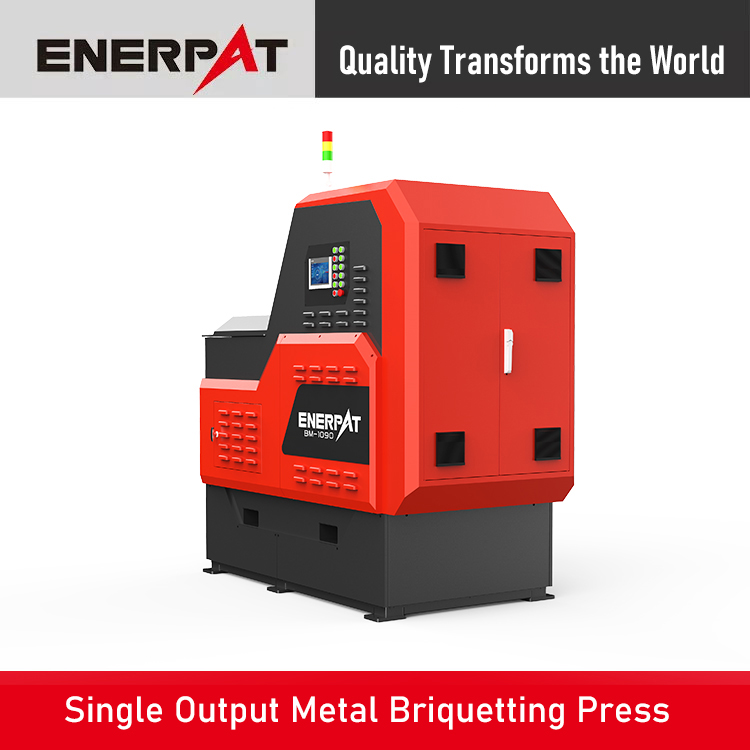

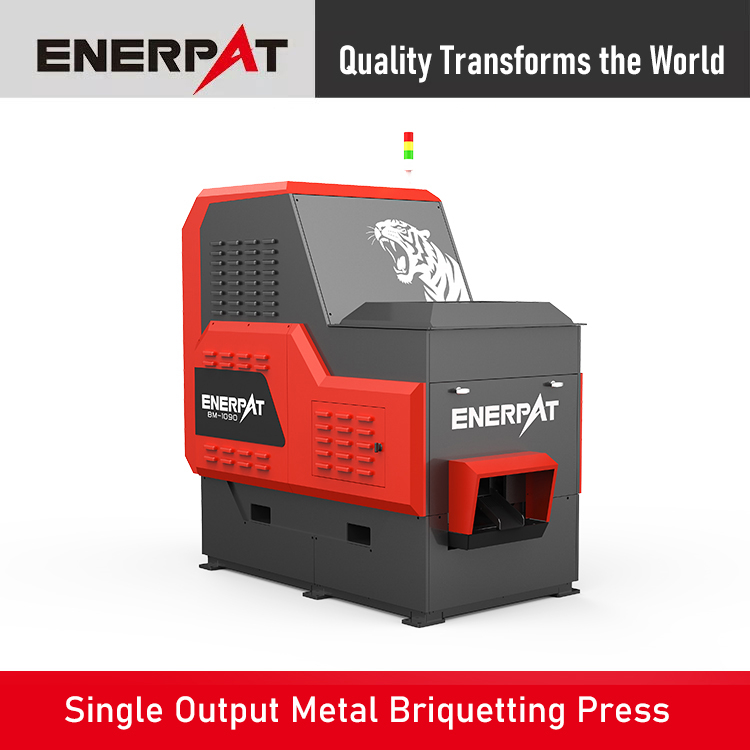

Single Output Metal Briquetting Press

ENERPAT BM Series single output metal briquetting press is built for machining and recycling shops. It compacts aluminum, steel and stainless chips into solid briquettes. During the cycle it drains coolant from the scrap, frees up floor space and eliminates coolant contamination, which keeps the shop cleaner. The unit complies with green regulations and helps companies cut costs and raise profits.

Statement: Actual equipment received by customer subject to confirmation with sales.


Availability:



Inquire

Model:
BM
Brand:
ENERPAT

Product Video

Product Description

Experience the ENERPAT BM Series Single Output Metal Briquetting Press

Effortlessly handle waste metal scraps and enhance your company's profitability!

Efficient Compression: Compresses various metal chips into briquettes, maximizing space utilization.
Cutting Fluid Separation: Achieves 95% oil removal with no leakage from briquettes, addressing coolant pollution.
Eco-Friendly and Energy Efficient: Meets environmental standards, optimizing the workshop for sustainable development.
Economic Benefits: Increases scrap metal prices by 280-420 USD per ton (e.g., for iron chips), significantly improving profitability.
Stable Performance: Features components from world-renowned brands like Siemens and Schneider, ensuring reliable operation.
Warranty Policy: 1-year warranty on the machine and 5 years on the motor, with CE and ISO certification for quality assurance.
Comprehensive Service: Offers free material testing, design solutions, technical support, installation training, and wear part replacements.
Global Support: R&D based in the UK, with a warehouse and service points in the US and worldwide for convenient service.

Composition and Structure

Product Applications

Applications

Product Details

5 Key Core Advantages

Efficient Feeding System

The vertical screw ensures forced, smooth feeding, while the horizontal screw prevents bridging, ensuring consistent material flow. The dual screw system works in tandem for robust feeding.
High-Performance Compression Chamber

Designed for high hardness and density, this chamber is wear-resistant and durable. It produces uniform, solid briquettes with controllable dimensions.
High-Efficiency Industrial Chiller

Provides 24/7 operation, supporting fixed temperature and ambient temperature synchronization to meet the needs of multi-shift automation.
High-Quality Hydraulic Cylinder

Brand-name hydraulic cylinders come with a 5-year warranty. The unique hollow design prevents oil leakage, while top-tier components ensure long life and high efficiency.
Advanced PLC Control System

Siemens/Schneider PLC enables real-time monitoring and automatic alerts. The touch screen and one-button operation simplify usage, while smart programming allows for easy parameter setting and comprehensive monitoring of operating status.

Specialized in product

Feeding

Metal scraps are conveyed to the briquetting machine inlet via a chip conveyor.

Dual Screw Feeding

The dual horizontal and vertical screw design ensures smooth feeding of scraps into the compression chamber.

Hydraulic Compression

The combination of hydraulic and electrical control systems compresses the scraps into briquettes and ejects them.

Technical Data Sheet

Model	BM-1090	BM-1612	BM-2013
Press Force (tons)	100	160	200
Bale Diameter (mm)	90	120	130
Motor (kw)	11	18.5	22
System Pressure (mpa)	25	25	25
Equipment Dimensions (mm)	2210×1050 ×1890	3220×1320 ×2400	3300×1420 ×2530
Equipment Weight (kg)	3000	4000	5000
Operation Mode	Fully Automatic	Fully Automatic	Fully Automatic
