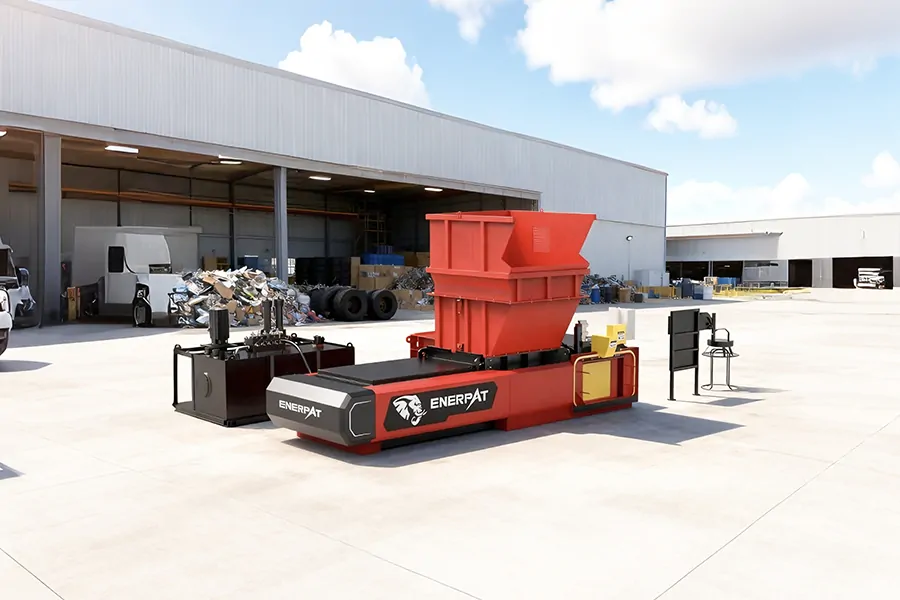

ENERPAT Dual Ram Aluminium Baler
Also known as an aluminum scrap baler, aluminium scrap baling press, aluminum compactor machine, two ram baler for sale, etc.

If you’re processing large volumes of aluminium scrap—from extrusions and profiles to production offcuts, used beverage cans, foil, chips, and shredded aluminium—you’ve likely faced a common challenge: loose, low-density material quickly fills up valuable space. Bulky aluminium is hard to stack, slows down handling and loading, and drives up transportation costs. As your throughput increases, these inefficiencies can start to erode overall profitability.

The ENERPAT Dual Ram Aluminium Baler is engineered to address these challenges at scale. Its dual-cylinder compression system delivers powerful and consistent force (148-ton main ram, 88-ton pusher ram, and 43-ton door lock), compacting a wide range of aluminium scrap into dense, uniform bales. By reducing material volume—often by 75% or more—it allows for higher payloads per shipment and more efficient logistics. The optimized ram motion helps limit spring-back, a typical issue with aluminium, so bales stay tight, stable, and easy to stack or transport. With fully automatic operation, it supports continuous, high-throughput processing with minimal manual intervention, making it an ideal solution for aluminium recyclers, secondary smelters, auto shredding operations, and large-scale recovery facilities.

dual ram aluminium baler

aluminum scrap baler

aluminium scrap baling press

aluminum compactor machine

two ram baler for sale

Get A Quote

Video

Challenges & Solutions

Product Details

Technical Specifications

Design Concept

Watch the ENERPAT Dual Ram Aluminium Baler in Action

Key Challenges & ENERPAT Solutions

In aluminium recycling operations, inefficiencies rarely come from a single factor. More often, they are caused by a combination of high logistics costs, inconsistent bale density, unexpected downtime, and increasing labor demands. As processing volumes grow, these issues can significantly impact both productivity and overall profitability.
The ENERPAT dual ram aluminium baler is engineered to solve these real-world challenges through a fully integrated approach focused on density control, operational stability, automation, and long-term uptime.

Challenge: High Freight Costs Reduce Profit Margins
Loose aluminium scrap—such as extrusion profiles, foil, chips, and UBCs—occupies large volumes but carries limited weight. In practice, operators are often transporting “air space” rather than usable metal.
Low bulk density means trucks reach volume limits long before reaching weight capacity. As a result, more shipments are required, logistics efficiency drops, and transportation costs increase significantly.

ENERPAT Solution – High Compression Efficiency and Up to 65% Lower Transport Costs
With a powerful 148-ton main ram and 88-ton side ram, the ENERPAT aluminium scrap baling press compacts loose aluminium into dense, uniform bales. This dramatically improves loading efficiency, increasing payload per truck and reducing the number of required shipments. In typical applications, transport costs can be reduced by up to 65%, depending on material conditions.
Challenge: Loose or Spring-Back Bales Fail to Meet Buyer Standards
Inconsistent bale density or spring-back deformation often leads to rejection or price reduction from smelters and downstream processors.

Poor bale integrity can negatively affect furnace efficiency, increase oxidation loss (typically 10–15% for loose material vs. around 5% for dense bales), and result in unstable melting performance. In some cases, material may be downgraded or refused entirely.

ENERPAT Solution – Stable High-Density Bales for Smelter-Grade Output
The dual-ram compression system is specifically designed to control material rebound in aluminium processing. As a result, the dual ram baler produces tightly compacted, stable bales with consistent geometry and density (≥0.8 t/m³), improving furnace efficiency by 20–30% and helping recyclers achieve better market pricing.
Challenge: Unplanned Downtime Disrupts Production Flow
In recycling operations, downtime directly translates into lost revenue. Older baling systems often suffer from hydraulic instability, oil leakage, and structural fatigue, leading to frequent breakdowns and reduced uptime—especially in continuous 24/7 operations.

ENERPAT Solution – Heavy-Duty Engineering for Continuous Operation
The ENERPAT aluminum compactor machine is built for long-term industrial use, featuring Siemens motors, Hallite sealing systems, and Schneider electrical components. A reinforced welded compression chamber with replaceable wear liners ensures structural durability, supporting stable multi-shift operation with minimal maintenance requirements.
Challenge: Material Jams and Flow Interruptions
Lightweight aluminium materials such as foil, shredded UBCs, and chips are prone to bridging, clogging, and uneven flow, which can cause unexpected shutdowns and safety risks.

ENERPAT Solution – Anti-Jam Dual-Ram Architecture
The independent dual-ram design separates compression and feeding actions, reducing blockage risks during operation. A sealed chamber structure prevents material intrusion into sensitive hydraulic areas, while synchronized ram motion stabilizes pressure distribution and ensures smooth material flow—even with irregular or fluffy aluminium scrap.
Challenge: Low Efficiency and High Labor Dependence
Traditional balers often rely on manual step-by-step operation, creating idle time between cycles and limiting throughput. Rising labor costs and workforce shortages further increase operational pressure.

ENERPAT Solution – Fully Automatic PLC-Controlled System
The ENERPAT dual ram aluminium baler is equipped with a Siemens PLC control system for fully automated operation. Cycle parameters can be adjusted via a touchscreen interface, allowing flexible handling of different aluminium materials such as profiles, chips, and cans. This significantly reduces operator workload while improving overall processing efficiency.
Challenge: Long Downtime Due to Spare Parts Delays
Equipment downtime is often extended by slow access to replacement parts or limited after-sales support, resulting in lost production opportunities and operational inefficiencies.

ENERPAT Solution – Global Service & Fast Spare Parts Supply
ENERPAT supports its aluminium baler systems with a global spare parts network and responsive technical service. Quick access to genuine components helps minimize downtime and ensures continuous operation of aluminium recycling facilities worldwide.

Material Testing

Built for Aluminium Baling. Engineered for Performance.

Powered by strong and consistent compression force, this heavy-duty dual ram aluminium baler converts bulky aluminium scrap into dense, uniform bales—helping reduce handling and transportation costs by up to 90% while improving overall material value recovery.

Request a Quote

Product Details

Heavy-Duty Frame – Built for Continuous Operation

The machine adopts a reinforced heavy-duty structure designed for long-term industrial use. Key wear zones are protected with replaceable abrasion-resistant liners, ensuring stable performance when handling sharp, irregular, or abrasive scrap. This design improves structural durability and reduces unplanned downtime.
Twin-Ram Power – 148 Tons Compression Force

A synchronized dual hydraulic system delivers 148 tons of main ram force, supported by 88 tons of pusher force and 43 tons of door locking force. This high-pressure design minimizes material spring-back and ensures the dual ram aluminium baler produces dense, stable, and stackable bales.
Smart PLC Control – One-Touch Operation

A 10-inch HMI with Siemens PLC enables fully automatic operation of the aluminium scrap baling press. Pre-set material modes allow quick switching between different scrap types, while the system automatically adjusts operating parameters. One-touch start simplifies operation and improves consistency.
High-Efficiency Hydraulic System – Optimized Energy Use

The hydraulic system is designed for fast cycle performance of up to ≤15 seconds (no load). Optimized hydraulics and load-sensitive control ensure stable compression while reducing energy consumption, improving overall operating efficiency.
Automatic Baling & Discharge – Continuous Operation

Once target density is reached, automatic strapping is triggered without manual input. The system supports flexible left/right discharge, enabling easy integration into different production layouts. The full process runs continuously from feeding to ejection with minimal operator involvement.

Technical Specifications

Dual Ram Aluminium Baler

Model	Two-Ram Baler
Hopper Size (in)	79 × 59
Bale Opening Size (in)	71 × 59
Bale Size (in)	62 × 47 × 31
Cycle Time	≤15 seconds (empty)
Hydraulic Pressure (psi)	4061
Motor Power (hp)	73.8
Dimensions (in)	295 × 192 × 128
Main Ram Force (US tons)	163
Pusher Ram Force (US tons)	97
Door Lock Force (US tons)	47

Design Concept & Product Story

It usually begins the same way—aluminium piling up, and space slowly disappearing.
Profiles, chips, foil, and UBCs keep coming in. Trucks leave half-loaded, floors get crowded, and what once felt manageable becomes a daily pressure on cost and workflow.

In real aluminium recycling environments, we saw the same pattern everywhere. Materials don’t arrive in one form—they’re mixed, light, springy, and difficult to control. That’s why the ENERPAT dual ram aluminium baler was not designed around a machine concept, but around this reality.

From that understanding came a system built for stability under pressure: dual-cylinder force distribution for consistent compression, aluminium-adapted ram movement to control spring-back, and a reinforced welded frame for continuous operation. With Siemens PLC automation, efficient hydraulic cycling, and automatic strapping, it quietly turns unstable aluminium scrap into dense, reliable bales—ready for transport, melting, and value recovery.

Get A Quote

Customer Sites

Ready to turn loose aluminium into high‑density bales?

Join recycling centers and smelters that cut freight costs, boost melt value, and run cleaner, more efficient aluminium lines. Get your ENERPAT dual ram aluminium baler quote or request an on‑site engineering consultation.

Request a Quote

Why Choose Us

Global Support

Overseas installation guidance, on-site commissioning, and operator training. Fast spare parts supply and remote troubleshooting keep your aluminium baling line running with minimal downtime.
Patented Twin-Ram Technology

ENERPAT's patented dual-ram system delivers anti-spring-back compression – ideal for aluminium profiles, cans, foil, and chips. Produces dense, stackable bales that cut freight costs and reduce oxidation loss.
CE Certified Quality

CE & ISO certified. Key components: Siemens PLC, Schneider electrics, Hallite seals (5-year warranty). Ensures safe, stable 24/7 operation for high-volume aluminium recycling.
Flexible Integration

Easily integrates with shredders, conveyors, magnetic separators, and weighing systems. Build a custom aluminium scrap processing line that fits your yard layout and material flow.

FAQ

Q1: What bale density can a dual ram aluminium baler achieve for aluminium scrap?

High density. A dual ram aluminium baler compresses loose aluminium profiles, cans, foil, or chips into bales of 0.8–1.0 t/m³. Smelters accept these bales because they reduce oxidation loss and improve melt yield. Much better than loose or low-density packs.
Q2: How do I choose the right aluminium baler size for my yard?

Depends on your daily throughput and material form. For light aluminium (UBCs, foil, chips), a mid-force dual ram baler works well. For heavy extrusions or mixed aluminium scrap, choose a larger ENERPAT two ram baler for sale. Our team helps match tonnage to your aluminium volume.
Q3: Does an aluminium scrap baling press prevent spring-back?

Yes. Aluminium is elastic and tends to expand after compression. An aluminium scrap baling press with dual‑ram anti‑spring‑back stroke control holds pressure during the cycle. The result: tight, stackable bales that don't loosen during transport or storage.
Q4: Is an aluminum compactor machine easy to maintain?

Very easy. Daily checks: hydraulic oil level and visual inspection. Weekly: lubricate moving parts. Sealed hydraulic system and high‑quality seals (Hallite, 5‑year warranty) make an aluminum compactor machine reliable and leak‑free. No complex maintenance needed.
Q5: Do you provide installation support for an aluminium scrap baling press?

Yes. For every ENERPAT dual ram aluminium baler, we offer overseas installation guidance, on‑site commissioning, and operator training. Global spare parts network and remote troubleshooting keep your aluminium baling line running with minimal downtime.
Q6: How many operators are needed for a dual ram baler?

One operator can run multiple machines. Modern aluminium baler is fully automatic with Siemens PLC and touchscreen. Select material type (profiles, cans, chips), and the dual ram baler adjusts parameters automatically. Low labor, high output.
Q7: How much can I cut transportation costs with an aluminum scrap baler?

Up to 65%. Loose aluminium fills trucks with air. An aluminum scrap baler reduces volume by 75–90%. You ship more tons per truck, fewer trips, lower freight cost. Many recyclers recover the machine investment within 12–18 months just from logistics savings.
Q8: Can an ENERPAT two ram baler for sale handle mixed or dirty aluminium scrap?

Yes. Mixed aluminium (profiles + cans + chips + foil) is no problem. An ENERPAT two ram baler for sale also handles lightly contaminated scrap – paint, labels, small non‑aluminium bits. The dual‑ram system compresses everything into clean, dense bales.
Q9: What is the typical ROI for an aluminium scrap baling press?

Typically 1–2 years. ROI comes from three areas: lower freight, higher scrap price (dense bales get premium), and reduced labor. For high‑volume aluminium recyclers, a dual ram aluminium baler often pays for itself even faster.
Q10: Can an aluminum compactor machine integrate into a full recycling line?

Absolutely. An aluminum compactor machine works as the core unit. Connect it with a shredder, conveyor, magnetic separator (to remove iron), and weighing system. Build a complete aluminium scrap processing line that runs continuously and scales with your business.
