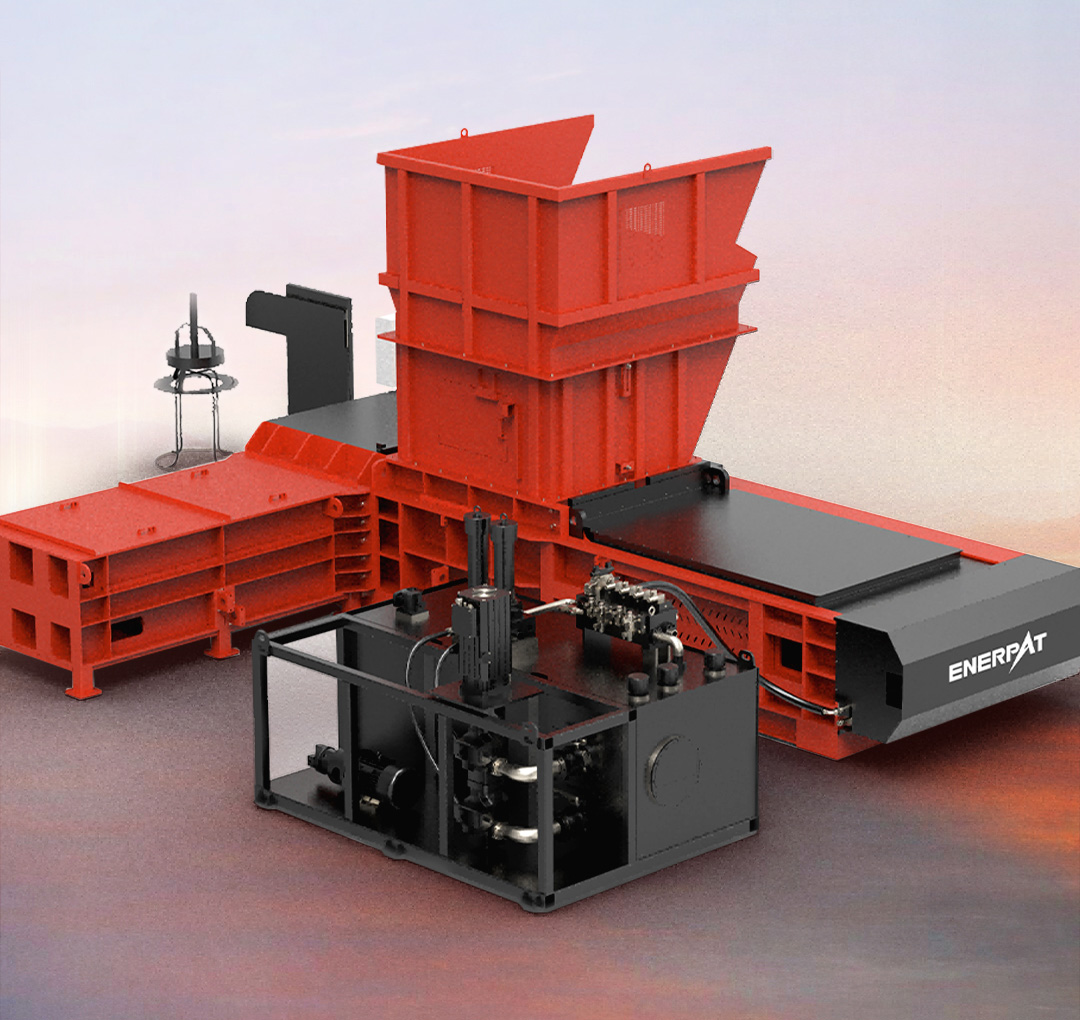

ENERPAT Twin Ram Metal Bailer
Also known as a two-ram baler for sale, recycling center baler, non-ferrous baler, scrap metal baler, non-ferrous metal baling machine, etc.

If you’re handling high volumes of mixed metal scrap—from heavy steel sections and car shells to aluminum extrusions and copper wire—you’ve likely run into the same challenge: loose material quickly takes over your yard. Bulky scrap is difficult to stack, slows down loading, and increases transportation costs. As throughput rises, these inefficiencies can significantly impact your bottom line.

The ENERPAT Two-Ram Baler is purpose-built to handle these demands at scale. Its twin-cylinder compression system delivers strong, consistent force (148-ton main ram, 88-ton pusher ram, and 43-ton door lock), efficiently compacting both ferrous and non-ferrous metals into dense, uniform bales. By dramatically reducing volume, it allows you to load more weight per truck and improve logistics efficiency. The optimized ram movement minimizes spring-back, ensuring bales remain tight, stable, and easy to stack or ship. With fully automatic operation, the machine supports continuous processing with minimal labor—making it a reliable solution for scrap yards, steel mills, auto recycling operations, and large-scale metal recovery facilities.

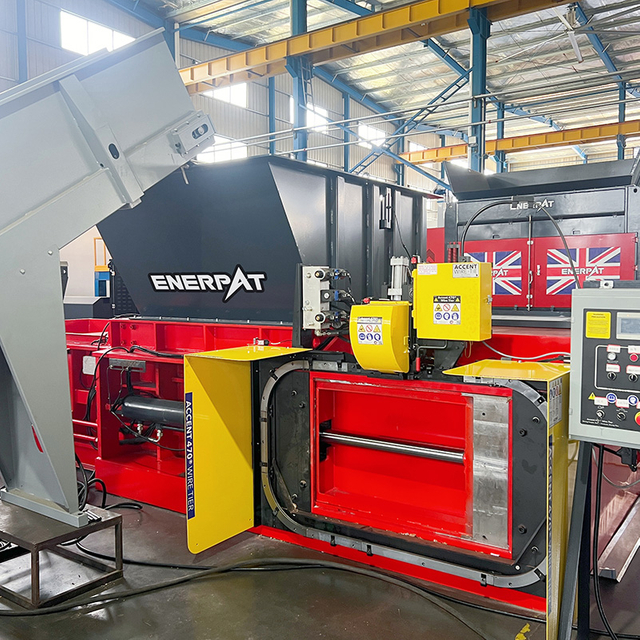

twin ram metal bailer

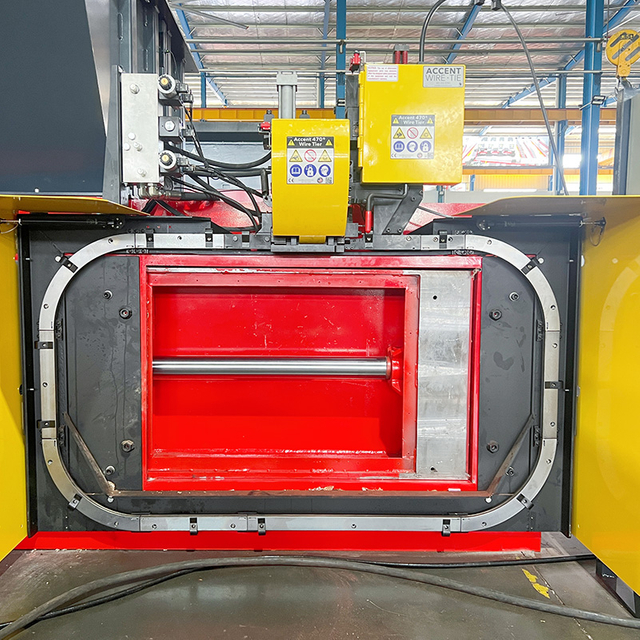

two ram baler for sale

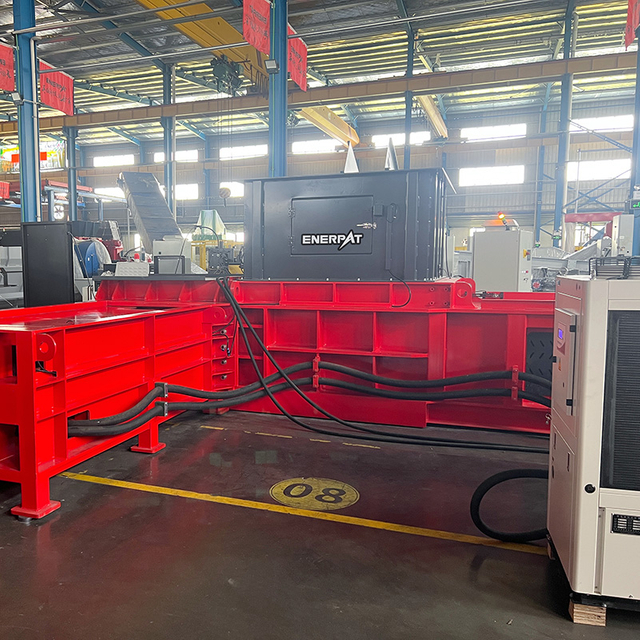

Recycling Center Baler

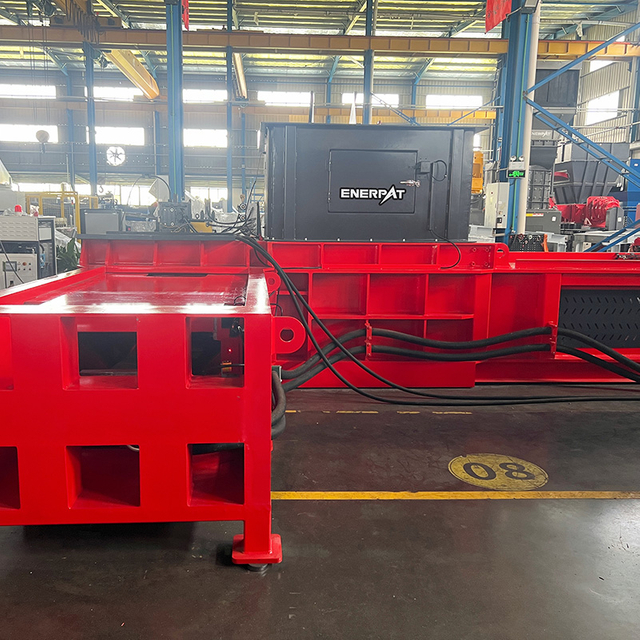

non ferrous baler

scrap metal baling machine

Get A Quote

Video

Challenges & Solutions

Product Details

Technical Specifications

Design Concept

Watch the ENERPAT Two Ram Metal Baler in action.

Key Challenges & ENERPAT Solutions

In metal recycling operations, inefficiencies often come not from a single issue, but from a combination of transport costs, unstable output quality, equipment downtime, and labor pressure. These problems directly reduce productivity and profit margins as throughput increases.
The ENERPAT Two-Ram Metal Bailer is designed to address these real-world challenges with a fully engineered approach to stability, density, automation, and uptime.

Challenge: High Freight Costs Eat Into Profits
Loose scrap fills space but not trucks. You end up paying for air instead of metal.
Low-density materials take up excessive space, meaning each truck carries far less weight than it should. This leads to more trips, higher logistics costs, and reduced margins.

ENERPAT Solution Up to 90% Volume Reduction, 30–50% Lower Transport Costs
With a powerful 148-ton main ram and 88-ton side ram, the ENERPAT two-ram baler compresses loose scrap into dense, compact bales. This significantly increases payload per truck, reduces the number of shipments, and cuts transportation costs by up to 30–50%.
Challenge: Loose Bales Get Rejected or Discounted
Low-density bales don’t meet mill requirements—and often sell at a lower price.
Inconsistent or loose bales can lead to poor furnace performance, uneven melting, and may even be rejected by steel mills or downgraded in pricing.

ENERPAT Solution High-Density Bales That Meet Mill Standards
The dual-ram anti-spring-back design ensures tightly compressed, stable bales that meet furnace-grade density requirements. This improves melting efficiency and helps you secure better pricing from buyers.
Challenge: Frequent Breakdowns Disrupt Production
Downtime costs more than the machine ever produces.
Unstable hydraulic systems, oil leaks, and weak structures in older machines lead to frequent failures, low uptime, and high maintenance costs.

ENERPAT Solution Premium Components and Heavy-Duty Build for 24/7 Operation
Equipped with Siemens motors, Hallite seals, and Schneider electrical components, the machine is built for reliability. The reinforced welded chamber structure ensures strength and durability, enabling continuous multi-shift operation with minimal downtime.
Challenge: Material Jams Cause Costly Delays
Frequent blockages force operators to stop and manually clear the machine.
Light materials can get stuck in critical areas, causing abnormal wear, noise, and repeated shutdowns—wasting time and increasing safety risks.

ENERPAT Solution Anti-Jam Design with Independent Dual-Ram System
A sealed chamber design prevents material entering sensitive hydraulic zones, while the independent dual-ram system reduces blockage risks. Coordinated ram movement also protects components from pressure spikes, improving long-term stability.
Challenge: Low Efficiency and High Labor Dependence
Manual operation slows everything down and increases labor costs.
Traditional balers require step-by-step operation, creating idle time between cycles and limiting overall throughput. Labor shortages and rising wages add further pressure.

ENERPAT Solution Fully Automatic PLC Control for Continuous Operation
The Siemens PLC system enables fully automated operation with minimal manual input. Dual-ram coordination improves cycle efficiency, while the touchscreen interface allows simple parameter selection for different materials, reducing operator skill requirements.
Challenge: Long Downtime Waiting for Spare Parts
A single failed component can stop production for days.
Limited spare parts availability and slow after-sales response can lead to extended downtime and lost production opportunities.

ENERPAT Solution Global Spare Parts Network with Fast Response
ENERPAT maintains a global spare parts system with key components readily available for fast dispatch. This ensures quick replacement and minimal downtime, keeping production running smoothly and consistently.

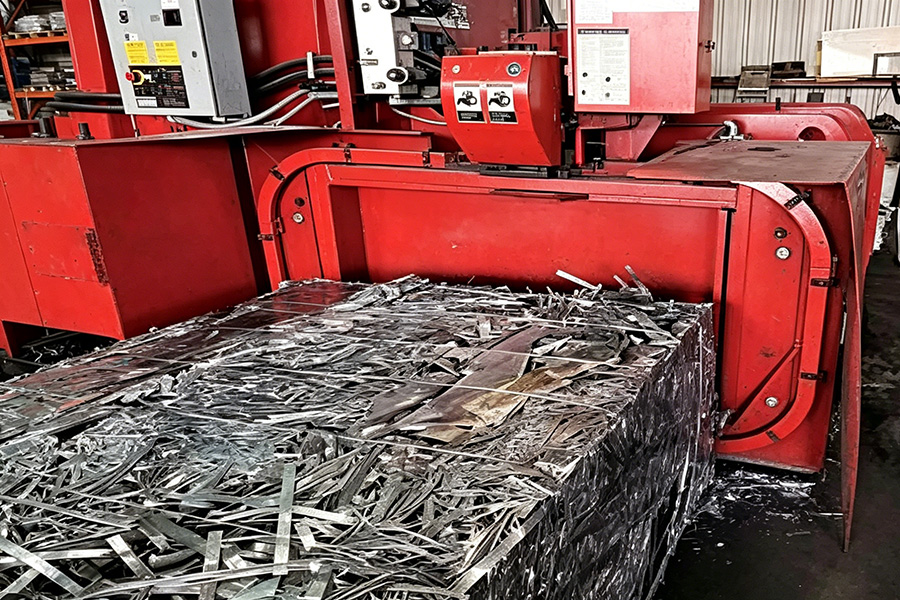

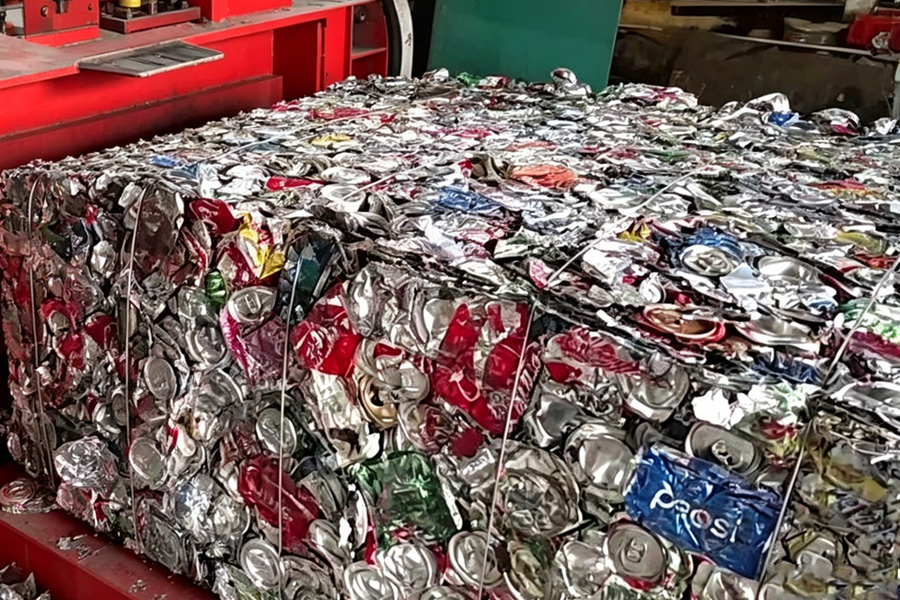

Material Testing

Built to bale. Designed to perform. Engineered for high-volume.

With powerful pressing force, this heavy-duty baler turns large volumes of metal scrap into uniform, high-density bales — cutting handling costs by up to 90% and maximizing throughput. Let’s optimize your industrial metal processing.

Request a Quote

Product Details

Heavy-Duty Frame – Built to Last

The machine is engineered with a reinforced structure designed for extreme-duty operation. Replaceable wear-resistant liners protect all high-friction areas, ensuring stable performance even when handling sharp, abrasive, or irregular scrap. This design minimizes structural fatigue and helps maintain long service life with minimal unplanned downtime.
Twin-Ram Power – 148 Tons Compression Force

Dual hydraulic cylinders work in synchronized motion to deliver 148 tons of main ram force, supported by 88 tons of pusher force and 43 tons of door locking force. This high-pressure system effectively eliminates material spring-back, keeping compressed bales dense, stable, and easy to stack or transport.
Smart PLC Control – Simple One-Touch Operation

A 10-inch touchscreen HMI combined with Siemens PLC control allows fully automated operation. Pre-set material modes enable quick selection for different scrap types, and the system adjusts automatically. Operators can start the full cycle with a single touch, while built-in diagnostics and safety systems ensure stable, reliable performance.
Fast Hydraulic System – Lower Energy Use

Designed for high efficiency, the hydraulic system delivers rapid cycle times of ≤15 seconds (no load). Optimized valve design, high-flow hydraulics, and load-sensitive control reduce energy consumption while maintaining strong compression performance. This results in faster output and lower operating costs.
Auto Baling & Discharge – Hands-Free Output

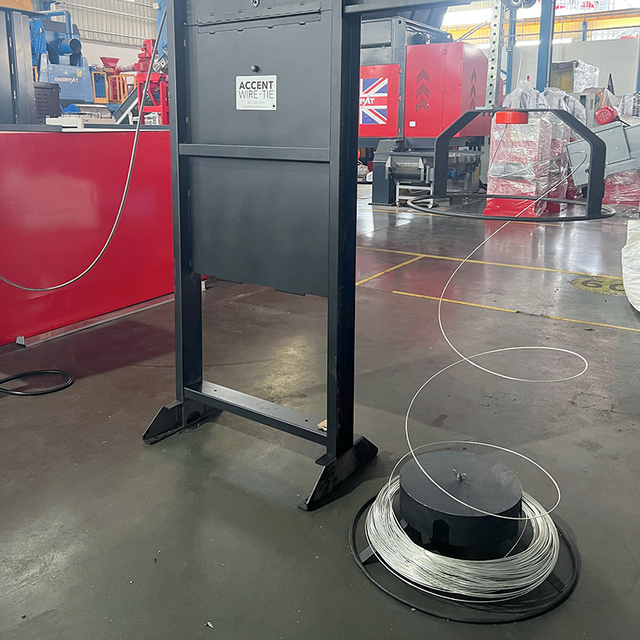

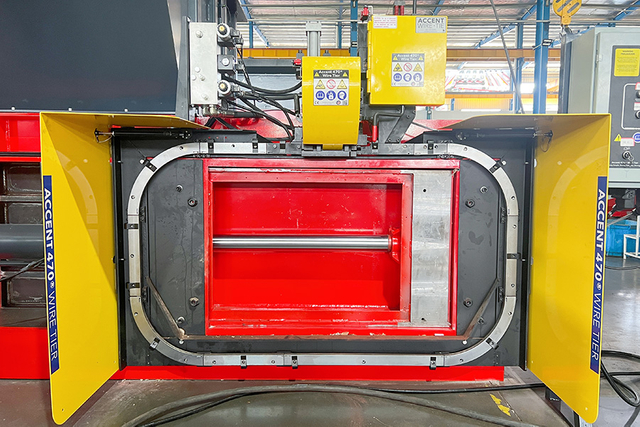

Once target density is reached, the automatic strapping system activates without manual intervention. The machine supports left or right bale discharge for flexible line integration. From feeding to compression, strapping, and ejection, the entire process runs continuously with minimal labor involvement, enabling true semi-to-full automation.

Technical Specifications

Twin Ram Metal Bailer

Model	Two-Ram Baler
Hopper Size (in)	79 × 59
Bale Opening Size (in)	71 × 59
Bale Size (in)	62 × 47 × 31
Cycle Time	≤15 seconds (empty)
Hydraulic Pressure (psi)	4061
Motor Power (hp)	73.8
Dimensions (in)	295 × 192 × 128
Main Ram Force (US tons)	163
Pusher Ram Force (US tons)	97
Door Lock Force (US tons)	47

Design Concept & Product Story

You don’t start by looking for a two‑ram metal bailer. You start with a problem—loose metal scrap piling up across the yard, storage space shrinking every week, and each truck leaving the gate half‑empty because the bales won’t hold their shape. What was once a manageable pile gradually turns into a daily drain on your margin.

That’s where the ENERPAT Two‑Ram Baler was developed. Instead of building just another scrap metal press, we focused on what actually happens in your recycling yard or steel mill. Unpredictable material mix (heavy beams, shredded cars, tangled wire, oily turnings), spring‑back from elastic scrap, and the demand for 24/7 non‑stop operation pushed us to rethink the system from the ground up—dual‑cylinder force distribution, anti‑spring‑back ram travel, and a box‑welded frame built for continuous industrial abuse.

Over time, it evolved into more than a single machine. With Siemens PLC one‑touch control, an energy‑saving hydraulic system (≤15 second cycle), and automatic strapping with left/right discharge, the Two‑Ram Baler becomes the heart of your full scrap processing line. Not just squeezing loose metal—but helping you turn bulky, low‑density waste into high‑density, furnace‑ready bales, cutting freight costs and lifting scrap value, shift after shift.

Get A Quote

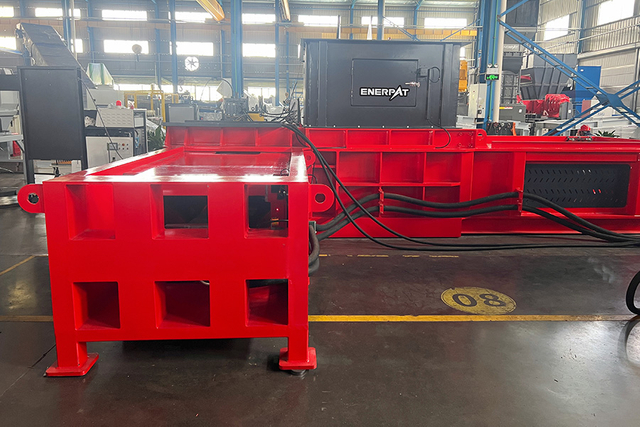

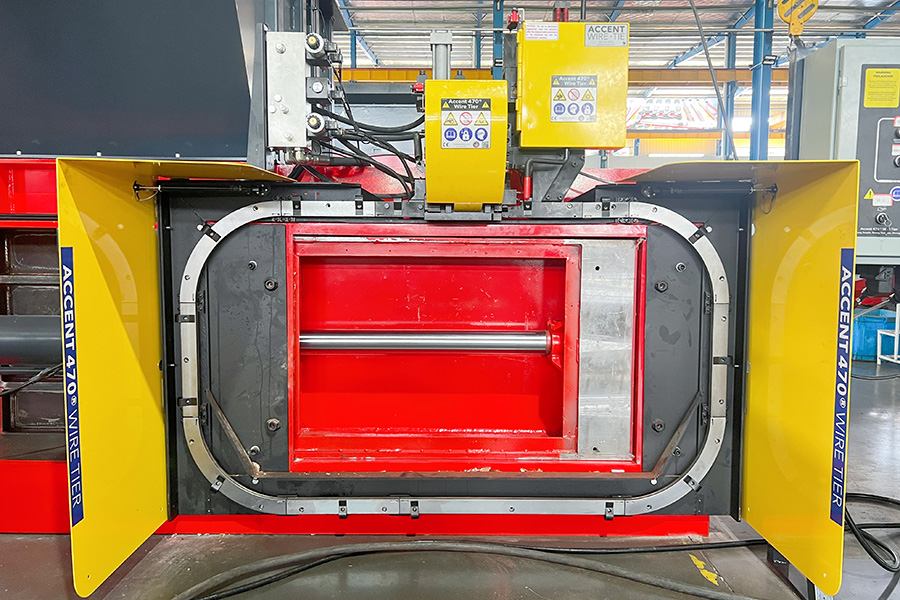

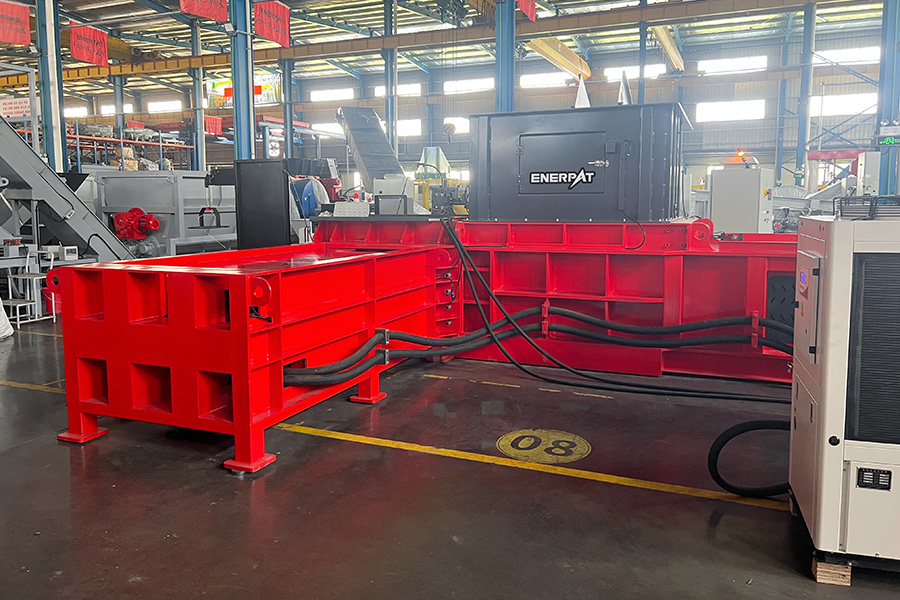

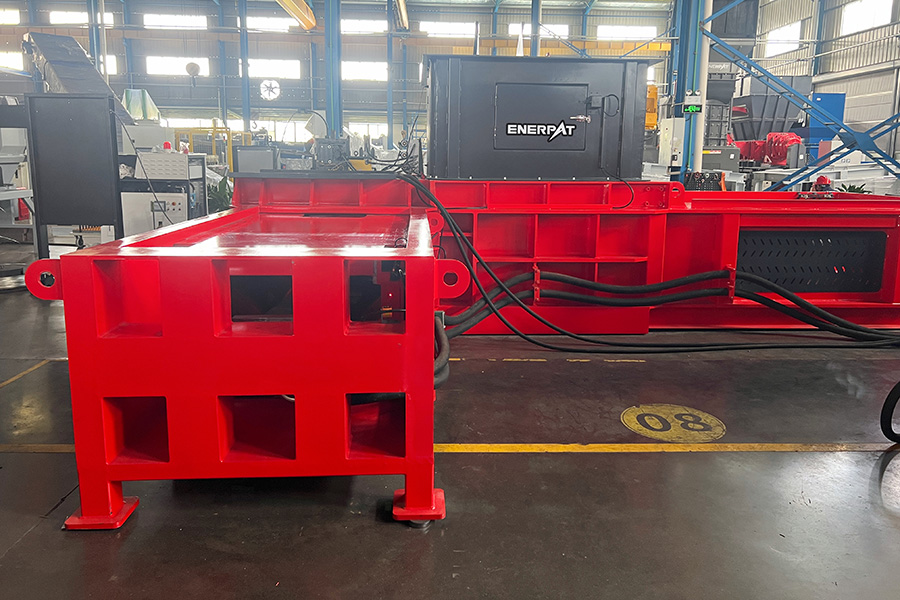

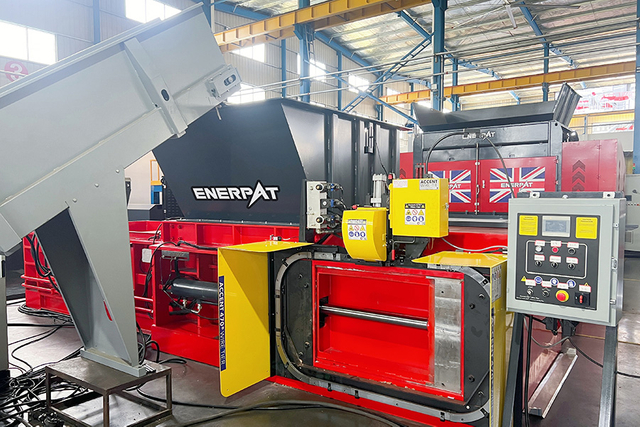

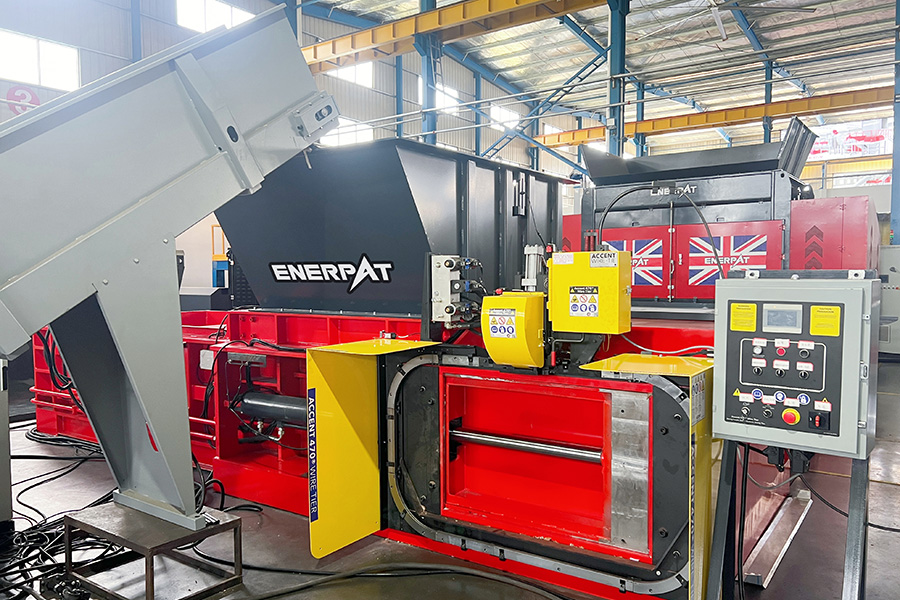

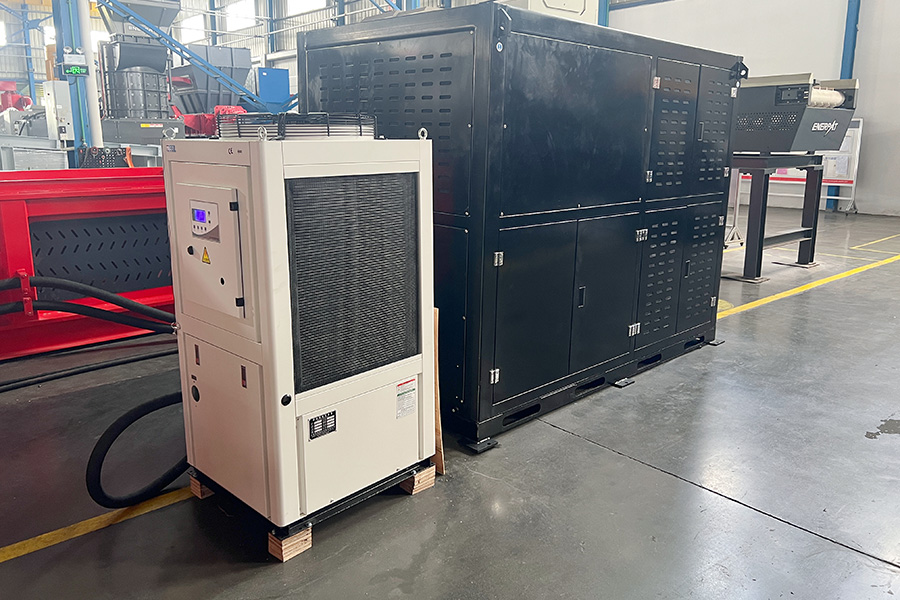

Customer Sites

Ready to turn bulky scrap into high‑density metal bales?

Join recycling yards and steel mills that cut freight costs, improve scrap value, and run cleaner, more efficient operations. Get your ENERPAT Two‑Ram Baler quote or request an on‑site engineering consultation.

Request a Quote

Why Choose Us

Global Installation & Support

We provide overseas installation guidance, on-site commissioning, and operator training to ensure your Two-Ram Baler runs smoothly from day one. Our global service team also supports fast spare parts supply and remote troubleshooting to keep your production stable and minimize downtime.
Patented Twin-Ram Technology

ENERPAT patented twin-ram system delivers optimized compression with strong anti-spring-back performance. It ensures elastic materials like car bodies, aluminum profiles, and wire are tightly compacted into dense, stackable bales every cycle, improving transport and melting efficiency.
CE Certified Quality

All ENERPAT Two-Ram Balers are CE certified and manufactured under ISO standards. Key components such as Siemens PLC, Schneider electrics, and Hallite hydraulic seals (5-year warranty) ensure safe operation, stable performance, and long service life in demanding industrial use.
Flexible Line Integration

The Two-Ram Metal Bailer integrates easily into complete recycling systems. It can connect with shredders, conveyors, magnetic separators, and weighing systems, enabling a customized scrap processing line that matches your plant layout and material flow requirements.

FAQ

Q1: What bale density can I achieve? Will mills accept it?

This is one of the biggest concerns for recyclers. Loose or low-density bales often lead to higher transport costs and may be rejected or downgraded by mills.
With a two-ram metal bailer, loose scrap can be compressed into dense, uniform bales that meet typical mill furnace requirements. The dual-ram compression system minimizes spring-back, keeping bales tight and stable. Higher-density bales not only improve melting efficiency but are also more attractive to buyers, often resulting in better pricing compared to loose scrap.
Q2: How do I choose the right baler size or tonnage?
Choosing the wrong machine size is a common mistake. The right configuration depends on your material type and throughput:
- Light scrap (aluminum cans, thin sheet, turnings): lower force range
- Mixed scrap (copper, light steel, appliances): medium range
- Heavy scrap (car bodies, structural steel, rebar): higher force required
A two-ram baler with balanced main and side force can handle a wide range of mixed materials efficiently. For most small to mid-sized operations, a mid-range configuration is sufficient, but customization is recommended based on your actual material mix.
Q3: How do you prevent spring-back in elastic materials?

Materials like aluminum, car shells, and wire tend to expand after compression, causing loose or unstable bales.
A dual-ram system with optimized stroke control helps maintain pressure during the compression cycle, reducing rebound. This ensures bales remain compact, stackable, and stable during handling and transport.
Q4: Is the machine difficult to maintain? Will it leak oil?

Routine maintenance is straightforward and does not require complex procedures. Daily checks include hydraulic oil levels and general inspection, while weekly lubrication of moving parts is usually sufficient.
High-quality hydraulic seals and components significantly reduce the risk of oil leakage. With proper maintenance schedules, the machine can operate continuously with minimal issues, even in demanding environments.
Q5: Do you provide installation and after-sales support?

Yes. Most professional manufacturers offer full installation support, including on-site commissioning and operator training.
In addition, global spare parts availability and responsive service teams are critical. Choosing a supplier with stocked key components and fast response times helps minimize downtime and ensures long-term operational stability.
Q6: Is the baler fully automatic? How many operators are needed?

Modern scrap metal balers are typically fully automatic, equipped with PLC control and touchscreen interfaces.
Operators can select material types, and the system adjusts parameters automatically. One operator can often supervise multiple machines, significantly reducing labor requirements while maintaining high productivity.
Q7: How much can I save on transportation costs?

Loose scrap contains a large amount of empty space, meaning trucks are often underloaded.
By compressing scrap into dense bales, volume can be reduced by up to 80–90%. This allows more weight per load, reduces the number of shipments, and lowers overall freight costs. Many recyclers see transport savings of 30–50% after switching to baled scrap.
Q8: Can the baler handle mixed or contaminated scrap?

Yes, this is one of the key advantages of a two-ram baler.
It is designed to process mixed ferrous and non-ferrous materials, including scrap with varying shapes and sizes. Even loosely sorted or partially contaminated scrap can be compacted into manageable bales, improving handling and downstream processing efficiency.
Q9: What is the typical ROI for a scrap metal baler?

Return on investment depends on your material volume, labor costs, and logistics savings.
In most cases, savings come from three areas: reduced transportation costs, improved scrap pricing due to higher density, and lower labor requirements. For many operations, the payback period is typically within 1–2 years, depending on throughput and local market conditions.
Q10: Can this machine be integrated into a full recycling line?

Yes. A scrap metal baler can serve as the core unit in a complete recycling system.
It can be integrated with shredders, conveyors, magnetic separators, and weighing systems to create a continuous processing line. This improves overall efficiency, reduces manual handling, and supports higher throughput as your business grows.
