How Does a Tire Shredder Work? Everything You Need to Know

Every day, millions of scrap tires are removed from vehicles, and disposing of whole tires is becoming costly and restricted. A tire shredder is the critical first step in recycling, turning waste tires into valuable products.

This article explains how a tire shredder works and why choosing the right one matters for your operation.

How Does a Tire Shredder Work? Step-by-Step Process

Step 1: Tire Feeding and Pre-Sorting

The shredding process starts when whole tires are fed into a wide inlet hopper. You should remove rims and large foreign objects before feeding, as they can damage the cutter shafts and blades.

Some larger tire recycling plants use a tire de-rimming machine or wire extractor first to take out the steel rim automatically. This simple pre-sorting step protects your tire shredder and keeps the output cleaner.

Step 2: Primary Shredding: Double Shaft Shearing Action

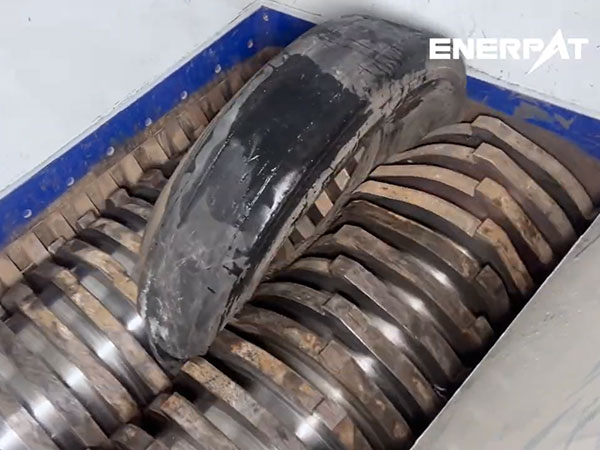

After pre-sorting, the tires enter the cutting chamber of the tire shredder. Inside, two counter-rotating shafts with high-alloy cutter blades grip the tire and slowly tear it apart.

Unlike high-speed crushers, a tire shredder relies on torque rather than impact force. The rotating cutters gradually pull the tire into the cutting chamber and tear it into smaller pieces.

To withstand the steel wire embedded in tires, shredder blades are commonly manufactured from wear-resistant alloy steel. Proper blade material and heat treatment help reduce wear and maintain stable performance during continuous operation.

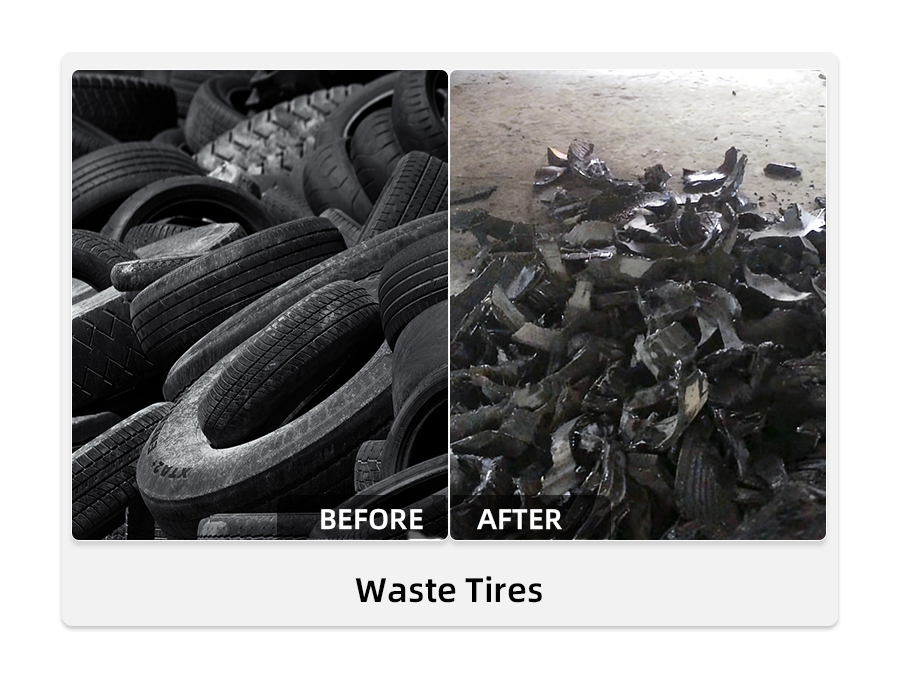

Typical output from this stage is 50-100mm rubber chips. Depending on the recycling process, these chips can be sold directly for TDF applications or sent to downstream equipment for further size reduction.

Step 3: Screening for Consistent Output Size

Not all tire shredders use the same screening method, but the idea is the same: you want uniform output size. Many machines use a rotating screen or adjustable cutter configuration to control the dinal chip size.

Pieces that are still too large are kept inside the cutting chamber and shredded again. They only exit once they are small enough to pass through the screen.

This recirculation step is important for consistent product quality. If the output size varies too much, it can cause problems in downstream equipment and reduce the value of your final product.

Step 4: Magnetic Separation of Steel Wire

After primary shredding, part of the steel wire from the tire still stays attached to the rubber chips. At this point, a steel separation system, often combined with magnetic separators, removes most of the steel.

This step improves the purity of your rubber material and protects downstream equipment like granulators and screens. The recovered steel wire can also be sold as scrap metal, adding extra value to your operation.

Some tire recycling lines use a magnetic drum, while others use a magnetic belt conveyor. Either way, the goal is to separate as much steel as possible before further processing.

Step 5: Optional: Granulation and Fine Sizing

If your goal is only coarse tubber chips for TDF or mulch, you can stop after the tire shredder and magnetic separation. But if you need rubber granules or powder, you will need an additional granulation step.

In this stage, the shredded chips enter a granulator for further size reduction. The granulator uses different cutting or grinding methods to turn chips into smaller granules or fine rubber powder.

After granulation, a screening system sorts the material by particle size. This helps you produce consistent products that meet specific buyer requirements for sports surfaces, asphalt modification, or molded rubber goods.

Granulation is optional, but it is key if you want higher-value products from your tire recycling line.

Step 6: Final Material Collection and Storage

Once shredding and separation are complete, the material is divided into rubber chips, rubber granules, steel wire, and textile fiber. Each type of material is collected separately for further use or sale.

You should store the material in a dry area to maintain quality and prevent clumping. Proper storage not only keeps the product clean, but also makes it easier to handle and sell to buyers.

For steel wire, dry storage helps prevent rust before it is sold as scrap. Rubber chips and granules also stay in better condition when kept away from excessive moisture and dirt.

Choosing the Right Tire Shredding Equipment

Double Shaft Tire Recycling Shredder

In most tire recycling facilities, the tire shredder is where the entire process begins. Among different designs, Double Shaft Tire Recycling Shredders are the most widely used because they can handle whole tires with high torque and reliable performance.

Double shaft tire shredders work at low speed with high torque, making them ideal for whole tires. They grip and tear the tire rather than smashing it, which reduces wear on blades and motor strain.

Complete Tire Recycling Plant: Steel Separator, Granulator, and Screening

A full tire recycling plant typically includes more than just the shredder. You will often see a tire shredder for primary size reduction, followed by a steel wire separator, tyre granulator, and screening system.

Conveyors and dust control systems are also part of a complete setup. Choosing equipment that matches your target product and capacity helps you build a more profitable operation.

FAQs

Q: What factors affect the performance of a tire shredder?

A: Key factors include tire size, blade condition, motor power, shaft design, and feeding rate. Proper maintenance also plays an important role in maintaining consistent output.

Q: How long do tire shredder blades last?

A: blade life depends on the material and feeding rate, but high-chrome alloy blades typically last thousands of hours before needing replacement.

Q: How much power does a typical tire shredder need?

A: Power needs vary by model, but most industrial double shaft tire shredders require 30-150 kW depending on capacity and tire size.

Q: How do I know if I need a shredder or just a granulator?

A: If you’re starting with whole tires, you need a tire shredder first. Granulators are for reducing already-shredded chips into finer granules or powder.

Q: What size output can I expect from a tire shredder?

A: Most double shaft tire shredders produce 50-100mm rubber chips, which can be further reduced by a granulator if needed.

Q: How often should I clean and maintain the tire shredder?

A: Daily cleaning of chips and weekly inspection of blades and bearings helps prevent jams and extends machine life.

Q: Can I start a tire recycling business with just a tire shredder?

A: Yes, you can start small with just a tire shredder and sell shredded tires for TDF or mulch. You can add granulation later as your business grows.

Final Thoughts

A tire shredder is the foundation of efficient tire recycling, transforming bulky waste tires into valuable materials for further processing. Understanding how it works can help you choose the right equipment and improve productivity. ENERPAT provides tire shredding solutions designed for different recycling capacities and applications.
