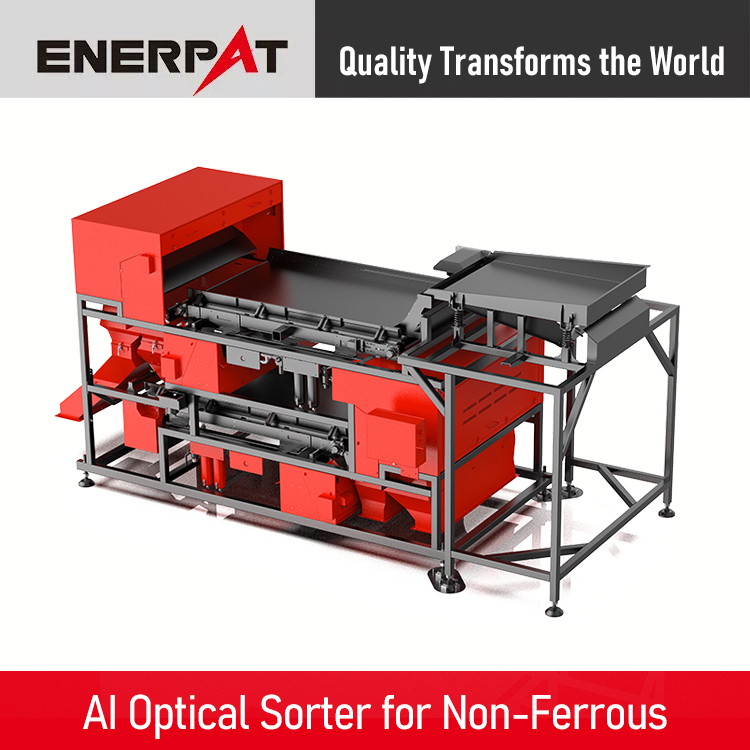

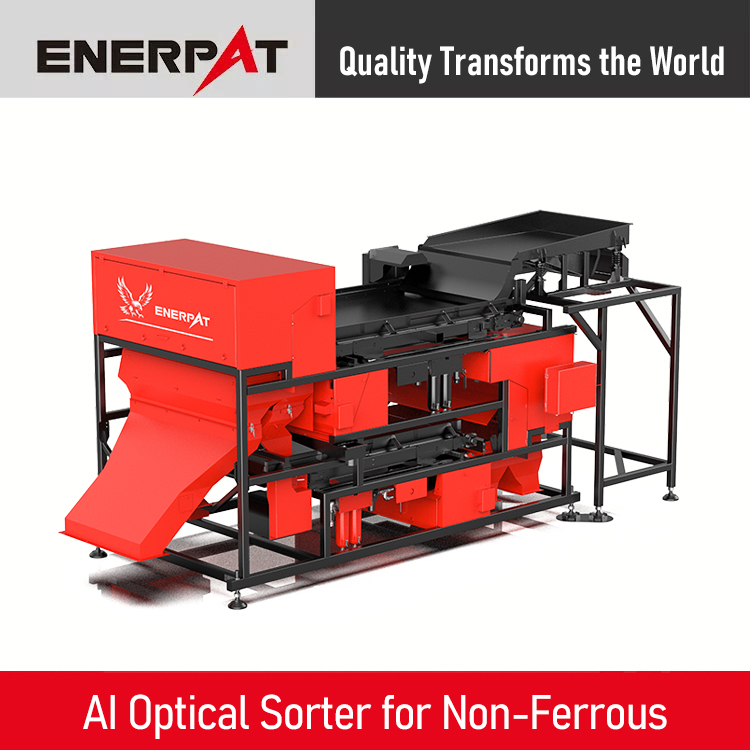

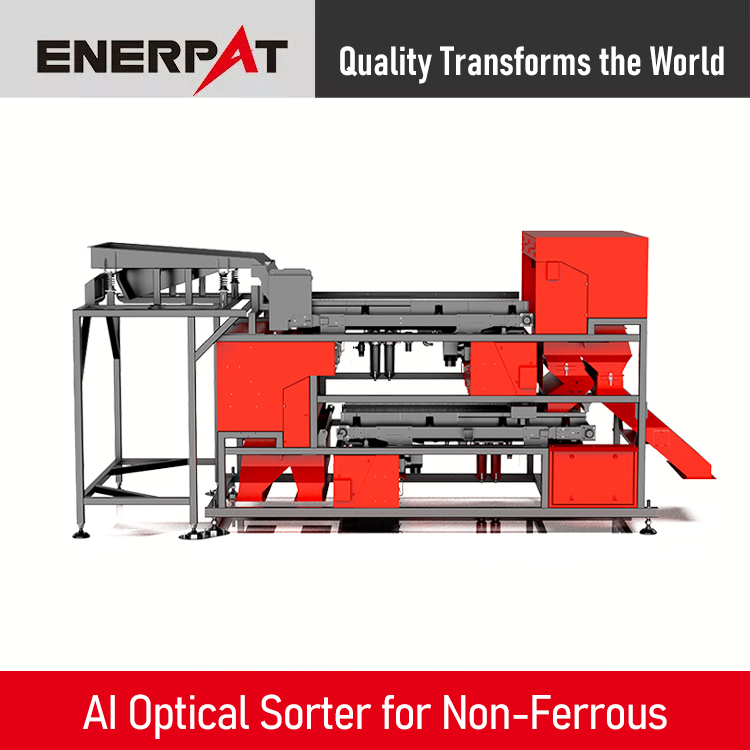

ENERPAT AI Optical Sorter for Non-Ferrous

ENERPAT ES-AIOS-M Series AI Optical Sorter for Non-Ferrous

AI-Based Optical Sorting System for High-Purity Non-Ferrous Metal Separation
The ENERPAT ES-AIOS-M Series AI Optical Sorter is designed for further separation of mixed non-ferrous metal scraps in recycling plants. Equipped with high-resolution RGB cameras and intelligent recognition technology, it identifies differences in color, shape and surface characteristics to separate valuable metals such as copper, aluminum and zinc, helping improve material purity and recovery value.
By reducing reliance on manual sorting and improving material purity, the AI Optical Sorter helps recycling plants recover more valuable resources from complex scrap streams while increasing the overall efficiency of their recycling operations.


Availability:



Inquire

Model:
ES
Brand:
ENERPAT

Product Description

Why Choose ENERPAT ES-AIOS-M Series AI Optical Sorter?

In metal recycling operations, mixed non-ferrous scrap often contains different metal types with similar sizes and irregular shapes, making manual separation difficult and labor-intensive. The ENERPAT ES-AIOS-M Series AI Optical Sorter provides an efficient solution by automatically detecting and separating target materials based on their visual characteristics.

With reliable optical identification, stable air ejection an

d flexible sorting capability, the system can be integrated into existing recycling lines to improve separation efficiency and increase the value of recovered metals.

Key Benefits:

Improved Metal Purity and Recovery Value: Separates different non-ferrous metal fractions, helping recyclers produce cleaner materials with higher market value.

Reduced Manual Sorting Requirements: Automates the identification and separation process, lowering labor dependence and improving working efficiency.
Designed for Mixed Metal Streams: Processes mixed copper, aluminum, zinc and other non-ferrous materials from recycling operations.
Easy Integration into Recycling Lines: Designed to work as an additional sorting stage in existing metal recycling and processing systems.

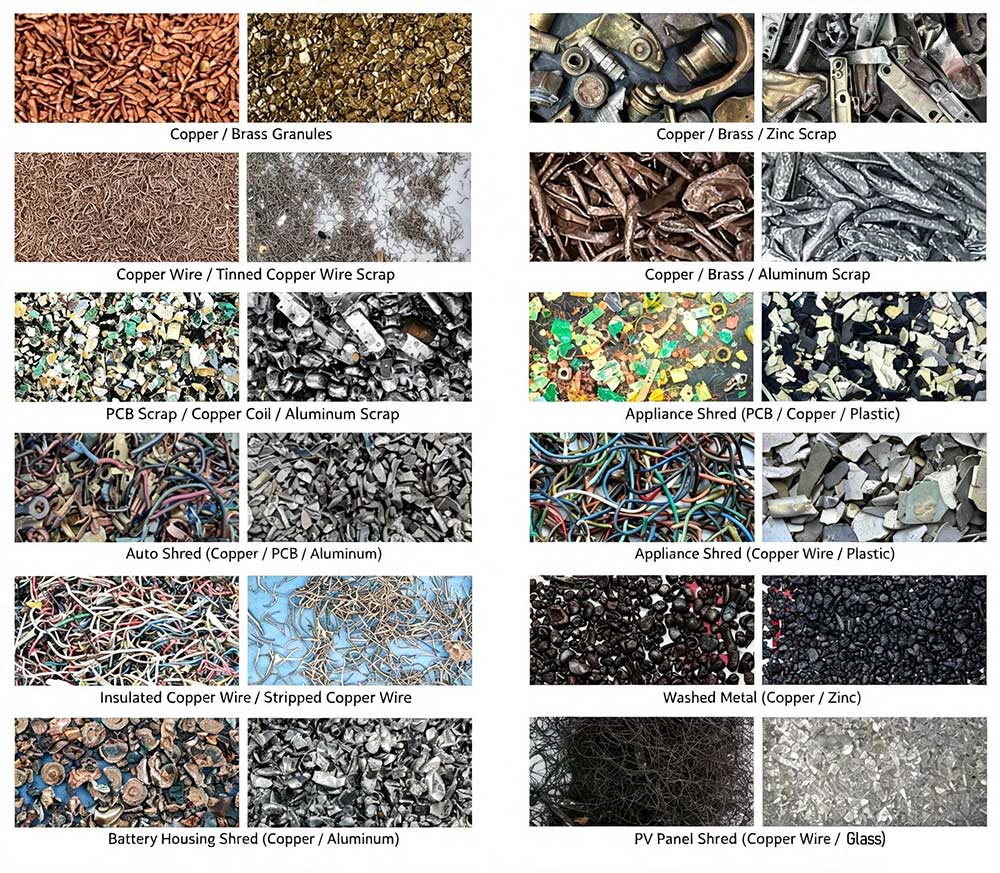

Applicable Material

Mixed Non-Ferrous Metal Scrap

Separates mixed copper, aluminum, zinc and other non-ferrous metals

to improve material purity and recovery value.

Automotive Recycling

Recovers valuable non-ferrous metals from automotive shredder residue (ASR) and mixed metal streams.

Working Principle

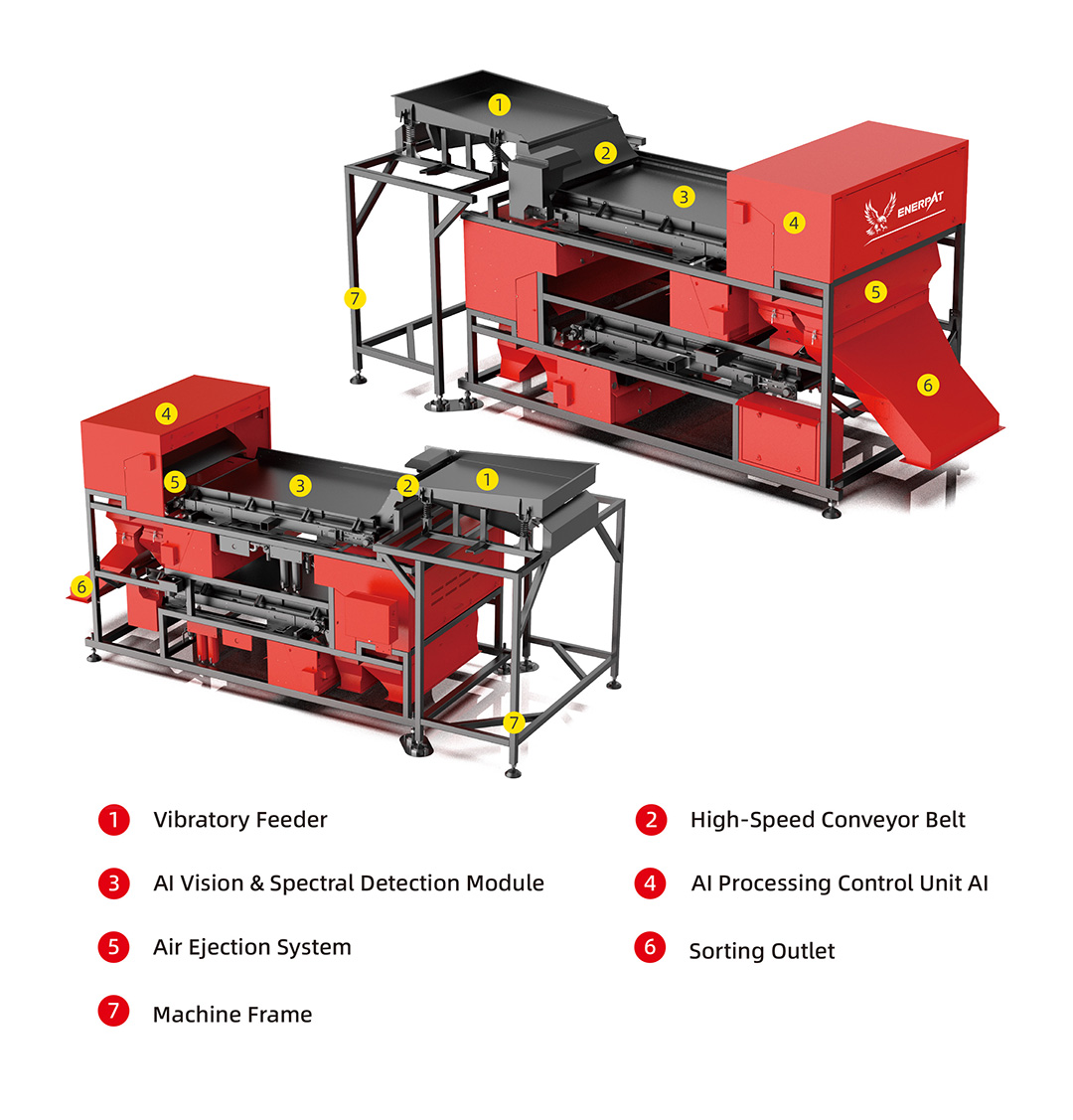

The ENERPAT AI Optical Sorter uses optical recognition and air separation technology to automatically identify and separate different non-ferrous metal materials.

Step 1. Material Feeding - Step 2. Optical Detection - Step 3. AI Recognition - Step 4. Air Ejection

Technical Data Sheet

Model	ES-AIOS-M600	ES-AIOS-M1200
Belt Width	600 mm (24")	1,200 mm (47")
Air Nozzle	256	512
Air Pressure	0.6~0.8 MPa (87~116 psi）
Air Consumption	<3 m³/min (<106 CFM)	<6 m³/min (<212 CFM)
Voltage	380V ~ 50/60Hz ((480V~50/60Hz)
Power	4.7 / 7.9 kW (6/11 hp)	6.5 / 12.5 kW (9/17 hp)
Dimension	5,155 × 1,643 × 2,401 mm (14' and 5' and 8')	5,231 × 2,244 × 2,401 mm (17' and 7' and 8')
Unpacked Weight	1,850 kg (4079 lbs)	2,525 kg (5567 lbs)

Advantages

5 Key Core Advantages

1. High-Resolution RGB Camera System

The optical sorting system uses high-resolution RGB cameras to capture differences in color, shape, size and surface characteristics of metal materials, enabling accurate identification of different non-ferrous metal fractions.

2. AI-Based Recognition for Non-Ferrous Metal Separation

The intelligent recognition system learns the visual characteristics of different non-ferrous metals, enabling reliable identification and precise separation of valuable metal fractions.

3. Enhanced LED Illumination System

The high-intensity LED lighting system provides stable illumination conditions, improving the detection of surface features and supporting reliable sorting performance.

4. Reliable High-Speed Air Ejection System

Equipped with high-performance air ejectors, the system quickly removes identified materials from the product stream, ensuring stable separation during continuous operation.

5. Designed for Modern Metal Recycling Lines

Suitable for processing mixed non-ferrous metal scrap from scrap metal recycling, automotive recycling, appliance recycling and electronic waste recycling operations.

AI Optical Sorter non-ferrous metal sorting AI sorting system optical sorter for metal scrap metal recycling equipment ENERPAT recycling sorting machines
