Reliable, Durable & Efficient
— Your Trusted Recycling Equipment Partner


Menu

  • Copper Wire Granulator with Dust Collection & Separation System
    Process insulated copper wire, electrical cables and other copper-bearing wire scrap through a controlled granulation and separation process. ENERPAT Copper Wire Granulators are available in WG400, WG600 and WG800 configurations and can be integrated with dust collection, conveying and separation equipment for complete wire recycling applications.
    电脑端banner-无文字
  • U.S. Stock in Ohio
  • Copper-Plastic Separation
  • Dust Collection
  • Material Testing Support
You are here: ENERPAT Home » Waste Shredder » Copper Wire Granulator with Dust Collection & Separation System
Is Manual Wire Stripping Still Practical for Your Operation?​​​​​​​
Manual stripping can make sense for selected high-value cables, but it becomes less practical when a recycling operation handles regular volumes of insulated wire and mixed cable scrap.

ENERPAT Copper Wire Granulator provides a mechanical alternative by processing suitable wire in bulk, reducing the material into smaller particles and separating copper from plastic insulation.​​​​​​​
CONTACT US
Get A Quote
  • Labor-Intensive Stripping
    Processing wires individually requires significant manual handling.
  • Mixed Wire Sizes
    Incoming scrap may contain different wire diameters, insulation types and cable constructions.
  • Copper & Plastic Mixed Together
    Without effective separation, valuable copper can remain mixed with insulation.
  • Dust During Granulation
    Fine particles generated during processing need to be managed as part of the recycling system.
  • Labor-Intensive Stripping
    Processing wires individually requires significant manual handling.
    9月7日 床垫弹簧门盖打包机
  • Mixed Wire Sizes
    Incoming scrap may contain different wire diameters, insulation types and cable constructions.
    video
  • Copper & Plastic Mixed Together
    Without effective separation, valuable copper can remain mixed with insulation.
    快递包裹,箱子(1)
  • Dust During Granulation
    Fine particles generated during processing need to be managed as part of the recycling system.
    3d(1)
ENERPAT combines granulation, separation and dust collection into a configurable copper wire recycling solution.
GET A QUOTE

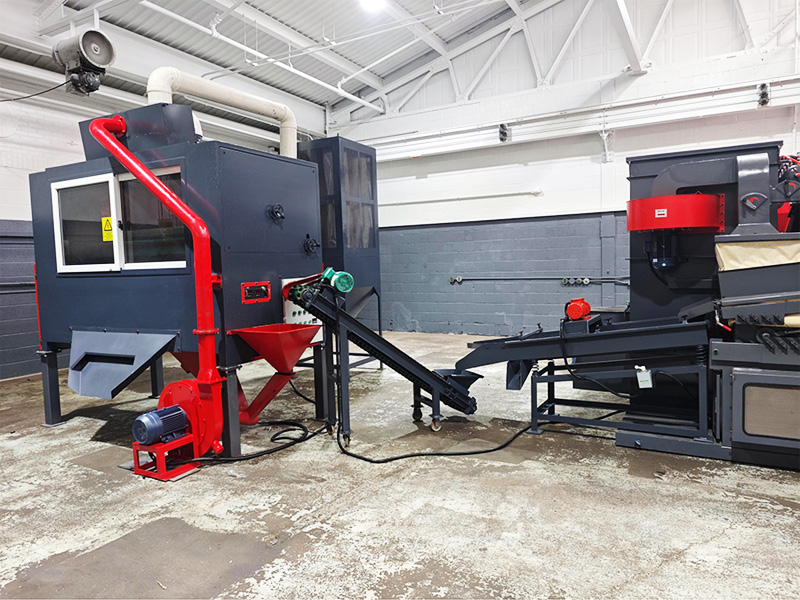

Copper Wire Granulator for Insulated Wire Recycling
Copper Wire Granulator for Insulated Wire Recycling

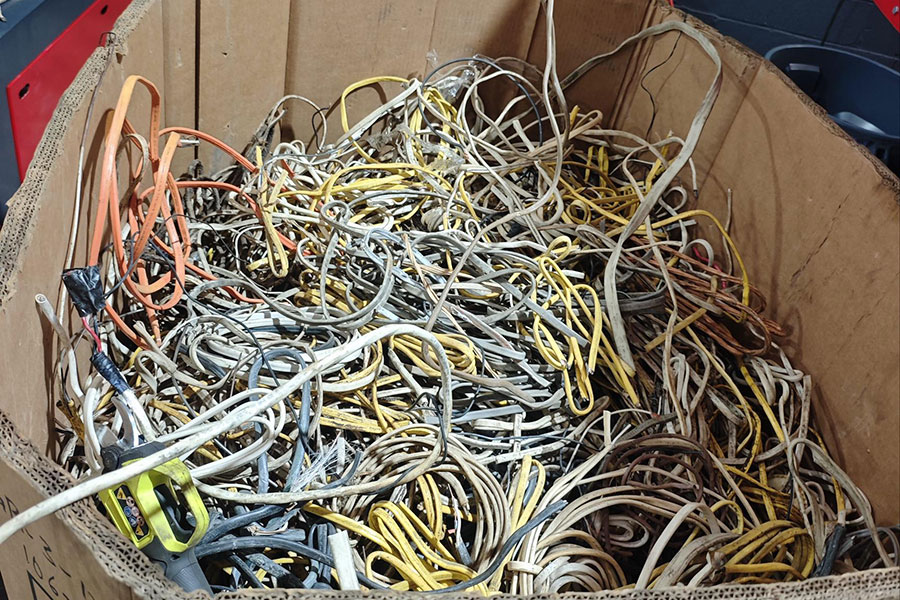

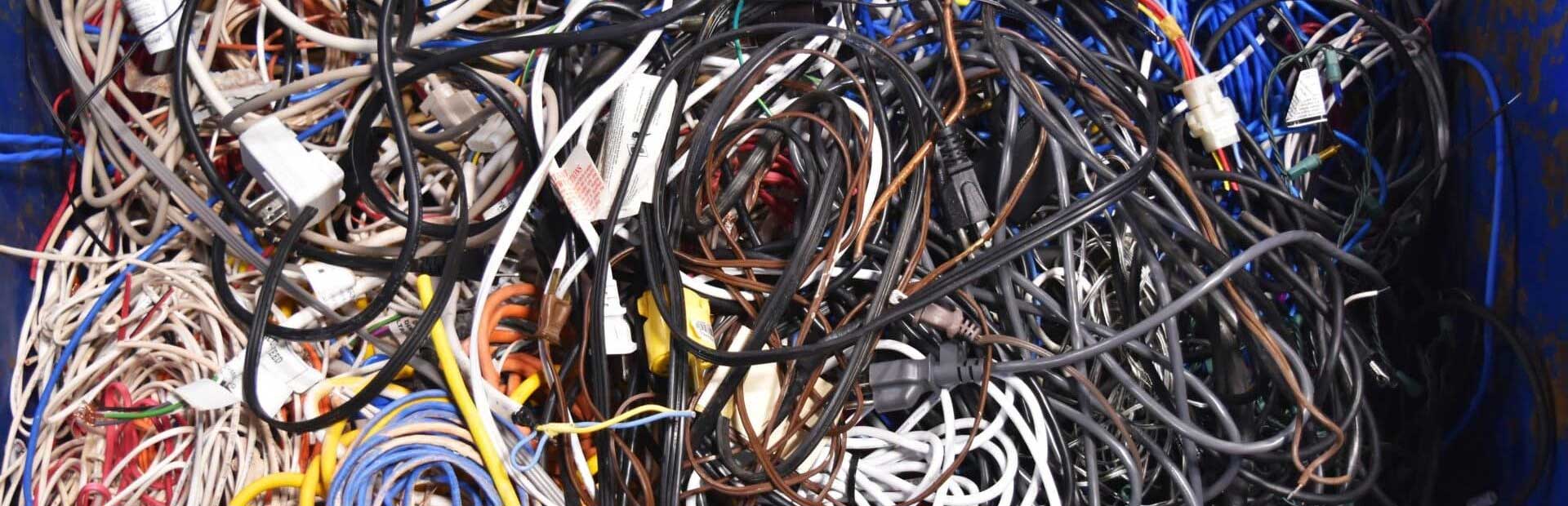

The ENERPAT Copper Wire Granulator is designed to process insulated copper wire, electrical cables and other suitable copper-containing wire scrap.
Instead of stripping individual wires manually, the material is fed into the granulation system, mechanically reduced into smaller particles and then separated into copper and plastic fractions.
The granulator can be configured with feeding, conveying, separation and dust collection equipment according to the material characteristics and processing requirements.
CONTACT US
Product Details

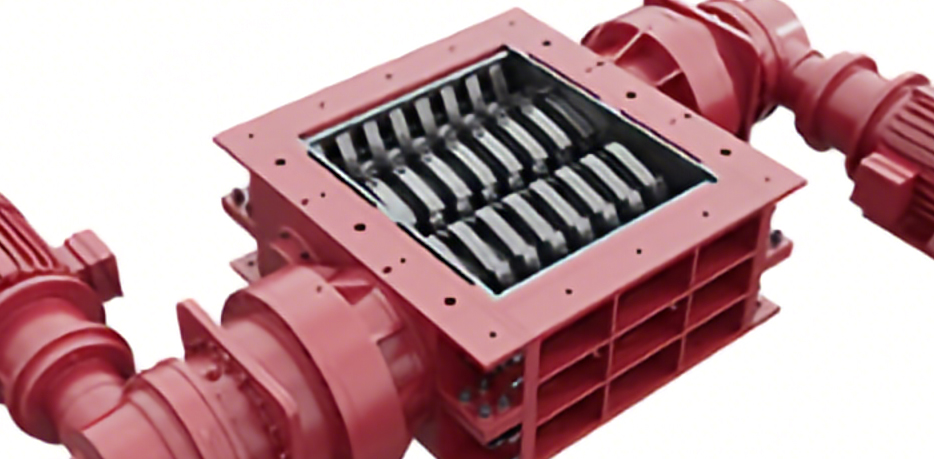

  • Reduce Cable Size Before Granulation
    A double shaft shredder can be installed as the first stage for larger or tougher cables. It shreds bulky cable scrap into smaller, more manageable pieces before granulation, helping improve material feeding and increase granulator throughput.
    Key Components: Siemens motor, Bonfiglioli/BONENG gearbox, Schneider Electric control system, SKF bearings.
    01 — Pre-Shredding

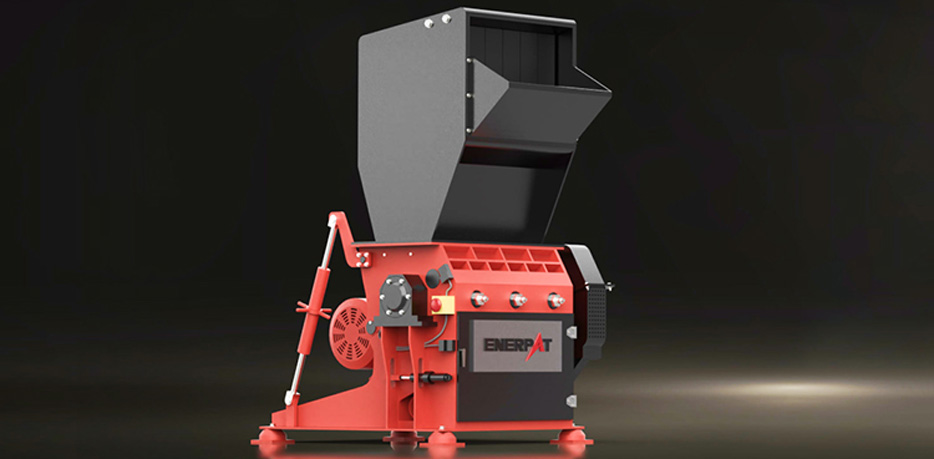

  • Granulate Cables into Fine Particles
    The granulator further processes pre-shredded cables into small particles, with the system configured to achieve particle sizes below 3 mm for downstream copper-plastic separation.
    The granulation stage uses precision cutting components to efficiently reduce the cable material while maintaining a consistent particle size.
    Key Components: Siemens motor, BONENG gearbox, Schneider Electric electrical system, SKF bearings.
    02 — Fine Granulation

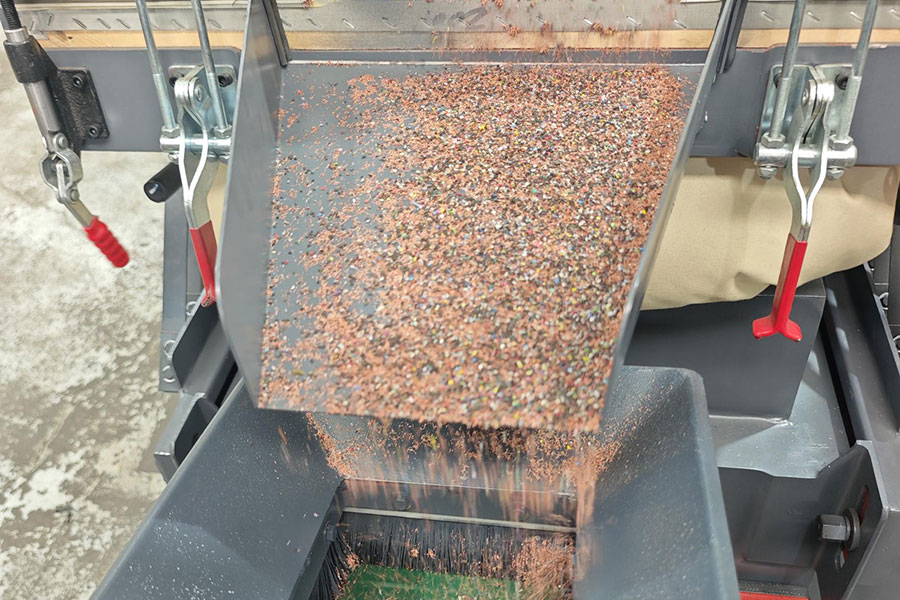

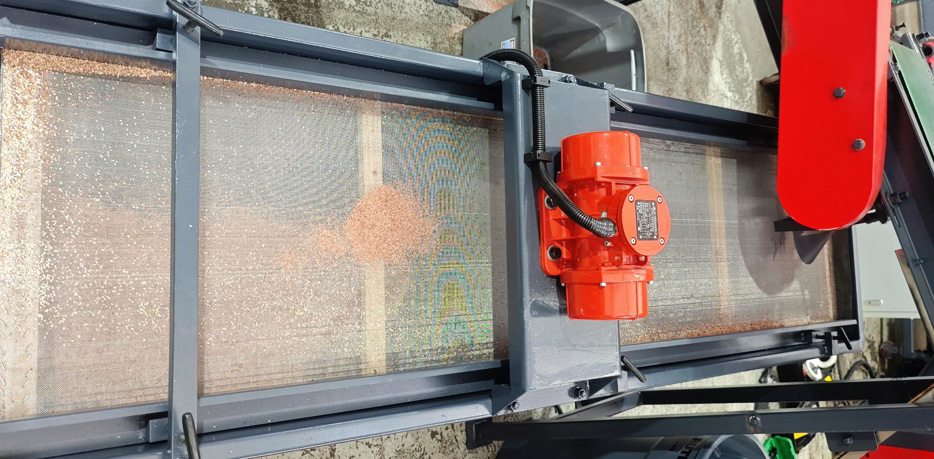

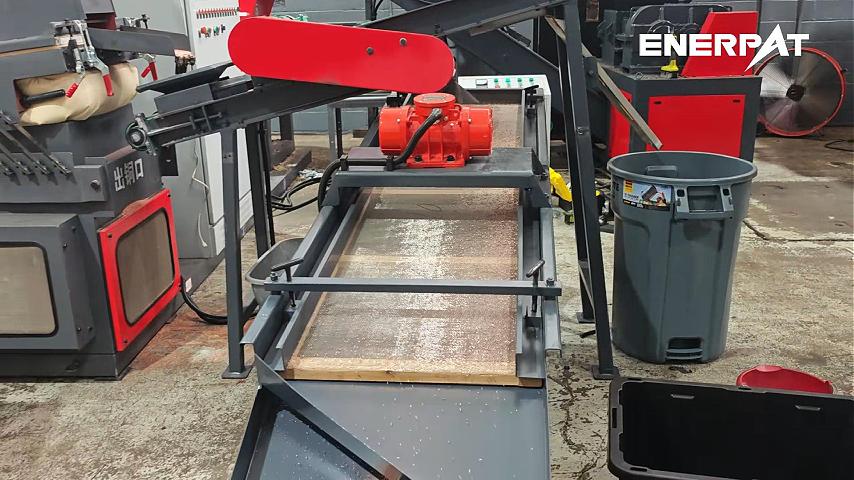

  • Maintain a Stable Material Flow
    A vibrating screen helps evenly distribute the granulated material before separation. The 304 stainless steel + Q235B vibrating screen is approximately 1,200 mm wide, with an adjustable amplitude of 3–8 mm, helping maintain a consistent feed rate for the downstream separation system.
    03 — Vibrating Screening & Feeding

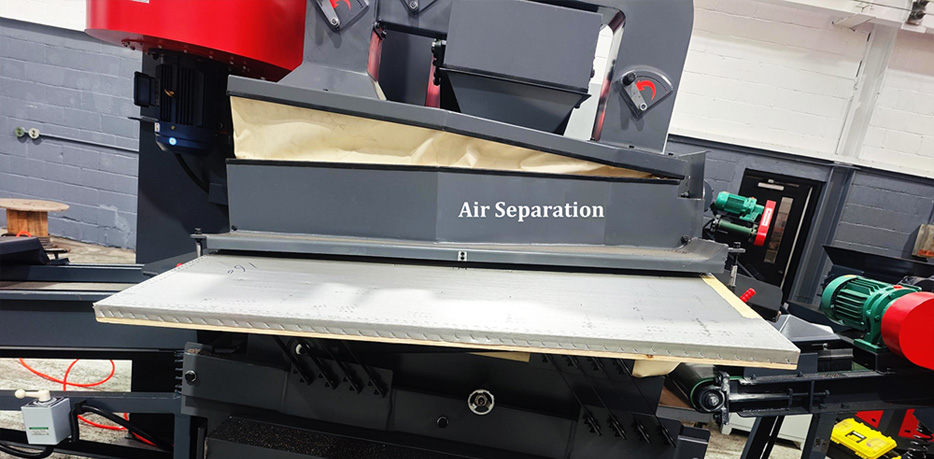

  • Separate Copper from Plastic
    After granulation and screening, the material enters the air separation stage. The air separator uses differences in the physical properties of copper and plastic—particularly their weight and aerodynamic behavior—to separate the heavier copper fraction from lighter plastic insulation.
    This helps produce separately collected copper and plastic fractions for further recycling.
    04 — Air Separation

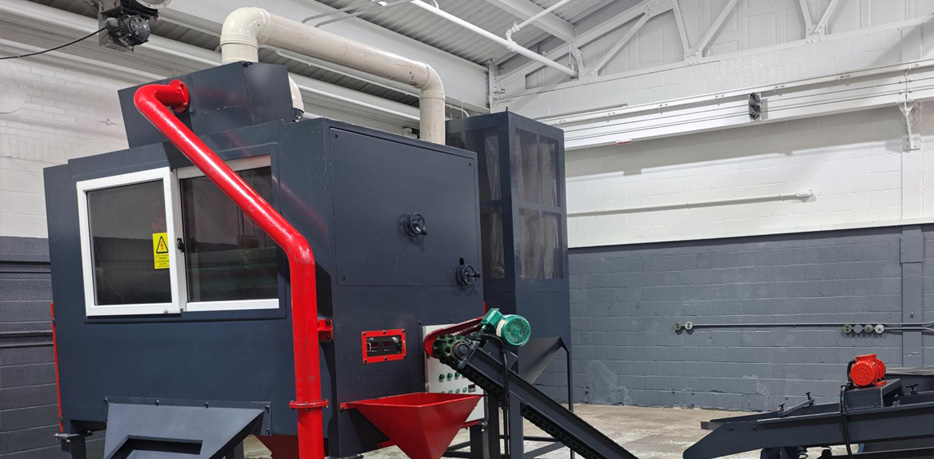

  • Capture Fine Dust During Processing
    Fine particles and dust can be generated during cable shredding, granulation and screening. An integrated dust collection system can be incorporated to capture airborne particles, helping maintain a cleaner processing environment and supporting more controlled material handling.
    05 — Dust Collection

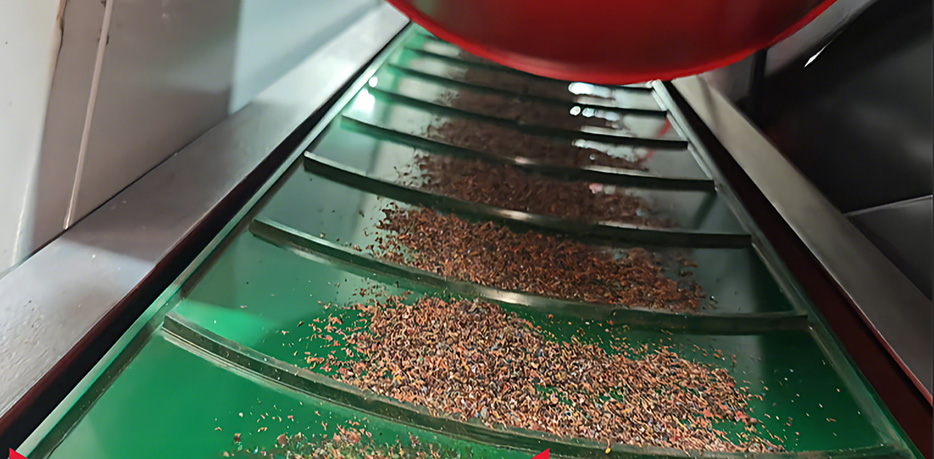

  • Connect Every Processing Stage
    Conveyors can be integrated between shredding, granulation, screening, separation and collection stages. This creates a continuous material flow and reduces manual handling throughout the copper wire recycling process.
    06 — Material Conveying

Inside the Copper Wire Granulation Process

STEP 1

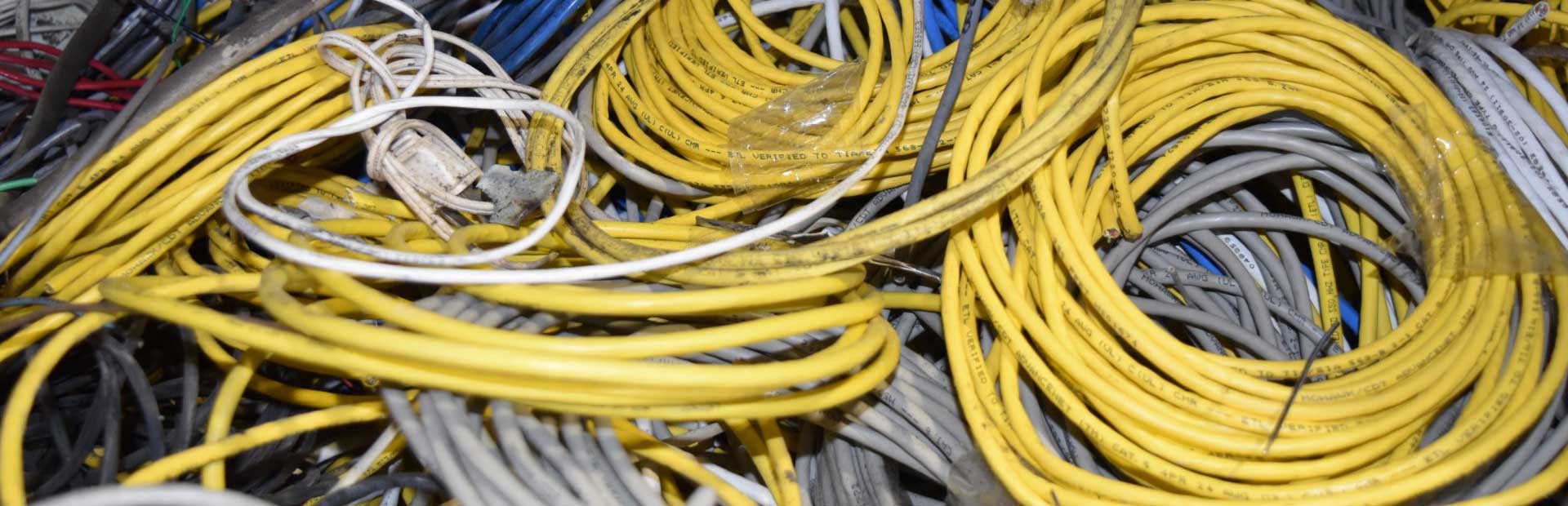

Cable Scrap
STEP 2
Pre-Shredding
STEP 3
Fine Granulation
STEP 4
Vibrating Screening
STEP 5
Air Separation
STEP 6
Dust Collection
STEP 7
Copper + Plastic
WG Series Copper Wire Granulators
  • WG400 Copper Cable Granulator
  • WG600 Copper Granulator Machine
  • WG800 Wire Granulator Machine
  • +
    -
    WG-400S
    Model WG-400S
    Motor Power 27 kW / 36.2 HP
    Cables Range < 20 mm / < 0.79 in
    Capacity 1–2 t/day / 2,205–4,409 lbs/day
    Machine Size 4400×2700×2450 mm / 173.2×106.3×96.5 in
    Machine Weight 2,500 kg / 5,512 lbs
  • +
    -
    WG-600S
    Model WG-600S
    Motor Power 41 kW / 55.0 HP
    Cables Range 0.2–20 mm / 0.008–0.79 in
    Capacity 3–4 t/day / 6,614–8,818 lbs/day
    Machine Size 5000×3000×2500 mm / 196.9×118.1×98.4 in
    Machine Weight 4,000 kg / 8,818 lbs
  • +
    -
    WG-800S
    Model WG-800S
    Motor Power 90 kW / 120.7 HP
    Cables Range 0.2–30 mm / 0.008–1.18 in
    Capacity 7–12 t/day / 15,432–26,455 lbs/day
    Machine Size 11500×9500×2300 mm / 452.8×374.0×90.6 in
    Machine Weight 7,000 kg / 15,432 lbs

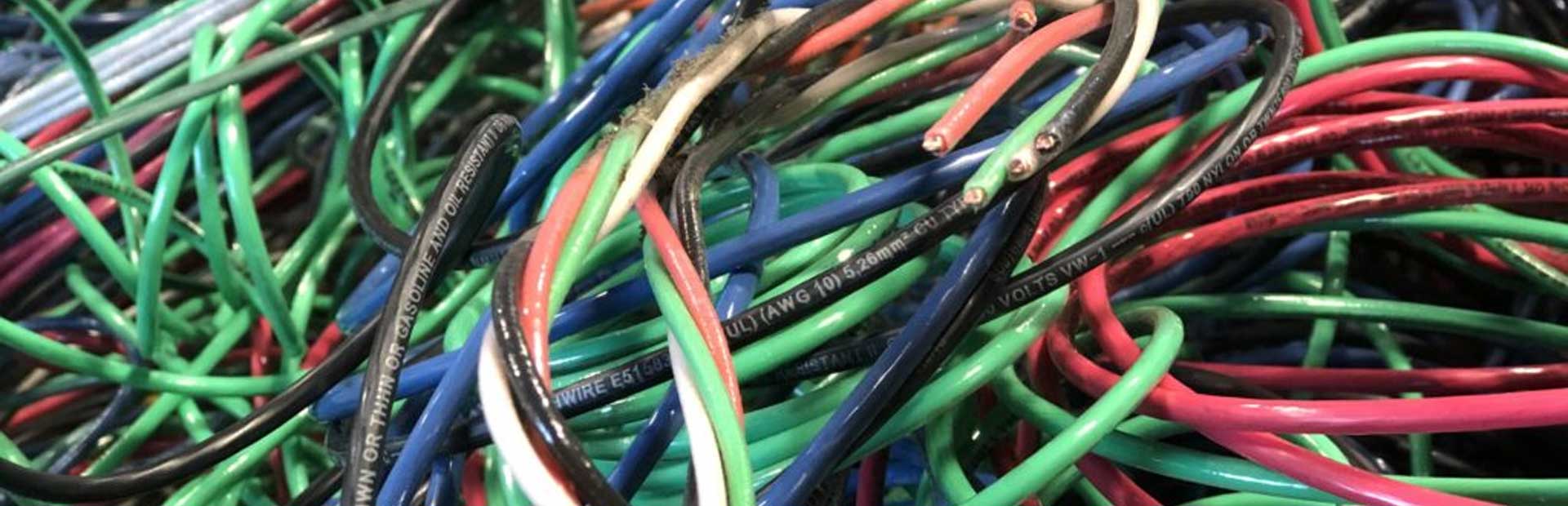

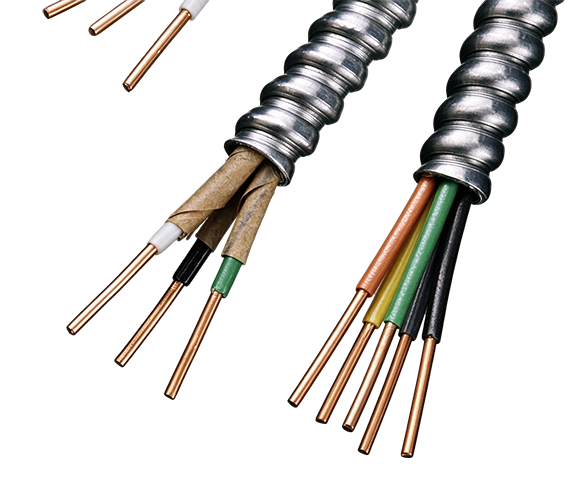

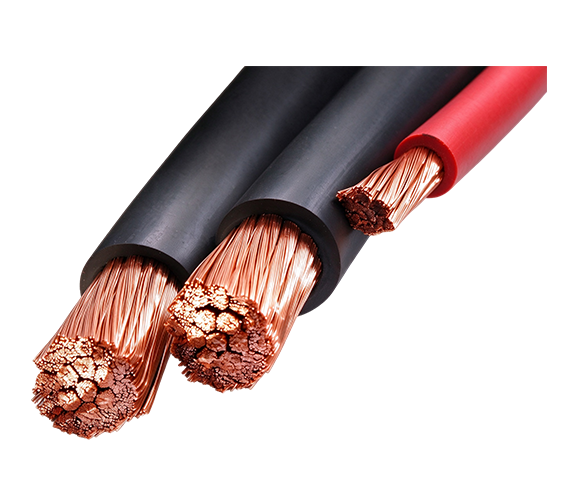

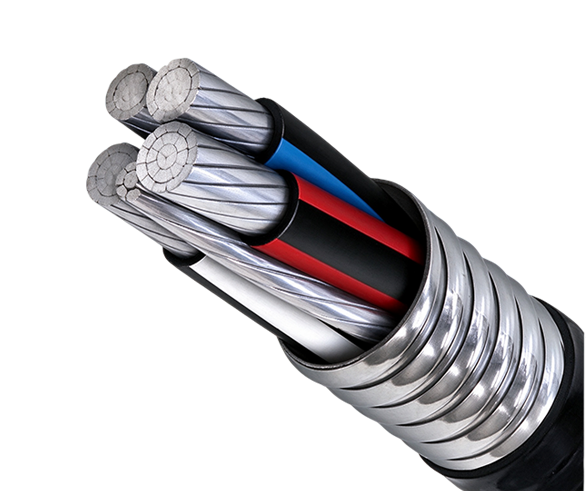

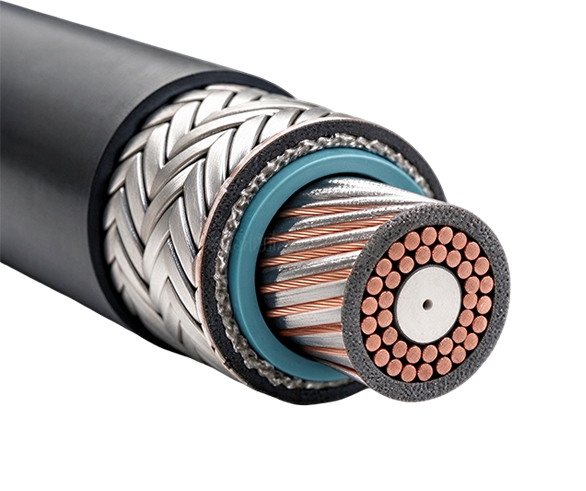

What Wire Scrap Can a Copper Wire Granulator Process?
REQUESTE A MATERIAL TEST
More Than Granulation: Separation & Dust Collection
A copper wire recycling system needs to do more than reduce wire size. The processed material must also be separated into useful fractions, while dust generated during granulation should be properly managed.
  • 形状 Created with Sketch.
    全自动打包机HBA-70-7272横板

Why Choose ENERPAT for Copper Wire Recycling?
  • U.S. Stock in Ohio U.S. Stock in Ohio
  • Installation & Training Installation & Training
  • Complete Recycling System Complete Recycling System
  • International Certifications International Certifications
  • Global-Brand Components Global-Brand Components
  • Engineered for Your Material Engineered for Your Material
Copper Wire Granulator Applications

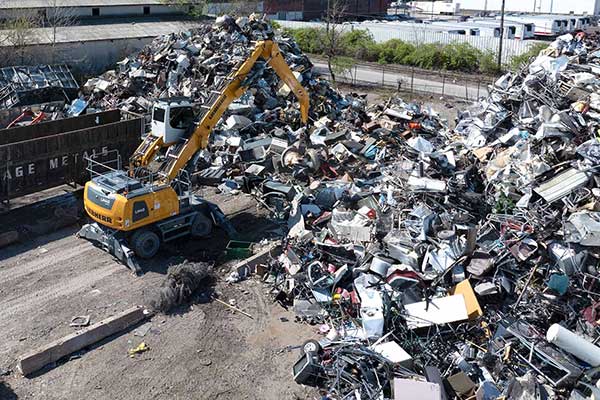

  • Scrap Metal Recycling

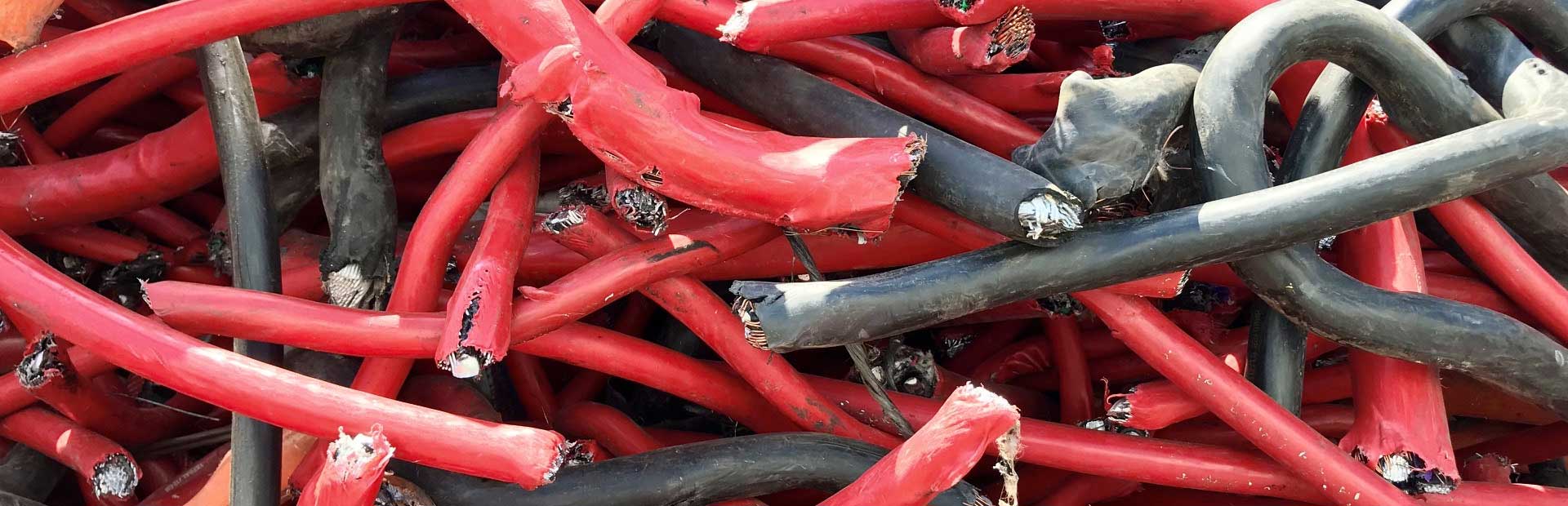

  • Electrical & Cable Recycling

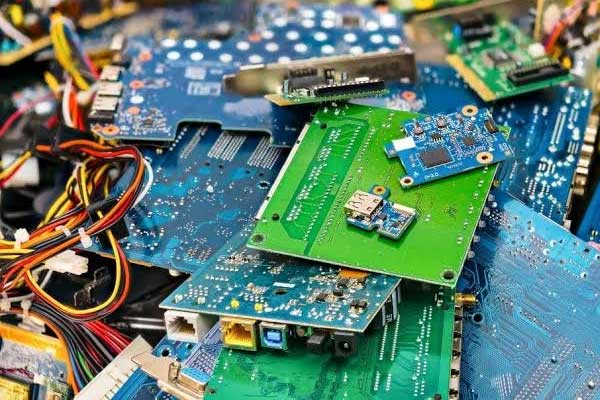

  • E-Waste Recycling

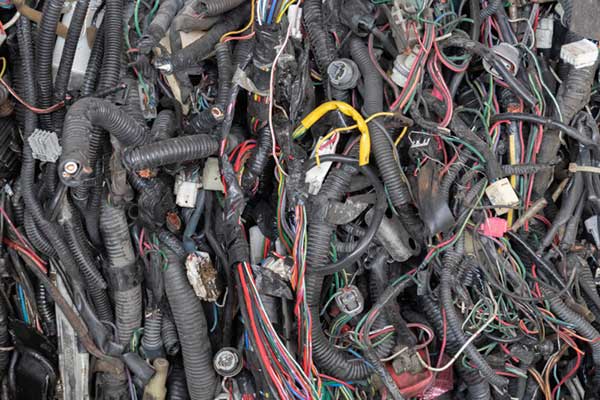

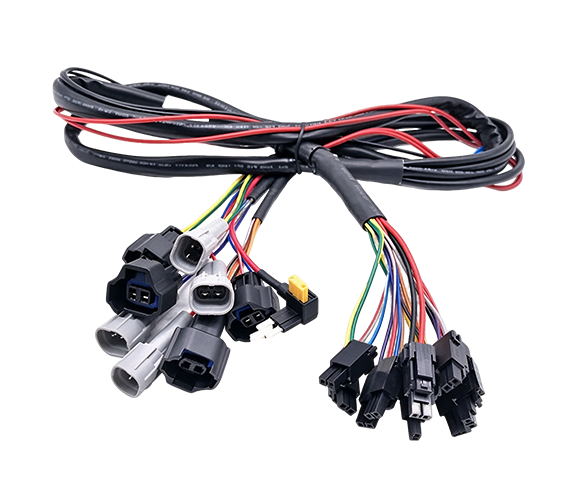

  • Automotive Wire Recycling

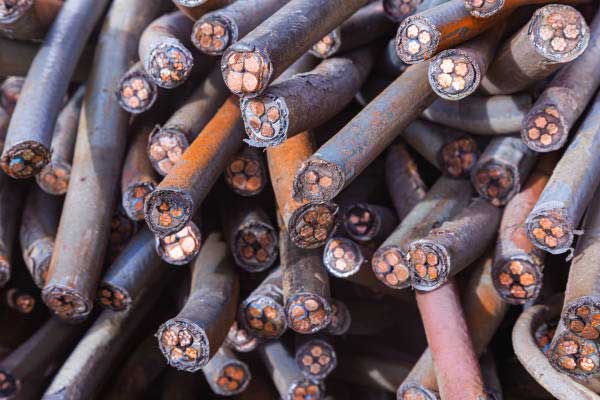

  • Industrial Wire Scrap
  • Construction & Demolition
Copper Wire Recycling in Action
Crestline, Ohio: Copper Wire Recycling Line Installed for a U.S. Recycling Company
A U.S. recycling company in Crestline, Ohio was looking for a more efficient way to process copper-containing wire scrap while cutting high manual labor costs. ENERPAT supplied and installed a WG600 Copper Wire Granulator line, with its U.S. team providing local support for installation and commissioning for a smooth startup. Customer Feedback: "ENERPAT is a great company to work with."
U.S. Stock in Ohio​​​​​​​

Free Material Testing​​​​​​​

CONTACT US
Copper Wire Granulator FAQs
  • Q1: Can ENERPAT Test My Wire Scrap Before I Buy?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT supports material testing before equipment selection. You can provide wire scrap samples, photos, videos or material specifications for evaluation. Our engineers can assess the material characteristics and recommend a suitable Copper Wire Granulator configuration based on your wire type, size and processing requirements.
  • Q2: How Fast Can a Copper Wire Granulator Be Delivered in the U.S.?
    加 Created with Sketch.
    形状 Created with Sketch.
    ENERPAT maintains equipment inventory at its Ohio facility, helping reduce delivery lead times for U.S. customers. Actual shipping time depends on the selected machine, configuration and current inventory. For complete recycling systems or customized projects, ENERPAT can provide a project-specific delivery schedule.
  • Q3: Does ENERPAT Provide Installation and Operator Training?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT provides installation, commissioning and operator training support for Copper Wire Granulator systems. Our technical team can guide customers through equipment setup, operation and routine maintenance to help ensure a smooth start-up.
  • Q4: What Warranty and After-Sales Support Does ENERPAT Provide?
    加 Created with Sketch.
    形状 Created with Sketch.
    ENERPAT provides a 1-year warranty for the complete machine and ongoing technical support after installation. If an issue occurs, our service team can assist with troubleshooting, maintenance guidance and replacement parts to help minimize downtime.
  • Q5: Are Replacement Parts Readily Available?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT maintains a well-stocked spare parts inventory and uses internationally recognized brands for key components, including Siemens, Schneider Electric, BONENG and SKF. This helps simplify maintenance and supports faster replacement of commonly used components when service is required.
