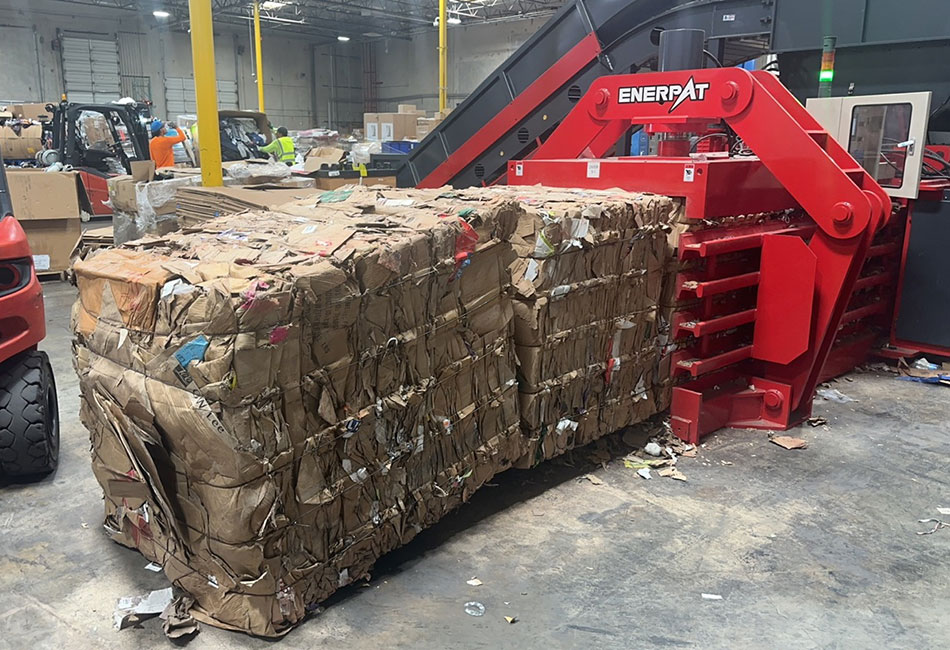

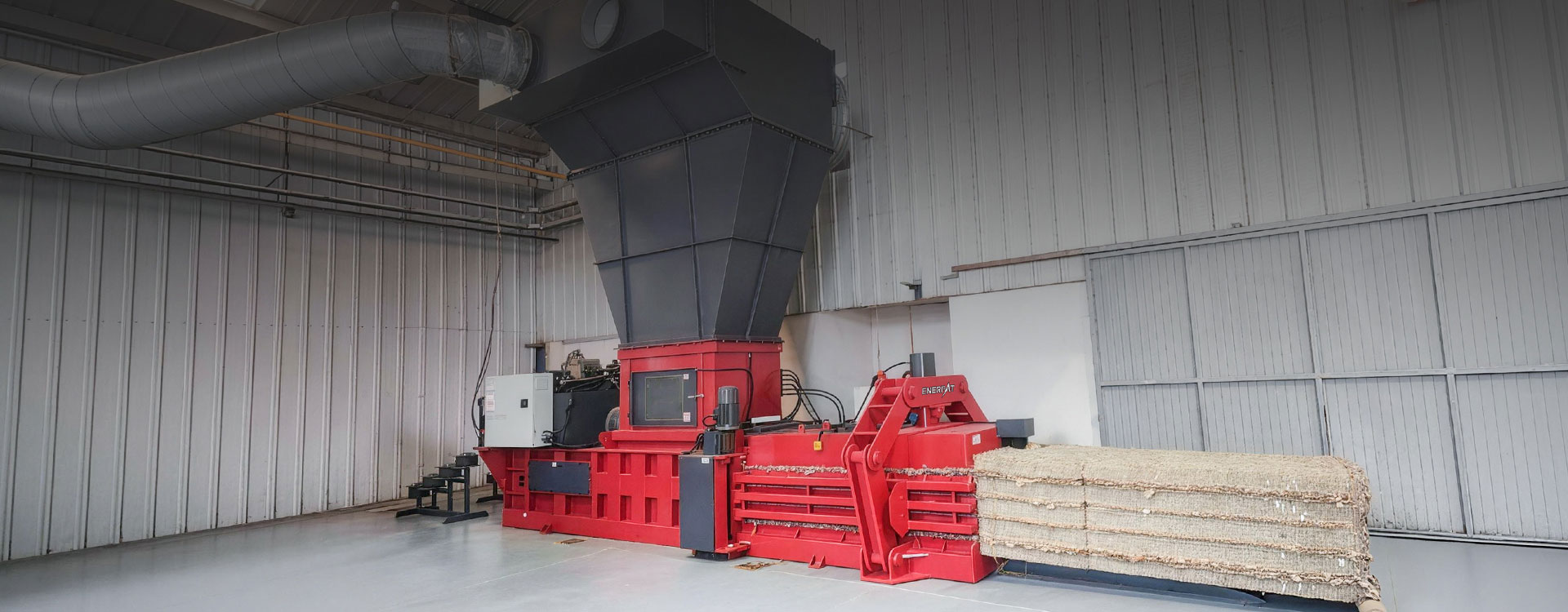

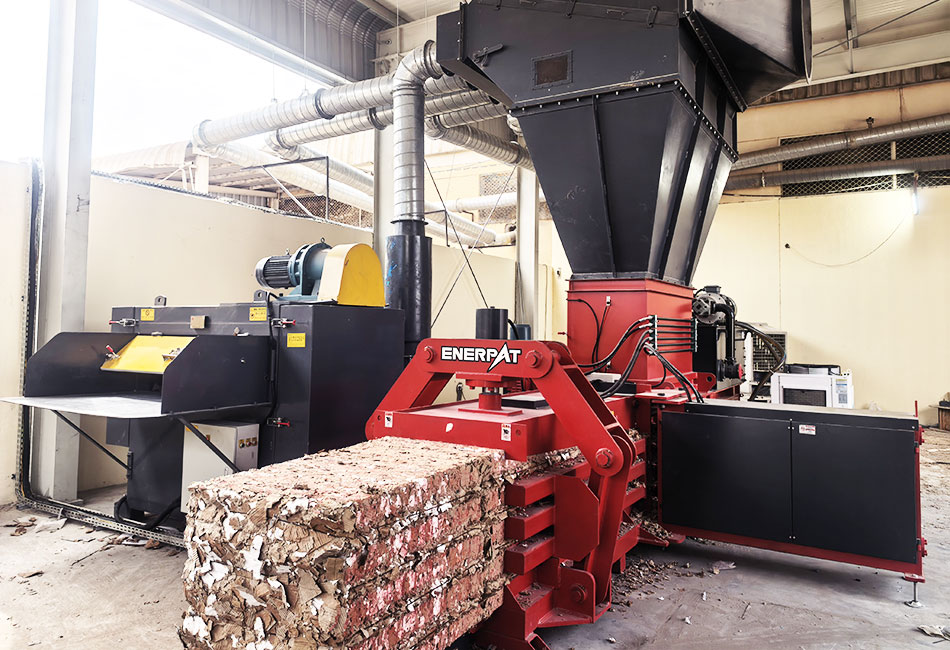

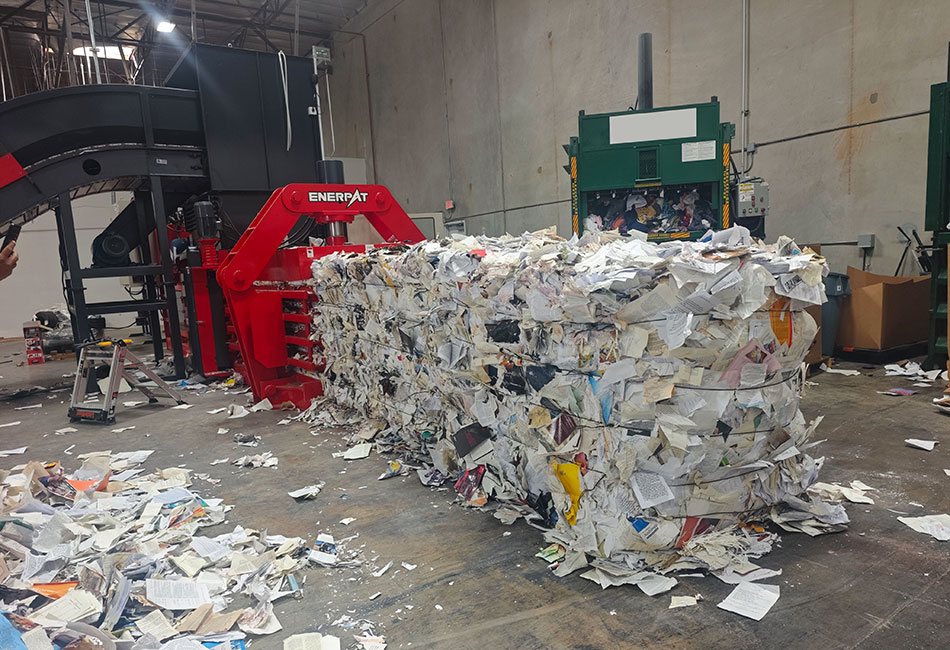

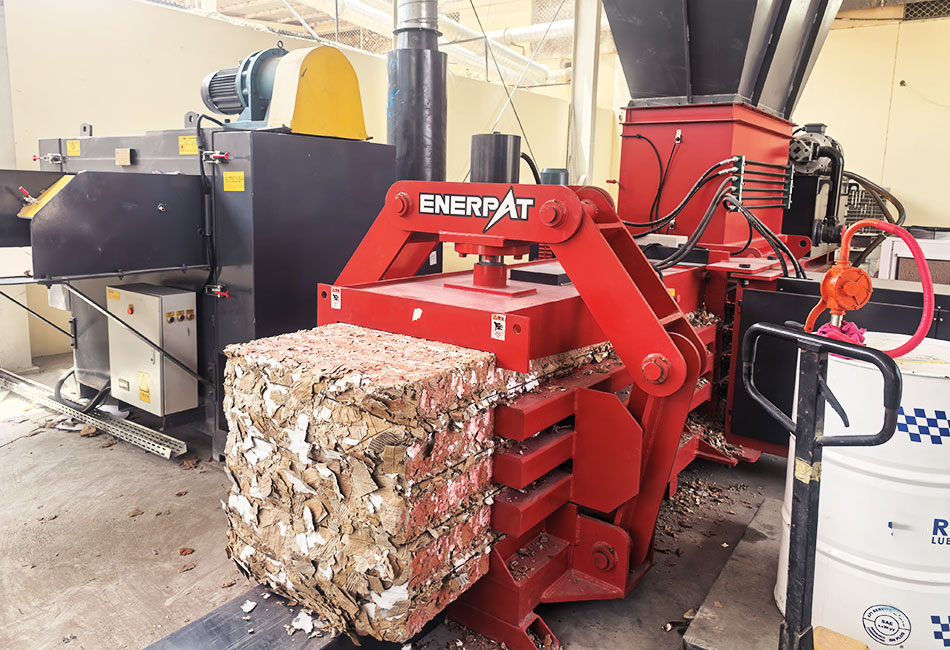

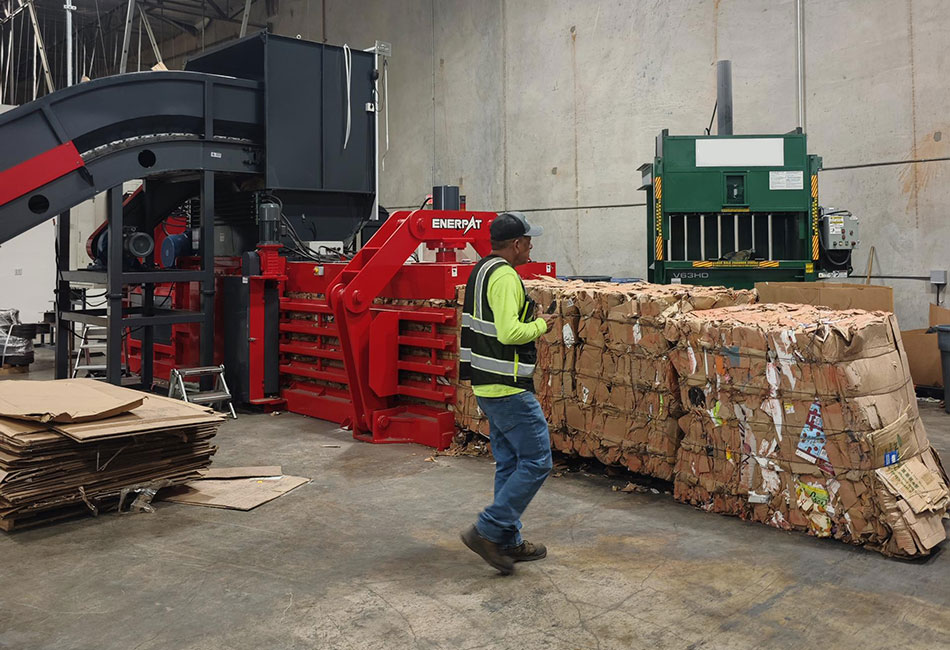

ENERPAT Auto Tie Horizontal Hydraulic Baler​​​​​​​
When loose cardboard, paper, plastics and other recyclable materials are moving through your facility by the truckload, manual baling can quickly become a bottleneck.
The ENERPAT Auto Tie Horizontal Hydraulic Baler combines continuous material feeding, hydraulic compression and automatic wire tying in one industrial baling system. It is designed for recycling facilities, MRFs, distribution centers, manufacturers and waste-processing operations that need consistent bale production with less manual handling.
80–200 t Compression Force
Automatic Wire Tying
Up to 20 t/h*
Multiple Bale Sizes
CE Marked

US Stock & Local Service
Selected HBA models are available from ENERPAT's Ohio facility, helping shorten delivery times for U.S. customers. ENERPAT's local team also provides on-site installation, commissioning, operator training and after-sales technical support across North America.
Why Choose an Automatic Horizontal Baler?
When Manual Baling Becomes a Bottleneck
As material volume increases, the challenge is no longer simply compressing waste. Operators also have to keep material moving, maintain consistent bale size, tie finished bales and prepare them for storage or shipment.
A horizontal baler machine with automatic tying is designed to bring these steps into one continuous process.
The ENERPAT HBA Series is designed for high-volume operations where continuous feeding, hydraulic compression and automatic wire tying need to work together.

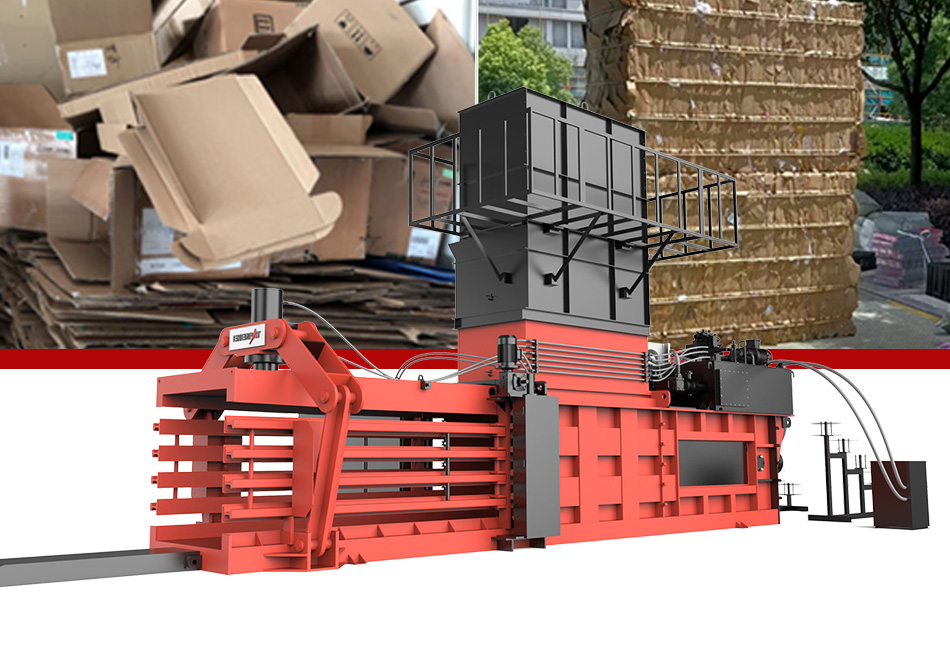

How the Auto Tie Horizontal Hydraulic Baler Works
From Loose Recyclables to Ready-to-Ship Bales

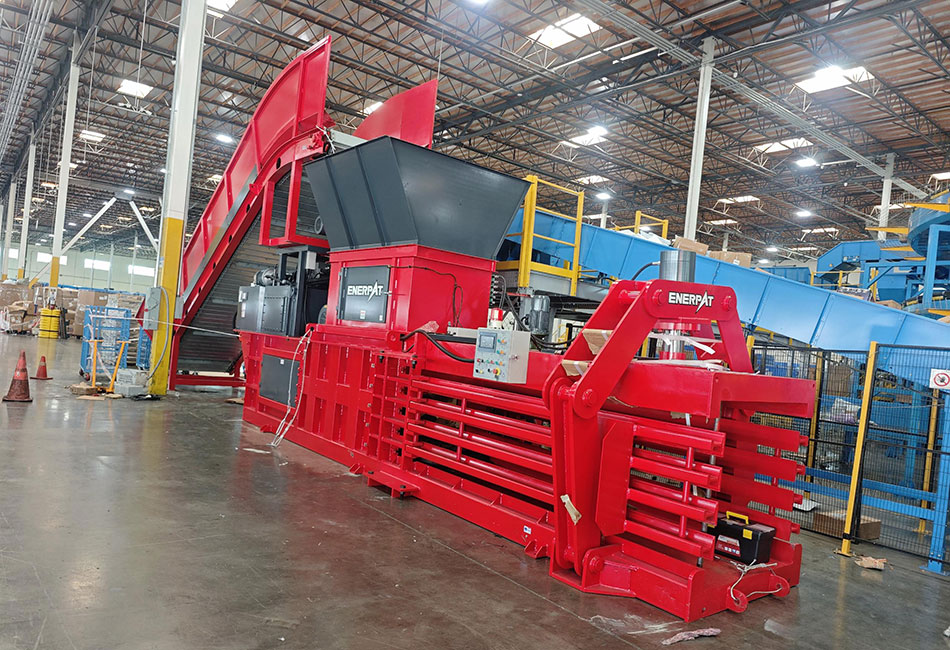

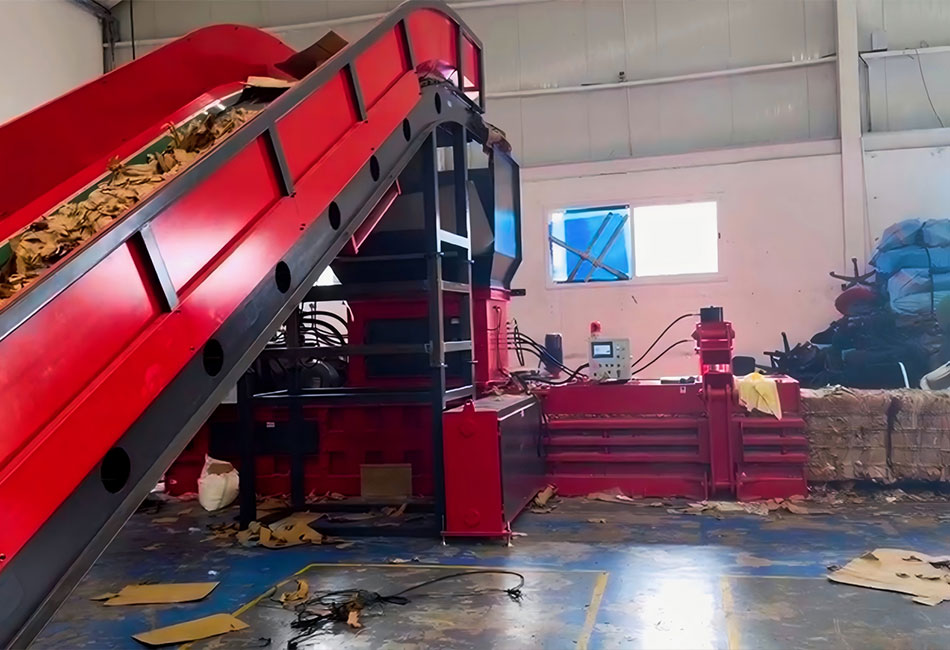

The ENERPAT Auto Tie Horizontal Hydraulic Baler is built around a continuous baling process. Material enters through the feeding system, is compacted by hydraulic force, and is automatically tied before the finished bale leaves the machine.

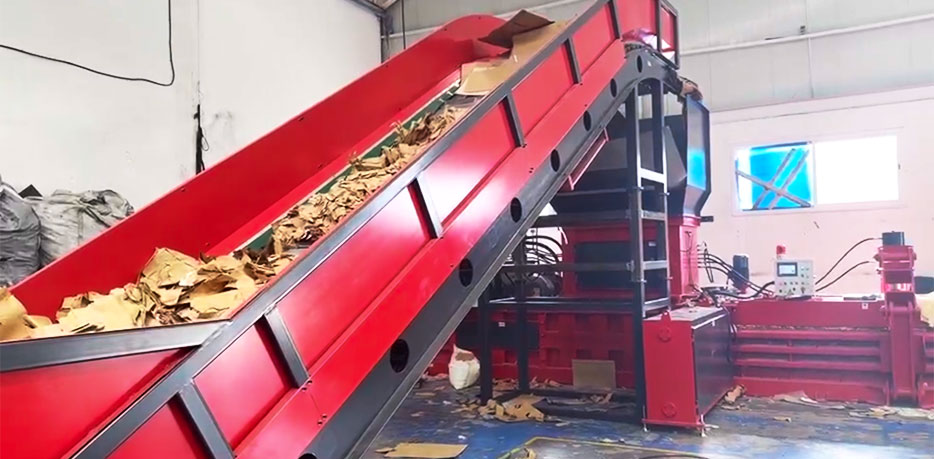

  • Cardboard, waste paper, plastic and other suitable recyclable materials are loaded into the feed system. The setup can be connected to a conveyor or other upstream equipment for continuous operation.

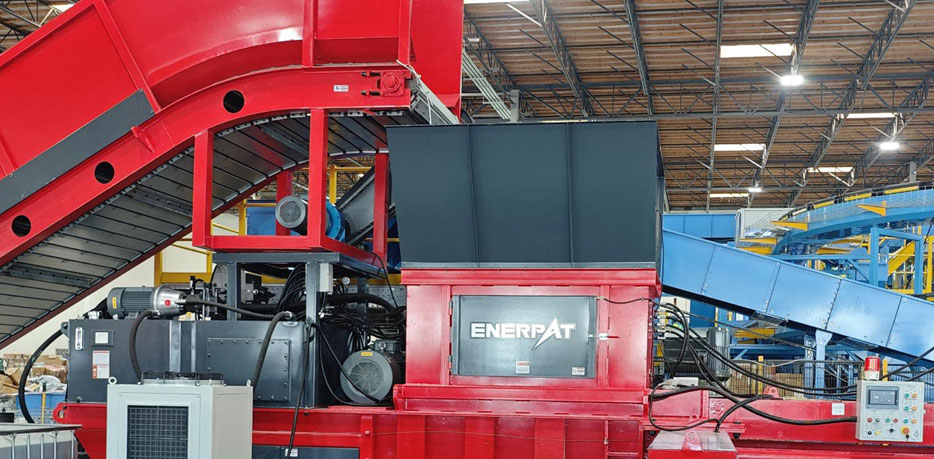

  • A heavy-duty chain conveyor carries the incoming material toward the compression chamber, keeping the material flow moving between baling cycles.
  • The hydraulic ram drives the material into the horizontal chamber, gradually building the bale to the required density and size.
  • When the bale reaches its preset length, the automatic tying mechanism takes over. Wire is fed around the bale, twisted to secure it, and cut to complete the tying cycle.

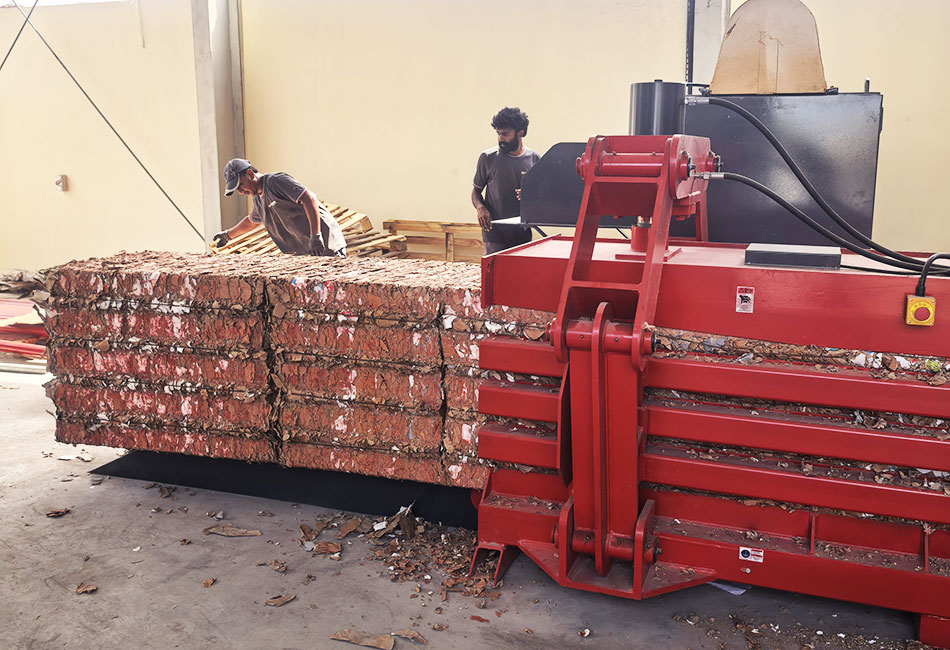

  • Once tied, the finished bale is pushed out of the chamber and can move directly to storage, bale handling equipment or the next stage of the recycling process.
One Continuous Baling Process
By combining material feeding, hydraulic compression, automatic wire tying and bale discharge, the ENERPAT HBA Series turns loose recyclable materials into uniform bales with less manual intervention.
Core Components Built for Continuous Automatic Baling
The ENERPAT Auto Tie Horizontal Hydraulic Baler brings the hydraulic system, automatic wire tying, electrical controls and safety functions together in one integrated machine. Key components are selected for heavy-duty operation, easier maintenance and consistent bale production.
International Components for Long-Term Operation
ENERPAT selects established industrial components for critical systems, including Siemens motors, Schneider electrical components, Hallite hydraulic seals and other specialized hydraulic components according to the machine configuration.
The focus is not simply on individual component brands, but on how the hydraulic, electrical, tying and safety systems work together as a complete automatic baling machine.
ENERPAT HBA Series
  • +
    -
    HBA200-110125
    Model HBA200-110125
    Press Force (tons) 200
    Motor Power (kw) 2 x 55
    Bale Size 1100 x 1250 x L mm
    43.31 × 49.21 × L in
    Bale Weight (OCC) 1250-1350 kg
    2755.78-2976.24 lb
    Machine Size 10050 × 4100 × 4910 mm
    419.29×161.42×192.91 in
  • +
    -
    HBA150-110125
    Model HBA150-110125
    Press Force (tons) 150
    Motor Power (kw) 2 x 45
    Bale Size 1100 x 1250 x L mm
    43.31 × 49.21 × L in
    Bale Weight (OCC) 1000-1300 kg
    2204.62-2866.01 lb
    Machine Size 10050 × 4100 × 4910 mm
    419.29×161.42×192.91 in
  • +
    -
    HBA120-110125
    Model HBA120-110125
    Press Force (tons) 120
    Motor Power (kw) 55
    Bale Size 1100 x 1250 x L mm
    43.31 × 49.21 × L in
    Bale Weight (OCC) 900-1200 kg
    1984.16-2645.55 lb
    Machine Size 9250 × 4150 × 4850 mm
    364.17×163.39×190.94 in
  • +
    -
    HBA100-110110
    Model HBA100-110110
    Press Force (tons) 100
    Motor Power (kw) 45
    Bale Size 1100 x 1100 x L mm
    43.31 × 43.31 × L in
    Bale Weight (OCC) 800-1100 kg
    1763.70-2425.08 lb
    Machine Size 8560 × 3950 × 4550 mm
    336.22×155.51×178.35 in
  • +
    -
    HBA80-11075
    Model HBA80-11075
    Press Force (tons) 80
    Motor Power (kw) 37
    Bale Size 1100 x 750 x L mm
    43.31 × 29.53 × L in
    Bale Weight (OCC) 600-900 kg
    1322.77-1984.16 lb
    Machine Size 6880 × 3850 × 3550 mm
    270.87×143.31×137.80 in
  • +
    -
    HBA60-11075
    Model HBA60-11075
    Press Force (tons) 60
    Motor Power (kw) 22
    Bale Size 720 × 720 × L mm
    28.35 × 28.35 × L in
    Bale Weight (OCC) 200-500 kg
    440.92-1102.31 lb
    Machine Size 6770 × 3050 × 3580 mm
    266.54×119.80×149.61 in
  • +
    -
    HBA40-7272
    Model HBA-40-7272
    Press Force (tons) 40
    Motor Power (kw) 22
    Bale Size 720 × 720 × L mm
    28.35 × 28.35 × L in
    Bale Weight (OCC) 200-500 kg
    440.92-1102.31 lb
    Machine Size 6770 × 3050 × 3580 mm
    266.54×119.80×149.61 in
  • +
    -
    HBA30-5050
    Model HBA30-5050
    Press Force (tons) 30
    Motor Power (kw) 11
    Bale Size 500 × 500 × L mm
    19.69 × 19.69 × L in
    Bale Weight (OCC) 40-70 kg
    88.18-154.32 lb
    Machine Size 5300 × 2600 ×1750 mm
    208.66×102.36×68.90 in
Need Help Selecting a Model?
The correct model depends on more than tonnage.
ENERPAT evaluates:
Material → Volume → Bulk Density → Bale Size → Bale Weight → Feeding Method → Available Space
Send your material details and expected throughput to get a configuration matched to the application.

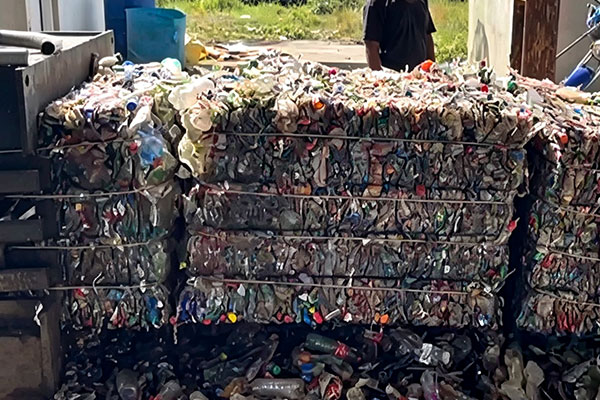

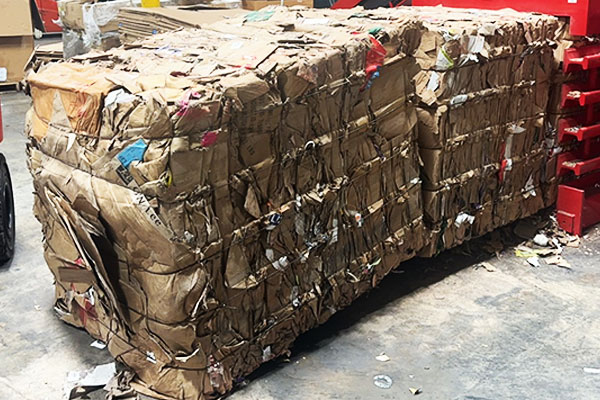

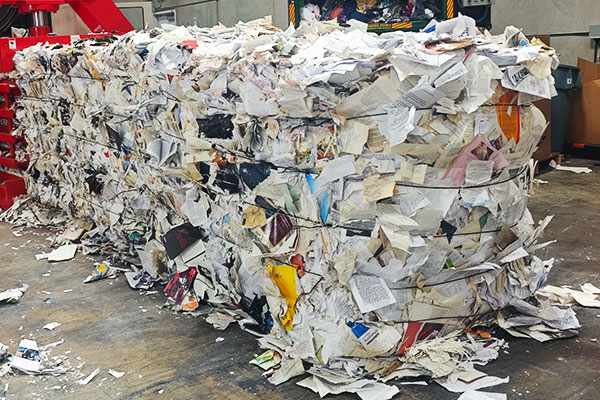

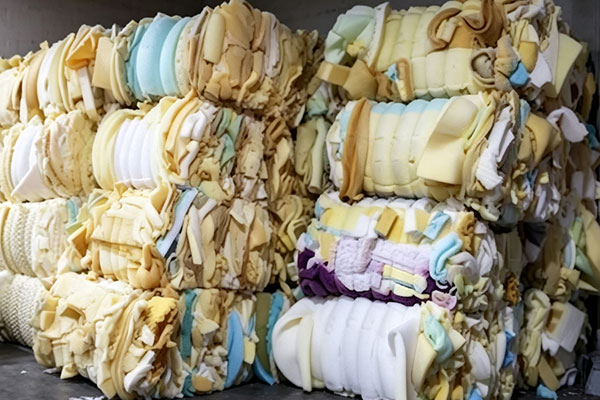

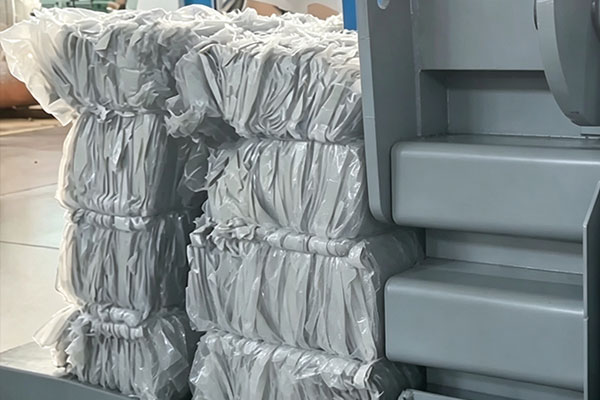

What Materials Can an Automatic Horizontal Baler Process?
What Materials Can an Automatic Horizontal Baler Process? Process?

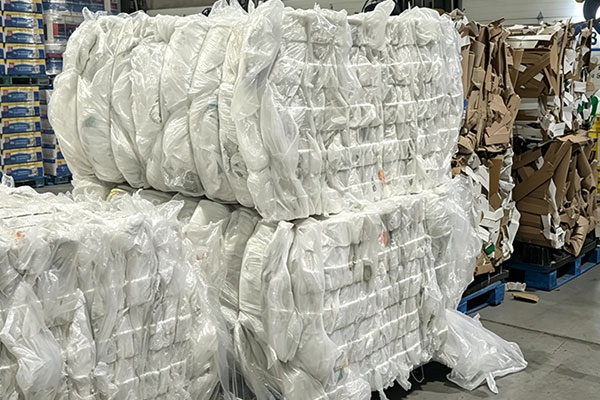

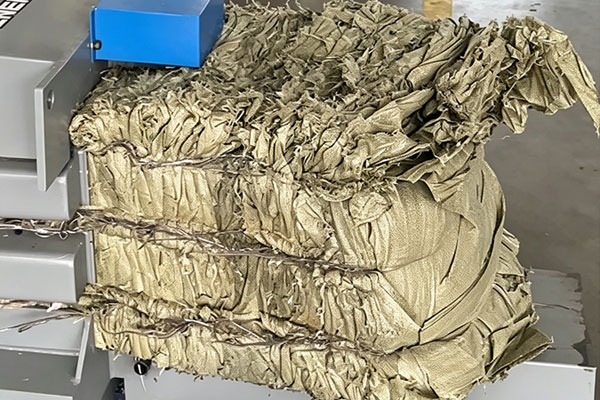

The system can also be configured for other suitable non-metallic, compressible waste streams based on material characteristics and required bale specifications.
Material suitability, bale density and throughput depend on material composition, moisture, bulk density and preparation. Material testing is recommended before final machine selection.
Automatic vs. Manual Baling
Why Move to Automatic Horizontal Baling?
For lower-volume facilities, manual or semi-automatic equipment may be sufficient. As throughput increases, however, labor involvement at each stage can become a production constraint.
The goal is not simply to make the baler faster. It is to create a more continuous material-handling process from loose recyclable material to finished bale.

Traditional Manual / Semi-Automatic Baling
Greater operator involvement
Manual bale tying
More intermittent handling
More variation between operators
Additional bale handling
Higher labor dependency
Auto Tie Horizontal Hydraulic Baler
Automatic tying
Automatic wire feeding and tying
Continuous feeding
Controlled bale formation
Automatic discharge
Reduced manual intervention

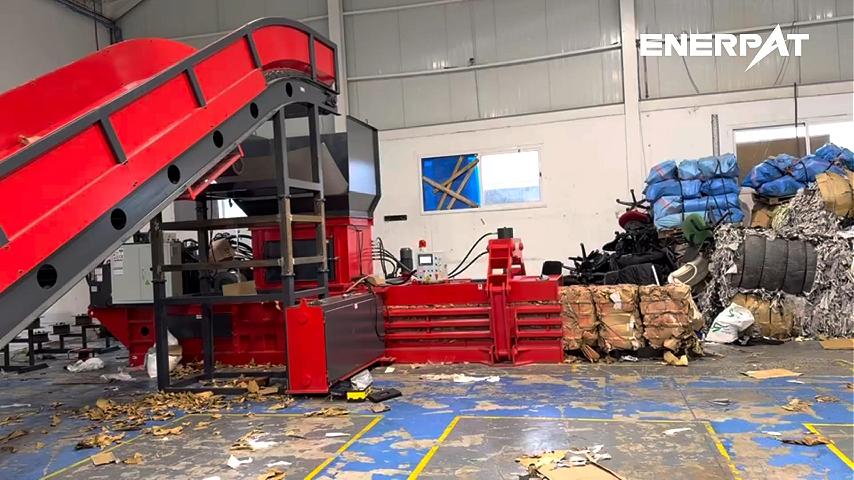

Complete Baling System
More Than a Horizontal Baler Machine
For larger recycling operations, the baler is only one component of the full material-handling system.
ENERPAT can design and configure an automatic baling process tailored to your actual material flow.

Depending on the project, the integrated system may include:
- Feeding conveyors
- Feed hoppers
- Sorting systems
- Automatic horizontal balers
- Bale discharge systems
- Bale conveyors
- Bale handling equipment


This solution is ideal for recycling plants and high-volume facilities, where the baler must seamlessly integrate with your existing upstream and downstream processing equipment.
TIMtupian2
88_03

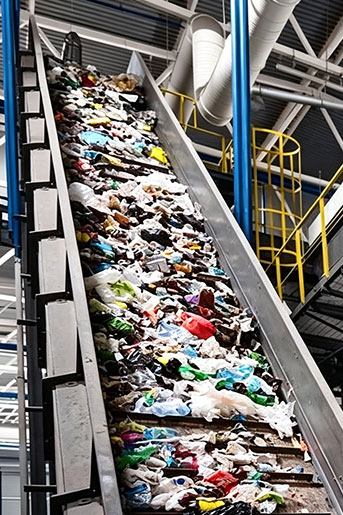

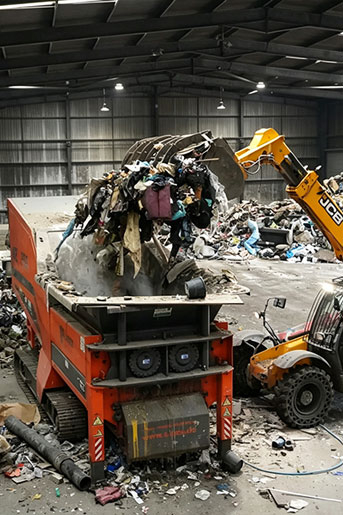

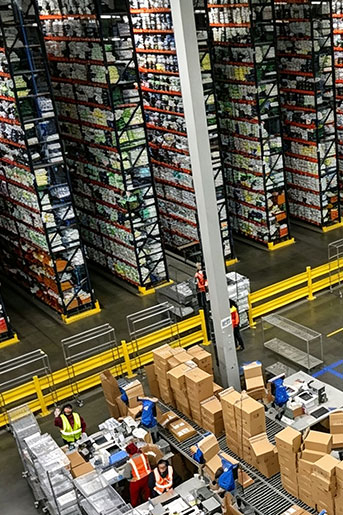

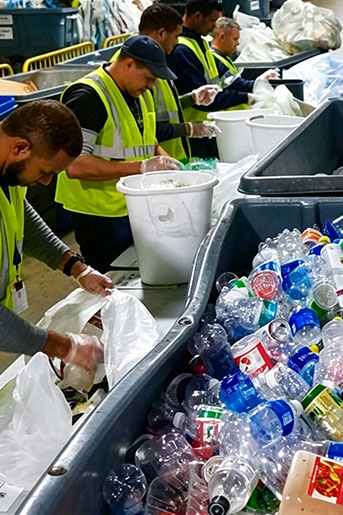

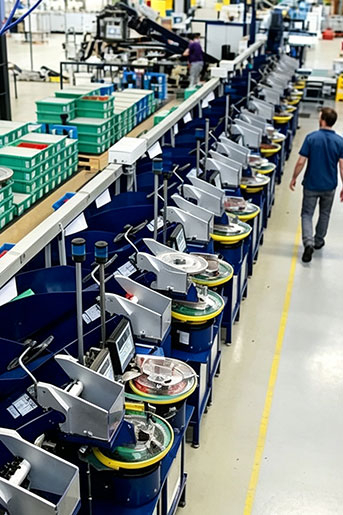

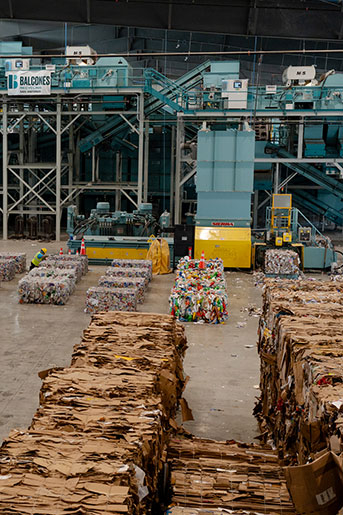

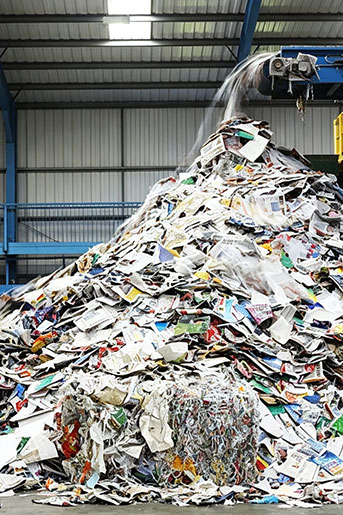

Where Are Automatic Horizontal Waste Balers Used?

Looking for a Horizontal Baler for Sale?
Choosing a horizontal baler for sale should start with the material and production requirements—not simply the advertised press force.
Before comparing machines, consider:

  • Material
    What are you baling?
    Cardboard, OCC, paper, PET, plastic film, rigid plastics or mixed recyclables?
  • Throughput
    How many tonnes per hour or tonnes per day need to be processed?
  • Bale Size
    What dimensions are preferred by your downstream recycler or transport operation?
  • Bale Weight
    Does the buyer require a specific bale weight or density?
  • Feeding
    Will the baler receive material manually, from a conveyor, or from an integrated sorting line?
  • Installation Space
    How much room is available for the baler, feed system and finished-bale handling?
  • Power Supply
    The electrical configuration should match the installation country and site requirements.

A lower-priced horizontal baler machine is not necessarily the lower-cost solution if it cannot match the required throughput or material flow.
ENERPAT can evaluate these factors before recommending an HBA configuration.
Global customers
Our Auto Tie Horizontal Hydraulic Balers serve recycling yards, paper packaging factories, and distribution centers worldwide. Customers consistently recognize our stable continuous compaction performance, high-density bale output, and dependable 24/7 technical support.
Global Projects

For paper mills in León, Guanajuato, managing high-volume scrap isn't just a housekeeping task—it directly impacts daily operating margins. As environmental agencies in Central Mexico push manufacturers toward zero-landfill operations, plants across the region are constantly evaluating the market for a durable Horizontal Cardboard Compactor for Sale that can handle round-the-clock throughput without dropping hydraulic pressure. When a major paper manufacturer in León ran into constant headaches with their previous waste setup, they turned to ENERPAT. The plant recently completed the installation and commissioning of a heavy-duty ENERPAT HBA-80-11075 Auto-Tie Horizontal Baler, retrofitted with an integrated plate separator to process loose factory scrap at scale.

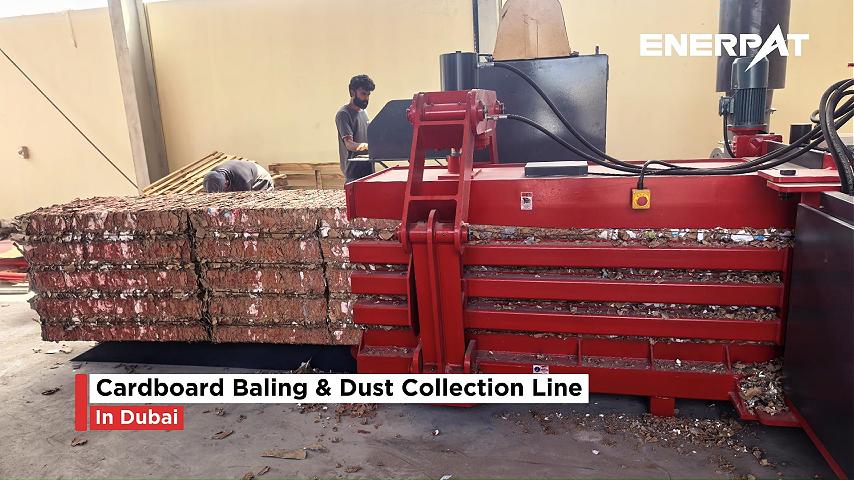

Abu Dhabi, UAE – ENERPAT has successfully completed the installation and commissioning of a customized HBA40-7272 Auto Tie Cardboard Baler with Dust Collection System for a prominent paper manufacturing and packaging enterprise based in Abu Dhabi. The new high-capacity installation addresses growing operational demands driven by the UAE’s accelerating sustainability mandates and stringent waste management targets under federal environmental frameworks.

A reliable cardboard baler can make a noticeable difference in a busy logistics operation. For one last-mile delivery company in Chino, California, the need became clear after an earlier investment in used baling equipment failed to deliver the reliability the operation required. Looking for a more dependable solution, the customer turned to ENERPAT and selected an HBA100-110110 aoto cardboard baler for sale for its facility in Chino. The machine was recently installed and commissioned on site, giving the customer a more stable way to handle the large volume of cardboard generated by its daily logistics operations.

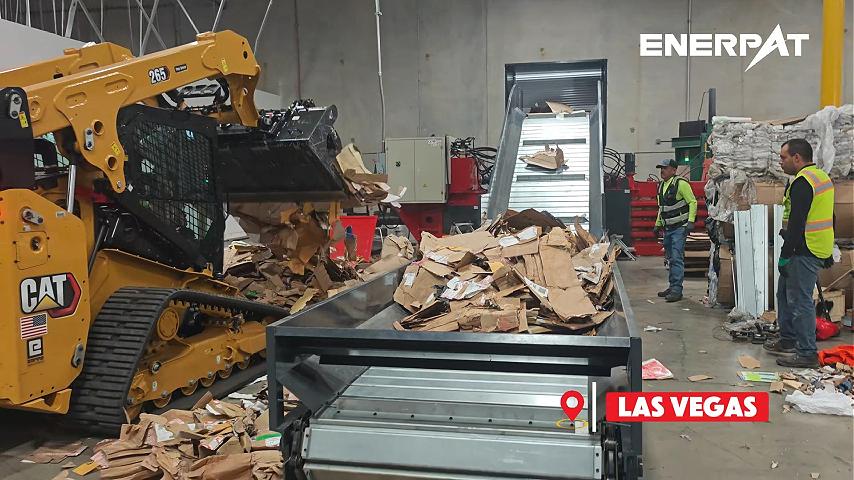

A recycling operator in Las Vegas, Nevada recently upgraded its cardboard processing system with an ENERPAT Auto Cardboard Baler, model HBA100-110110 industrial waste baler. The customer operates a busy recycling center handling large volumes of OCC (old corrugated cardboard) from local warehouses, retail distribution hubs, and hospitality businesses across the Las Vegas area. With increasing inbound material and rising operational pressure, the company needed a more stable and efficient Recycling Center Baler to support daily throughput.

When you operate a plastic recycling plant in Mexico, you already know one thing: efficiency is not optional—it decides your profit. In Jalisco, Mexico, a local plastics recycler was facing exactly this challenge. Their production line was handling large volumes of PET bottles, but the existing system could no longer keep up with demand. The solution came with the installation of the ENERPAT HBM120-110130 Closed Door Horizontal Baler for Plastic, a high-density baler for plastic designed for stable, continuous operation in demanding recycling environments.

As Morocco accelerates its transition toward a circular economy, the demand for high-efficiency cardboard recycling equipment is growing rapidly. Recently, ENERPAT successfully installed an HBA-80-11075 Cardboard Recycling Baler for a professional recycling company located in the Tangier Free Zone,

Efficient, reliable and built for high-volume PET bottle compression—this is what the Dominican Republic customer urgently needed. Facing rising labor costs, overcrowded sorting yards and rapidly increasing PET bottle volumes, the customer searched Google for “pet bottle pressing machine” and found

Managing rising volumes of cardboard, corrugated packaging, and soft plastic waste has become a major operational challenge for recycling companies across Brazil. Recently, a Brazilian recycling enterprise—facing growing labor costs, inefficiency, and a production bottleneck at 2.5 tons per hour—tur

In late 2024, ENERPAT successfully delivered and commissioned a Horizontal Cardboard Compactor and Baler for a packaging company in Singapore—marking another milestone in Southeast Asia’s rapidly growing recycling and waste-handling sector. The customer, a long-established packaging manufacturer, fa

When a recycling company in Norway reached out to ENERPAT searching for a high-capacity Auto Tie Cardboard Baler Compactor, the challenge was clear: labor costs were rising, their aging equipment could no longer maintain the required 12 tons/hour throughput, and loose cardboard, cartons, and plastic

In a major step toward modernizing Mexico’s recycling infrastructure, ENERPAT has successfully installed a Horizontal Paper Compactor Machine at one of its flagship recycling partner sites. Our Mexican customer, a dedicated recycler, was facing escalating labor costs and the limitations of aging mac

As recycling volumes grow across the United States, more facilities are shifting toward fully automated baling systems that can keep pace with the rising flow of cardboard and packaging waste. ENERPAT recently completed the installation of four Auto-Tie Waste Paper Pressing Machines for customers in

Meeting UAE Customers’ Real Needs with the Right Horizontal Carton Baler MachineWhen a corrugated–carton manufacturer in the United Arab Emirates began searching on Google for a carton baler machine that could deliver 2–2.5 tons/hour, they were not simply replacing equipment—they were preparing for

Meeting Colombia's Growing Recycling NeedsA new milestone has been reached in Colombia’s recycling sector as ENERPAT successfully installed a Full Auto Horizontal Cardboard Bundler for a local entrepreneur looking to expand into the recycling business. The customer was seeking an efficient solution

In Morocco, environmental protection and waste management are becoming increasingly critical as cities and industries generate millions of tons of waste annually. A leading Moroccan company in the ecological conservation sector recently faced challenges with scattered cardboard and bulky plastic was

When a major recycling company in Moldova needed to upgrade its outdated baling system, they searched for a high-performance Auto-Tie Paper Baler Machine that could reliably meet a throughput requirement of 6 t/h. After evaluating multiple international suppliers, the company selected ENERPAT's HBA8

Argentina's recycling industry is rapidly shifting toward automation, and ENERPAT has recently completed the installation of an Auto-Tie Cardboard Compactor Baler for a major waste-recycling enterprise in Buenos Aires. This customer—one of the region's fastest-growing commercial recyclers—found us t

In South Africa, one of our long-standing recycling industry clients—a major national-scale enterprise specialising in collection, processing and resale of recovered materials—has further strengthened its partnership with ENERPAT. As exclusive distributor and end-user in the region, this client has

Peru's recycling sector is accelerating fast — driven by growing urban waste volumes, rising packaging consumption, and stronger environmental regulations. Against this backdrop, ENERPAT has become a trusted partner for large recycling operators in Peru. Over the past few years, more than 20 ENERPAT


Our Service
From Material Testing to Installation
Buying an automatic horizontal waste baler is a production decision, not simply a machine purchase.
ENERPAT can support the project through several stages:

FAQ
  • Q1: Can ENERPAT test my material before I purchase a baler?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT can arrange material testing when the material characteristics, bale density or required output need to be verified before machine selection. Customers can provide material samples, photos or videos, along with target bale size and production requirements, so the recommended configuration can be evaluated against the actual application.
  • Q2: Do you have an automatic horizontal baler in stock?
    Created with Sketch.
    形状 Created with Sketch.
    Selected HBA models are available from ENERPAT's Ohio facility for U.S. customers. Stock availability depends on the model and current inventory. If a replacement machine is needed urgently, contact ENERPAT with the required model, material and capacity so current availability and delivery options can be confirmed.
  • Q3: What if my existing baler breaks down and I need a replacement quickly?
    Created with Sketch.
    形状 Created with Sketch.
    For urgent replacement requirements, ENERPAT can check available machines, parts and local service options based on the required capacity and application. Selected models available in Ohio can help reduce lead times for North American customers compared with a new-build machine shipped from overseas.
  • Q4: What warranty does ENERPAT provide?
    Created with Sketch.
    形状 Created with Sketch.
    The HBA Series is covered by a 12-month warranty for the complete machine, while the hydraulic cylinders are covered by a 5-year warranty. Warranty coverage is subject to ENERPAT's standard warranty terms and the agreed project configuration.
  • Q5: Does ENERPAT provide installation and commissioning?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT provides technical support for machine installation, commissioning and operator training. For North American projects, the local team can provide on-site installation and commissioning support according to the project requirements.
  • Q6: Is local after-sales service available in the USA?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT provides local technical and after-sales support in North America, including installation assistance, commissioning, operator training, troubleshooting and spare-parts support. The Ohio facility also supports selected equipment and parts requirements.
  • Q7: Can I get spare parts for the automatic horizontal baler?
    Created with Sketch.
    形状 Created with Sketch.
    Yes. ENERPAT provides OEM spare parts and technical support for HBA Series equipment. When requesting parts, providing the machine model and component information helps the service team identify the required parts more quickly.
  • Q8: What information should I provide when requesting a quotation?
    Created with Sketch.
    形状 Created with Sketch.
    For an accurate recommendation and quotation, provide:
    Material type and photos or videos
    Estimated hourly or daily material volume
    Target bale size and bale weight, if known
    Current feeding method
    Available installation space
    Local power supply
    Delivery country and location
    Whether the requirement is for a new line or replacement of existing equipment
    If the machine is required urgently, also indicate the expected delivery date so available stock and shipping options can be checked.
  • Q9: What happens after I place an order?
    Created with Sketch.
    形状 Created with Sketch.
    Before production or delivery, ENERPAT confirms the machine configuration, technical requirements and project details. Depending on the project, the process can include material testing, equipment preparation, factory testing, shipment, installation, commissioning and operator training.
  • Q10: How can I get a recommendation for the right HBA model?
    Created with Sketch.
    形状 Created with Sketch.
    Send ENERPAT your material type, estimated throughput, target bale specifications and installation requirements. The technical team can then evaluate the suitable HBA configuration, including whether an available stock machine can meet the requirement or whether a customized solution is needed.
