HBA150-110125 Auto-Tie Horizontal Compactor

HBA150-110125 Auto-Tie Horizontal Compactor

The ENERPAT HBA150-110125 Auto-Tie Horizontal Compactor combines 150 tons of pressing force with 2 × 45 kW motors and a 1100 × 1250 mm bale cross-section. OCC bale weight is approximately 1,000–1,300 kg, making it fit for recycling operations.
ENERPAT supports North American customers through a U.S. facility in Galion, Ohio and a U.S. warehouse in Los Angeles, California. Local technical resources are available for equipment selection, material testing, commissioning and after-sales support.


Availability:



Inquire

Model:
HBA
Brand:
ENERPAT

Product Video

Product Overview

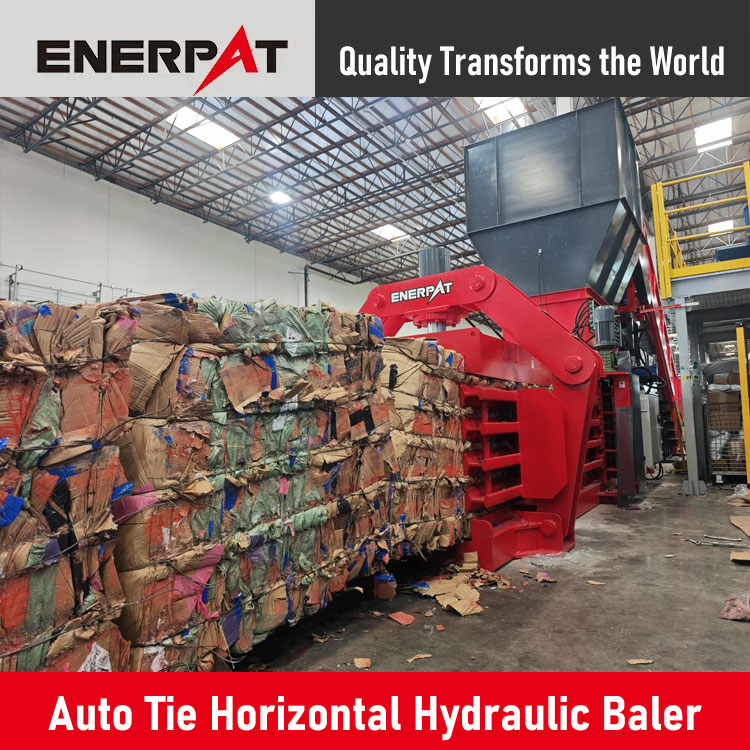

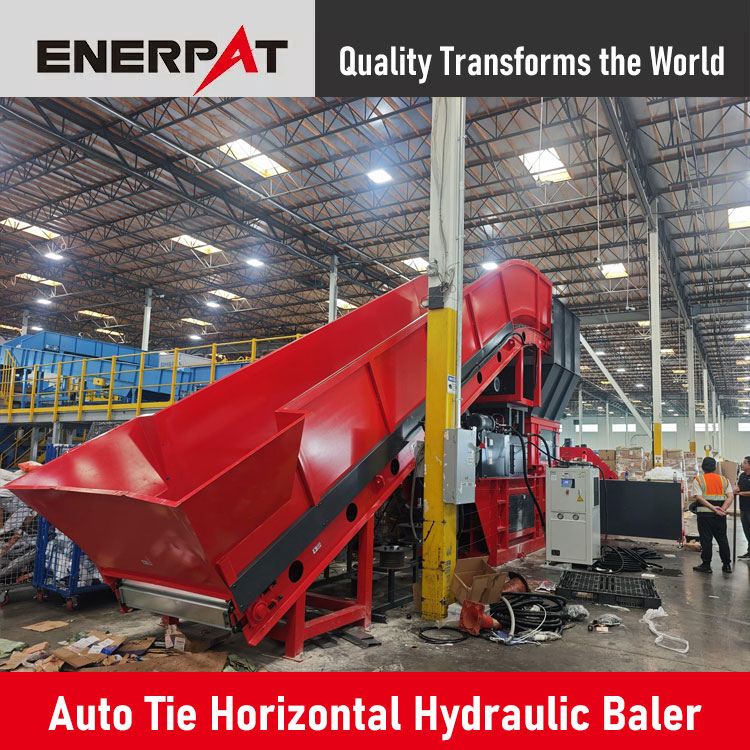

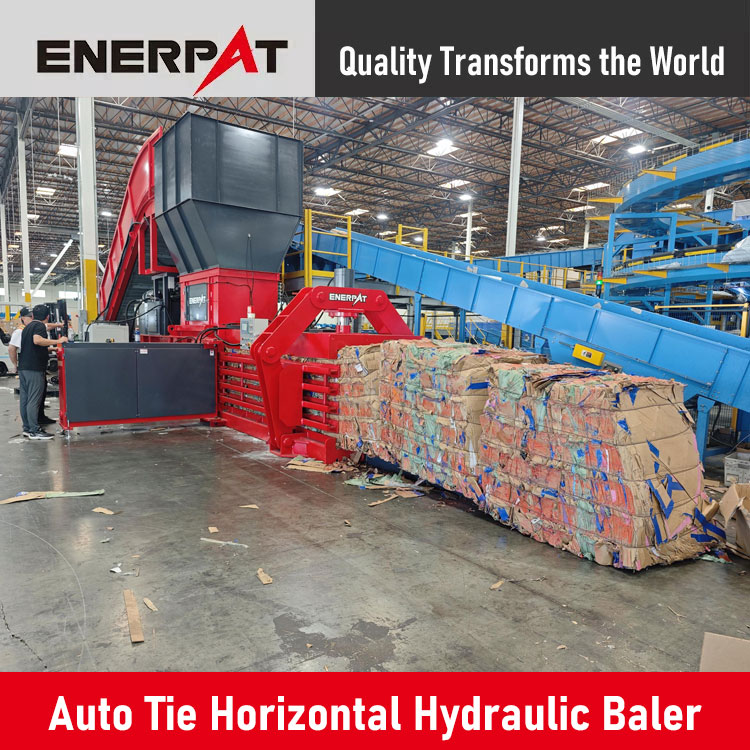

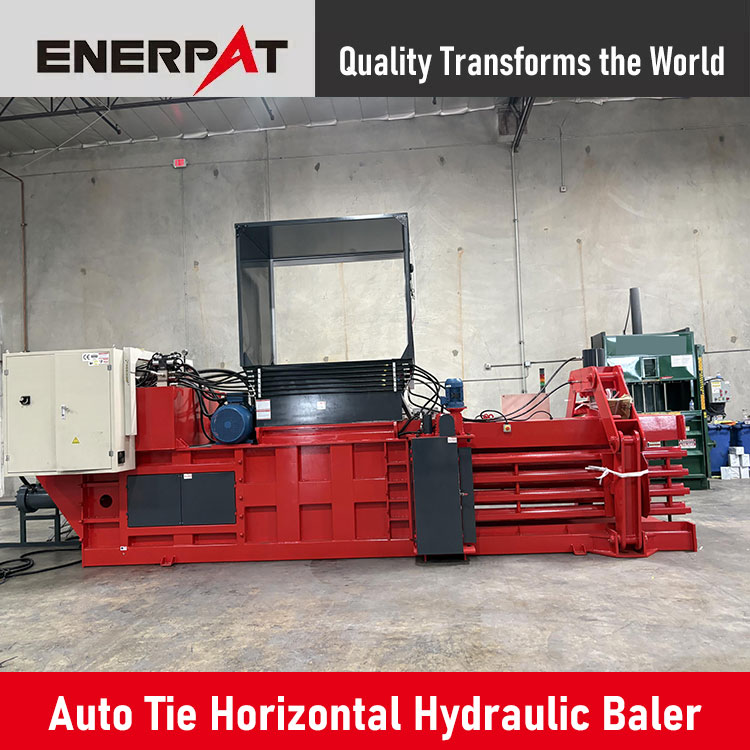

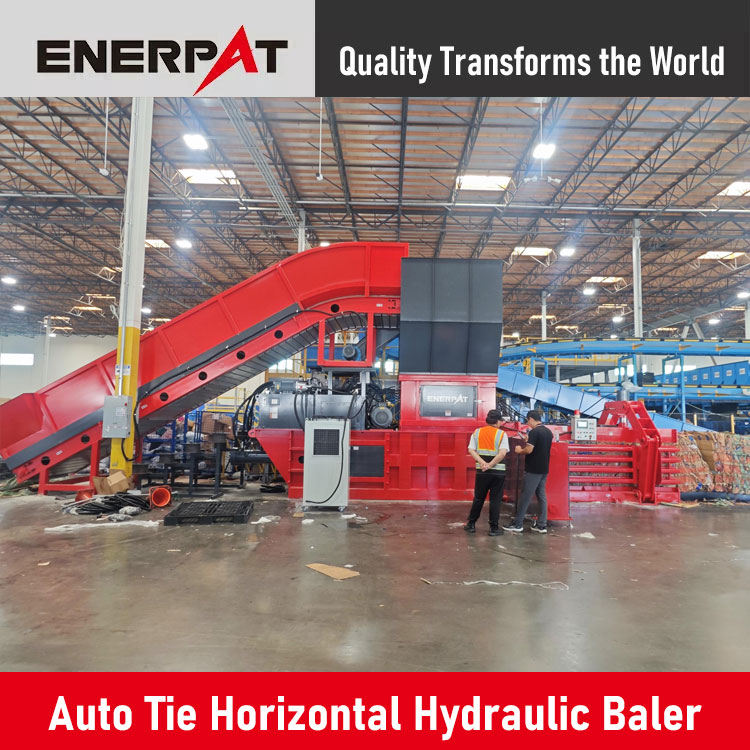

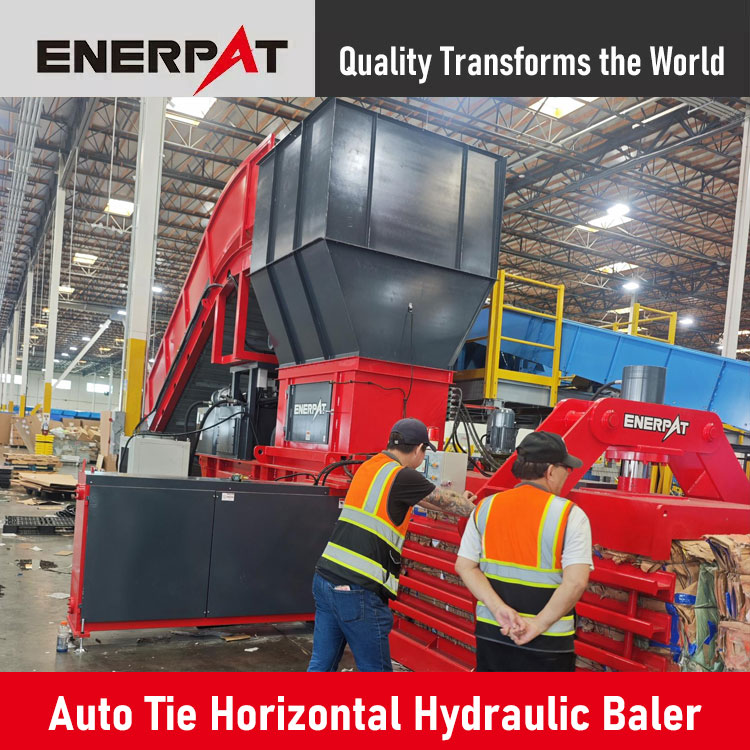

HBA150-110125 Auto-Tie Horizontal Compactor

The HBA150-110125 Auto-Tie Horizontal Compactor combines substantial hydraulic compression with automatic bale tying for continuous recycling applications.

Its three-way compression mechanism helps consolidate the material from multiple directions, while the automatic strapping system finishes the bale once the selected length is reached. This removes a repetitive manual step from the production cycle and keeps the baling line moving.

Composition and Structure

Product Applications

Main applications: industrial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films, woven bags, etc.

Product Details

6 Key Core Advantages

150-Ton Compression with Dual 45 kW Motors

The HBA150-110125 uses a 150-ton pressing system with 2 × 45 kW motors, providing a substantial power configuration for regular industrial recycling operations.
Coordinated Three-Way Compression

Multiple hydraulic cylinders work with the main compression cylinder during the compression cycle. The linked pressure action helps consolidate material and form a more stable bale.
Automatic Tying at the Selected Bale Length

The operator can set the desired bale length, and the automatic tying system completes the strapping cycle once that length is reached. This reduces manual tying and helps maintain a more consistent production rhythm.

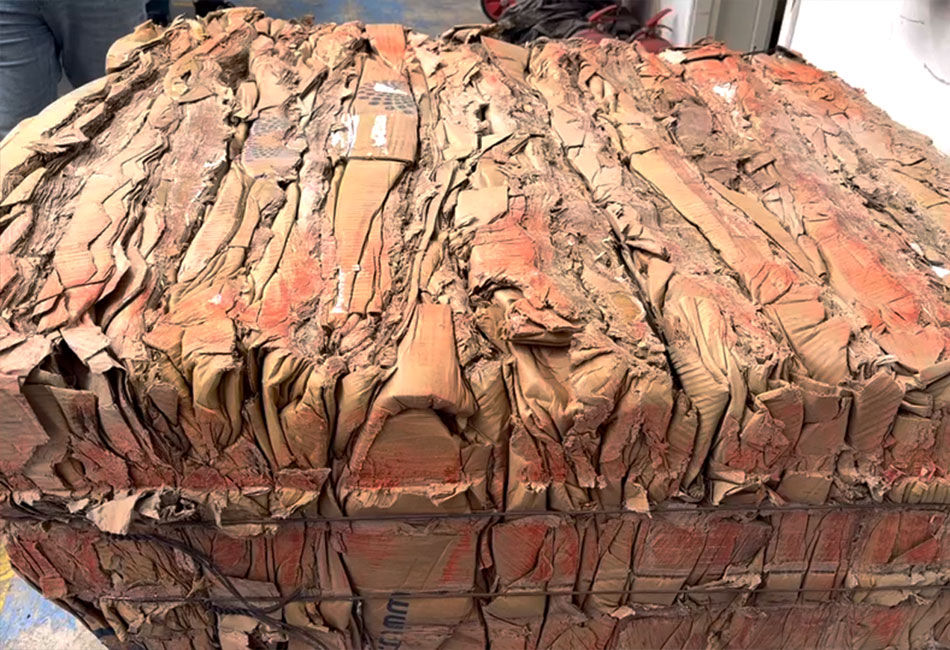

1,000–1,300 kg OCC Bale Weight

For OCC, the HBA150-110125 produces bales weighing 1,000–1,300 kg, with a 1100 × 1250 mm bale cross-section for downstream handling and storage.
Cooled Hydraulic System for Long Working Hours

The hydraulic circuit uses a European design with internationally recognized valves and pumps. An air-conditioning cooling system is designed to support 24/7 operation, helping control hydraulic temperature during extended production runs.
Siemens PLC and Schneider Electrical System

The electrical control platform combines Schneider main electrical components with a Siemens PLC. The system follows European CE design requirements and provides automated control for daily baling operations.

SUBMIT

Design & Product Story

Automation is most useful when it removes repetitive work that would otherwise slow down the line. The HBA150-110125 Horizontal Compactor combines bale formation and bale tying into a single process. The three-way hydraulic mechanism forms the bale. With 150 tons of pressing force, dual 45 kW motors, hydraulic cooling and PLC control, the HBA150-110125 is designed for recyclers looking for an automated horizontal baling system with a substantial but balanced configuration.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio and California ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Auto-Tie Horizontal Compactor.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Auto-Tie Horizontal Baler Machine is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Auto-Tie Horizontal Compactor running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

01. Can ENERPAT Test My Material Before I Buy?

Yes. ENERPAT provides sample testing and reports before equipment selection. Customers can submit material samples or other relevant information for engineering evaluation.
02. Is the HBA150-110125 Horizontal Compactor Available in the U.S.?

ENERPAT has a U.S. facility in Galion, Ohio and a U.S. warehouse in Los Angeles, California. Selected models may be available from U.S. inventory, subject to current stock and configuration.
03. What Warranty Does ENERPAT Provide?

ENERPAT provides a 1-year complete-machine warranty and a 5-year hydraulic-cylinder warranty. The equipment also follows a European CE design standard.
04. Does ENERPAT Provide Installation and Training?

Yes. ENERPAT provides commissioning support and operator training, with technical personnel available to assist with equipment setup, operation and maintenance.
05. What Happens If a Spare Part Needs to Be Replaced?

ENERPAT uses internationally recognized components and provides spare-parts and technical support. This helps make replacement and maintenance more manageable for overseas customers.

Technical Data Sheet

Model	HBA150-110125
Press Force (tons)	150
Motor Power (kw)	2 x 45
Bale Size	1100 x 1250 x L mm 43.31 × 49.21 × L in
Bale Weight (OCC)	1000-1300 kg 2204.62-2866.01 lb
Machine Size	10050 × 4100 × 4910 mm 419.29×161.42×192.91 in
