Waste Cardboard Baler Service and Expansion Planning in the UAE

On October 19, 2026, ENERPAT's sales and service team visited a packaging manufacturing facility in Ras Al Khaimah, UAE, to review the operation of its HBA40-7272 waste cardboard baler and discuss plans for a higher-capacity cardboard recycling line. The existing equipment is used to compact cardboard offcuts generated during packaging production, helping the facility manage its daily waste stream.

The customer was satisfied with the equipment's overall performance. During the visit, ENERPAT reviewed several operating details, documented requests for improved material containment and machine safety, and discussed the technical requirements for a planned production expansion.

For manufacturers handling cardboard waste around the clock, a reliable Waste Cardboard Baler is an important part of an efficient recycling workflow. ENERPAT's visit focused on both the continued operation of the existing machine and the design of a future system capable of handling increased waste volumes.

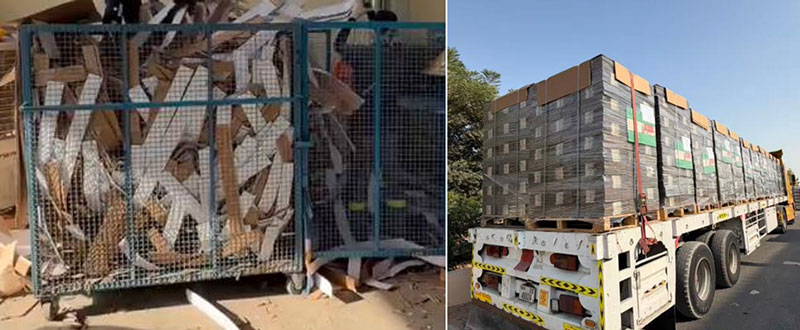

1. Existing Cardboard Waste Handling Process

The customer currently operates a packaging production line with an output of approximately 70 tonnes of finished packaging per day. Cardboard offcuts are generated throughout production and need to be collected, reduced in size where necessary, and compacted for easier handling.

The existing material handling process uses two routes:

• Smaller cardboard offcuts: Conveyed directly to the horizontal baler through a pneumatic conveying system.

• Larger cardboard offcuts: Cut to a suitable size, manually fed into a cardboard shredder, and then conveyed by air to the baler.

The ENERPAT HBA40-7272 horizontal cardboard baler handles the baling stage of this process. Under normal operating conditions, the customer reported bale weights of approximately 250–300 kg and expressed satisfaction with the machine's overall performance.

The site visit was therefore not prompted by a major equipment failure. Instead, it provided an opportunity to review specific operating concerns and prepare for the customer's planned increase in production capacity.

2. On-Site Service: Operating Performance and Safety

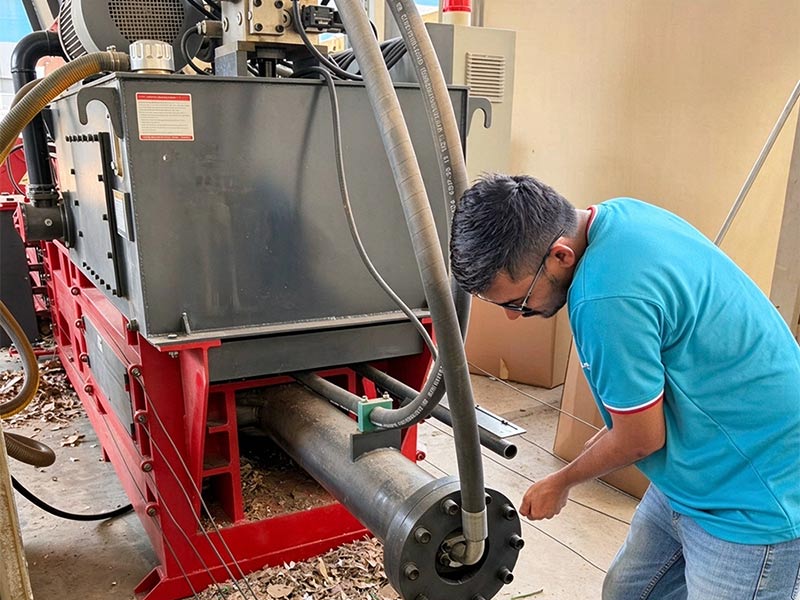

ENERPAT's service engineer met with the customer's technical team to inspect the equipment and record the issues identified during operation.

Bale Weight Consistency

The customer reported an occasional reduction in bale weight. While normal bales weigh approximately 250–300 kg, an intermittent issue involving a hydraulic cylinder was reported roughly once every two weeks. On these occasions, bale weight could fall to around 150 kg.

The issue was documented for further technical investigation. ENERPAT will review the hydraulic cylinder operation and relevant control sequence to identify the cause and determine an appropriate corrective action.

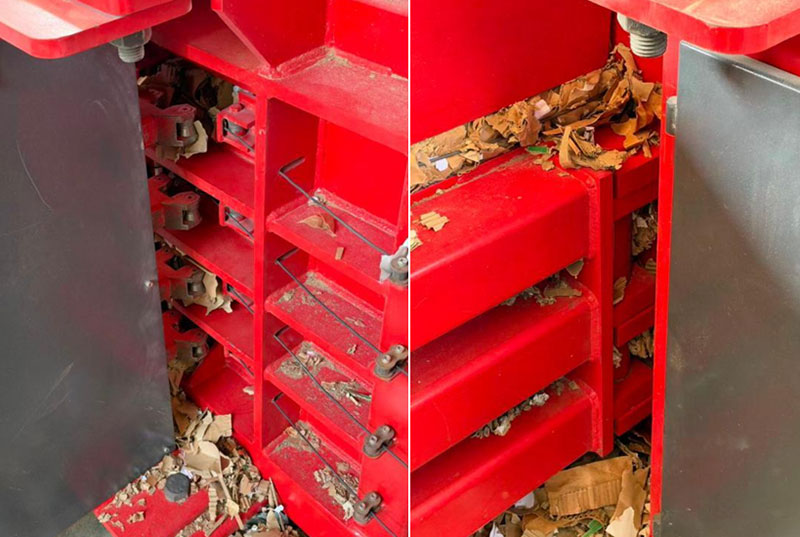

Material Leakage Around the Tying Mechanism

Cardboard material can escape around the wire-tying mechanism during operation. The customer requested improvements to help retain material within the working area.

ENERPAT will review the relevant openings and guarding arrangement before recommending a suitable modification.

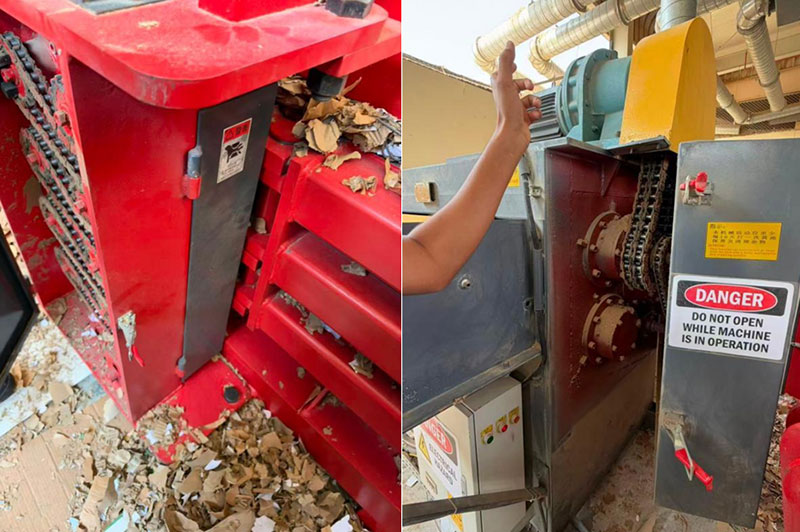

Machine Guarding and Operator Safety

The customer also highlighted safety concerns around moving components and access to the cardboard shredder.

The requested improvements include:

• Reviewing accessible conveyor and drive components where operators could come into contact with moving parts.

• Evaluating suitable guards and interlocked access protection for relevant machine areas.

• Adding protective measures around the cardboard shredder feed opening to discourage operators from climbing onto the equipment.

• Investigating material leakage from the rear of the equipment and identifying an appropriate containment solution.

These requests will be reviewed with ENERPAT's technical team. The final design will consider machine layout, maintenance access, operating procedures, and appropriate safeguarding measures. Any access guard requiring an interlock must be integrated with the relevant machine safety controls.

The objective is to address the customer's concerns through practical engineering improvements while maintaining convenient operation and maintenance access.

3. Planning a Higher-Capacity Waste Cardboard Baler Line

In addition to reviewing the existing machine, ENERPAT discussed the customer's planned packaging production expansion.

The customer is considering adding two packaging production lines in 2027, followed by three more in 2028. The existing line may eventually be taken out of service or sold, depending on the expansion schedule.

As production capacity increases, the cardboard waste handling system will need to accommodate the combined material flow from multiple production lines.

The customer's long-term target is to process approximately 40–50 tonnes of waste cardboard per day, with a desired baling throughput of 2–3 tonnes per hour.

To achieve this target, the proposed system will need to coordinate material collection, size reduction, conveying, dust control, and hydraulic baling.

Key Equipment and Design Requirements

Customized infeed conveyor

The conveyor must match the dimensions and discharge pattern of the customer's cutting equipment. Since material is directed towards the centre of the conveyor from both sides, the design must help prevent cardboard offcuts from bouncing or falling outside the conveying surface.

Cardboard shredder with pneumatic conveying

The customer requires a cardboard shredder connected to a fan-assisted conveying system. The customer plans to supply the conveying ductwork, so the equipment connections and layout must be coordinated during engineering.

Dust collection system

A dust collection solution is also required. The customer specifically requested a liquid-based system, which will need to be evaluated against the material characteristics, airflow requirements, installation conditions, and maintenance needs before the final equipment is selected.

Horizontal hydraulic baler

The new baler is expected to deliver 2–3 tonnes per hour. The existing machine will remain in use initially while the new line is prepared.

The requested project schedule is delivery in March 2027, installation and commissioning in April, and full production in June. These dates remain subject to technical confirmation and project coordination.

One-year spare parts package

The customer requested a recommended stock of wear parts and consumables for the first year of operation. ENERPAT will prepare a parts list based on the final equipment configuration, anticipated operating hours, and maintenance requirements.

The proposed system will be designed around the customer's site layout and long-term capacity target, with particular attention to material flow, operator safety, and integration between individual machines.

4. Choosing the Right Cardboard Baling Solution

A suitable cardboard baler machine needs to match the volume of waste generated, the condition of the material, the required bale weight, and the available installation space. For continuous packaging operations, the baler must also integrate effectively with upstream conveying and size-reduction equipment.

An Auto Tie Horizontal Hydraulic Baler combines hydraulic compression with automatic bale tying, helping reduce manual handling during bale securing. When integrated with suitable infeed and conveying equipment, it can support a more continuous cardboard recycling process.

For businesses comparing a cardboard crusher baler, the important consideration is whether they need a single machine or a coordinated system. Shredding and baling perform different functions: a cardboard shredder reduces oversized material, while the baler compacts the prepared cardboard into dense, manageable bales.

A system combining these functions may be appropriate when incoming cardboard dimensions or feeding conditions require size reduction before baling. The final arrangement should be selected according to the material characteristics, throughput target, and site requirements.

The term cardboard bundler is also used in some searches for equipment that gathers and secures cardboard into compact bundles. For industrial recycling operations processing substantial volumes of packaging waste, a hydraulic cardboard baler is generally the more relevant equipment category to evaluate.

For this UAE project, the priority is to achieve the target throughput of 2–3 tonnes per hour while preparing for future production expansion. ENERPAT will review the customer's site drawings and confirm the proposed shredder, conveyor, conveying system, dust collection equipment, and baler configuration before finalizing the technical proposal.

5. ENERPAT Overseas Service and Project Support

This visit addressed two connected priorities: maintaining the performance of the existing HBA40-7272 and preparing for the customer's next stage of production growth.

ENERPAT's sales representative and service engineer reviewed the machine with the customer's technical team, documented operating concerns, and discussed the requirements for the next cardboard recycling line.

The follow-up work will include:

• Reviewing the intermittent bale-weight issue and reported hydraulic cylinder behaviour.

• Evaluating material leakage points and requested safety improvements.

• Developing a new line proposal based on the customer's site drawings and target throughput.

• Preparing technical documentation and a recommended one-year spare parts package.

• Inviting the customer to visit ENERPAT's manufacturing facility in China for an equipment and solution review.

The new line remains at the planning stage. Its final configuration, delivery schedule, and commissioning arrangements will be confirmed after the technical review and proposal process.

6. A Waste Cardboard Baler Solution for Future Production Growth

For packaging manufacturers operating at high capacity, cardboard waste handling must keep pace with production while supporting safe, efficient material movement.

ENERPAT's on-site visit in Ras Al Khaimah provided an opportunity to review the existing HBA40-7272, document operating and safety improvement requests, and begin planning a higher-capacity cardboard recycling system.

From servicing an installed Waste Cardboard Baler to engineering an integrated recycling line, ENERPAT works with customers to develop practical solutions based on actual material flow, operating conditions, and future capacity requirements.

Looking for a Waste Cardboard Baler for your packaging facility? Contact ENERPAT to discuss cardboard baler machine selection, automatic tying options, system integration, and technical support for your next recycling project.
