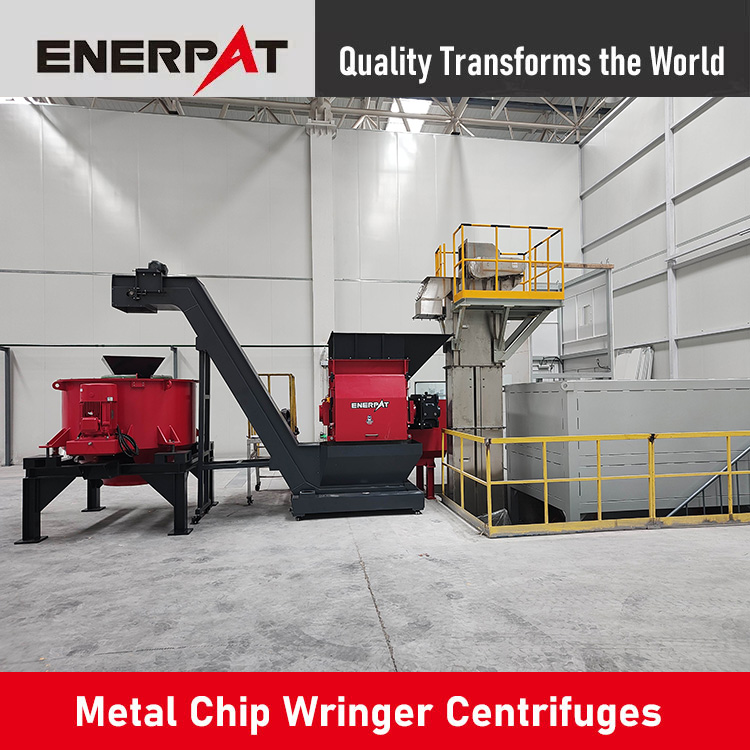

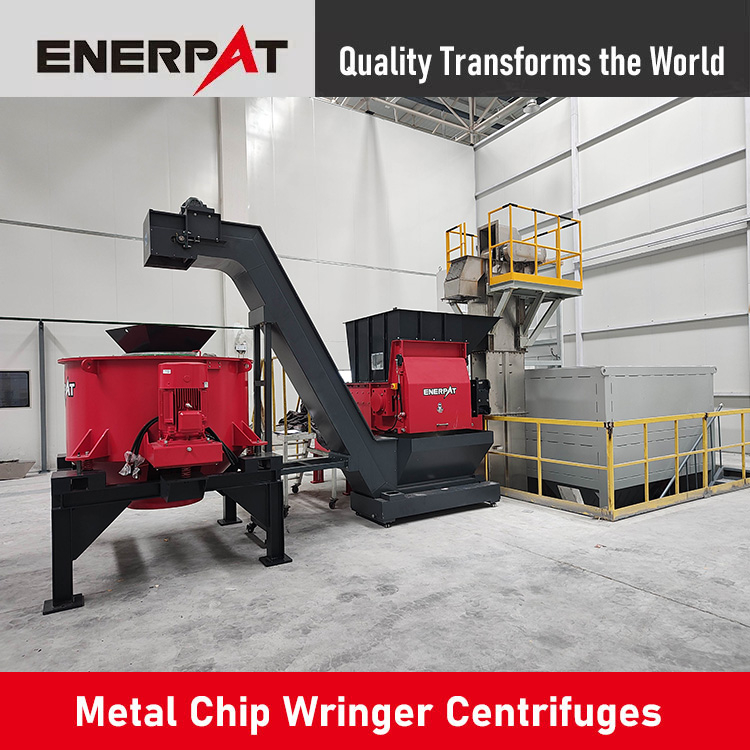

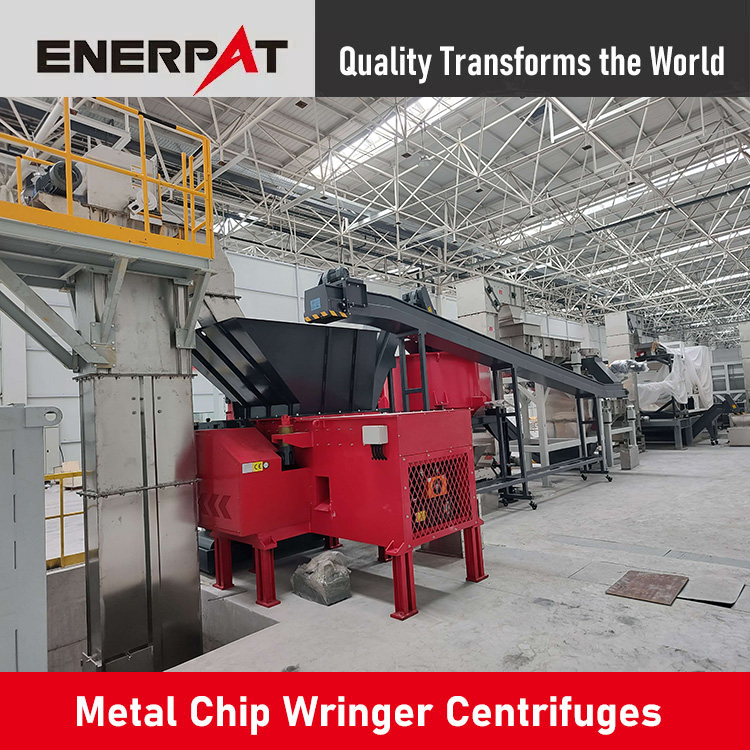

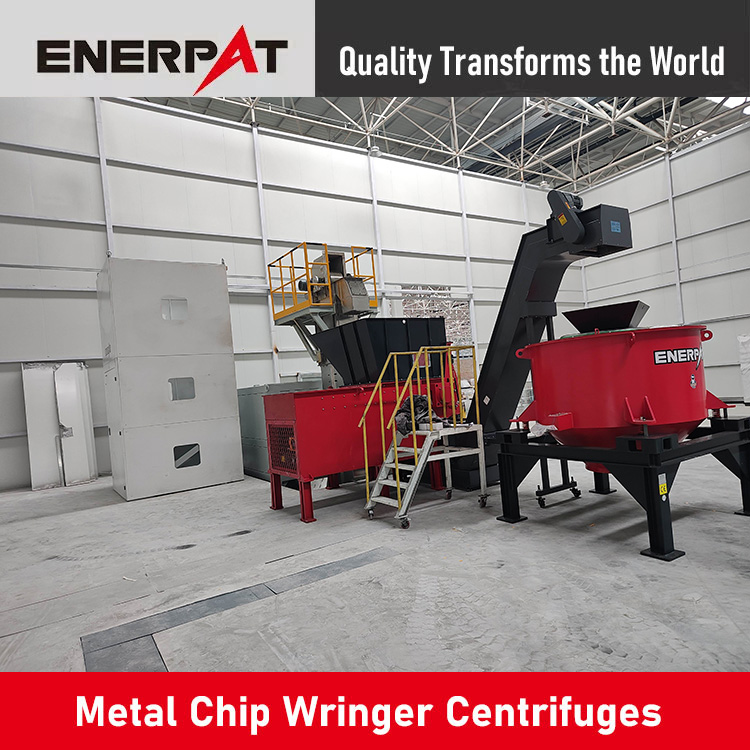

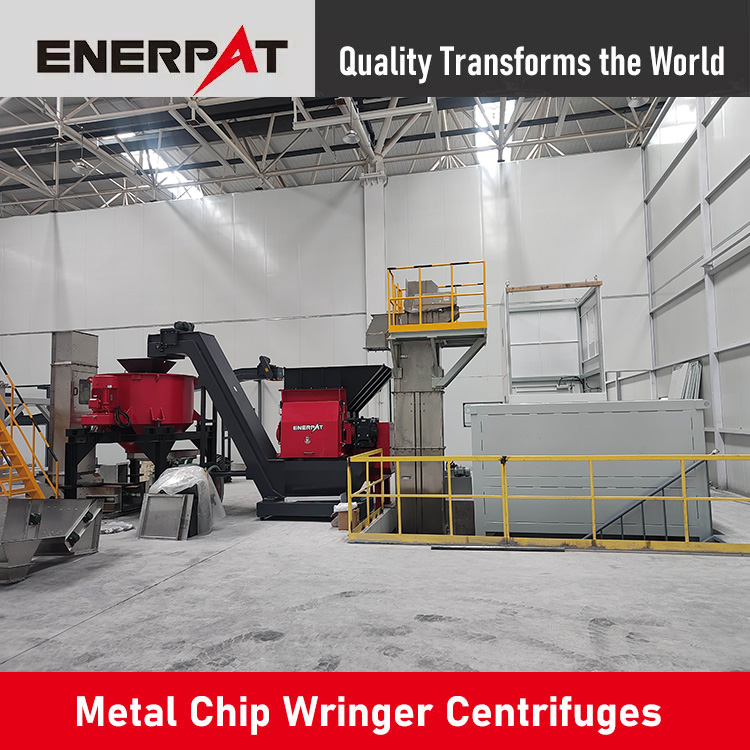

ENERPAT ED-1000 Industrial Centrifuge Machine

ENERPAT ED-1000 Industrial Centrifuge Machine

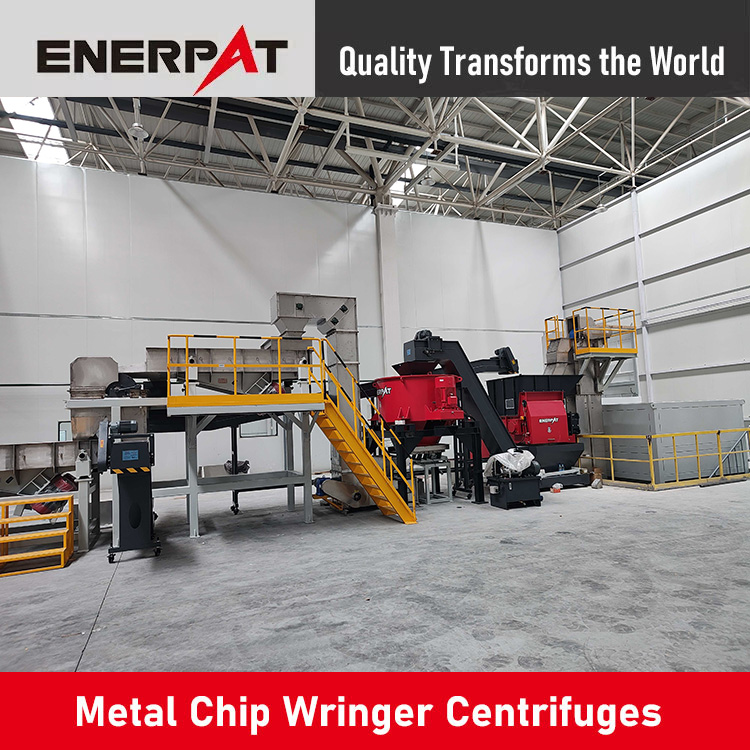

The ED-1000 Industrial Centrifuge Machine is the largest configuration in the ED Series for industrial metal-chip de-oiling applications.
It features a φ1000 mm drum, a 15 + 5.5 kW motor configuration and a maximum speed of 975 r/min, providing a large-scale centrifugal system for separating cutting oil and coolant from metal chips.
The machine is positioned for industrial projects requiring a larger processing configuration and stable long-term operation.


Availability:



Inquire

Model:
ED
Brand:
ENERPAT

Product Video

Watch the ED-1000 Industrial Centrifuge Machine Video

The video demonstrates the ED-1000 performing centrifugal solid-liquid separation on metal chips. Chips enter the large drum and rotate at high speed, allowing cutting oil and coolant to separate from the solids. The liquid is collected while the de-oiled chips are discharged hydraulically.

Product Description

ED-1000 Industrial Centrifuge Machine

ENERPAT ED-1000 Industrial Centrifuge Machine

The ED-1000 separates oil and coolant from machining chips through high-speed centrifugal force.

Its large-diameter drum provides a substantial processing space, while hydraulic unloading allows the processed chips to be discharged after separation.

The machine is suitable for industrial metal processing, recycling and resource applications.

Composition and Structure

MATERIALS HANDLED

Applicable materials(1)

Product Details

8 Key Core Advantages

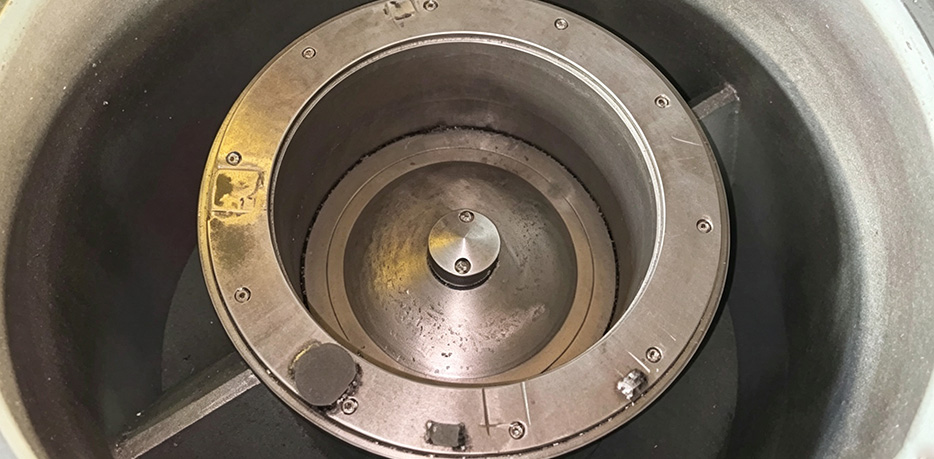

φ1000 mm Large-Diameter Drum

The ED-1000 features a φ1000 mm centrifugal drum, providing ample processing space for high-volume metal-chip de-oiling.
15 + 5.5 kW Power Configuration

The 15 + 5.5 kW drive configuration provides reliable power for large-scale processing, with a maximum centrifugal speed of 975 r/min.
97%+ Oil Removal Rate

The centrifugal process achieves an oil removal rate of 97% or higher, helping reduce oil and coolant carried with processed metal chips.

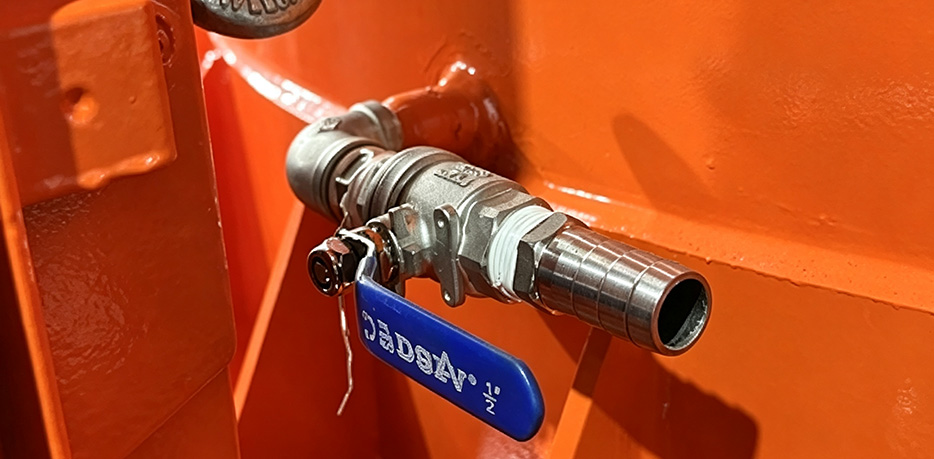

Hydraulic Automatic Discharge

The hydraulic discharge system automatically unloads processed chips and accommodates different shapes, sizes, and weights for efficient material handling.
PLC-Based Process Control

The PLC control system enables operators to manage key operating parameters and adjust the de-oiling process according to different material conditions.
Vibration Monitoring & Isolation

Integrated vibration monitoring measures help control operating vibration and protect the machine during high-speed processing.
Even Chip Distribution

The feed-in spreading device distributes incoming metal chips more evenly inside the drum, helping reduce material piling and maintain a smoother processing flow.
Stainless Steel Wedge-Wire Screen

The stainless steel wedge-wire screen provides reliable liquid-solid separation, while its open-slot structure helps reduce clogging.

SUBMIT

Design & Product Story

Large machining and recycling operations may generate substantial volumes of oil-contaminated metal chips. A de-oiling system therefore needs to provide not only effective separation but also stable mechanical performance over extended operation. The ED-1000 combines a φ1000 mm drum with centrifugal separation, automatic unloading, PLC control and vibration protection in one industrial configuration. For projects requiring chips to be de-oiled before baling, melting or reuse, the ED-1000 provides a large-scale equipment platform for metal-chip treatment.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Metal Chip Wringer.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Industrial Centrifuge Machine is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Industrial Centrifuge Machine running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

Q1: Can ENERPAT Test My Metal Chips Before I Buy the ED-1000?

Yes. You can provide metal chip samples, photos, videos or specifications. ENERPAT engineers will evaluate the material and recommend a suitable configuration.
Q2: What Types of Metal Chips Can the ED-1000 Process?

The ED-1000 is suitable for metal chips from machining centers, lathes, milling machines and grinding machines. The documented material size range is 3–50 mm.
Q3: How Effective Is the ED-1000 at Removing Cutting Oil and Coolant?

The ED-1000 uses centrifugal separation to remove cutting oil and coolant from metal chips, with an oil removal rate of 97% or higher and approximately 3% residual oil.
Q4: Why Choose the ED-1000 for My Application?

The ED-1000 features a φ1000 mm centrifugal drum, 15 + 5.5 kW motor configuration and 975 r/min maximum speed, making it suitable for industrial metal-chip de-oiling applications.
Q5: Does ENERPAT Provide Installation and After-Sales Support?

Yes. ENERPAT provides installation, operator training, commissioning, spare-parts support and ongoing technical service.

Technical Data Sheet

Model	ED-1000
Chamber Diameter (mm)	φ1000
Oil Content Rate	3%-5%
Motor Power (kw)	15 + 5.5
Maximum Speed (r/min)	975
Material Size (mm)	3-50
Machine Size (mm)	2500x1880x2200 mm
