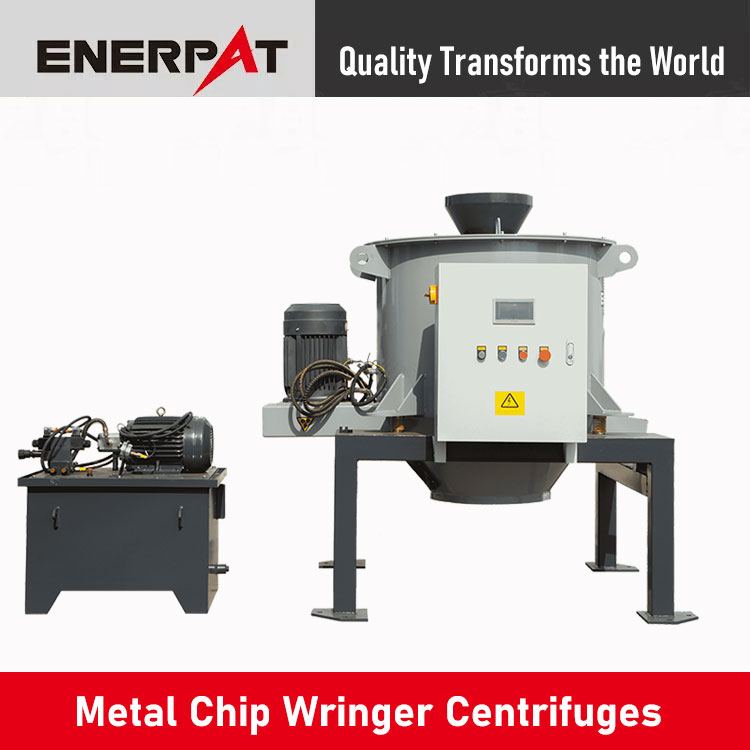

ENERPAT ED-400 Metal Chip Wringer

The ENERPAT ED-400 Metal Chip Wringer is a compact centrifugal de-oiling machine designed to remove cutting oil and coolant. Using high-speed centrifugal separation, the ED-400 achieves an oil removal rate of 97% or higher, leaving approximately 3% residual oil. It features a φ400 mm drum, 4 kW motor and maximum speed of 1200 r/min, and is designed for metal chips in the 3–50 mm size range.


Availability:



Inquire

Model:
ED
Brand:
ENERPAT

Product Video

Watch the ED-400 Metal Chip Wringer Video

The video demonstrates the ED-400 processing oily metal chips through a high-speed centrifugal de-oiling cycle.

Metal chips enter the drum, where rotational force separates cutting oil and coolant from the solid material. The separated liquid is collected, while the processed chips are discharged automatically for subsequent handling.

Product Description

ENERPAT ED-400 Metal Chip Wringer

The ED-400 separates cutting oil and coolant from metal chips through centrifugal force generated by high-speed drum rotation.

The machine is suited to chips produced by machining centers, lathes, milling machines and grinding machines. By reducing residual liquid content, it prepares the chips for downstream baling, melting, recycling or reuse.

Composition and Structure

MATERIALS HANDLED

Applicable materials(1)

Product Details

9 Key Core Advantages

97% High Efficient Oil Removal

Centrifugal separation effectively removes oil and coolant from metal scraps, achieving an oil removal rate of 97% or higher.
1200 r/min High-Speed Centrifugation

Strong centrifugal force promotes solid-liquid separation and improves de-oiling efficiency.
Upgraded Bearing Combination

Roller and angular contact ball bearings accommodate slight movement, reduce wear, and extend product service life.
Built-In Automatic Lubrication

Continuous bearing lubrication reduces friction while lowering maintenance requirements.
PLC Touchscreen Control

Discharge time and drying intensity can be easily adjusted for steady operation.
Hydraulic Automatic Discharge

Handles metal chips of different shapes, sizes, and weights for smooth discharge.
Anti-Clogging Material Spreading

Distributes chips to prevent bridging, piling, and blockages.
Wear-Resistant, Clog-Resistant Screen

The stainless steel screen resists corrosion and clogging, while the wear-resistant liner reduces impact damage.
Low-Vibration & Safe Maintenance

The vibration protection system helps with stable operation, while the inspection port, viewing window, and safety interlock simplify maintenance and improve safety.

SUBMIT

Design & Product Story

Metal chips from machining often carry cutting oil and coolant, creating additional handling requirements before recycling or further processing.
The ED-400 was developed to centrifugal separation and automated discharge. Its feeding, de-oiling and unloading functions work together to provide a streamlined chip-processing workflow.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Metal Chip Wringer.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Metal Chip Wringer is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Metal Chip Wringer running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

Q1: Can I Send My Metal Chips for Testing?

Yes. ENERPAT provides material sample testing for metal chips before equipment selection. You can send samples for testing, and we can evaluate the chip shape, size, oil or coolant content and processing characteristics. Test results can be used to recommend a suitable de-oiling solution.
Q2: Can the ED-400 Process Long Metal Chips?

It depends on the material condition. If the chips are long, stringy or contain a high proportion of elongated pieces, they should generally be shredded or broken into a more uniform size before de-oiling. This helps prevent bridging or material blockage inside the wringer and supports more stable operation. ENERPAT can assess your samples and recommend pre-processing equipment when required.
Q3: Is the ED-400 Metal Chip Wringer Available from Stock?

Availability depends on the production schedule and current inventory. Contact ENERPAT with your required model and delivery location to confirm current stock status and the estimated shipping date.
Q4: How Does ENERPAT Ensure Equipment Quality?

ENERPAT provides equipment inspection and testing before shipment. Key components and machine functions are checked according to the equipment specifications, and customers can receive testing information and technical documentation as applicable.
Q5: What About Delivery and After-Sales Support?

ENERPAT coordinates equipment production, inspection, packaging and shipment according to the project schedule. After delivery, technical support is available for installation, commissioning, operation and troubleshooting. For projects requiring additional assistance, ENERPAT can also provide technical guidance based on the customer's material and processing conditions.

Technical Data Sheet

Model	ED-400
Chamber Diameter (mm)	φ400
Oil Content Rate	3%-5%
Motor Power (kw)	4
Maximum Speed (r/min)	1200
Material Size (mm)	3-50
Machine Size (mm)	1600×1400×1600
