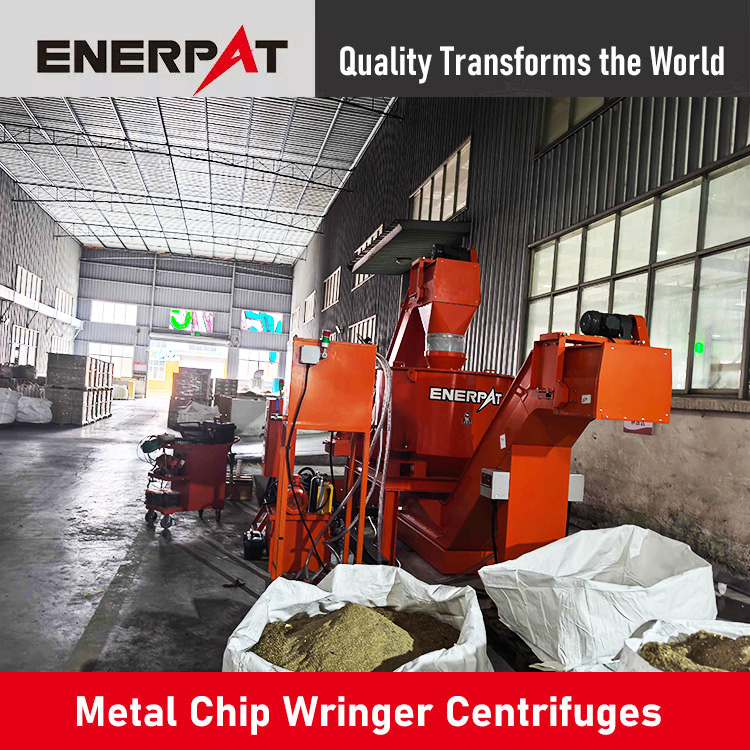

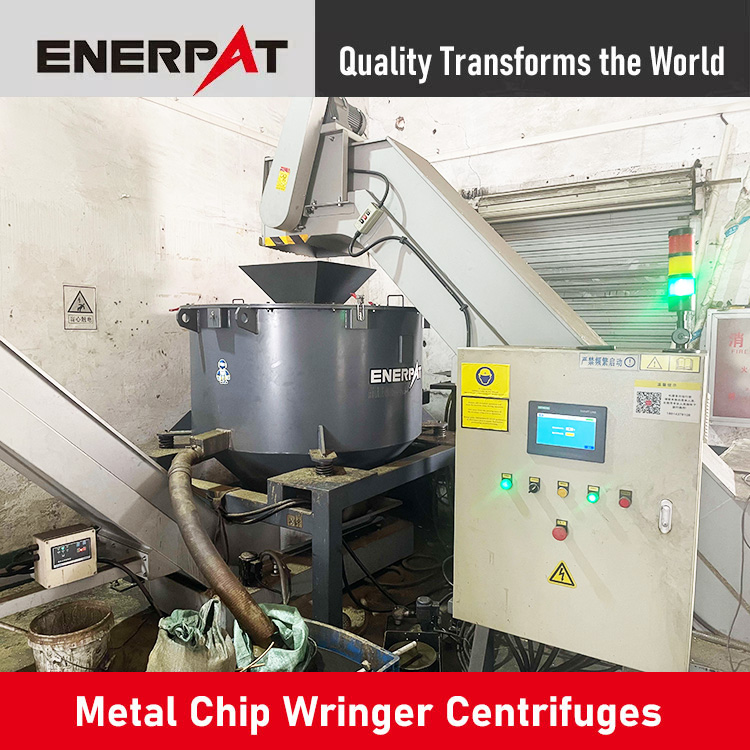

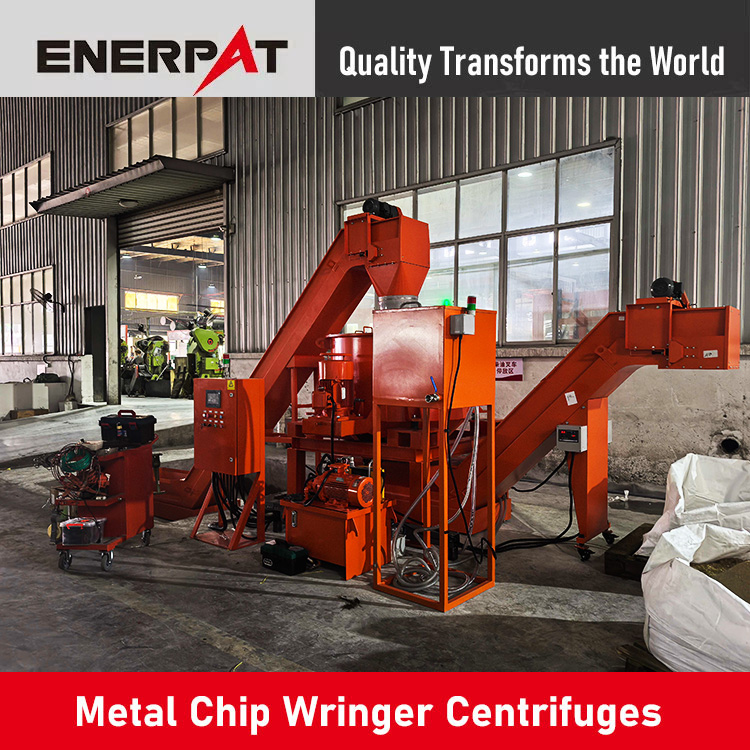

ENERPAT ED-800 Metal Chip Spinner

The ENERPAT ED-800 Metal Chip Spinner is a high-speed centrifugal de-oiling machine designed for industrial metal-chip processing.
It features a φ800 mm drum, 7.5 kW motor and maximum speed of 1200 r/min, providing centrifugal separation for cutting oil and coolant carried by machining chips.
The upgraded ED-800 further introduces a heavy-duty bearing combination, built-in self-lubrication and improved service access with a safety interlock, strengthening durability, maintenance convenience and operator safety.


Availability:



Inquire

Model:
ED
Brand:
ENERPAT

Product Video

Watch the ED-800 Metal Chip Spinner Video

The video shows the ED-800 separating cutting oil and coolant from metal chips through high-speed centrifugal rotation.

After separation, the processed chips are discharged hydraulically. The upgraded model adds bearing, lubrication and inspection improvements to support long-term industrial use.

Product Description

ENERPAT ED-800 Metal Chip Spinner

The ED-800 performs centrifugal de-oiling of metal chips using high-speed rotational force.

Its larger drum configuration provides substantial processing space, while the upgraded mechanical structure is designed to better support long-term centrifugal operation.

Composition and Structure

MATERIALS HANDLED

Applicable materials(1)

Product Details

7 Key Core Advantages

Upgraded Heavy-Duty Bearing System

The ED-800 combines roller bearings with angular contact ball bearings to accommodate slight drum movement while handling both radial and axial loads. This upgraded design improves stability during high-speed centrifugal operation and supports reliable long-term performance.
Built-In Self-Lubrication System

The ED-800 features a lubrication system that continuously supplies lubricant to moving components. This helps reduce dry friction, minimize wear and decrease the need for frequent manual maintenance.
Visual Service Access Design

A service access port and viewing window make routine inspection and maintenance easier. Operators can check internal conditions more conveniently without unnecessary disassembling, improving daily efficiency.
φ800 mm High-Speed Centrifugal System

The ED-800 is equipped with a φ800 mm centrifugal drum, a 7.5 kW motor and a maximum speed of 1200 r/min. The high-speed centrifugal system provides stable processing performance for metal chip de-oiling applications.
Even Material Distribution Inside the Drum

The built-in material spreading device distributes incoming metal chips evenly inside the drum. This helps maintain a balanced material flow and supports more consistent centrifugal processing results.
Wear-Resistant Inner Liner Protection

The ED-800 uses a high-wear-resistant liner to protect the drum wall from repeated impact caused by metal chips. This design helps reduce internal wear and improves durability during continuous operation.
Hydraulic Automatic Discharge System

The hydraulic discharge plate automatically unloads processed metal chips. It is designed to handle different chip shapes, sizes and weights, making material removal more convenient and efficient.

SUBMIT

Design & Product Story

Long-term centrifugal operation places continuous demands on bearings, lubrication and service accessibility. The bearing combination is designed for radial and axial loading, while the self-lubrication system reduces dry-running risk. The service opening, viewing window and safety interlock further simplify inspection and improve safety.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Metal Chip Wringer.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Metal Chip Spinner is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Metal Chip Spinner running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

Q1: Can ENERPAT Test My Metal Chips Before I Buy the ED-800?

Yes. ENERPAT provides material testing before equipment selection. Our engineers can assess the material type, size and processing conditions and recommend a suitable ED-800 configuration based on your requirements.
Q2: What Types of Metal Chips Can the ED-800 Process?

The ED-800 is designed for metal chips generated by machining centers, lathes, milling machines and grinding machines. The documented material size range is 3–50 mm.
Q3: How Effective Is the ED-800 at Removing Cutting Oil and Coolant?

The ED-800 uses high-speed centrifugal separation to remove cutting oil and coolant from metal chips. The equipment is designed to achieve an oil removal rate of 97% or higher, with a residual oil content of approximately 3%. The actual result is based your real usage operation.
Q4: What Is Upgraded on the New ED-800, and How Does It Affect Maintenance?

The upgraded ED-800 uses a combination of spherical roller bearings and angular contact ball bearings to accommodate slight movement of the centrifugal drum and handle radial and axial loads. In addition, the new service makes routine inspection and minor maintenance more convenient.
Q5: Does ENERPAT Provide Installation, Training and After-Sales Support for the ED-800?

Yes. ENERPAT provides installation, commissioning and operator training, including material testing, technical solutions, spare-parts support and technical help.

Technical Data Sheet

Model	ED-800
Chamber Diameter (mm)	φ800
Oil Content Rate	3%-5%
Motor Power (kw)	7.5
Maximum Speed (r/min)	1200
Material Size (mm)	3-50
Machine Size (mm)	2600x1800x1900
