The ENERPAT HBA120-110125 is a 120-ton auto-tie horizontal baler built for recycling facilities that handle high volumes of paper, cardboard, plastics and other recyclable materials. Powered by a 55 kW motor, it produces bales with a 1100 × 1250 mm cross-section. For OCC, typical bale weights are around 900–1,200 kg, depending on the material and operating conditions.
The Auto-Tie Horizontal Balers for Sale uses three-way hydraulic compression to form dense, uniform bales. Once the preset bale length is reached, the automatic tying system secures the bale without requiring an operator to tie it by hand.
For customers in the U.S., ENERPAT has a facility in Galion, Ohio, along with U.S. warehouse resources. Local technical support is available for equipment selection, material testing, commissioning and after-sales service.


Availability:



Inquire

Model:
HBA
Brand:
ENERPAT

Product Video

Product Overview

HBA120-110125 Auto-Tie Horizontal Balers for Sale

The ENERPAT HBA120-110125 Auto-Tie Horizontal Baler for Sale combines high-pressure hydraulic compression with automatic bale tying for continuous recycling operations.

Material is fed into the horizontal chamber and compressed by the hydraulic system. The three-way compression arrangement works with the main cylinder to build the bale progressively. When the preset bale length is reached, the automatic strapping system ties the finished bale and prepares the machine for the next cycle.

By taking manual bale tying out of the routine production process, the HBA120-110125 can help reduce handling time and keep material moving through the baling line.

Composition and Structure

Product Applications

Main applications: industrial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films, woven bags, etc.

Product Details

6 Key Core Advantages

120-Ton Pressing Force

A 55 kW motor drives the hydraulic system, while the 120-ton pressing force provides the compression capacity needed for high-volume recycling applications. The machine is suitable for facilities that need to process a steady flow of recyclable material throughout the working day.
Three-Way Hydraulic Compression

The HBA120-110125 uses a three-way hydraulic compression arrangement. Multiple hydraulic cylinders work with the main compression cylinder during the pressing cycle, helping distribute compression through the material and form consistent bales.
Automatic Bale Tying

The automatic strapping system completes the tying cycle once the preset bale length has been reached. Operators do not need to stop the machine and manually tie each bale, which can be useful in high-throughput recycling operations where bale finishing is repeated throughout the day.
900–1,200 kg OCC Bales

With a 1100 × 1250 mm bale cross-section, the HBA120-110125 can produce OCC bales weighing approximately 900–1,200 kg. Actual bale weight will vary with material type, moisture content, feeding conditions and bale density.
Hydraulic System with Continuous-Operation Cooling

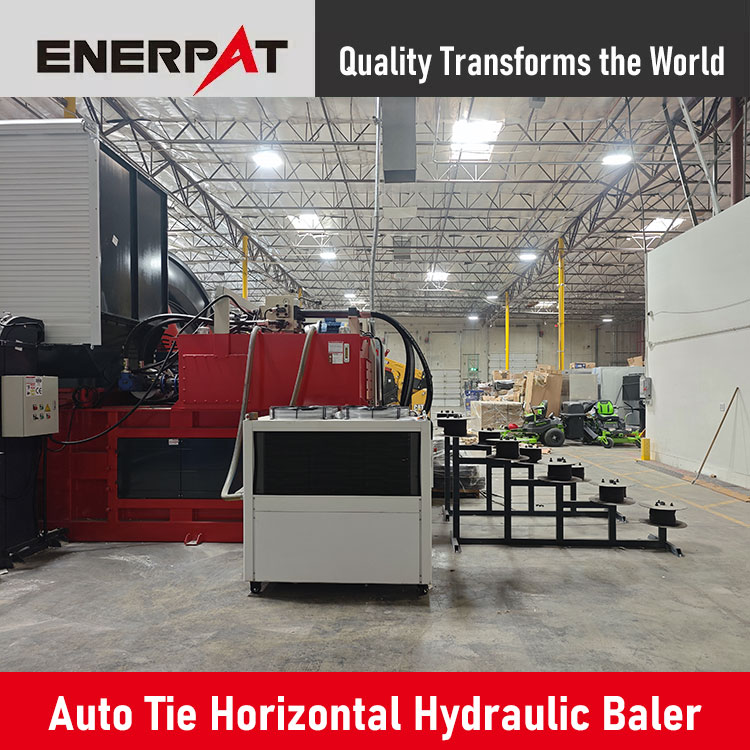

The hydraulic system uses internationally recognized valves and pumps and is fitted with an air-conditioning cooling system. The cooling arrangement helps control hydraulic temperature during extended operation and supports continuous production requirements, including 24/7 operating environments.
Siemens PLC and Schneider Electrical System

The electrical control platform combines Schneider main electrical components with a Siemens PLC. The system follows European CE design requirements and provides automated control for daily baling operations.

SUBMIT

Design & Product Story

For a busy recycling plant, tying finished bales can take up more operator time than expected. When the same task is repeated hundreds of times, even a few minutes saved per bale can make a difference to the overall workflow.
That is one of the reasons the HBA120-110125 Auto-Tie Horizontal Baler for Sale is built with automatic tying. The operator feeds material, monitors the baling cycle and manages the material flow while the machine handles compression and bale tying.
The machine is not limited to the tying system, either. Its three-way hydraulic compression, cooled hydraulic circuit and PLC-based controls are designed to work together as part of a continuous horizontal baling process.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio and California ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Auto-Tie Horizontal Balers for Sale.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Auto-Tie Horizontal Baler Machine is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Auto-Tie Horizontal Compactor running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

01. Can ENERPAT Test My Material Before I Buy?

Yes. ENERPAT can arrange material testing before the equipment is finalized. Customers can provide material samples or information such as material type, dimensions, moisture content and expected throughput. The test results can then be used to help determine the appropriate machine configuration.
02. Are HBA120-110125 Machines Available in the U.S.?

ENERPAT has a facility in Galion, Ohio, as well as warehouse resources in the U.S. Some models are kept in U.S. inventory, subject to current stock and machine configuration.
For standard machines available from stock, local inventory can shorten delivery time. Customized equipment and complete recycling systems are scheduled according to the specific project.
03. What Warranty Does ENERPAT Provide?

ENERPAT provides a 1-year warranty for the complete machine and a 5-year warranty for the hydraulic cylinder. Warranty coverage is subject to the applicable terms and proper operation and maintenance of the equipment.
04. Does ENERPAT Provide Installation and Operator Training?

Yes. ENERPAT provides installation and commissioning support, as well as operator training. Technical personnel can assist with machine setup, operating procedures, routine maintenance and basic troubleshooting.
05. What If a Part Needs to Be Replaced Later?

ENERPAT provides spare-parts and technical support after delivery. The machine uses internationally recognized components, including well-known hydraulic and electrical brands, which makes replacement and maintenance more convenient for customers operating outside China.
For customers who need replacement parts, ENERPAT can assist with identifying the required component and arranging the corresponding spare parts.

Technical Data Sheet

Model	HBA120-110125
Press Force (tons)	120
Motor Power (kw)	55
Bale Size	1100 x 1250 x L mm 43.31 × 49.21 × L in
Bale Weight (OCC)	900-1200 kg 1984.16-2645.55 lb
Machine Size	9250 × 4150 × 4850 mm 364.17×163.39×190.94 in
