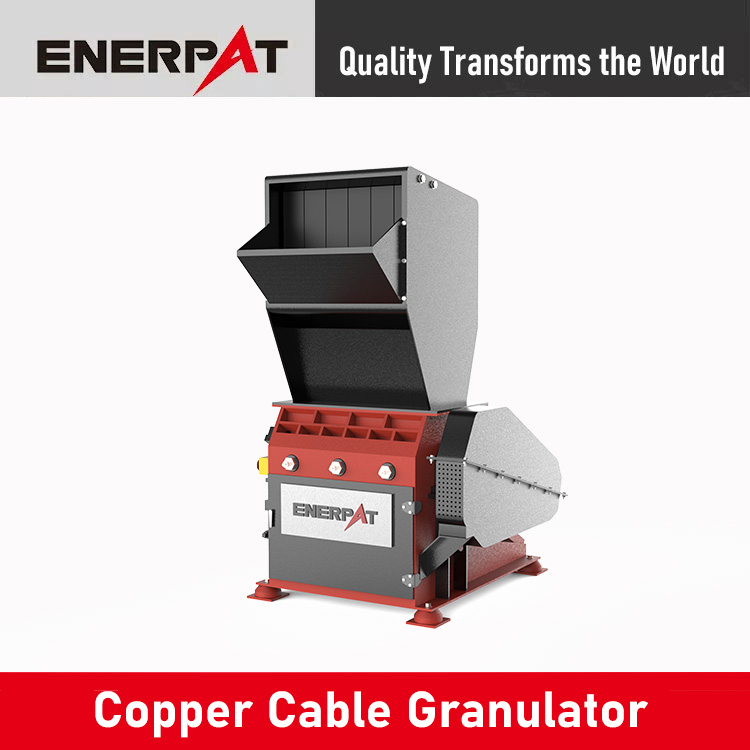

WG-400S Copper Cable Granulator

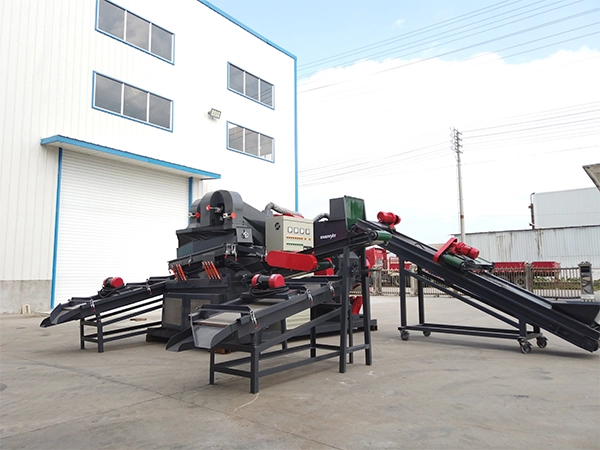

The ENERPAT WG-400S Copper Cable Granulator is a cable recycling system designed for copper wire, electrical cables, automotive wiring and other suitable copper-containing scraps.
The WG-400S combines pre-shredding, fine granulation, screening, air separation and dust collection into a recycling process.
The machine is designed for cables below 20 mm in diameter, with a motor power of 27 kW.


Availability:



Inquire

Brand:
ENERPAT

Product Video

Watch the WG-400S Copper Cable Granulator Video

The video demonstrates the WG-400S cable recycling process from size through copper-plastic separation.

The oversized cables can first be shredded by fine granulation, then the material is screened and transported into the air separator. Dust collection can be integrated between processing stages to create a more stable work flow.

Product Description

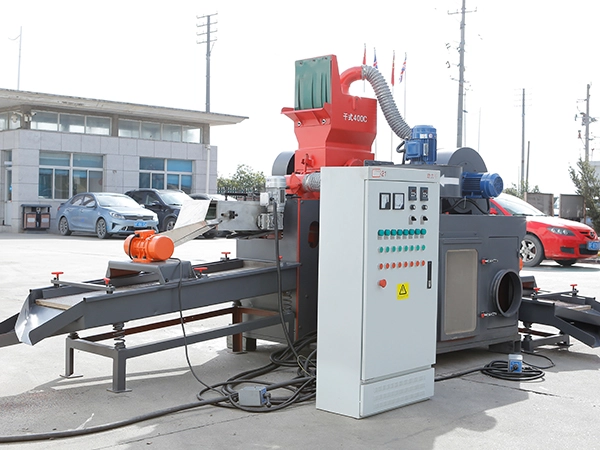

WG-400S Copper Cable Granulator

ENERPAT WG-400S Copper Cable Granulator

The ENERPAT WG-400S Copper Cable Granulator is featured on recycling insulated copper wire, electrical cables and other suitable copper-containing wire scrap.

Rather than relying on manual wire stripping, the system processes cable mechanically through several stages. Larger cables can first pass through a shredder to reduce their size. The material enters the granulator, where it will be cut into particles.

The final separation stage uses the different physical behavior of copper and plastic to produce separate material streams, while an integrated dust collection system helps control fine particles generated.

Product Applications

End Products

Product Details

6 Key Core Advantages

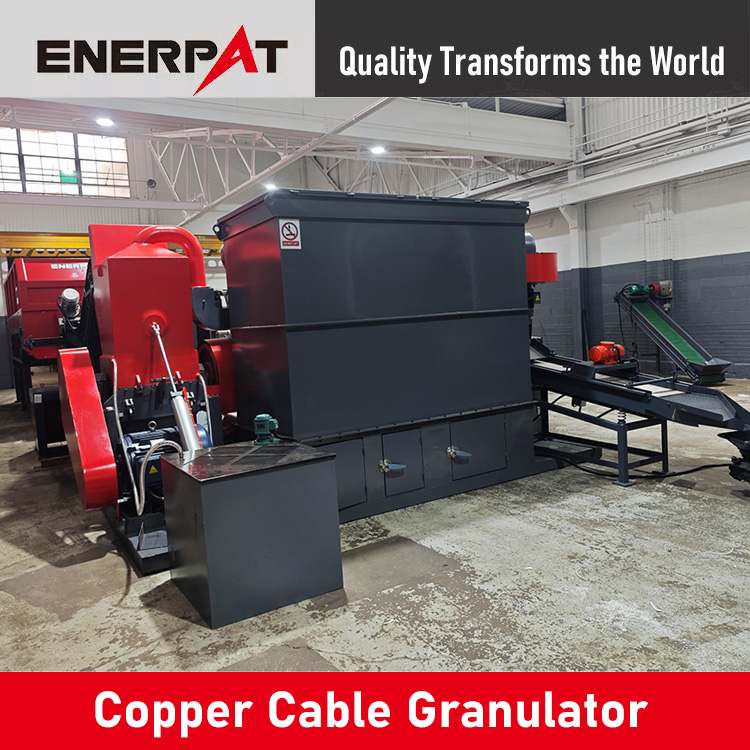

Reduce Cable Size Before Granulation

The double-shaft shredder can be installed as the first processing stage when the larger cable need other size reduction.
Rather than cutting bulky cable into the granulation stage, the pre- shredder breaks them into smaller, more manageable bales. This process helps feeding conditions and increase the downstream efficiency.

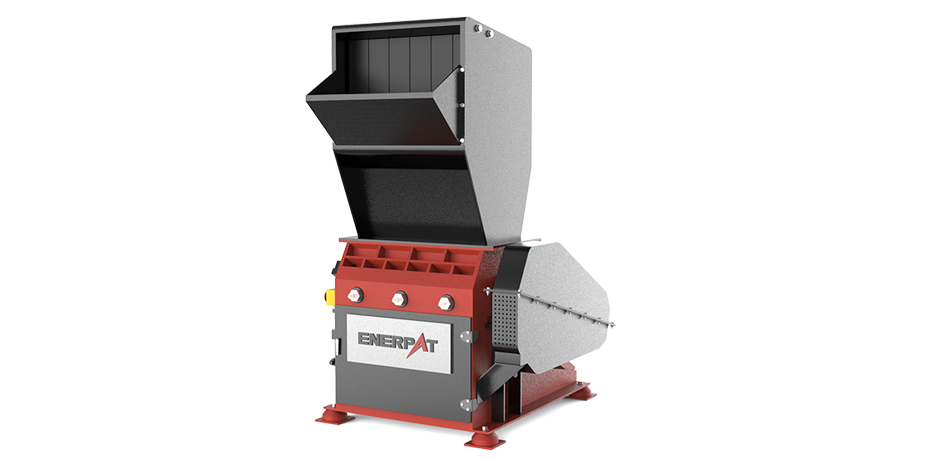

Fine Granulation for Copper-Plastic Separation

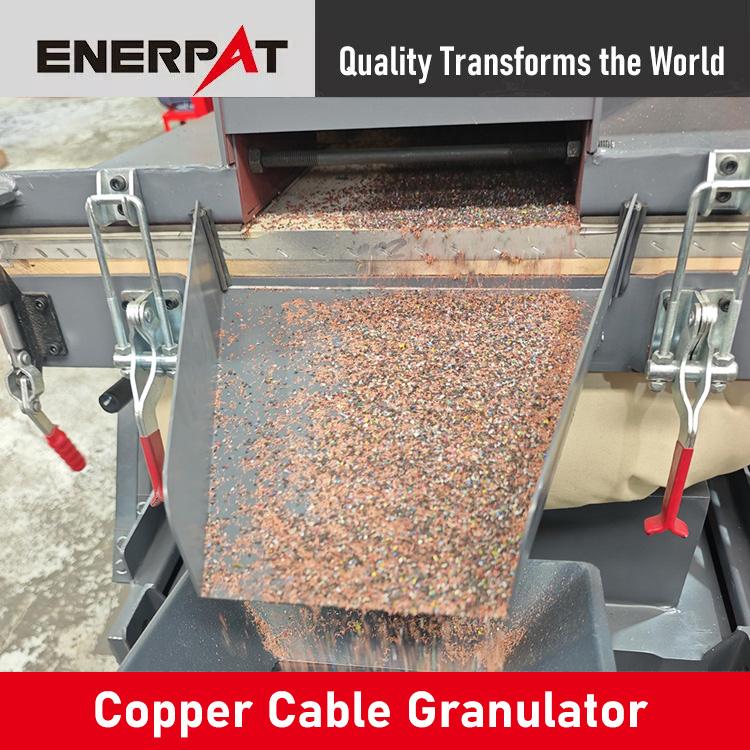

The granulator reduces the pre-shredded cable into fine particles. The system is aimed to produce particles below 3 mm, creating a suitable feed condition for downstream separation.
The granulation stage uses Siemens motors, BONENG gearboxes, Schneider Electric electrical components and SKF bearings, with German D2 steel used for the rotor and knives.

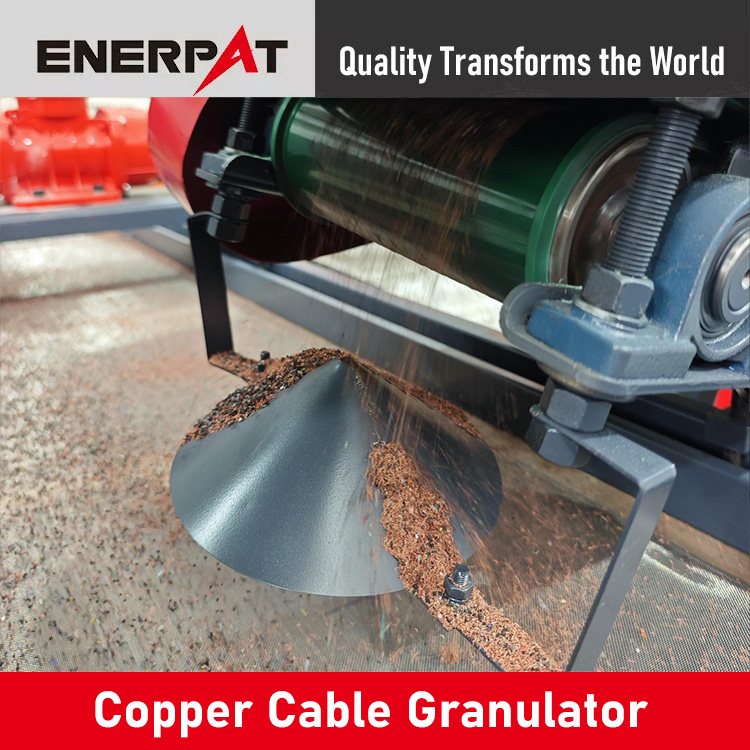

Vibrating Screening for Stable Material Flow

After granulation, the material passes through a vibrating screen to help create a consistent feed for the separation stage.
The system can use a 304 stainless steel + Q235B vibrating screen, 1,200 mm wide, with adjustable amplitude from 3–8 mm.
Air Separation for Copper and Plastic

The air separator uses differences in weight and aerodynamic behavior to separate the heavier copper fraction from lighter plastic insulation.
This allows copper and plastic to be collected separately after granulation.

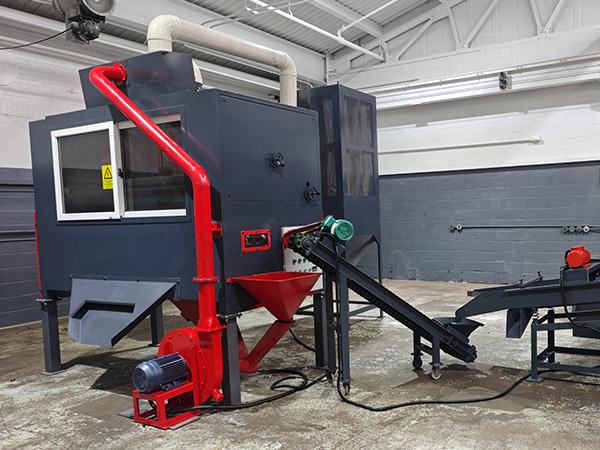

Dust Collection During Processing

Cable shredding, granulation and screening can generate fine particles. An integrated dust collection system can be added to airborne material and keep the processing area more controlled.
This is particularly useful when the granulation line is running continuously and multiple processing stages are operating.

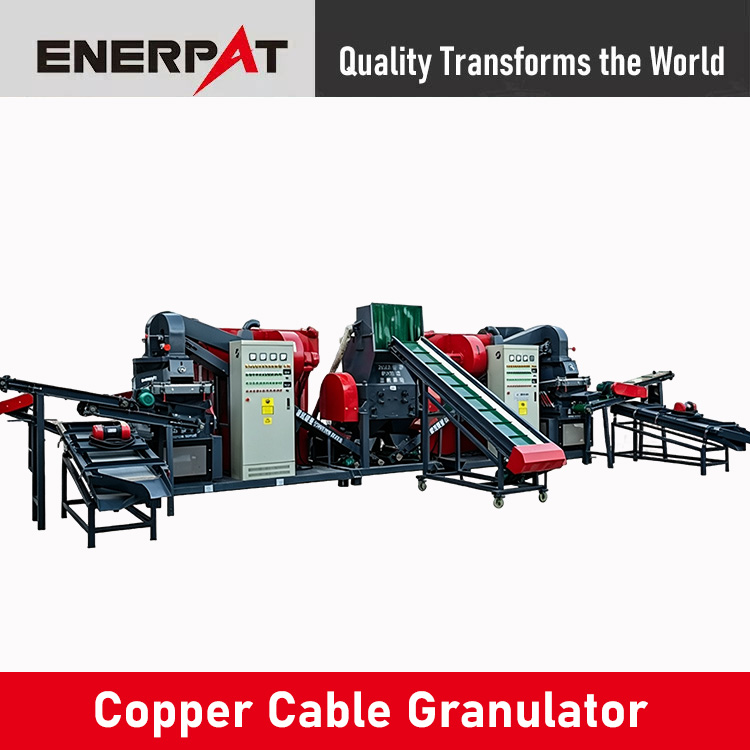

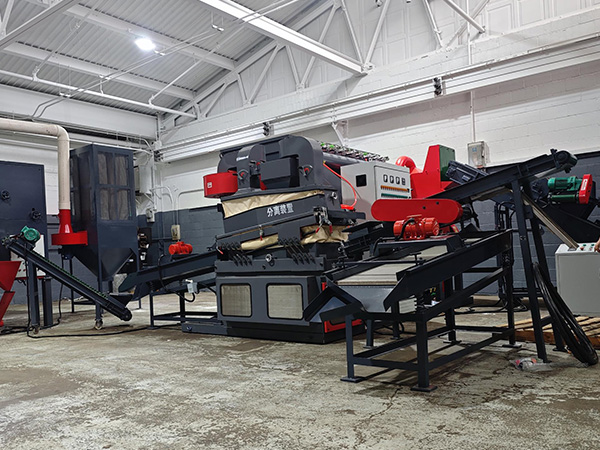

Connected Material Flow

Conveyors can be installed between the shredding, granulation, screening, separation and collection stages.
This reduces manual handling and allows different parts of the recycling process to work as one connected line.

SUBMIT

Design & Product Story

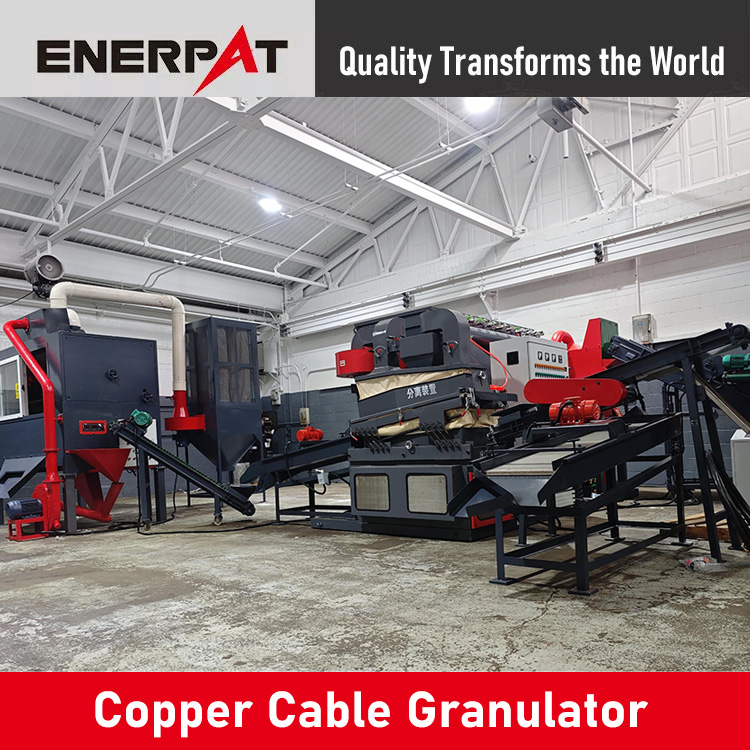

The WG-400S Copper Cable Granulator is designed around a practical multi-stage recycling process. Instead of relying on a single processing step, the system connects size reduction, granulation, screening, air separation and material collection into a continuous workflow, helping recyclers handle cable scrap with less manual intervention.

Get A Quote

Why Choose Us

Strategic facilities and warehouses in Ohio ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Copper Cable Granulator.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Copper Cable Granulator is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Copper Cable Granulator running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

Q1: Can ENERPAT Test My Wire Scrap Before I Buy the WG-400S?

Yes. You can provide wire scrap samples, photos, videos or material specifications for evaluation. ENERPAT engineers can assess your cable type, size and processing requirements and recommend the most suitable copper cable granulator to you.
Q2: Can the WG-400S Process Larger or Tougher Cables?

For larger or tougher cable scrap, a double-shaft shredder can be installed. It reduces bulky cable into smaller pieces before granulation, helping improve feeding conditions and overall efficiency.
Q3: How Does the WG-400S Separate Copper from Plastic?

After granulation and screening, the material enters an air separator. The system uses the different physical behavior of copper and plastic to separate the heavier copper fraction from lighter plastic insulation.
Q4: Does the WG-400S Include Dust Collection?

A dust collection system can be incorporated into the processing line to capture fine particles generated during cable shredding, granulation and screening.
Q5: Does ENERPAT Provide Installation and Operator Training?

Yes. ENERPAT provides installation, commissioning and operator training support for copper wire granulator systems. Our technical team can assist with equipment setup, operation and routine maintenance.

Technical Data Sheet

Model	WG-400S
Motor Power	27 kW / 36.2 HP
Cables Range	< 20 mm / < 0.79 in
Machine Size	4400×2700×2450 mm / 173.2×106.3×96.5 in
Machine Weight	2,500 kg / 5,512 lbs
