WG-800S Cable Separator Machine

The ENERPAT WG-800S Cable Separator Machine is designed for the copper-plastic separation stage of waste cable recycling.
Rather than focusing on further size reduction, the WG-800S handles the material after granulation. It uses these differences in the weight and aerodynamic behavior of copper and plastic to separate the heavier copper fraction from the lighter materials and direct the two materials into separate collection streams.
For oversized or tougher cables, a double shaft shredder can be installed upstream to reduce the feed size before granulation.
Availability:
Inquire

  • ENERPAT

Product Video

Watch the WG-800S Cable Separator Machine Video

The video demonstrates the copper-plastic separation stage after cable granulation and screening.

The processed cable particles enter the air separation system, where airflow interacts  with copper and plastic. The heavier copper fraction moves toward one collection path, while the lighter plastic insulation is directed toward another.

This gives the recycling line two clearly separated material streams for subsequent recovery.


Product Description

ENERPAT WG-600S Cable Granulator Machine

ENERPAT WG-800S Cable Separator Machine

The WG-800S Cable Separator Machine separates copper and plastic after the cable has been granulated and screened.

The separation stage depends on the different physical and aerodynamic characteristics of the two materials. Heavier copper particles and lighter plastic insulation respond differently to the airflow, allowing them to be directed into separate collection streams.

The machine can be integrated with upstream shredding, granulation and screening equipment to form a continuous cable recycling process.


Product Applications

Product Applications

End Products

End Products


Product Details

6 Key Core Advantages
  • Air Separation for Copper-Plastic Recovery
    Air Separation for Copper-Plastic Recovery
  • Designed for Fine Cable Granulate
    Designed for Fine Cable Granulate
  • Part of a Complete Cable Recycling Line
    Part of a Complete Cable Recycling Line

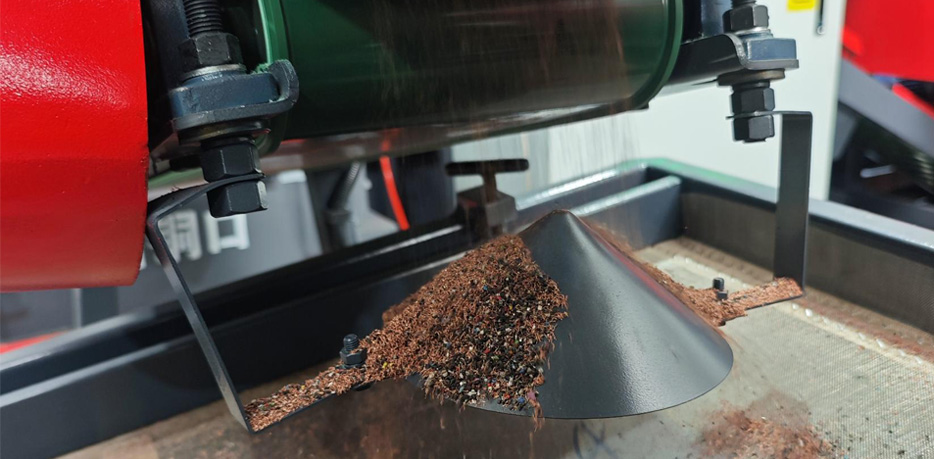

  • Dedicated Final Separation Stage
    Dedicated Final Separation Stage
  • Recognized Industrial Components
    Recognized Industrial Components
  • Flexible Integration with Recycling Lines
    Flexible Integration with Recycling Lines
SUBMIT
Design & Product Story
Granulating cable is only part of the recycling process. Once the insulation has been cut away from the conductor, copper and plastic still need to be separated from the resulting mixture.
Upstream equipment handles the initial size-reduction work. Oversized cable can first be processed by a double shaft shredder, while the granulator then reduces the material to particles below 3 mm. After screening, the WG-800S uses airflow to distinguish between the heavier copper particles and lighter plastic insulation.
This approach gives each machine a defined role every processing task. Conveyors can link the individual stages, creating a continuous material path from cable preparation through final copper and plastic collection.
Get A Quote
Why Choose Us
FAQs
  • Q1: Can the WG-800S Separate Copper from Plastic?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. It uses differences in weight and aerodynamic behavior between copper and plastic to separate the two material fractions.
  • Q2: What Material Should Be Fed into the WG-800S?
    加 Created with Sketch.
    形状 Created with Sketch.
    The machine is designed for cable material that has already undergone granulation and screening. The granulation stage can produce particles below 3 mm for downstream separation.
  • Q3: Can It Be Used for Large or Tough Cables?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. A double shaft shredder can be installed upstream to reduce oversized or tough cable before granulation and separation.
  • Q4: Can the WG-800S Be Integrated into a Complete Recycling Line?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Conveyors can connect shredding, granulation, screening, air separation and collection into a continuous process.
  • Q5: Can ENERPAT Recommend a Suitable Separation Configuration?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Customers can provide cable samples, photos, videos or material specifications for evaluation, allowing ENERPAT to recommend a most suitable processing configuration.

Technical Data Sheet

Model

WG-800S

Motor Power

90 kW / 120.7 HP

Cables Range

0.2–30 mm / 0.008–1.18 in

Machine Size

11500×9500×2300 mm / 452.8×374.0×90.6 in

Machine Weight

7,000 kg / 15,432 lbs

Machinery Photos

Cable Recycling Line
Cable Recycling Line
Cable Recycling Line
Cable Recycling Line
