1. Executive Summary & Client Profile

ENERPAT technical sales and engineering experts recently conducted an intensive on-site technical consultation for a prominent industrial metal recycling enterprise located in Chihuahua, Mexico. Handling over 800 tons per day of industrial scrap metal across regional collection yards, the client operates state-of-the-art metal fragmentation, automated shearing, heavy briquetting, and optical sorting infrastructure.

The objective of this field visit was to perform a hands-on audit of their high-capacity cast iron processing workflow (>5 tons per hour), address specific engineering concerns regarding screen mesh blinding and material separation, and present an upgraded, multi-stage ENERPAT integrated recycling system.

2. Field Audit & Operational Challenges

During the site investigation, ENERPAT engineers reviewed the client’s existing cast iron scrap processing flow:

Existing Infrastructure & Bottlenecks:

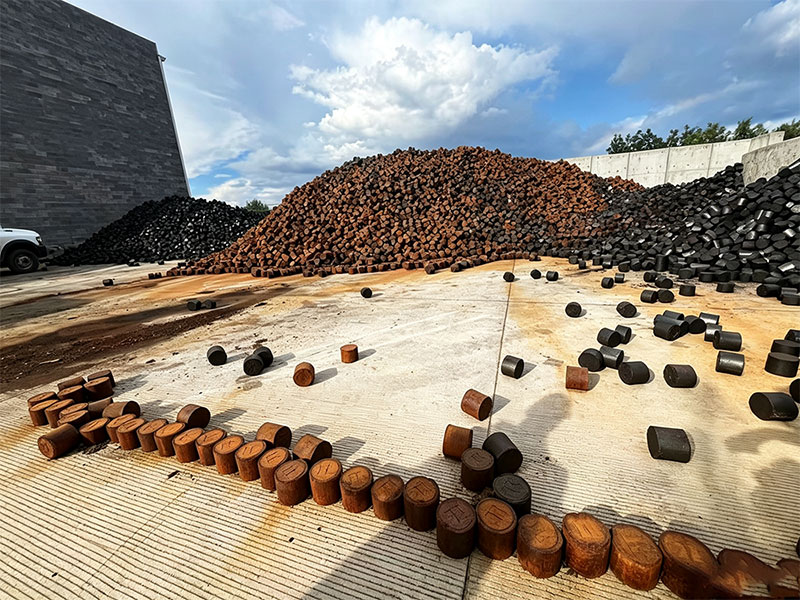

The facility currently relies on heavy overhead electromagnets to pick solid crop ends prior to processing and briquetting using an existing German high-pressure briquetting press (cylindrical briquettes Ø 140–150 mm, 5200 kN main cylinder force, 120 kW hydraulic power unit, processing cast iron at ~4.5 t/h).

Manual Separation Risks:

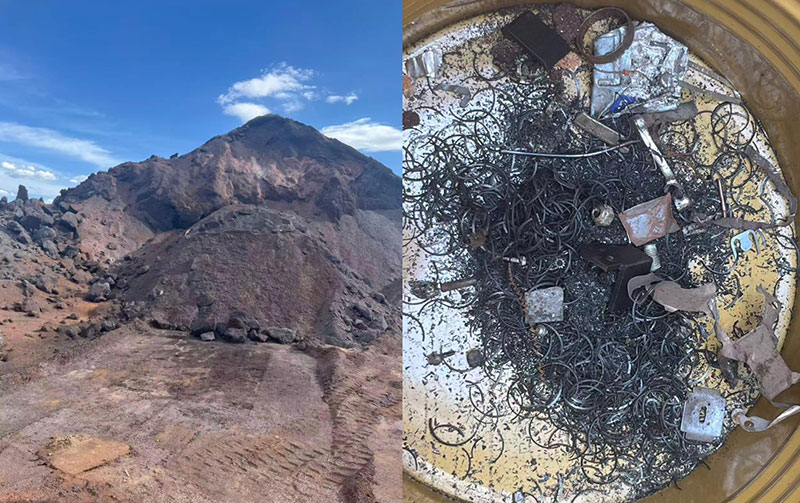

Although primary sorting takes place after crushing, operators must manually extract visible solid crop ends. Smaller heavy crop ends still remain mixed in with fine iron turnings and shavings, causing downstream machinery wear and inconsistent density in finished briquettes produced by the Metal Briquetting Press.

Technical Concerns on Screening:

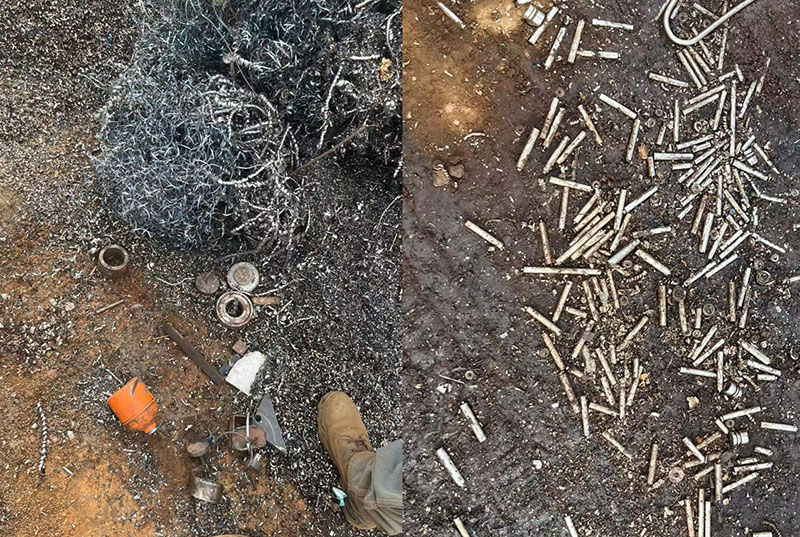

• Fastener Contamination: The client expressed concern that loose bolts and screws would fall through traditional trommel screen meshes alongside fine iron turnings.

• Material Entanglement: Long, coiled iron shavings could hook into trommel screen apertures, causing severe blinding, uneven material flow, and frequent maintenance downtime.

Throughput Metrics:

The client emphasized that advertised equipment capacity must reflect actual, real-world operating conditions, requesting transparent capacity ranges tailored to their specific scrap density.

3. Upgraded ENERPAT Integrated Engineering Solution

To resolve screen blinding, handle mixed fasteners, and ensure continuous high-density feeding to downstream briquetting equipment, ENERPAT engineers upgraded the proposed layout from a standalone screening unit to an integrated pre-shredding and screening circuit:

Process Module 1: Primary Size Reduction

• Equipment: Heavy-Duty Single-Shaft Industrial Shredder

• Function: Pre-shreds oversized crop ends and tangled iron shavings into uniform lengths, eliminating screen aperture hooking.

Process Module 2: Coarse & Fine Screening

• Equipment: Heavy Trommel Screen + High-Frequency Flip-Flow Screen

• Function: Efficiently separates fine iron turnings from solid crop ends and stray fasteners using specialized non-blinding screening decks.

Process Module 3: Ferrous Recovery

• Equipment: Overband Magnetic Separator / Magnetic Drum

• Function: Extracts clean, high-purity ferrous fines optimized for downstream high-density briquetting.

4. Technical Commitments & Action Plan

1. Engineering Drawing Revisions: Update the preliminary layout drawing to integrate the Single-Shaft Industrial Shredder, Trommel Screen, and Flip-Flow Screen into a synchronized processing circuit.

2. Empirical Material Testing & Video Proof: Perform factory material trials using a representative mixture of coiled iron turnings, loose fasteners, and cast iron fines. Produce high-definition technical video documentation proving zero mesh blinding and exact separation efficiency.

3. Equipment Specification Verification: Provide comprehensive technical datasheets for higher-capacity single-shaft shredders, including rotor knife geometry, hard-facing wear protection, and expected blade service life under abrasive cast iron operation.

5. ENERPAT Technical Service Philosophy

For major regional recycling operators, desktop proposals and standardized product sheets are never enough. ENERPAT believes in face-to-face engineering consultations, empirical material testing, and realistic capacity guarantees. Direct field engagement builds lasting partnerships and delivers engineered solutions built for real-world industrial performance.
