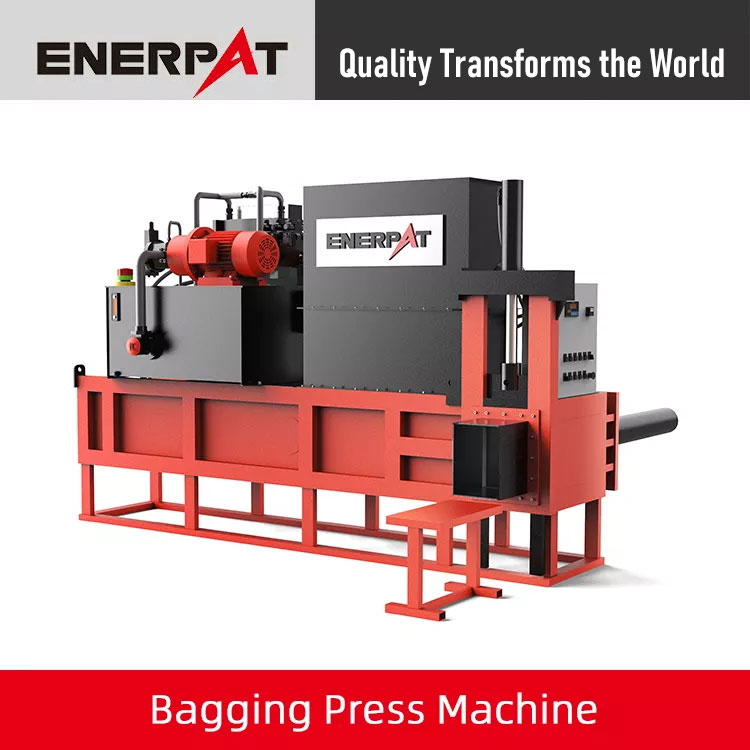

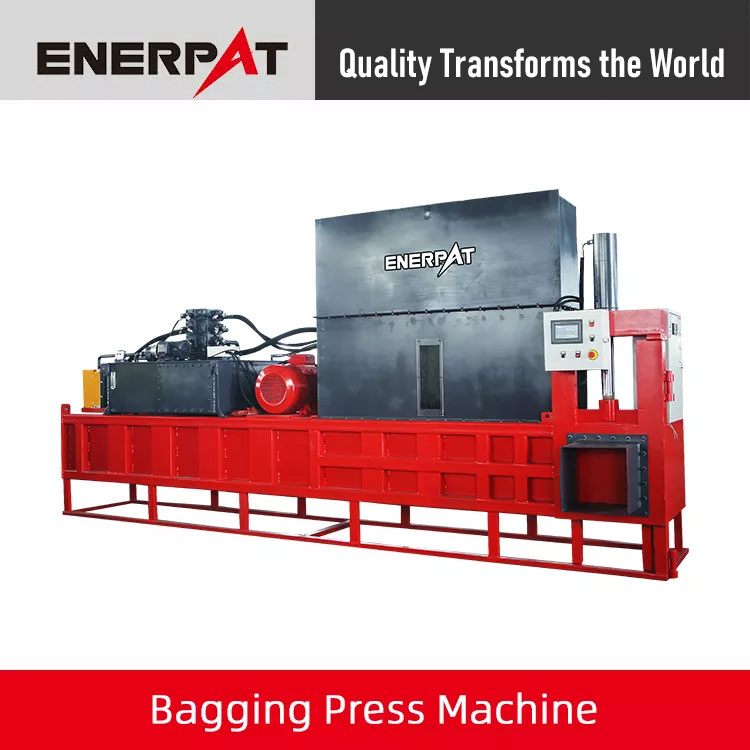

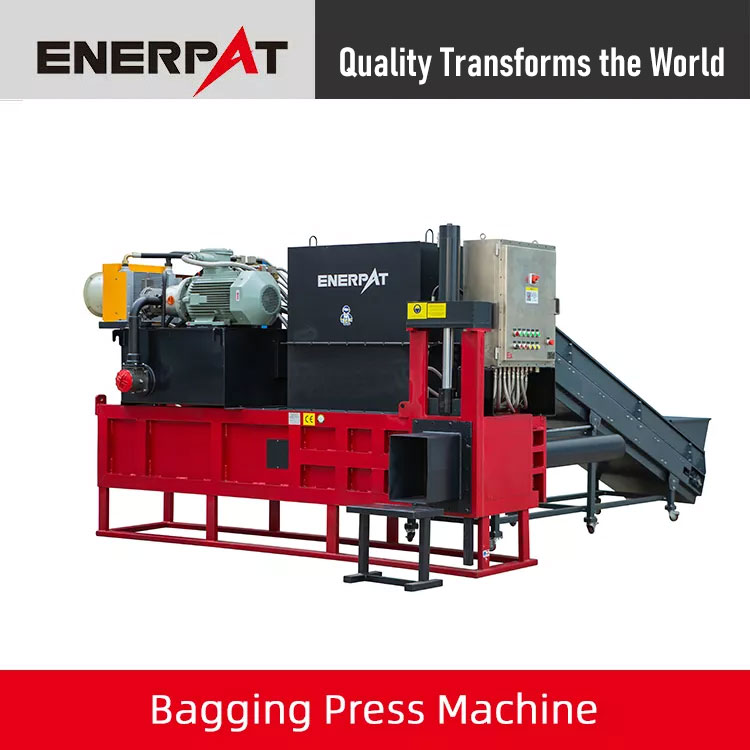

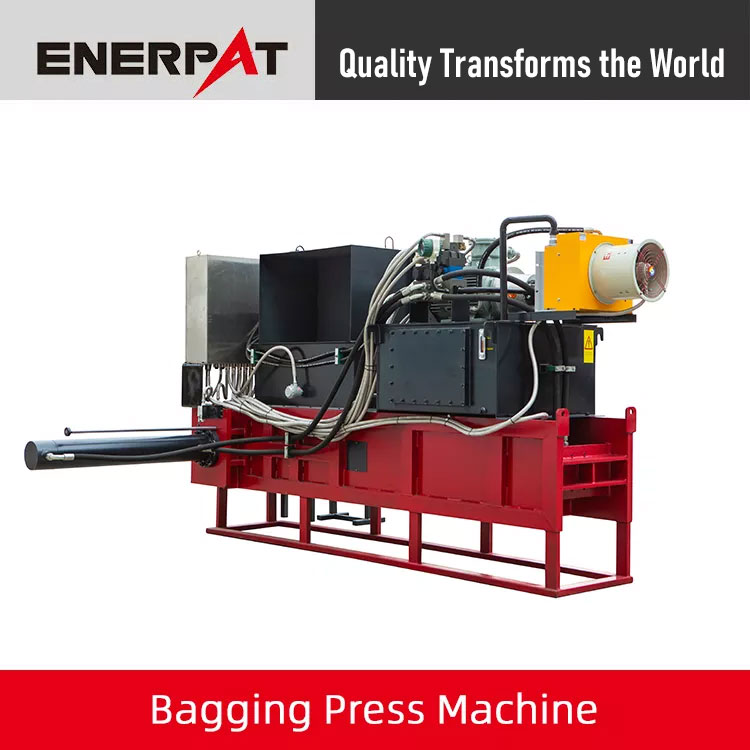

HBA-B140 Hemp Hurds Bagging Machine

The ENERPAT HBA-B140 hemp hurds bagging baler machine is a hydraulic compression and bagging system designed for processing loose hemp hurds, also known as hemp shiv.
It compresses low-density hemp hurd into compact 430 × 310 × 600 mm bales and discharges the compressed bale into a pre-prepared plastic or woven bag. This helps hemp processors turn loose bulk material into a more manageable packaged product for storage, transportation, wholesale distribution, and downstream applications.
With 60/80-ton press force, a 22 kW motor, and a 1,000 × 560 mm hopper, the HBA-B140 is designed for commercial hemp processors that need more consistent and efficient packaging than manual filling and handling.

Need to package hemp hurd at a specific bale weight or bag size? Contact ENERPAT for material testing and a bagging solution matched to your material.


Availability:



Inquire

Model:
HBA-B
Brand:
ENERPAT

Product Video

Product Description

Why Hemp Hurd Processors Need Compression Bagging

After hemp stalks are processed, the resulting hurd or shiv is a relatively loose bulk material. Depending on the processing method and material condition, large volumes can occupy substantial floor and transport space.

For businesses selling hemp hurd as animal bedding, hempcrete raw material, insulation material, agricultural products, or other processed hemp products, simply storing the loose material is often not the most practical way to handle it.

Common operating challenges include:

· Low bulk density and high storage volume

· Manual filling and packing labor

· Inconsistent package size or weight

· Difficult handling of loose material during loading and transportation

· Dust and material spillage around the packing area

· Higher logistics cost when shipping low-density bulk material

· Difficulty creating uniform retail, wholesale, or palletized packages

· Need to protect compressed hemp hurd from moisture and contamination during storage and transportation

A hemp hurd bagging baler machine addresses these problems by combining compression and bagging into one processing step.

Composition and Structure

Applications

From Loose Hemp Hurd to Uniform Bagged Bales

The HBA-B140 is designed around a straightforward workflow:

Loose Hemp Hurd → Feeding → Hydraulic Compression → Bale Ejection → Bagging

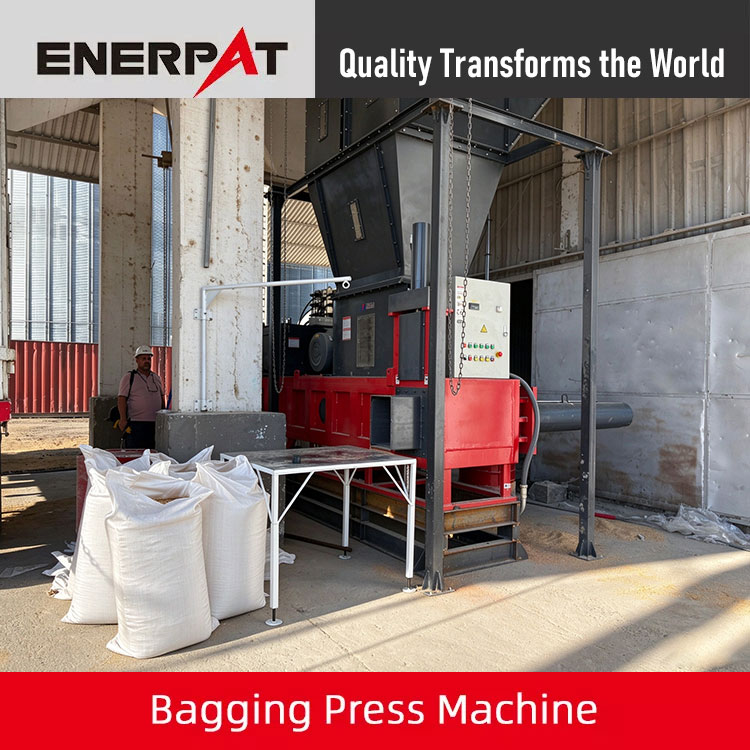

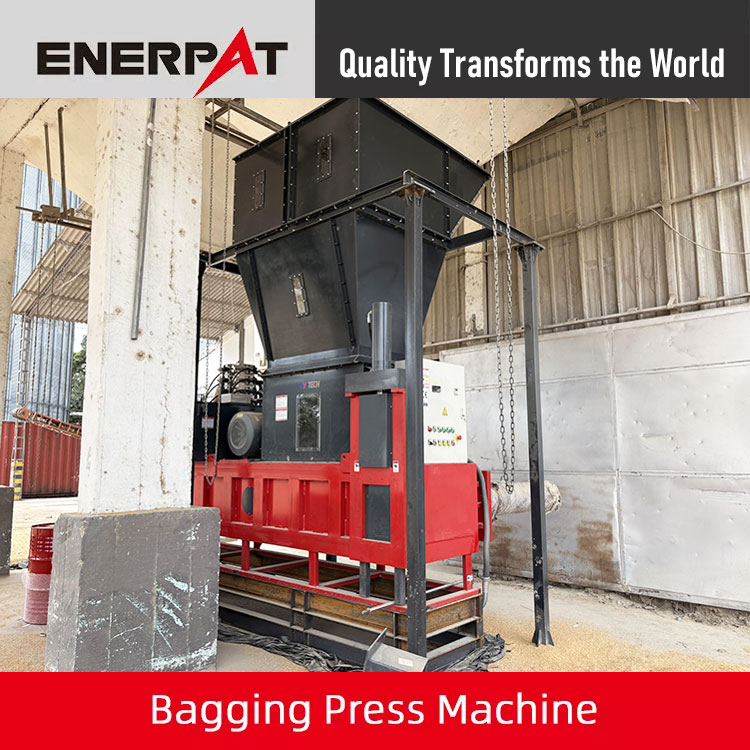

The material is loaded into the hopper and compressed hydraulically. After compression, the formed bale is discharged into a pre-positioned bag.

This approach allows processors to handle hemp hurd as a compact, uniform packaged product instead of moving large quantities of loose bulk material.

For larger processing facilities, the HBA-B140 can also be integrated with upstream and downstream equipment such as a feeding conveyor, weighing conveyor and bag sealing equipment, depending on the required packaging process.

ENERPAT has already supplied a complete hemp bagging system using a feeder, discharge conveyor, weighing conveyor, HBA-series bagging press and sealing machine for a hemp-processing application.

Product Details

5 Core Advantages of the HBA-B140

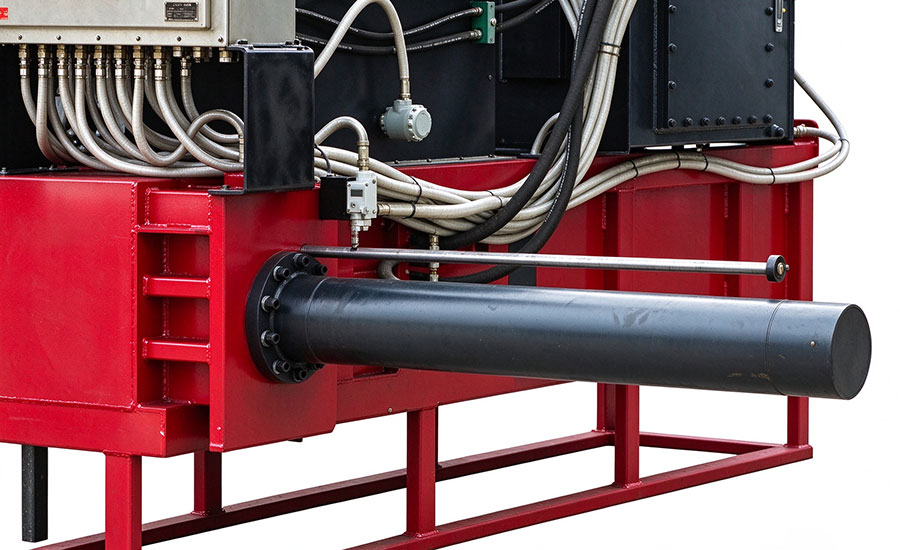

Pressing Cylinder

Built with international-standard seamless steel tubing for dependable hydraulic performance. Chrome-plated piston rods improve wear and corrosion resistance, while British Hallite seals help maintain reliable sealing and minimize hydraulic oil leakage.
Air-Cooled Hydraulic System

An integrated air-conditioning cooling system helps control hydraulic oil temperature during extended operation. The system is designed to support 24/7 continuous working conditions and is supplied with relevant test certification and CE documentation.

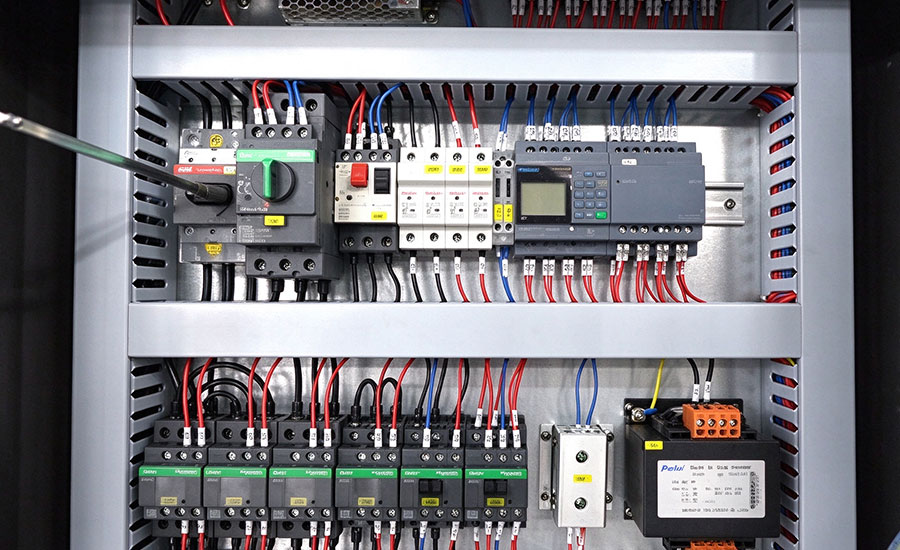

Electrical Control System

The electrical system is factory assembled, wired, and tested before delivery. It uses IEC-standard color-coded wiring, 2.5 mm² or larger PVC-insulated copper conductors rated at 600/1000 V, with Schneider or Siemens PLC and optional touchscreen control.

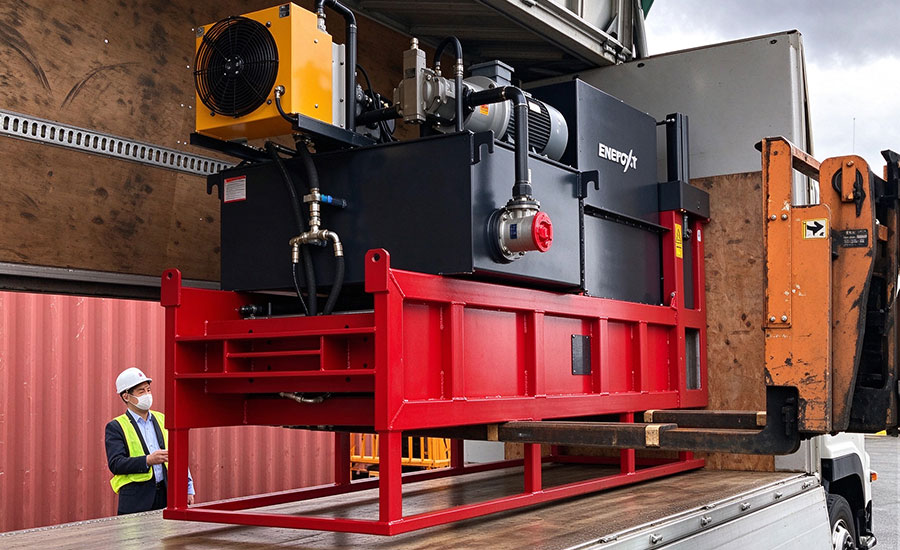

Heavy-Duty Machine Structure

The machine frame is manufactured from high-quality, international-standard steel plate to provide a rigid and durable structure. An integrated design and modular construction simplify installation, maintenance, and component replacement while keeping the overall system efficient.

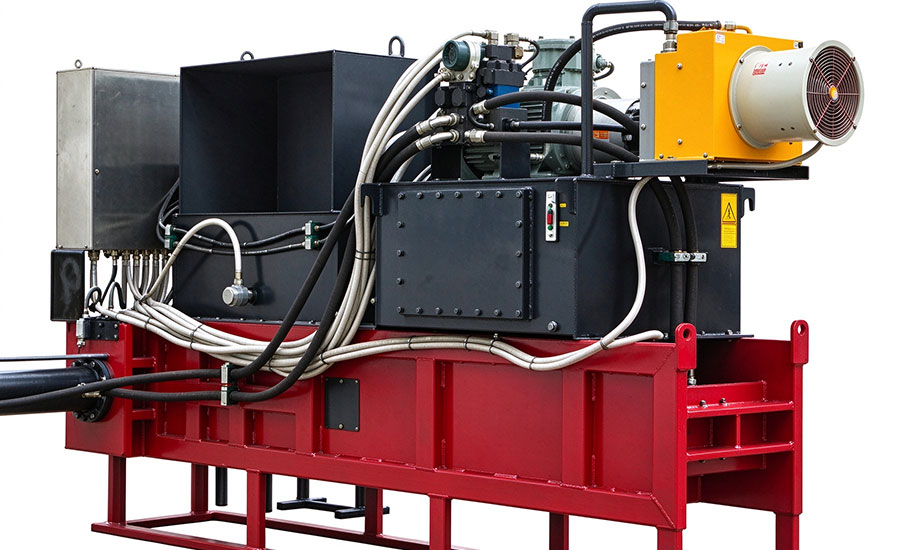

Hydraulic Power System

The hydraulic system follows a European design approach for stable and efficient compression performance. High-quality valves and hydraulic pumps from internationally recognized brands provide reliable power transmission for repeated hemp hurd compression cycles.

SUBMIT

Design Philosophy

Engineered from Real Field Insights for Maximum ROI
Through extensive on-site market research across international hemp and cannabis processing facilities, ENERPAT identified that versatility and cost-efficiency are top priorities for growers and processors. We engineered the HBA-B140 hemp hurds bagging machine as the ultimate sweet spot of our HBA-B Series. Designed to handle the core throughput requirements of most commercial operators without over-specifying equipment costs, the HBA-B140 delivers unmatched operational reliability, seamless automated bagging, and the highest return on investment in its class.

Get A Quote

FAQs

Q1: What other materials can the ENERPAT HBA-B140 process besides hemp and cannabis?

A: Beyond industrial hemp and cannabis stalks, the HBA-B140 Hemp Bagging Baler Machine (also known as a hydraulic bagging press or automatic baling and bagging machine) is extremely versatile. It is engineered to compact and automatically bag a wide array of loose biomass materials, including wood shavings, sawdust, alfalfa, silage, chopped straw, flax fiber, animal bedding, rice husks, and peanut shells.
Q2: Does ENERPAT currently have the HBA-B140 Hemp Bagging Baler in stock?

A: We regularly maintain inventory of our popular HBA-B Series Bagging Press Machines across our international warehouse facilities (including the USA and Mexico). Because warehouse inventory fluctuates daily with active shipments, please contact our technical sales team to confirm real-time equipment availability and expedited lead times.
Q3: Can we send material samples for a pre-sales baling and bagging test?

A: Yes, absolutely. ENERPAT offers full pre-sales material testing services. You can ship your specific raw materials—whether raw hemp hurd, wood chips, or agricultural biomass—to our local facility (such as our Ohio warehouse in the US). Our technical team will conduct a live compaction test on our biomass bagging press, output precise bale density results, and provide you with a detailed trial report and video footage.
Q4: What warranty coverage is included with the HBA-B140 Hemp Hurds Bagging Machine?

A: Every ENERPAT hydraulic bagging machine is built to heavy-duty industrial standards. The HBA-B140 includes a 1-year full-machine warranty covering all mechanical and electrical components, plus an extended 5-year warranty on the main hydraulic cylinders. Wear parts and original replacement components are readily accessible through our regional support centers.
Q5: What after-sales service and technical support does ENERPAT offer?

A: ENERPAT delivers end-to-end global service to ensure your wood shaving and hemp bagging equipment operates at peak performance:
- On-Site Installation & Commissioning: Field service engineers available for machine setup, hydraulic system calibration, and electrical integration.
- Operator & Safety Training: Comprehensive operational and preventive maintenance training for your plant technicians.
- Rapid Spare Parts Fulfillment: Direct access to genuine OEM spare parts and bagging consumables.
- Lifetime Remote Technical Support: 24/7 technical troubleshooting via video diagnostics and online service channels.

Technical Data Sheet

Model	HBA‑B140
Press force(Tons)	60/80
Hopper size L*W(mm)	1000*560
Bale size WHL(mm)	430310600
Machine weight（KG）	4500
Machine size LWH(mm)	350027002100
Motor power（KW）	22
Cycle times（unload）	16/17
