Metal chips produced during CNC machining, turning, milling, drilling, and other metalworking processes are often mixed with cutting oil, coolant, or machining fluids. Excess oil can reduce scrap value, increase transportation costs, and make recycling more difficult. Separating oil from metal chips also allows you to recover reusable cutting fluids and improve overall processing efficiency.
This guide explains the most effective methods for removing oil from metal chips and helps you choose the right solution based on your chip type and production requirements.
Common Methods for Separating Oil from Metal Chips
In your operation, how you remove oil from metal chips depends on your chip condition, your production volume, and how clean the final material needs to be. Some methods are simple but limited, while others give you consistent, high-efficiency results and fluid recovery.
1. Natural Draining
You can let metal chips sit in bins or containers and allow oil or coolant to drain off naturally over time. This method requires no equipment, but it is slow and only removes surface liquid.
If you are running continuous CNC machining or handling large chip volumes, natural draining quickly becomes inefficient and difficult to control.
2. Centrifugal Oil Separation
If your goal is to remove as much oil as possible and recover cutting fluid, a Metal Chip Wringer Centrifuge is one of the most effective options.
You feed the chips into the machine, and a high-speed rotating drum generates centrifugal force, throwing oil and coolant out through a screen. The separated liquid is collected in a tank and can be reused in your machining process. In daily production, this means you reduce fluid consumption, keep your work area cleaner, and produce drier chips that are easier to handle and transport.
This method works especially well for:
Steel, aluminium, stainless steel, and copper chips
If you are more focused on reducing chip volume and improving scrap value, briquetting is a practical solution. You compress loose chips into dense, uniform briquettes. During compression, part of the trapped oil is squeezed out, giving you partially de-oiled material while significantly reducing storage and transport space.
You also make your chips easier to feed into furnaces or sell to recyclers, since briquettes are cleaner and more consistent than loose swarf.
Briquetting is suitable when:
Your oil content is moderate
You want to reduce handling and logistics costs
You need a cleaner, more valuable scrap form
Chip Wringer vs. Briquetting Press: Which Method Is Better?
When a Chip Wringer Is the Better Choice
If your main goal is to remove as much oil or coolant as possible, a chip wringer is usually the better option. You can achieve much lower residual oil levels and recover cutting fluid for reuse, which helps reduce your operating costs and improve overall cleanliness in your workshop.
When a Briquetting Press Is Enough
If you are mainly looking to reduce chip volume and improve handling, a briquetting press can be sufficient. You can compress loose chips into dense briquettes while removing some of the trapped oil, making the material easier to store, transport, or sell.
When You Should Combine Both
If you want both high oil removal and compact output, you can use a wringer together with a briquetting press. You first remove most of the oil, then compress the chips into briquettes, giving you cleaner material and better recycling value, especially in higher-volume operations.
Factors That Affect Oil Separation Efficiency
1. Chip Shape
If your chips are long, stringy, or heavily tangled, they tend to trap more oil inside. You will find that oil is harder to remove compared to short, broken chips, which allow fluid to separate more easily during processing.

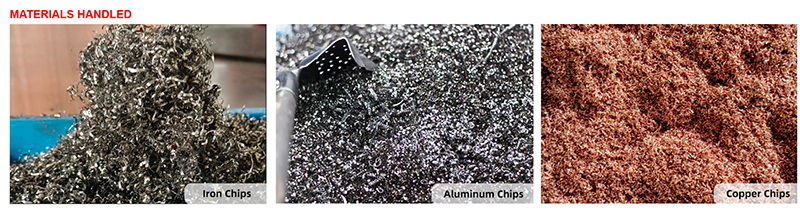

2. Chip Material
Different metals behave differently during de-oiling. For example, aluminium chips often carry more coolant on the surface, while steel or cast iron chips may release oil more easily depending on their structure and cutting conditions.
3. Oil and Coolant Content
The more oil or coolant your chips contain, the more you will benefit from mechanical separation. If your chips are heavily soaked, simple draining or pressing may not be enough, and you will need a more efficient de-oiling method.
4. Chip Size
When your chip size is more uniform, you can achieve more stable and predictable oil removal results. Mixed sizes or uneven material can affect how well the oil separates and may reduce overall efficiency.
What If Your Metal Chips Are Long and Stringy?
If your metal chips are long, tangled, or continuous swarf, oil removal becomes more difficult because the fluid gets trapped inside the material instead of draining away smoothly. In this case, you should first reduce the chip length before sending the material into the next process.
A Single Shaft Shredder is a practical front-end solution for this kind of material. It cuts long chips into shorter, more uniform pieces, which makes the chips easier to handle and improves the efficiency of the later de-oiling or briquetting stage.
This is especially useful when you are processing steel turnings, aluminium chips, stainless steel swarf, or copper chips with a high proportion of long material. Once the chips are more uniform, you get smoother feeding, better separation, and a more stable overall recycling line.
How to Choose the Right Oil Separation Solution
When choosing the right oil separation solution, look at your chip type, oil content, daily output, and local compliance requirements. If your chips are long and tangled, you may need a single shaft shredder first. If your main goal is to recover cutting fluid, a chip wringer is the better choice.
If you want to reduce chip volume and make scrap easier to handle, a briquetting press may be enough. For higher-volume operations, you can also build a complete Metal Chip Recycling System by combining the right machines into one efficient line.
FAQs
Q: How much oil can typically be removed from metal chips?
A: Mechanical methods like centrifuges can remove up to 90–98% of free oil, depending on chip type and fluid content.
Q: Can recovered cutting oil be reused?
A: Yes. Many recovered cutting fluids can be filtered and reused, helping reduce machining fluid consumption and operating costs.
Q: Is heat ever used to remove oil from metal chips?
A: In some cases, thermal drying is used, but it is less common due to higher energy costs and emissions.
Q: Which industries commonly separate oil from metal chips?
A: CNC machining, automotive manufacturing, aerospace, precision engineering, and general metal fabrication all commonly use metal chip de-oiling systems.
Q: What happens to the oil after separation?
A: It is usually collected, filtered, and either reused in machining or disposed of according to regulations.
Final Thoughts
Separating oil from metal chips helps improve scrap quality, recover valuable cutting fluids, and reduce recycling costs. The most suitable solution depends on your chip characteristics and processing goals. For many machining operations, combining de-oiling and briquetting provides an efficient way to produce cleaner, more valuable metal chips, while companies such as ENERPAT offer equipment that can be configured for different production requirements.
