HBA80-11075 Auto-Tie Horizontal Waste Baler

HBA80-11075 Auto-Tie Horizontal Waste Baler

The ENERPAT HBA80-11075 Auto-Tie Horizontal Waste Baler is an 80-ton automatic horizontal baler built for recycling facilities handling regular volumes of recyclable waste. It is powered by a 37 kW motor, forms bales with a 1100 × 750 mm cross-section, and can produce OCC bales weighing approximately 600–900 kg.
For overseas customers, ENERPAT provides U.S.-based support through its local operation, covering equipment consultation, material testing, installation, commissioning, and after-sales service. Local warehouse resources also make parts support and project communication more convenient for U.S. customers.


Availability:



Inquire

Model:
HBA
Brand:
ENERPAT

Product Video

Product Overview

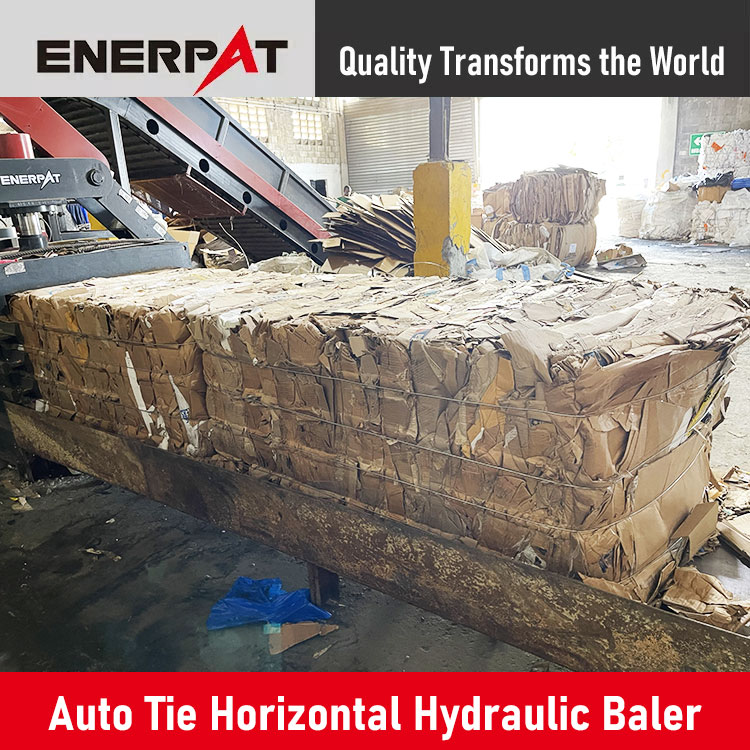

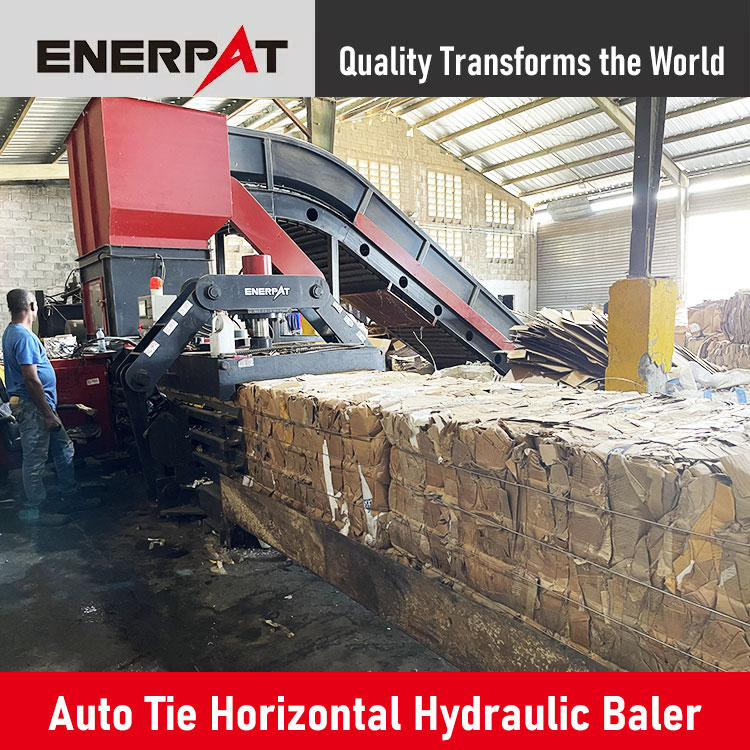

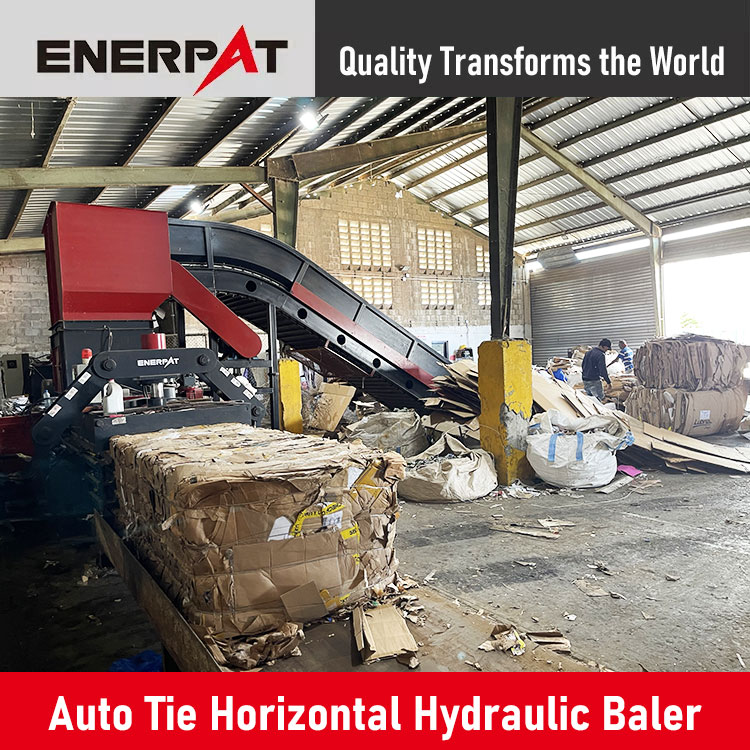

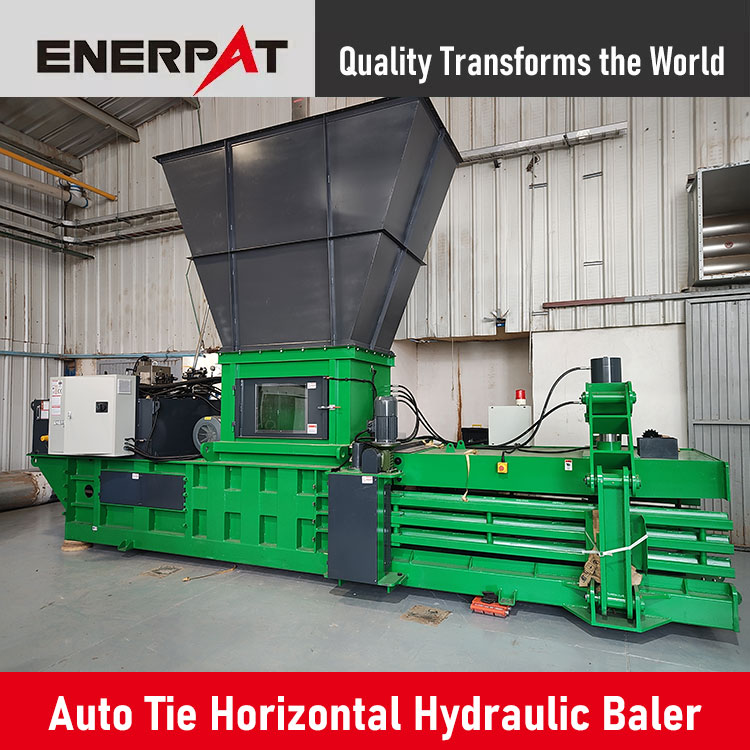

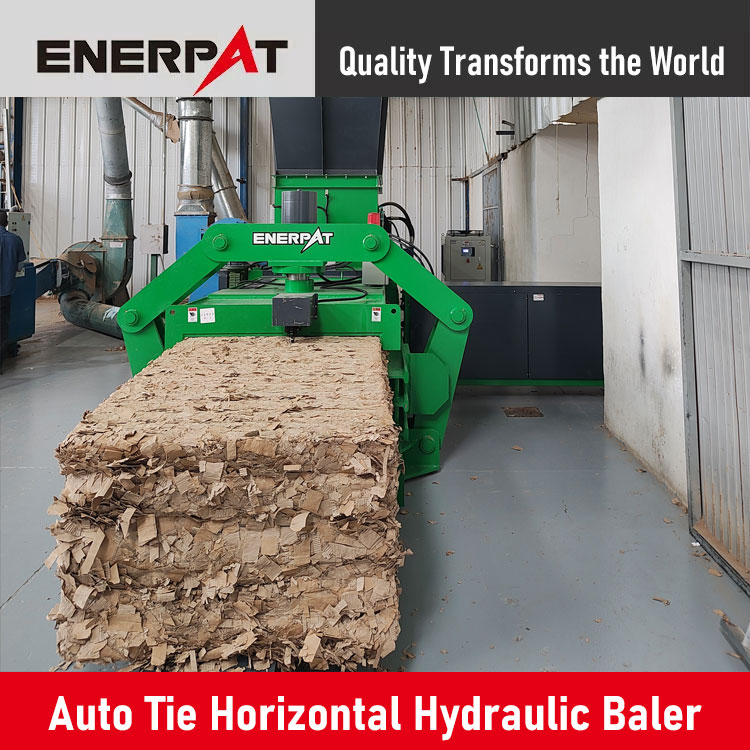

ENERPAT HBA80-11075 Auto-Tie Horizontal Waste Baler

The HBA80-11075 Auto-Tie Horizontal Waste Baler combines hydraulic compression, three-way bale formation, and automatic strapping in one system. It is suited to recycling operations that need automated baling but do not require a larger, higher-powered machine.

During the baling cycle, the hydraulic system compresses the material from multiple directions. Once the preset bale length is reached, the automatic strapping system secures the finished bale without requiring the operator to tie it manually. This keeps the baling process moving while reducing repetitive handling work.

Composition and Structure

Product Applications

Main applications: industrial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films, woven bags, etc.

Product Details

6 Key Core Advantages

80-Ton Pressing Force for Regular Recycling Operations

The HBA80-11075 delivers 80 tons of pressing force and is powered by a 37 kW motor. The hydraulic system provides the force needed to compact recyclable materials into manageable bales for subsequent handling, storage, or transportation.
Three-Way Hydraulic Compression

The baler uses three hydraulic cylinders working together with the main compression cylinder during the baling cycle. Compression from multiple directions helps consolidate loose material and maintain a firm, uniform bale shape.
Automatic Bale Tying

The German automatic strapping system secures the bale after the preset length is reached. Operators do not need to stop the machine and manually tie each bale, reducing repetitive labor and keeping the finished bales more consistent.
1100 × 750 mm Bale Cross-Section

The 1100 × 750 mm bale format provides a consistent finished bale size. For recycling facilities, standardized bale dimensions make stacking and material handling easier while allowing finished bales to be arranged more efficiently in storage and transport areas.
Hydraulic Cooling for Extended Operation

The hydraulic system uses a European-style configuration with internationally sourced hydraulic components, combined with an air-cooled hydraulic cooling system. The cooling arrangement is suited to extended operating schedules, including applications requiring 24-hour operation, helping maintain stable hydraulic performance during continuous production.
Siemens PLC and Schneider Electrical Components

The HBA80-11075 uses a Siemens PLC and Schneider electrical components for machine control. Combined with a CE-oriented safety design, the system provides operators with a straightforward interface for managing the automatic baling cycle and monitoring daily operation.

SUBMIT

Design & Product Story

For a recycling facility, choosing a baler is not simply a matter of selecting the highest pressing force available. The machine also needs to match the site's material flow, daily throughput, available space, and level of automation.
The HBA80-11075 Auto-Tie Horizontal Waste Baler is built for recyclers that need automatic compression and tying without stepping up to a larger industrial baler. Its 80-ton pressing force, 37 kW motor, and 1100 × 750 mm bale format provide a balanced setup for everyday recycling applications.
The three-way hydraulic system works throughout the compression cycle to consolidate the material, while the automatic tying unit secures the bale once it reaches the preset length. The result is a baling process with fewer manual steps—from loading and compression through to finished bale production.
For facilities looking to replace manual tying or upgrade from a semi-automatic baling process, the HBA80-11075 offers a straightforward route to greater automation without unnecessarily increasing machine size or power requirements.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio and California ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Auto-Tie Horizontal Compactor.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Auto-Tie Horizontal Waste Baler is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Auto-Tie Horizontal Cardboard Baler running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

01. Can ENERPAT Test My Material Before I Buy?

Yes. ENERPAT provides sample testing and reports before equipment selection. Material samples, photos, videos and specifications can be reviewed to help determine the right machine configuration.
02. Is the HBA80-11075 Auto-Tie Horizontal Waste Baler Available in the U.S.?

ENERPAT maintains U.S. facilities and warehouse resources for North American customers. Selected models may be available from U.S. stock, depending on current inventory and configuration.
03. What Warranty Does ENERPAT Provide?

ENERPAT provides a 1-year complete-machine warranty and a 5-year hydraulic-cylinder warranty. The equipment also follows a CE-oriented safety design.
04. Does ENERPAT Provide Installation and Operator Training?

Yes. ENERPAT provides installation, commissioning and operator training to help customers start the machine and understand routine operation and maintenance.
05. How Easy Is It to Replace Components Later?

ENERPAT uses internationally recognized components and provides spare-parts support. Standardized components make later procurement and replacement more convenient and can help reduce maintenance-related downtime.

Technical Data Sheet

Model	HBA80-11075
Press Force (tons)	80
Motor Power (kw)	37
Bale Size	1100 x 750 x L mm 43.31 × 29.53 × L in
Bale Weight (OCC)	600-900 kg 1322.77-1984.16 lb
Machine Size	6880 × 3850 × 3550 mm 270.87×143.31×137.80 in
