Fully Automatic Horizontal Baler for Plastic Bottle

Our fully automatic horizontal balers are an automated version of our horizontal balers, able to process high volumes of recyclable materials such as paper, cardboard and plastics, ideal for companies with a large amount of daily waste to handle. Materials are pressed into stable, high-density bales by our fully automatic balers, which are easy and safe to stack, requiring less storage space. The length and weight of bales is selectable, with bales being tied automatically when the selected length is reached. Our fully automatic horizontal balers are CE marked and designed with customer requirements in mind, making your waste management a simple and cost efficient process.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HBA120-110130

  • ENERPAT

Product Overview

Auto Tie Horizontal Baler For Plastic Bottle

HBA-Series horizontal baling presses has been designed for its high-performance, power, and durability. The bale dimensions of the HBA series horizontal baling press offers optimal transport costs and is designed for high speed and power. This machine can process OCC, ONP, paper and solid waste MSW (Municipal Solid Waste), waste with a high compression.


Our auto tie  horizontal balers are an automated version of our horizontal balers, able to process high volumes of recyclable materials such as paper, cardboard and plastics, ideal for companies with a large amount of daily waste to handle.

Materials are pressed into stable, high-density bales by our fully automatic balers, which are easy and safe to stack, requiring less storage space. The length and weight of bales is selectable, with bales being tied automatically when the selected length is reached.

Our fully automatic horizontal balers are CE marked and designed with customer requirements in mind, making your waste management a simple and cost efficient process.


Enerpat Direct supply a full range of auto tie  horizontal balers to handle all the standard materials such as cardboard, soft plastics (shrink-wrap, plastic sheeting), PET bottles as well as hard plastics, aluminium and steel cans and even difficult materials such as RDF (Refuse Derived Fuel).

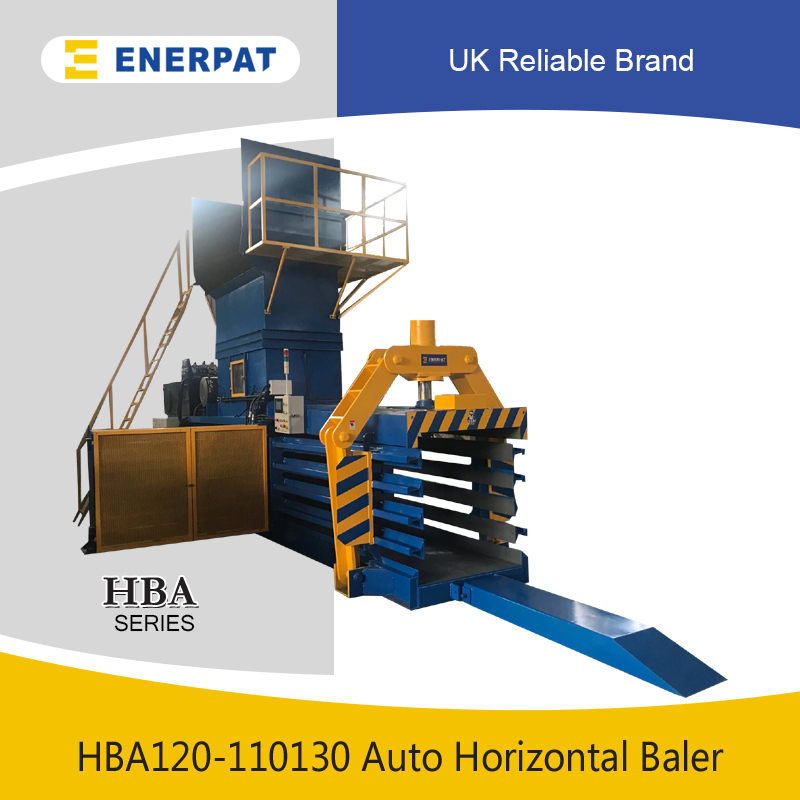

HBA120-110130 Official Photo

HBA120-110130

Conveyor

1

  • with feeding conveyor to fill the baler evenly and continuously

  • we install conveyor for all our auto horizontal baler

  • the thickness of the steel plate for the conveyor at least 3mm

  • all conveyors are made by enerpat


Special Press Ram

2

  • with E-ECO special press ram to compact bulky materials



Control Panel

3


  • Wide Touch Screen with High Resolution. Within the control unit is the capability of selecting the correct settings through the programmable logistic controller. You therefore can easily perform any fine-tuning, making the machine optimized to work perfectly for your requirements.



 Independent Cooling System

QQ图片20180608095001

  • we supply 3 hydraulic system cooling choice

  • (1) Industrial cooling machine,like our Home Air Conditioning,we can set one ideal temperature for the hydraulic system,once the temperature exceed the setted data,the machine will Alarm for warnings.which system also support 24 hours running.

  • (2) Electrical cooling fun

  • (3) Water cooling machine


Tying Bale System 1

QQ图片20180608140232

  • we buy the cutting blades for the auto tying bale system from Germany directly which can cut the steel baling wire fast in seconds. also the good quality blades material make sure which keeps for long time,save the spare parts cost for our customers.


Tying Bale System 2

QQ图片20180608140239

  • The auto tying bale system designed by Mr Mark engineer,who research the auto tying bale system for more than 20 years for USA and Europe baler company.also the SKF bearing which support the relibale running of this device.


Top Press Ram

QQ图片20180608140243

  • Unique Bale Density Control system automatically and continuously regulates the tensioning force exerted on the baled material. For "Slick materials", the Bale Density control system creates greater squeezing force to achieve the highest bale density possible. No adjustments are required.


More Models,Your Choice

Model


Bale Size
(mm
(WxHxL)

Bale Weight
(Cardboard)
(kg

Motor Power
(kw


Output
(t/h


Machine Size
(m)

(LxWxH)

HBA-40-7272 720x720x500~1500 200~350 22+1.5+2.2 1-3 6.3x3.0x2.1
HBA-60-7585 750x850x500~1500 300~450 30+1.5+2.2 2-4 6.8x3.0x2.15
HBA-80-11075 1100x750x500~1500 400~600 37+1.5+2.2 4-8 8.0x3.7x3.8
HBA-100-11075 1100x750x500~1800 600~800 45+1.5+2.2 6-9 10x3.7x3.8
HBA-100-110110 1100x1100x500~1800 800~1000 45+1.5+2.2 7-12 10x3.7x4.6
HBA-120-110130 1100x1300x500~1800 900~1100 55+1.5+2.2 9-13 11x3.7x4.9
HBA-150-110130 1100x1300x500~1800 1100~1300 45x2+1.5+2.2 14-18 11x3.7x4.9
HBA-180-110130 1100x1300x500~1800 1200~1400 55x2+1.5+2.2 17-25 11.6x3.7x5.5
HBA-200-110130 1100x1300x500~1800 1400~1600 55x2+1.5+2.2 17-25 11.6x3.7x5.5


Technical Data Sheet

Model


Bale Size
(mm
(WxHxL)

Bale Weight
(Cardboard)
(kg

Motor Power
(kw


Output
(t/h


Machine Size
(m)

(LxWxH)

HBA-40-7272 720x720x500~1500 200~350 22+1.5+2.2 1-3  6.3x3.0x2.1
HBA-60-7585 750x850x500~1500 300~450 30+1.5+2.2 2-4  6.8x3.0x2.15
HBA-80-11075 1100x750x500~1500 400~600 37+1.5+2.2 4-8  8.0x3.7x3.8
HBA-100-11075 1100x750x500~1800 600~800 45+1.5+2.2 6-9  10x3.7x3.8
HBA-100-110110 1100x1100x500~1800 800~1000 45+1.5+2.2 7-12  10x3.7x4.6
HBA-120-110130 1100x1300x500~1800 900~1100 55+1.5+2.2 9-13 11x3.7x4.9
HBA-150-110130 1100x1300x500~1800 1100~1300 45+1.5+2.2 14-18  11x3.7x4.9
HBA-180-110130 1100x1300x500~1800 1200~1400 55+1.5+2.2 17-25 11.6x3.7x5.5
HBA-200-110130 1100x1300x500~1800 1400~1600 55+1.5+2.2 17-25 11.6x3.7x5.5




Waste And End Products

Scrap And Bales

Layout

Enerpat Automatic Horizontal Baler Layout
