HBA60-11075 Automatic Horizontal Baling Press Machine

HBA60-11075 Automatic Horizontal Baling Press Machine

The ENERPAT HBA60-11075 Automatic Horizontal Baling Press Machine is a 60-ton automatic horizontal baler powered by a 22 kW motor, with a 1100 × 750 mm bale cross-section. It is built for recycling operations that need automated compression and tying without moving to a larger-capacity baling system.
For customers in the U.S., ENERPAT also provides local service and support through its Ohio operation, facility, and warehouse resources.


Availability:



Inquire

Model:
HBA
Brand:
ENERPAT

Product Video

Product Overview

HBA60-11075 Automatic Horizontal Baling Press Machine

The HBA60-11075 Automatic Horizontal Baling Press Machine combines hydraulic compression, three-way bale formation, and automatic strapping in a single horizontal baling system.

With a 60-ton pressing force and 1100 × 750 mm bale cross-section, the machine is suited to recycling facilities handling regular volumes of recyclable materials while looking to reduce manual tying and improve bale consistency.

Composition and Structure

Product Applications

Main applications: industrial waste, domestic waste, cardboard, cartons, waste paper, straw, crushed documents, palm, PET bottles, HDPE bottles, plastic films, woven bags, etc.

Product Details

6 Key Core Advantages

60-Ton Hydraulic Compression

Powered by a 22 kW motor, the HBA60-11075 delivers 60 tons of pressing force for compacting recyclable materials into dense, uniform bales. The hydraulic system provides stable compression throughout the baling cycle.
Three-Way Hydraulic Compression

The HBA60-11075 uses three hydraulic cylinders working with the main compression cylinder during the baling cycle. The linked compression action applies force from multiple directions, helping form tighter and more evenly shaped bales, particularly when processing loose recyclable materials.

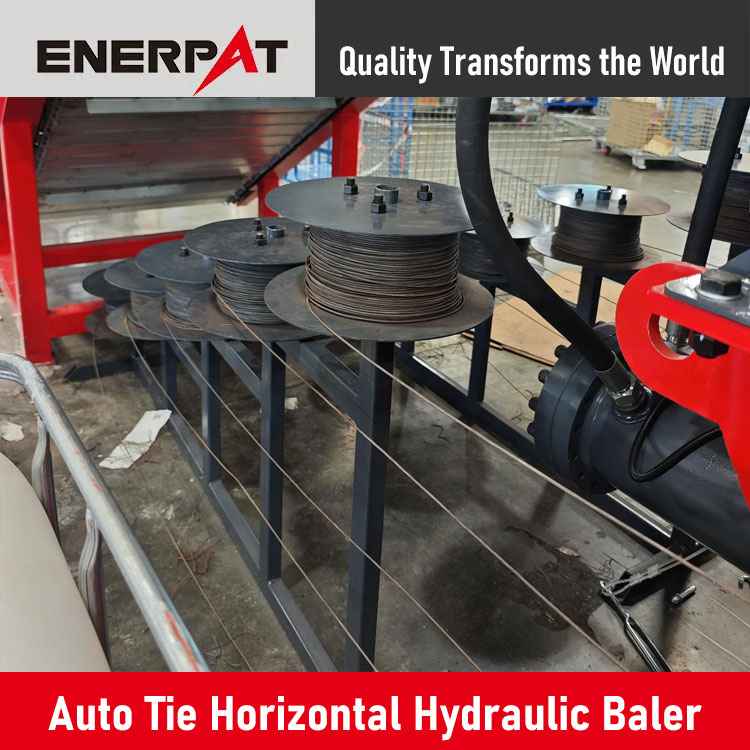

Automatic Strapping

Once the preset bale length is reached, the automatic strapping system completes the bale without requiring the operator to tie it manually. This reduces repetitive labor and keeps the discharge format consistent from bale to bale.
1100 × 750 mm Bale Cross-Section

The machine produces bales with a 1100 × 750 mm cross-section, giving operators a consistent bale format for handling, stacking, storage, and transportation. Standardized bale dimensions can also make downstream material handling more predictable.
Hydraulic Cooling for Continuous Operation

The hydraulic system incorporates a European-style configuration and air-cooled hydraulic system for demanding operating conditions. The cooling arrangement is intended for extended working periods, including applications requiring 24-hour operation, helping control hydraulic temperature during continuous production.
Siemens PLC and Schneider Electrical Components

The control system uses a Siemens PLC and Schneider main electrical components for automated machine operation and monitoring. The electrical configuration follows a CE-oriented design, providing operators with a clear control interface and supporting reliable day-to-day operation.

SUBMIT

For operations with moderate material volumes, selecting a machine that matches the actual workload can be more practical than installing an oversized system.
The HBA60-11075 Automatic Horizontal Baling Press Machine is built around this requirement. Its 60-ton pressing force and 1100 × 750 mm bale cross-section provide a compact automatic baling configuration, while the automatic strapping system removes the need for operators to manually tie each finished bale.
Its hydraulic cooling system supports extended operation, while the Siemens PLC and Schneider electrical components provide a familiar industrial control platform.
For recycling facilities looking to move from manual or semi-automatic baling to a more streamlined horizontal baling process, the ENERPAT HBA60-11075 offers a practical balance between automation, machine size, and processing requirements.

Get A Quote

Why Choose Us?

Strategic facilities and warehouses in Ohio and California ensure rapid regional equipment shipping, local technical consultations, and dependable component availability for your Auto-Tie Horizontal Compactor.

Local US Warehouses
Standard configurations and key spare parts are kept directly in US inventory, eliminating long manufacturing lead times and ensuring your Auto-Tie Horizontal Waste Baler is deployed with minimal delay.

Ready in Stock for Fast Shipping
Engineered with UK technology standards and high-grade industrial components, the equipment is 100% CE and ISO certified to guarantee total operator safety and durable performance for high-volume scrap processing.

CE & ISO Certified Quality
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your Automatic Horizontal Baling Press Machine running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

01. Can ENERPAT Test My Material Before I Buy?

Yes. ENERPAT provides sample testing and reports before equipment selection. Customers can submit material samples, photos, videos or specifications for evaluation.
02. Can I Check U.S. Stock Before Ordering?

Yes. ENERPAT provides U.S.-based support and maintains U.S. facility and warehouse resources. Selected models may be available from U.S. inventory, depending on current stock and configuration.
03. What Warranty Does ENERPAT Provide?

ENERPAT provides a 1-year warranty for the complete machine and a 5-year warranty for the hydraulic cylinder. The equipment also follows European CE safety requirements.
04. Does ENERPAT Provide Installation and Operator Training?

Yes. ENERPAT provides installation, commissioning and operator training so customers can start the equipment properly and understand routine operation and maintenance.
05. Are Replacement Parts Easy to Source?

ENERPAT uses internationally recognized components and provides spare-parts support. Using standard international-brand components helps simplify future procurement and replacement, which can reduce waiting time when maintenance is required.

Technical Data Sheet

Model	HBA60-11075
Press Force (tons)	60
Motor Power (kw)	22
Bale Size	720 × 720 × L mm 28.35 × 28.35 × L in
Bale Weight (OCC)	200-500 kg 440.92-1102.31 lb
Machine Size	6770 × 3050 × 3580 mm 266.54×119.80×149.61 in
