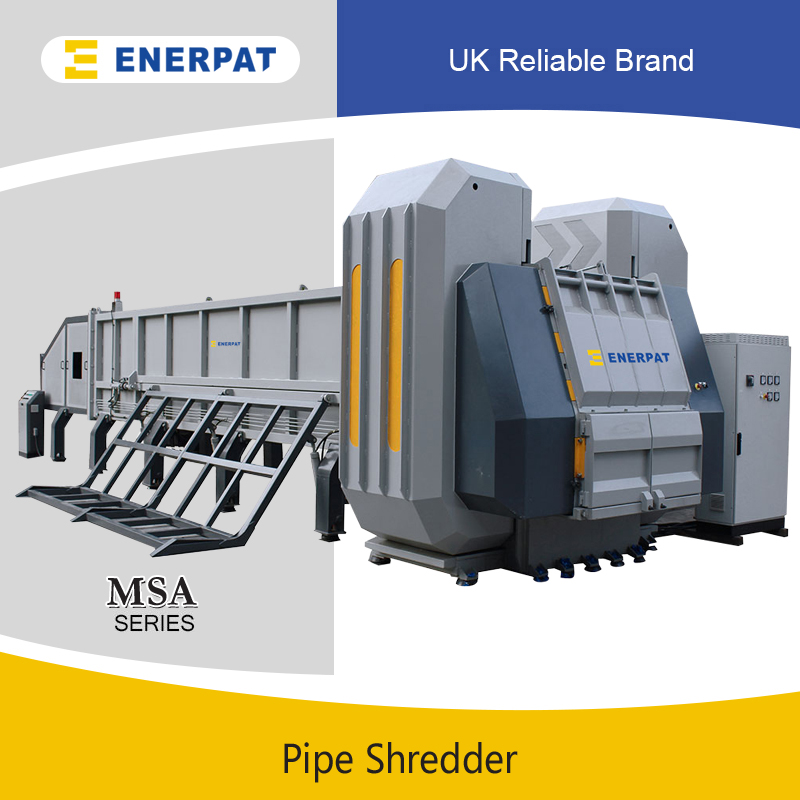

Quality Pipe Shredder

Pipe Shredders are the ideal size reduction solution for large diameter pipe and rolled feed stocks. The multi-rotor design maximizes the cutting efficiency and reduces current turbulence. pipe Shredders are also suitable for thin walled pipe shredding.
Availability:
Quantity:
  • MSA-J
  • ENERPAT

Product Description

Quality Pipe Shredder

Pipe Shredders are the ideal size reduction solution for large diameter pipe and rolled feed stocks. The multi-rotor design maximizes the cutting efficiency and reduces current turbulence. pipe Shredders are also suitable for thin walled pipe shredding.



Official Photos

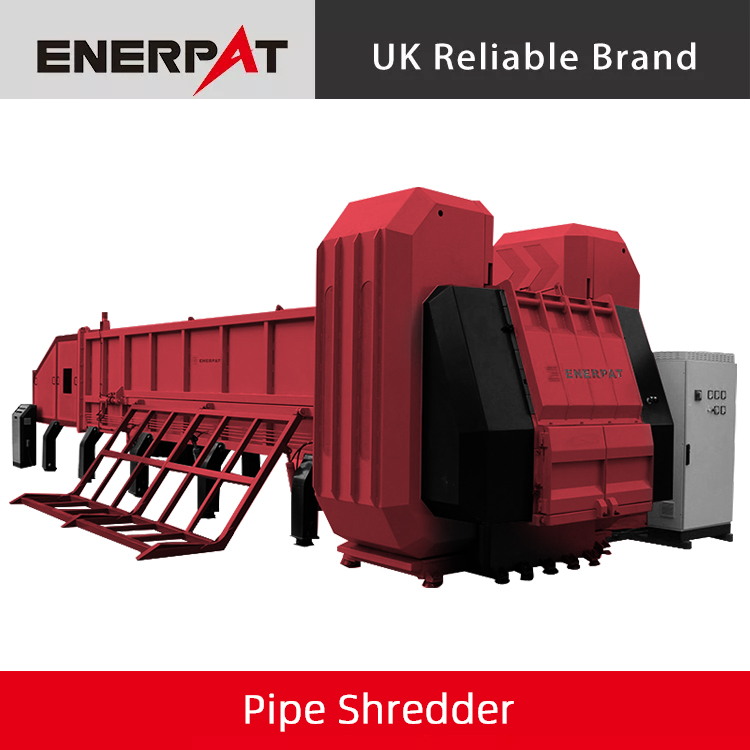

MSA-F600-2

Features

  • Multi-rotor design - the number of rotors can be specified according to the material size

  • High shear cutting between rotor and counter knives, suitable for thin wall pipe shredding

  • Shock Absorbing Gearboxes reduces Stress on Drive Components

  • Long Life Counter Knives can be adjusted to maintain cutter clearance

  • Segmented loading chamber floor with Brass Guides

  • High strength hydraulic cylinder with reinforced support frame, adjustable ram speed

  • Large feed with hydraulic tipper for optimized material loading

  • Feed chamber auto-lock system to ensure safety

  • Stand Alone Electrical Control Panel with Siemens PLC Control System

  • Tested, Approved and Certified to the applicable CE safety standards



Technical Data Sheet

ModelMSA-J800MSA-J1200
Dimension (L x W x H) (mm)7200 x 2340 x 193012400 × 4270 × 3130
Discharge Height (mm)500500
Rotor Operation Length (mm)8901290
Number of Rotors (pcs)24
Rotation Speed (RPM)8080
Pipe Max Diamater (mm)8001200
Screen Size (mm)Φ60Φ60
Number of Rotor Knives60150
Number of Counter Knives23
Main Drive (kW)45+3045+3x30
Hydraulic Power Pack (kW)1118.5
Weight (kg)Approx 15000Approx 24500


Video

Blades

blades

Details

Enerpat Single Shaft Shredder Details
